Interface definition

Interface definition of the whole machine​

AIO-1808-JD4 provides rich interfaces, including :

  • Power interface,
  • 1 x USB3.0(host/device), 6 x USB2.0 (interface 1, seat 5),
  • Ethernet,
  • double an LVDS interface screen,
  • TP touch interface,
  • screen voltage jump line interface,
  • backlight interface,
  • WIFI antenna,
  • bluetooth antenna,
  • power button,
  • MIC interface,
  • 3.5 mm headphone jack,
  • 12 v power supply interface,
  • TF card slot, SIM card slot,
  • interface extension buttons,
  • speaker interface,
  • recovery button,
  • debugging serial port,
  • industrial serial port (RS485,RS232,2TTL),
  • RTC power interface,
  • MIPI screen interface (dual LVDS multiplex),

The details are as follows:

_images/interface.png

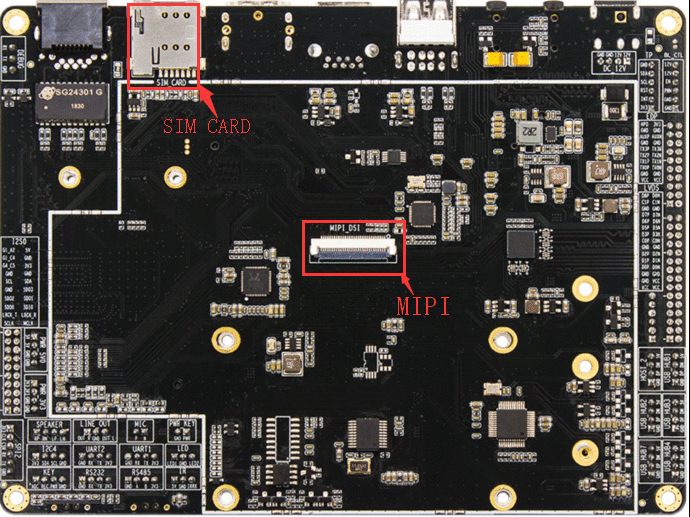

in addition, customers can also customize the boards of relevant functional interfaces as required, as shown in the figure below:

_images/back.png

Special interface​

Software&Hardware: Not support LINE_IN/LINE_OUT, USB_HOST2, Only support SPEAKER One channel (Baseboard JD4-v1.0)
