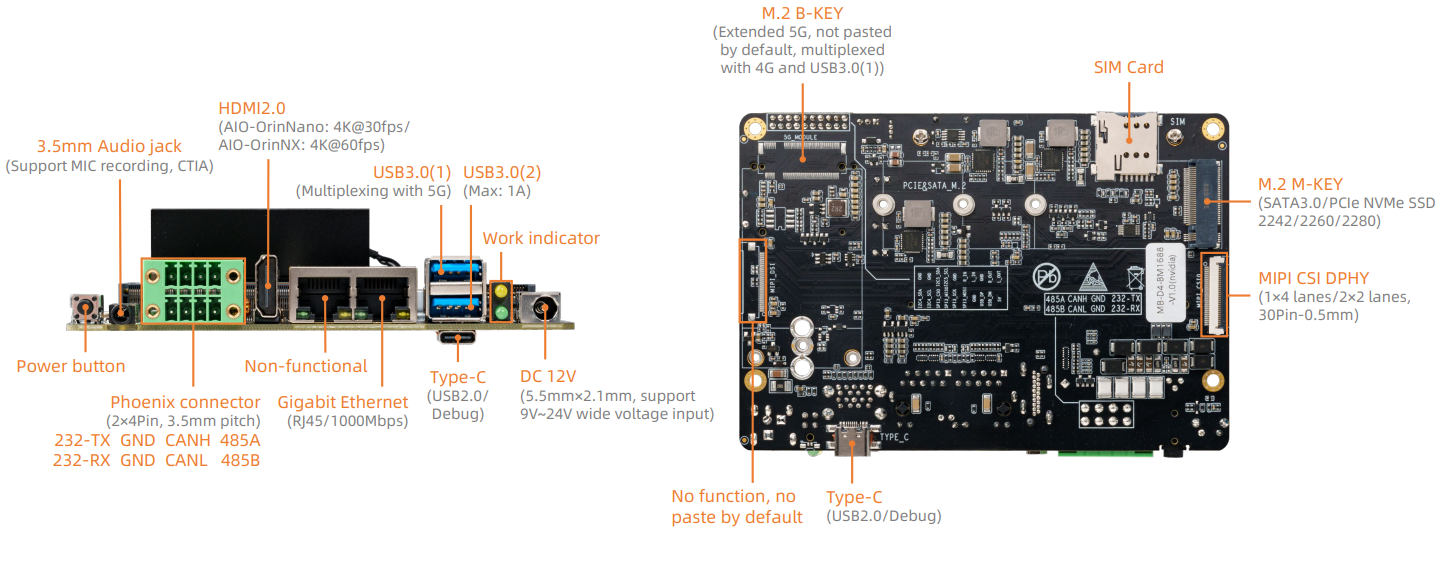

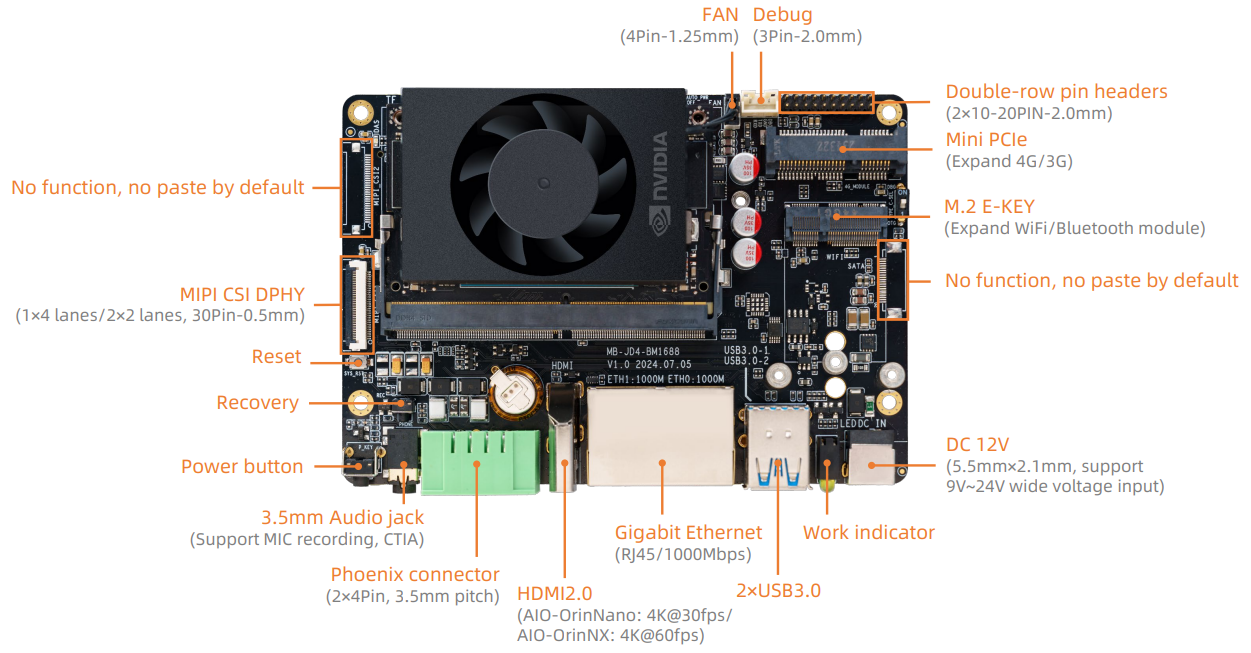

Interface Introduction

The AIO-Orin Nano interface is rich and mainly includes:

  • 12V power interface (5.5*2.5mm)
  • POWER button
  • RS232
  • RS485
  • CAN
  • Gigabit Ethernet x 1
  • USB 3.0 x 2
  • HDMI
  • SIM card slot
  • BT antenna
  • WIFI antennas x 2
  • 4G antenna
  • Headphone
  • NVME interface (PCIE3.0 x 1)
  • Type-C (USB2.0, but defaults to debugging serial port)
  • Power indicator light

_images/AIO-Orin-interface-en-01.png _images/AIO-Orin-interface-en-02.png
