2. Serial Port DeBug

2.1. Hardware Connection​

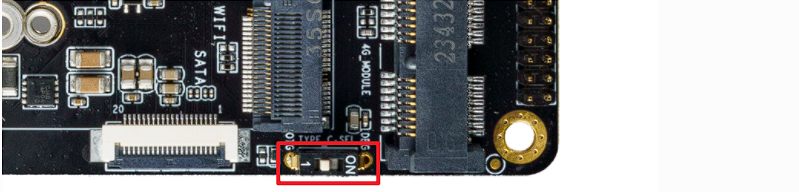

onnect the device “Typec” and the computer. AIO-3588JD4 Typec has two functions (serial port/OTG upgrade) controlled by the dip switch. Please turn the dip switch to “DBG” when debug.

_images/otg.png _images/button.png

2.2. Serial Parameters​

  • Baud rate: 1500000
  • Data bit: 8
  • Stop bit: 1
  • Parity check: none
  • Flow control: none
