LCD
Introduction

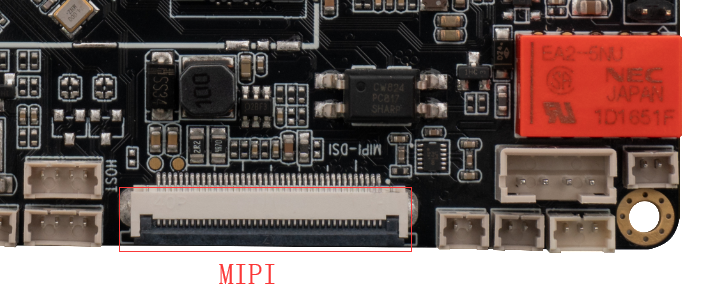

Face-RK3399 supports MIPI screen, The interface corresponds to the position of the board as shown in the figure below:
Configuration
- DTS
After adding MIPI hardware interface, user should configure the display-timings of MIPI screen in kernel/arch/arm64/boot/dts/rockchip/firefly-face-mipi8.dts:
display-timings {
native-mode = <&timing0>;
timing0: timing0 {
clock-frequency = <67000000>;//<80000000>;
hactive = <800>;//<768>;
vactive = <1280>;
hsync-len = <20>; //20, 50
hback-porch = <20>; //50, 56
hfront-porch = <32>;//50, 30
vsync-len = <4>;
vback-porch = <4>;
vfront-porch = <8>;
hsync-active = <0>;
vsync-active = <0>;
de-active = <0>;
pixelclk-active = <0>;
};
};
};
- Kernel
In kernel/drivers/gpu/drm/panel/panel-simple.c, can see function panel_simple_probe initializes the funciton of get time sequence.
static int panel_simple_probe(struct device *dev, const struct panel_desc *desc){
···
panel->base.funcs = &panel_simple_funcs;
···
}
panel_simple_get_timings is defined in kernel/drivers/gpu/drm/panel/panel-simple.c:
static int panel_simple_get_timings(struct drm_panel *panel,unsigned int num_timings,struct display_timing *timings)
{
struct panel_simple *p = to_panel_simple(panel);
unsigned int i;
if (!p->desc)
return 0;
if (p->desc->num_timings < num_timings)
num_timings = p->desc->num_timings;
if (timings)
for (i = 0; i < num_timings; i++)
timings[i] = p->desc->timings[i];
return p->desc->num_timings;
}
Mipi screen needs to send initialization command to work after power up. You can see the initialization command list in /kernel/arch/arm64/boot/dts/rockchip/firefly-face-mipi8.dts:
&mipi_dsi {
status = "okay";
...
panel-init-sequence = [
05 20 01 29
05 96 01 11
...
];
panel-exit-sequence = [
05 05 01 28
05 78 01 10
];
...
};
The format of the cammands can refer to the following file: Rockchip DRM Panel Porting Guide.pdf
The commands are sent in kernel/drivers/gpu/drm/panel/panel-simple.c
static int panel_simple_enable(struct drm_panel *panel)
{
struct panel_simple *p = to_panel_simple(panel);
int err;
if (p->enabled)
return 0;
DBG("enter\n");
if (p->on_cmds) {
err = panel_simple_dsi_send_cmds(p, p->on_cmds);
if (err)
dev_err(p->dev, "failed to send on cmds\n");
}
if (p->desc && p->desc->delay.enable) {
DBG("p->desc->delay.enable=%d\n", p->desc->delay.enable);
msleep(p->desc->delay.enable);
}
if (p->backlight) {
DBG("open backlight\n");
p->backlight->props.power = FB_BLANK_UNBLANK;
backlight_update_status(p->backlight);
}
p->enabled = true;
return 0;
}
- U-Boot
The commands are sent in u-boot/drivers/video/rockchip-dw-mipi-dsi.c
static int rockchip_dw_mipi_dsi_enable(struct display_state *state)
{
struct connector_state *conn_state = &state->conn_state;
struct crtc_state *crtc_state = &state->crtc_state;
const struct rockchip_connector *connector = conn_state->connector;
const struct dw_mipi_dsi_plat_data *pdata = connector->data;
struct dw_mipi_dsi *dsi = conn_state->private;
u32 val;
DBG("enter\n");
dw_mipi_dsi_set_mode(dsi, DW_MIPI_DSI_VID_MODE);
dsi_write(dsi, DSI_MODE_CFG, ENABLE_CMD_MODE);
dw_mipi_dsi_set_mode(dsi, DW_MIPI_DSI_VID_MODE);
if (!pdata->has_vop_sel)
return 0;
if (pdata->grf_switch_reg) {
if (crtc_state->crtc_id)
val = pdata->dsi0_en_bit | (pdata->dsi0_en_bit << 16);
else
val = pdata->dsi0_en_bit << 16;
writel(val, RKIO_GRF_PHYS + pdata->grf_switch_reg);
}
debug("vop %s output to dsi0\n", (crtc_state->crtc_id) ? "LIT" : "BIG");
//rockchip_dw_mipi_dsi_read_allregs(dsi);
return 0;
}
EDP lcd
Face-rk3399 V2.0 support EDP display output refer to interface definition
To config Timing dts file，kernel/arch/arm64/boot/dts/rockchip/rk3399-firefly-face-edp15.dts：
display-timings {
native-mode = <&timing0>;
timing0: timing0 {
clock-frequency = <140000000>;
hactive = <1920>;
vactive = <1080>;
hfront-porch = <100>;
hsync-len = <40>;
hback-porch = <40>;
vfront-porch = <10>;
vsync-len = <10>;
vback-porch = <10>;
hsync-active = <0>;
vsync-active = <0>;
de-active = <0>;
pixelclk-active = <0>;
};
};
The power control gpio：
lcd_en:gpios = <&gpio3 26 GPIO_ACTIVE_HIGH>;
