Interface

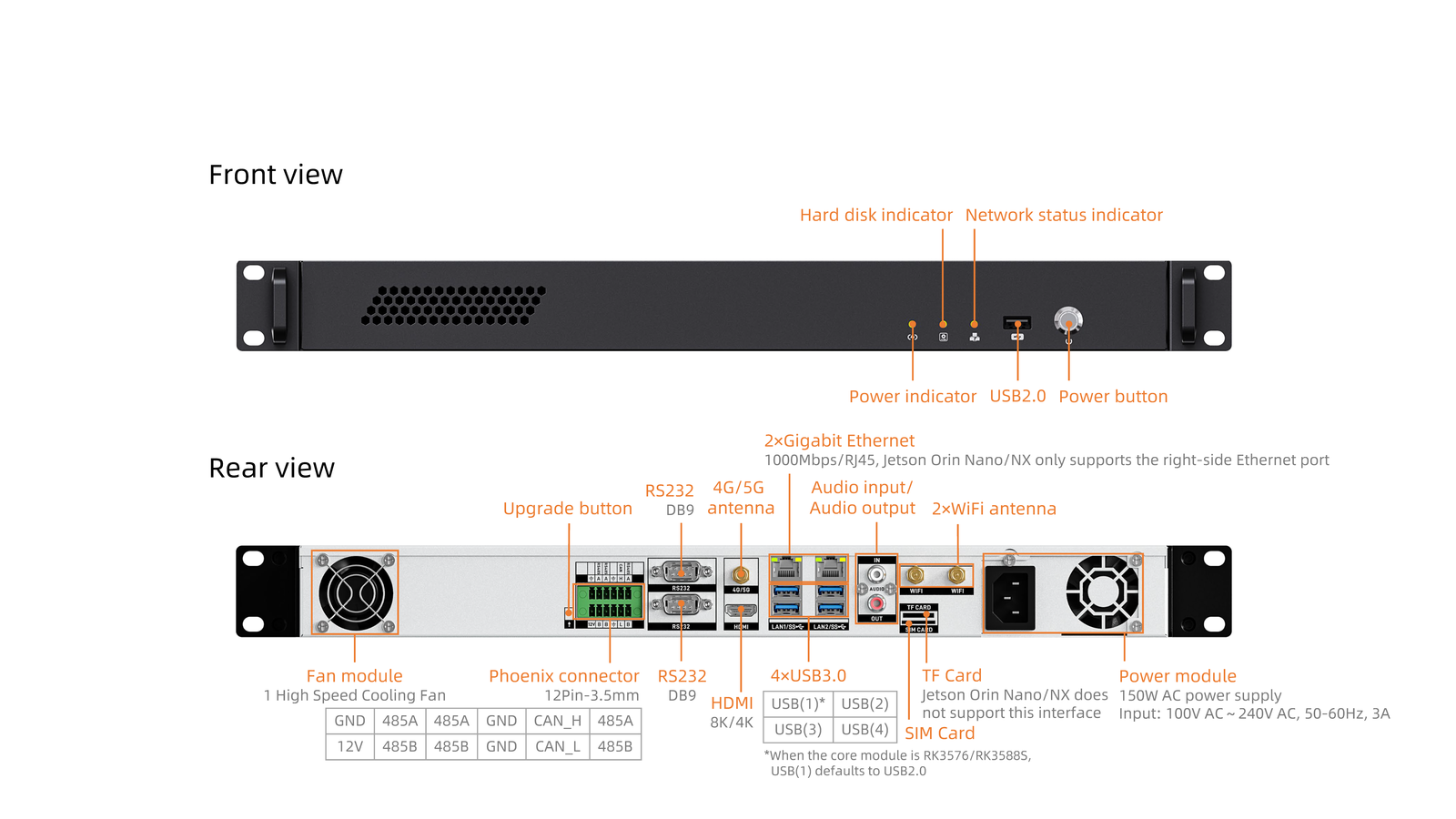

Enclosure​

_images/interface-enclosure-en.png

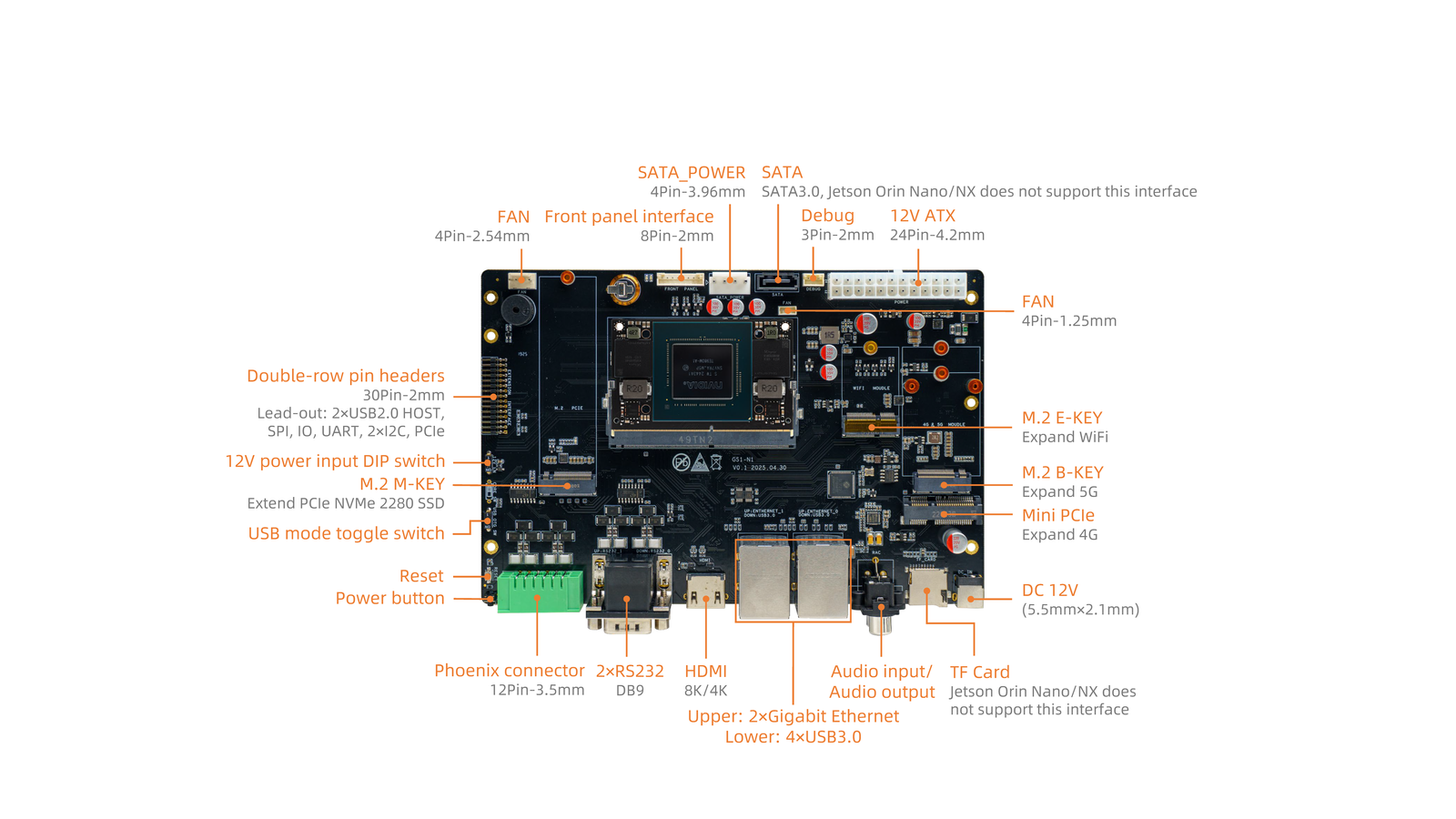

Board​

_images/interface-mainboard-en.png

Main modWhen only installing the main mod
Core-3588SJD4-AI1. SATA，PCIe WiFi(M.2) : Choose one of two
Core-3576JD41. SATA, PCIe WiFi(M.2) : Choose one of two
Jetson Orin Nano Jetson Orin NX1. PCIe0, PCIe WiFi(M.2) : Choose one of two 2. PCIe1: available 3. TF Card, management network port: not available 4. Other PCIe/SATA are not available
