Main Module​

Upgrade the firmware via SD card​

Introduction​

This article mainly introduced how to upgrade the firmware on the host to the SD card, which needs to be selected according to the host operating system.

Preparatory Tools​

Operation Steps​

  • Insert microSD card into USB card reader and then into USB port of host computer
  • Run SD_Firmware_Tool, check the “Upgrade Firmware” box and select the correct removable disk device
  • Choose firmware we want to upgrade into the GS1-N2
  • Click button Create to make it and wait until it is finshed

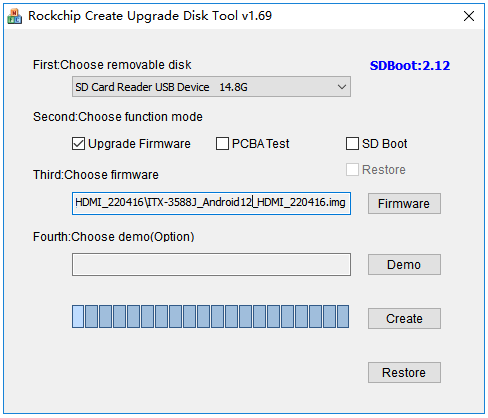

_images/rockchip_upgrade_firmware_sd_tool.png

  • Remove the microSD card, insert it into the microSD card slot of the motherboard, power on the board, it will start upgrading automatically
  • After the upgrade, remove the microSD card and restart the motherboard automatically to complete the whole process of firmware update
