3. Camera Module

3.1. CAM-8MS1M Monocular camera​

3.1.1. Product Parameter​

  • Brand：SV
  • ISP：xc7160
  • Sensor: sc8238
  • Interface: MIPI
  • Pixels: 800W(Currently only supports up to 1080P, 4K is still being adapted)

3.1.2. Reference firmware​

Public Fimware support CAM-8MS1M camera module by default. If it doesn’t work, please update the latest firmware.

Download link

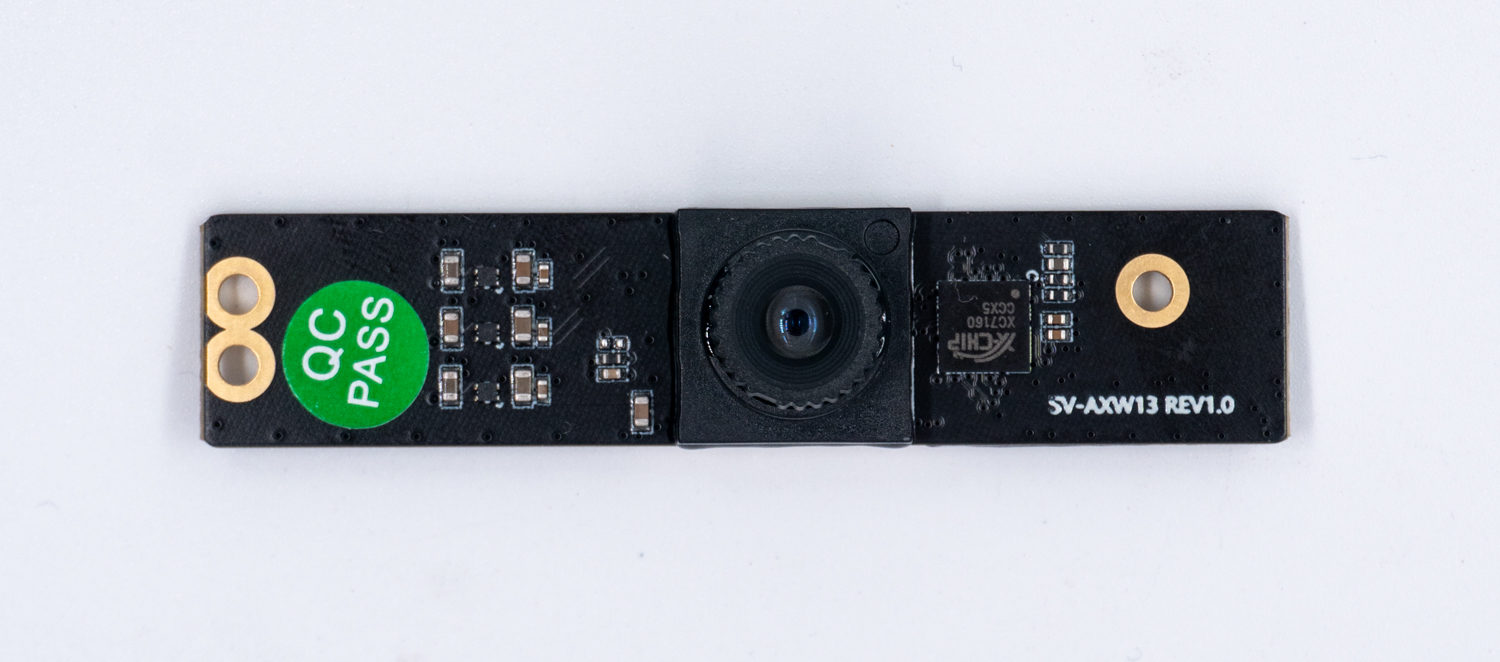

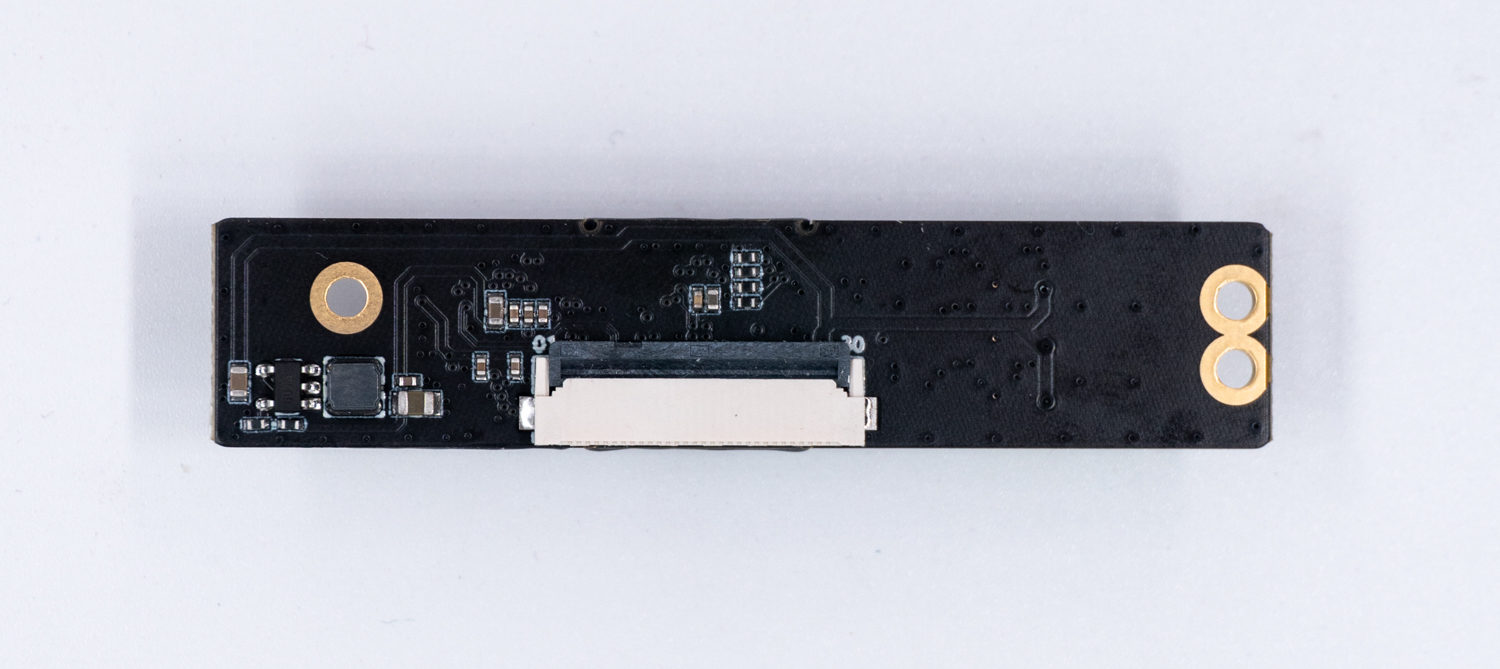

3.1.3. Physical map​

_images/cam_8ms1m_front.jpg _images/cam_8ms1m_back.jpg

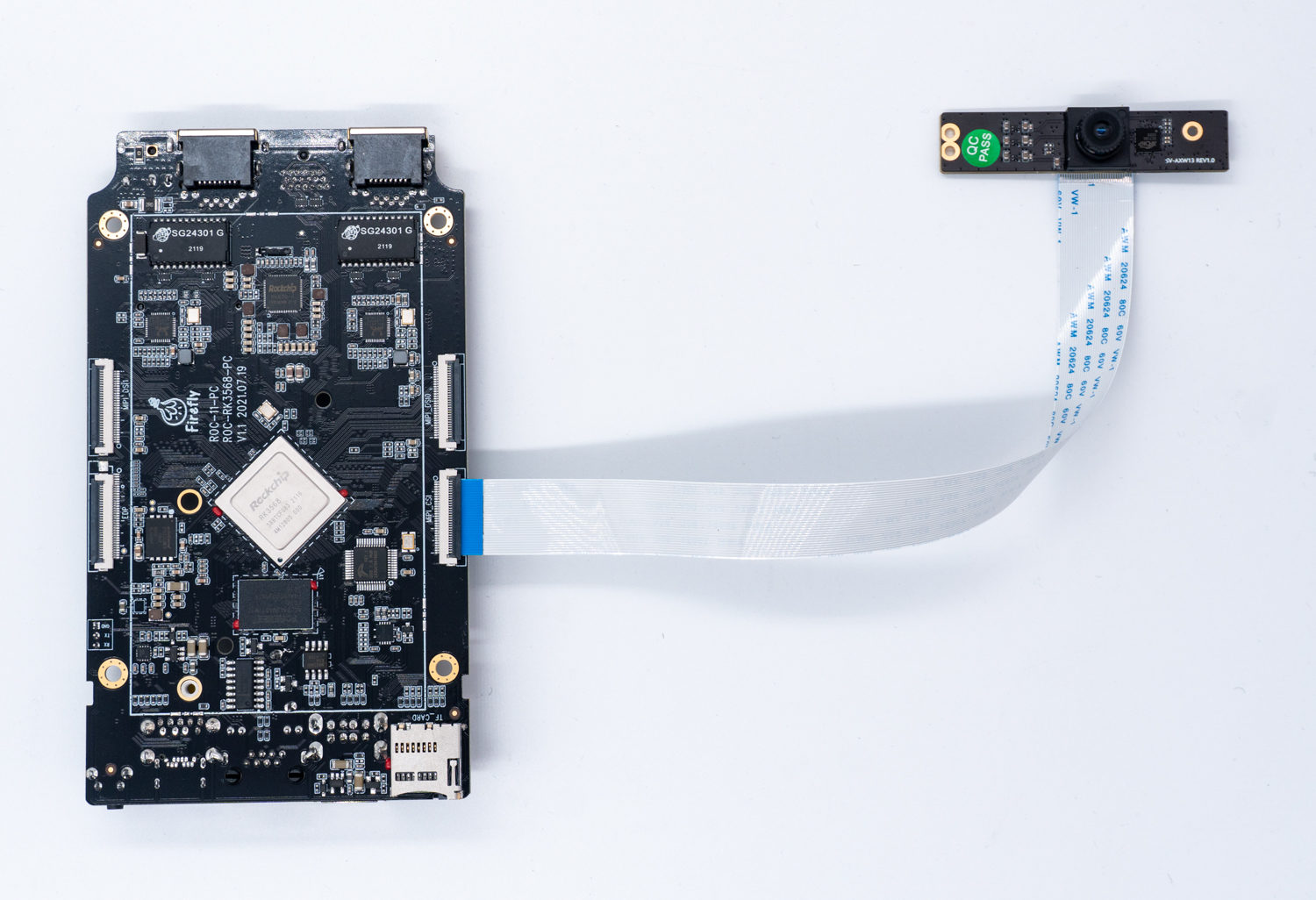

3.1.4. Connection method​

_images/roc_rk3568_pc_8ms1m.jpg

3.1.5. Real pictures​

_images/camera_8ms1m_shoot.jpg

3.2. CAM-2MS2MF Binocular camera module​

3.2.1. Product Parameter​

  • Brand：SV
  • Sensor: gc2053(IR)/gc2093(RGB)
  • Interface: MIPI
  • Pixels: 200W

3.2.2. Reference firmware​

CAM-2MS2MF Binocular camera module Android11 Firmware Download.

GoogleDriver Download

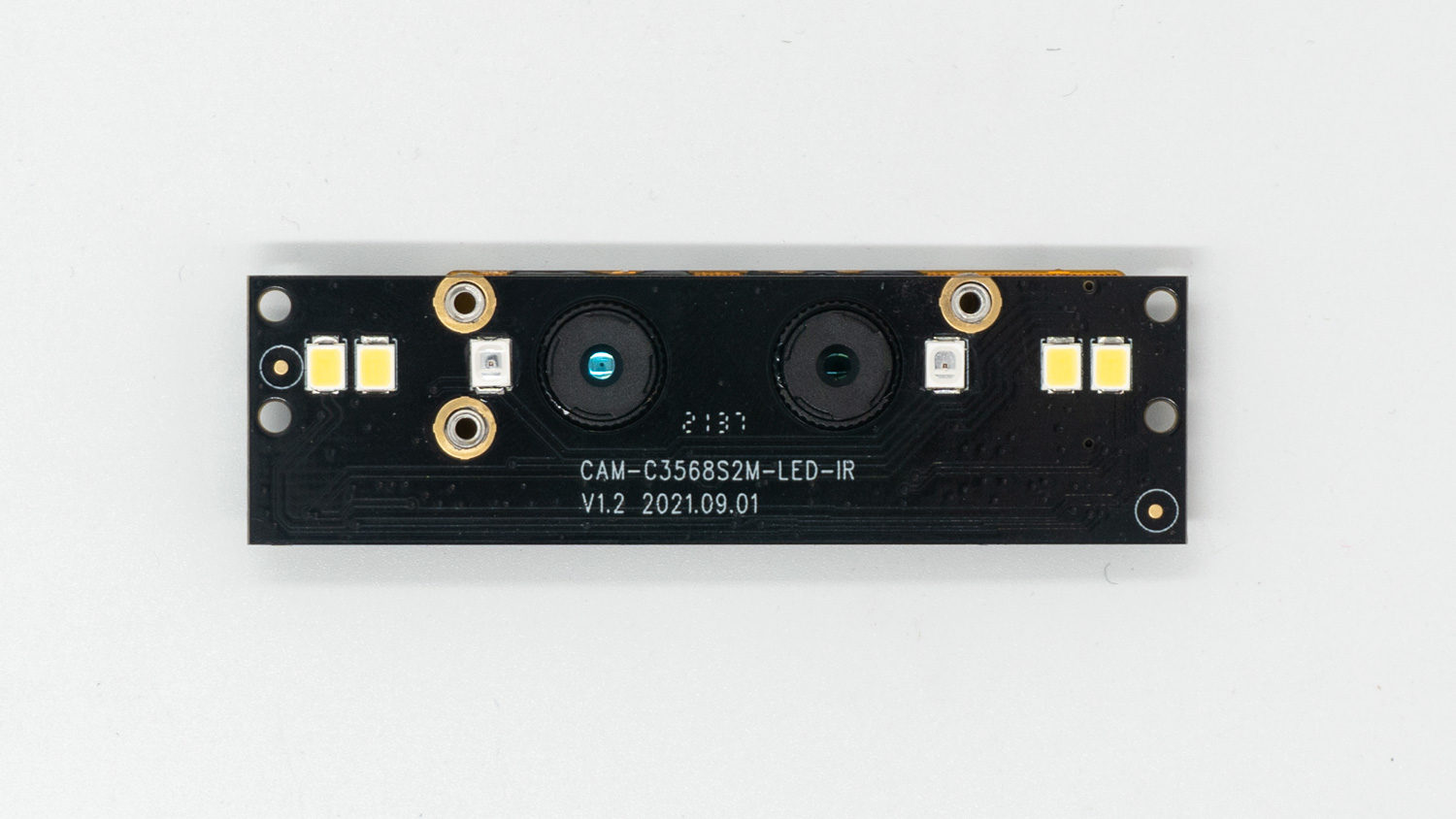

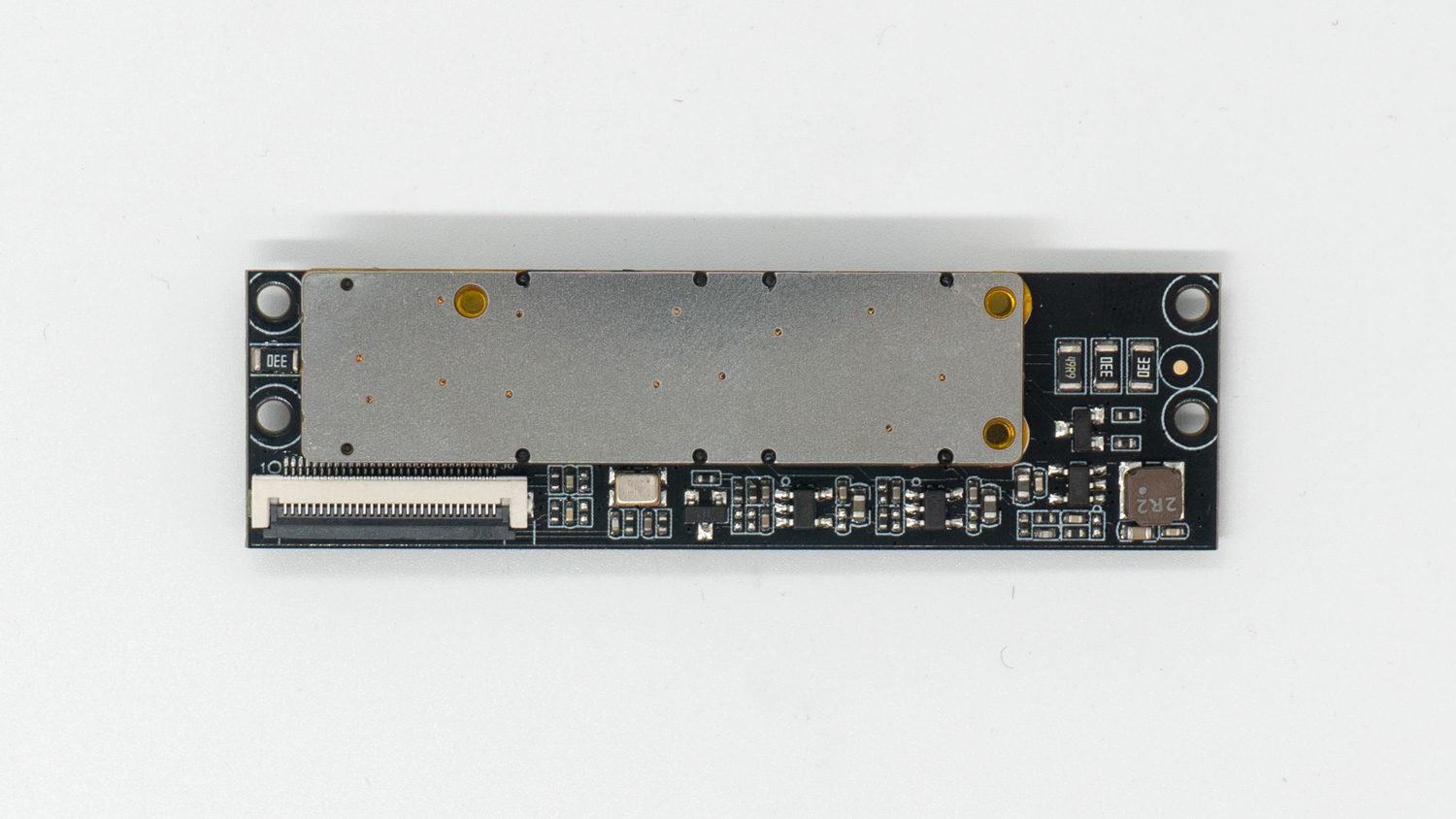

3.2.3. Physical map​

_images/cam_2ms2m_front.jpg _images/cam_2ms2m_back.jpg

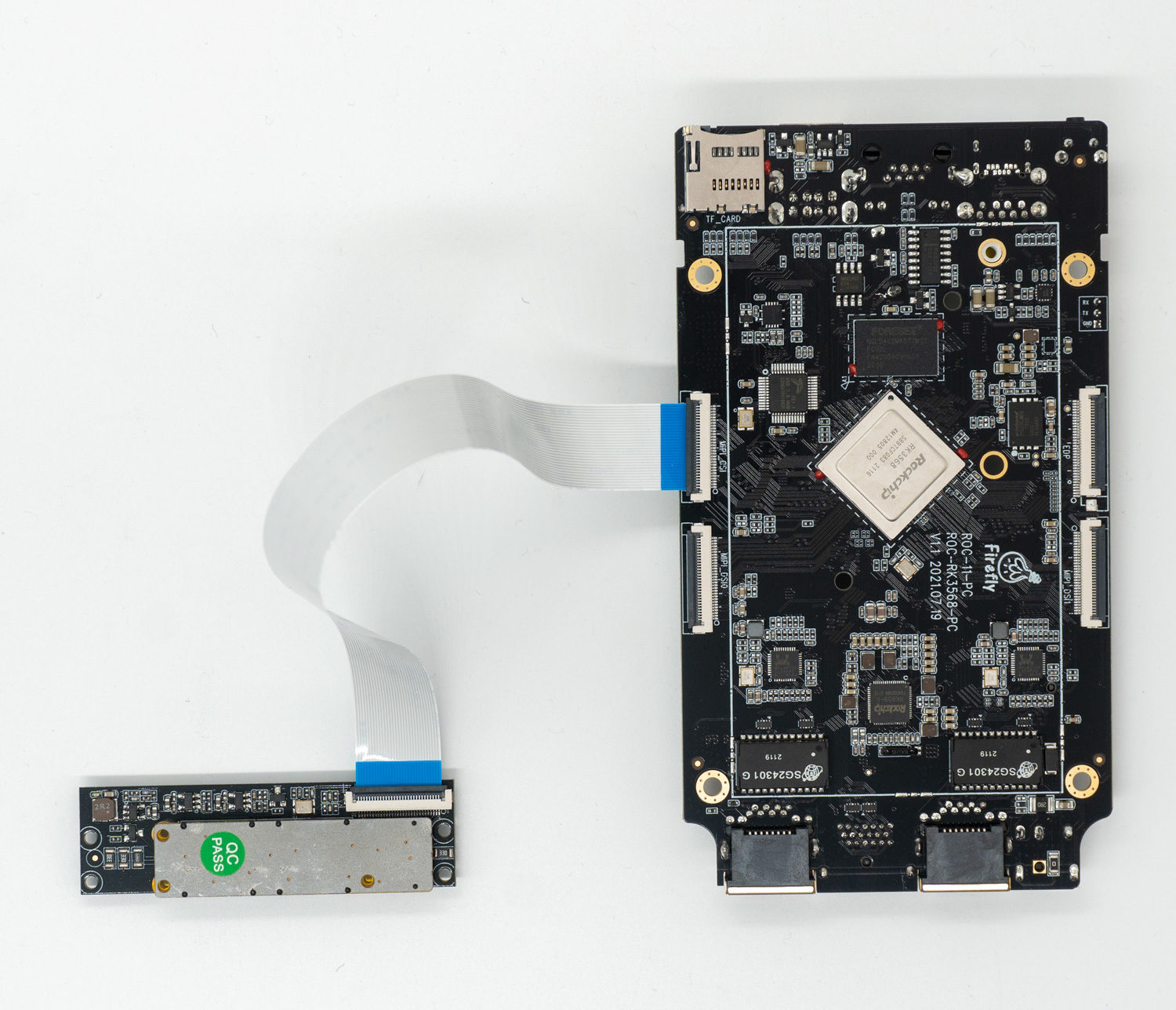

3.2.4. Connection method​

_images/roc_rk3568_pc_2ms2m.jpg

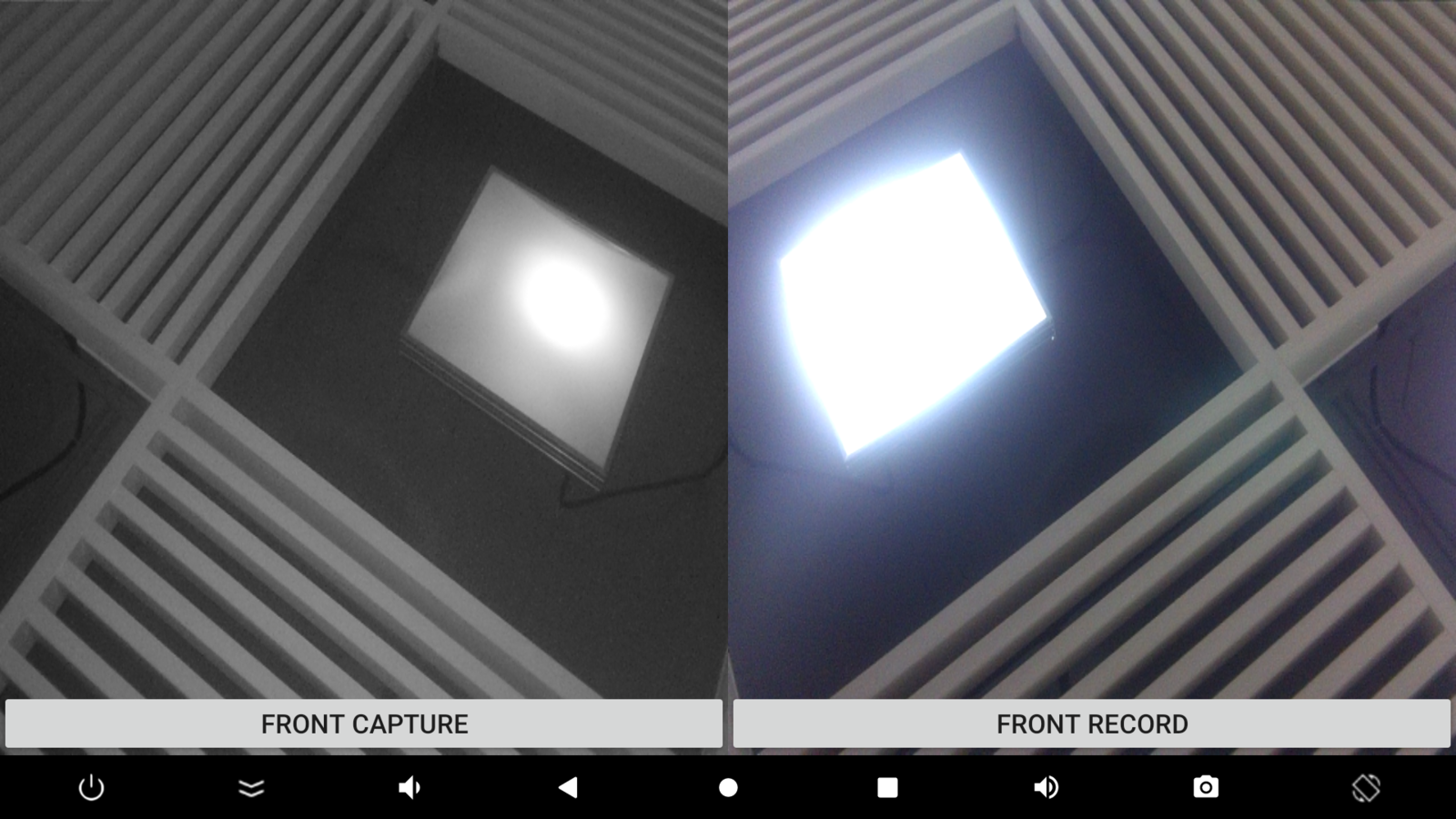

3.2.5. Real pictures​

_images/camera_2ms2m_shoot.png
