1. Interface Definition

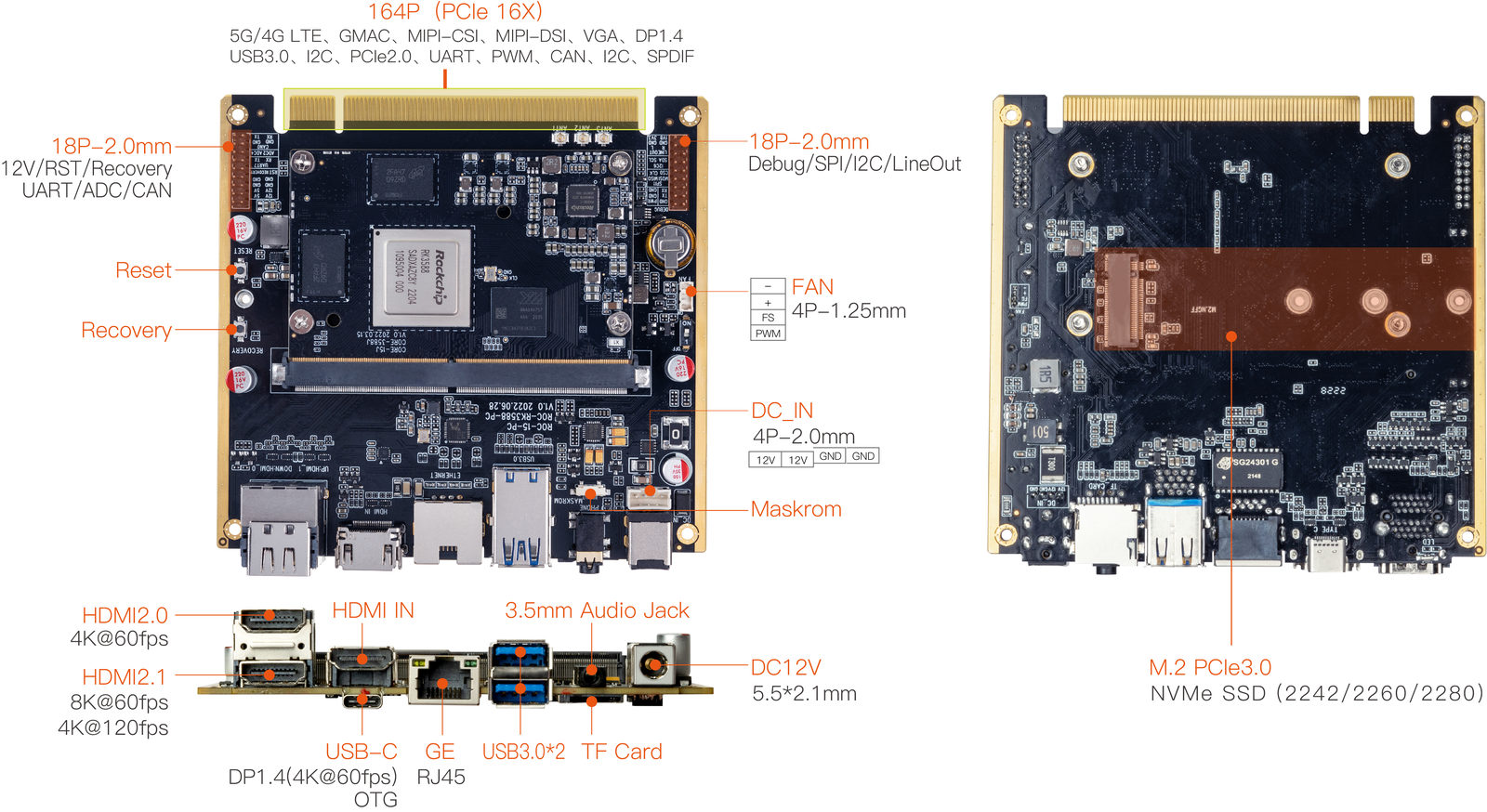

1.1. Whole machine interface definition

ROC-RK3588-PC provides a rich set of interfaces, mainly including.

• 1 x HDMI2.1 (supports up to 8K@60Hz output)

• 1 x HDMI2.0

• 1 x HDMIIN2.0 (supports up to 4K@60Hz input)

• 1 x Display Port1.4 (up to 8K@30Hz output)

• 1 x USB3.0 OTG (Type-C)

• 1 x PCIe3.0x4

• 1 x TF Card

• 2 x USB3.0

• 1 x WIFI (wifi6 support)

• 1 x Bluetooth

• 1 x FAN

• 1 x RJ45 (supports 1Gbps)

• 1 x HeadPhone

• 1 x 12V Power Input

• 1 x RTC

• 3 x KEY

• On-board Expansion Pin Interface

  • 1 x Debug
  • 1 x SPI
  • 1 x I2C
  • 1 x LINEOUT
  • 1 x UART
  • 2 x ADC
  • 1 x CAN (RX + TX)

• Expansion board 164 Pin interface

  • 5G/4G LTE
  • GMAC
  • MIPI-CSl
  • MIPI-DSI
  • VGA
  • DP1.4
  • USB3.0
  • I2C
  • PCle2.0
  • UART
  • CAN
  • I2C
  • SPDIF

The details are as follows.
