Interface definition

Interface definition of the whole machine​

AIO-3562JQ provides rich interfaces, including:

  • Power supply
  • 1 x USB3.0(host/otg)
  • 3 x USB2.0 (typeA x 1, 4-pin seat x 2)
  • MIPI-DSI screen interface
  • 1000M Ethernet
  • 100M Ethernet
  • WIFI/BT antenna
  • MIC interface
  • Speaker interface
  • TF card slot
  • SIM card slot
  • Power button
  • Reset button
  • Recovery button
  • Maskrom button
  • Debugging serial port
  • Industrial serial port (RS485,RS232,UART)
  • Industrial I/O (input x 2, output x 2)
  • CAN/CANFD
  • 2 x MIPI camera interface
  • MINI-PCIE interface (USB2.0)
  • I2C
  • Battery interface

The details are as follows:

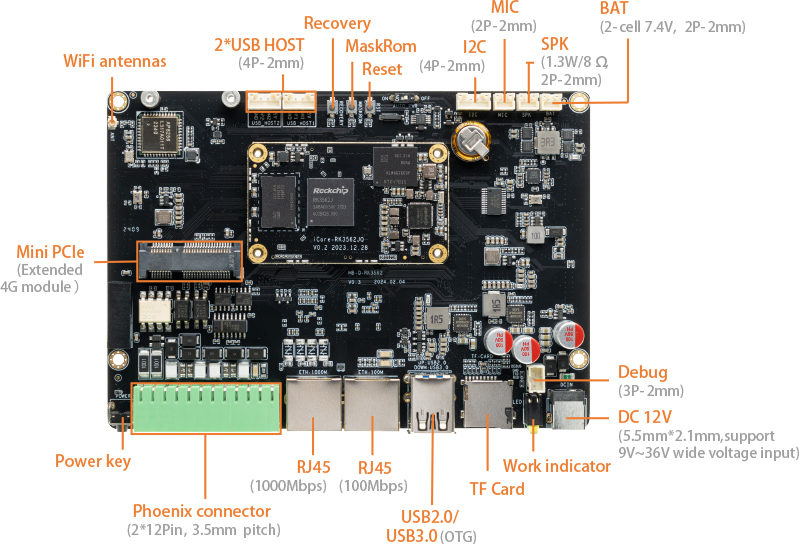

_images/interface_front.jpg

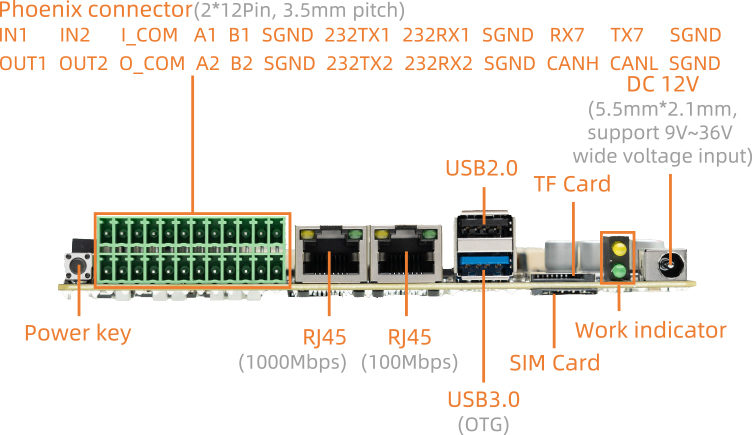

_images/interface_io.jpg

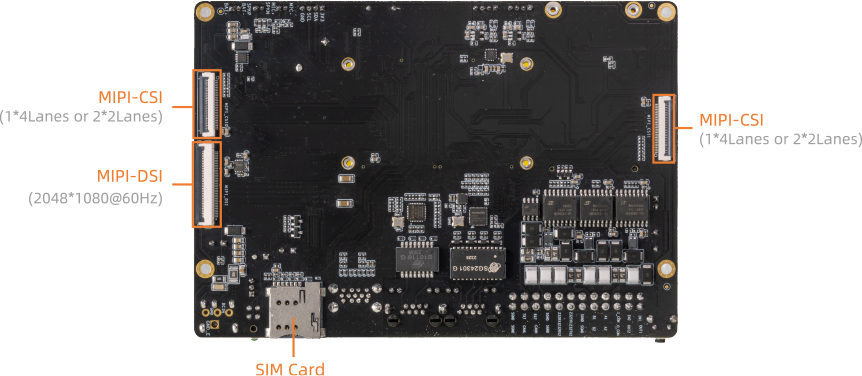

_images/interface_back.jpg
