4.2 Matrix Extension Instruction Set

4.2.1 Instruction Set Overview​

The RISC-V Matrix Extension is designed to accelerate one of the most critical operations in AI workloads: matrix multiplication. The canonical form of this operation is:

C+ = A x B

where:

  • C is the output matrix,
  • A and B are input matrices.

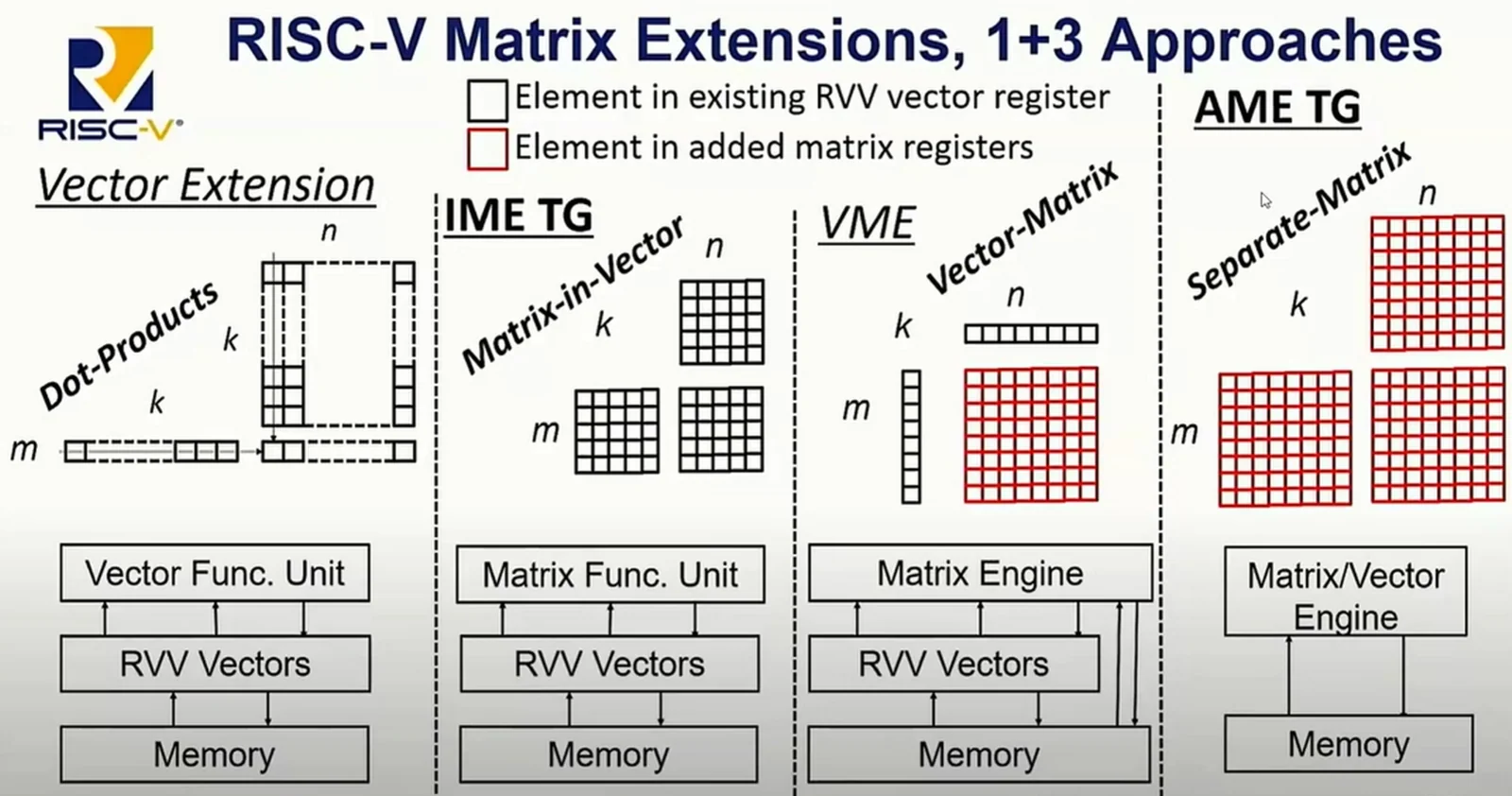

Depending on how input and output operands are mapped to architectural registers, the RISC-V community has proposed three distinct approaches for matrix extensions, as illustrated in the following diagram: Three Instruction Set Proposals

  • IME (Integrated Matrix Extension): Both input and output matrices use standard vector registers. For more details, see the IME subgroup.
  • VME (Vector-Matrix Extension): Input matrices reuse vector registers, while the output matrix uses dedicated extended registers. For more details, see the VME subgroup.
  • AME (Attached Matrix Extension): Both input and output matrices use dedicated registers. For more details, see the AME subgroup.

4.2.2 SpacemiT Instruction Set​

SpacemiT's custom matrix extension instruction set is based on the IME proposal. See the full specification here.

In the K1 core (with vlen=256), the matrix compute unit has a native tile shape of:

4 x 8 x 4

Thus, the computational throughput per unit is:

2 x 4 x 8 x 4 x 2Ghz = 0.5TOPS

4.2.3 Basic Usage​

SpacemiT's extended instruction set, based on the IME standard, largely follows the programming model of the standard RISC-V vector instruction set.

For reference on standard vector instruction usage, see the relevant documentation.

For examples of IME instruction usage, refer to the sample code repository.
