Remote Desktop Access Guide

Having trouble? See the FAQ, which covers power adapter specifications, flashing troubleshooting, and WiFi antenna connection.

This guide explains how to remotely access the MUSE Pi Pro development board desktop from an x86 Ubuntu 24.04 or Windows 11 host machine.

The overall process consists of three stages:

Serial Connection: Establish serial communication via a USB-to-TTL adapter and log in to the board.
Network Configuration: Connect the board to the local network and obtain an IP address.
Remote Desktop Connection: Start the WayVNC service on the board and connect using a VNC client.

Note: Choose the appropriate path based on your board's current state:

If this is your first use (uninitialized), proceed to the "First Use (Uninitialized)" section.

If the board is already initialized, proceed to the "Already Initialized" section.

x86 Ubuntu 24.04

Serial Connection Setup

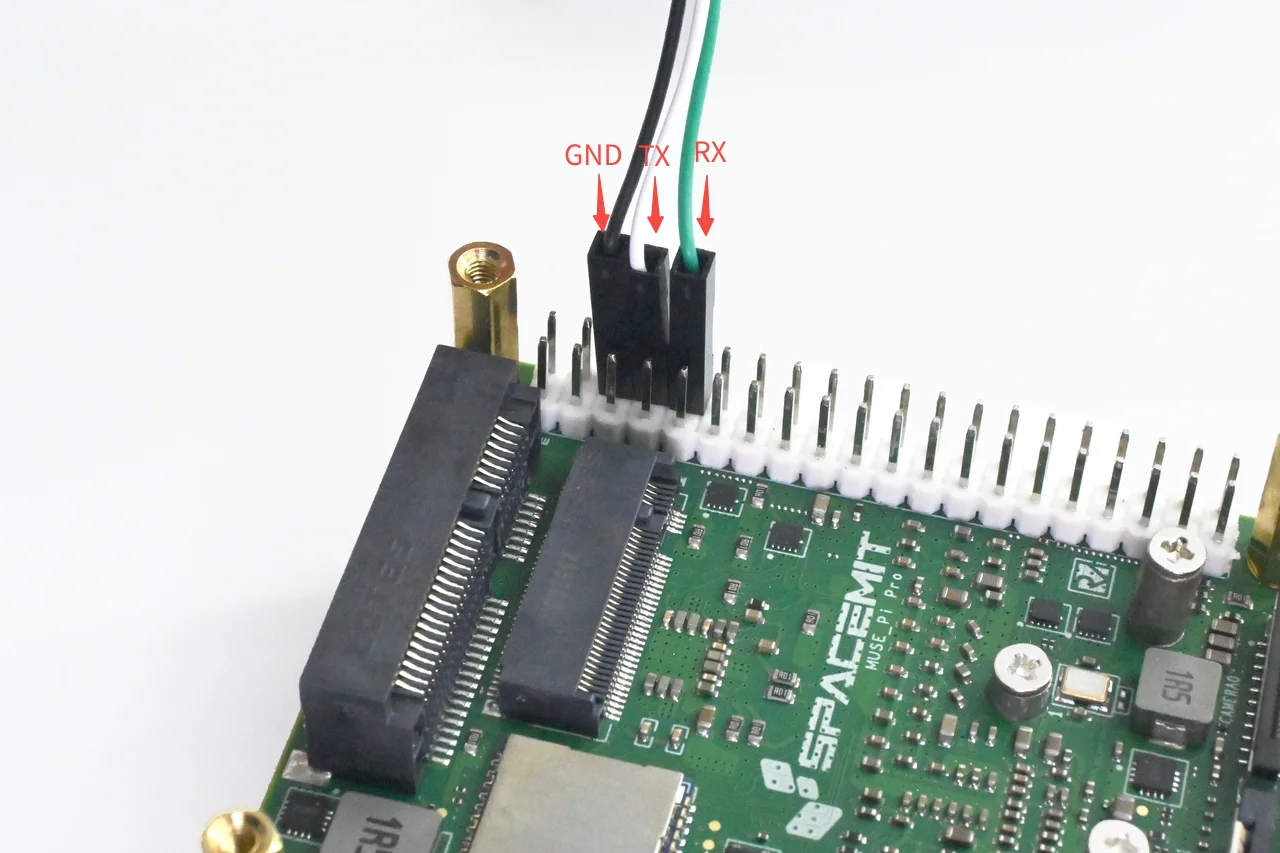

Connect the host machine to the MUSE Pi Pro board's GND, TX, and RX pins using a USB-to-TTL adapter, as shown below:

Step 1: Identify the serial device:

ls /dev/ttyUSB* 2>/dev/null || ls /dev/ttyACM*

In this example, the device is /dev/ttyUSB0.

Step 2: Install minicom:

sudo apt update
sudo apt install minicom

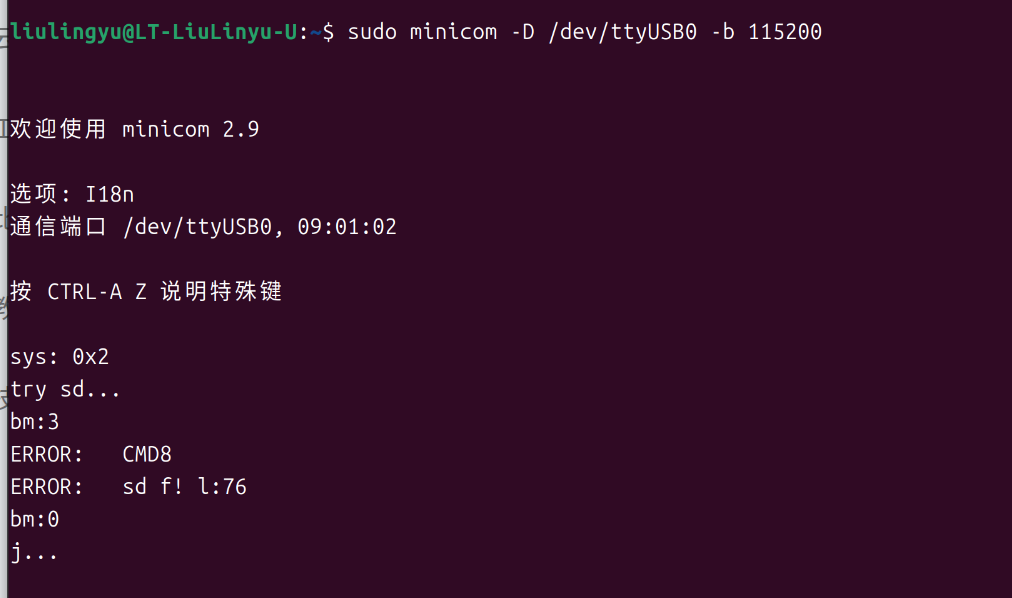

Step 3: Connect using minicom:

sudo minicom -D /dev/ttyUSB0 -b 115200

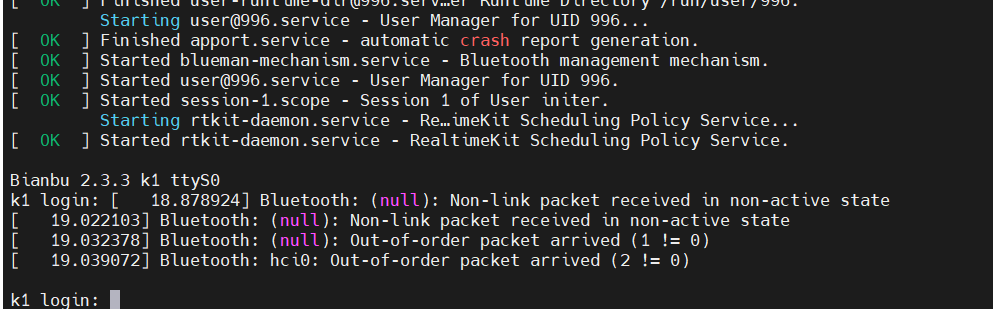

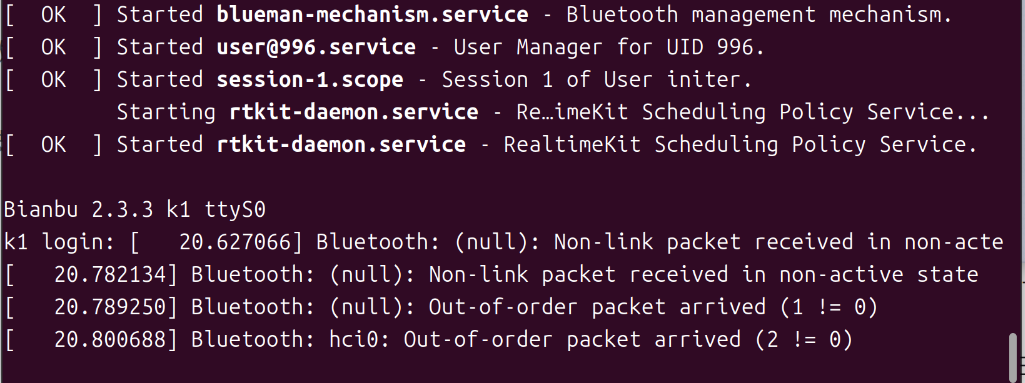

Step 1: Press the board's reset button and wait for the system to load to the following screen (if the system is already initialized, skip this step).

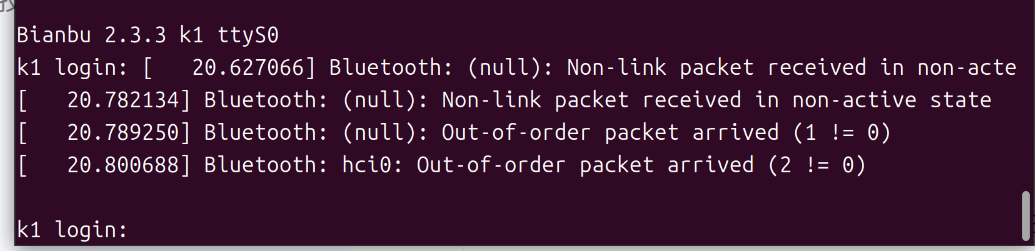

Step 2: Press Enter to proceed to the login screen.

Step 3: At the prompt, enter the username root and press Enter.

Step 4: At the password prompt (Password:), enter the password bianbu (characters will not be displayed) and press Enter.

You will be logged in as the root user on the board.

First Use (Uninitialized)

Stage 1: Network Configuration and IP Address

<remote_ip>: The board's local network IP address.

Scenario 1: Board Connected via Ethernet

Run the following command:

hostname -I

The output will display <remote_ip>:

Scenario 2: Board Not Connected via Ethernet (Wi-Fi Setup Required)

⚠️ Important: Before using WiFi, make sure an antenna is connected to the board's antenna connector. Otherwise, the board may fail to detect any WiFi networks, or the signal may be extremely weak.

Step 1: Run the following command:

ifconfig

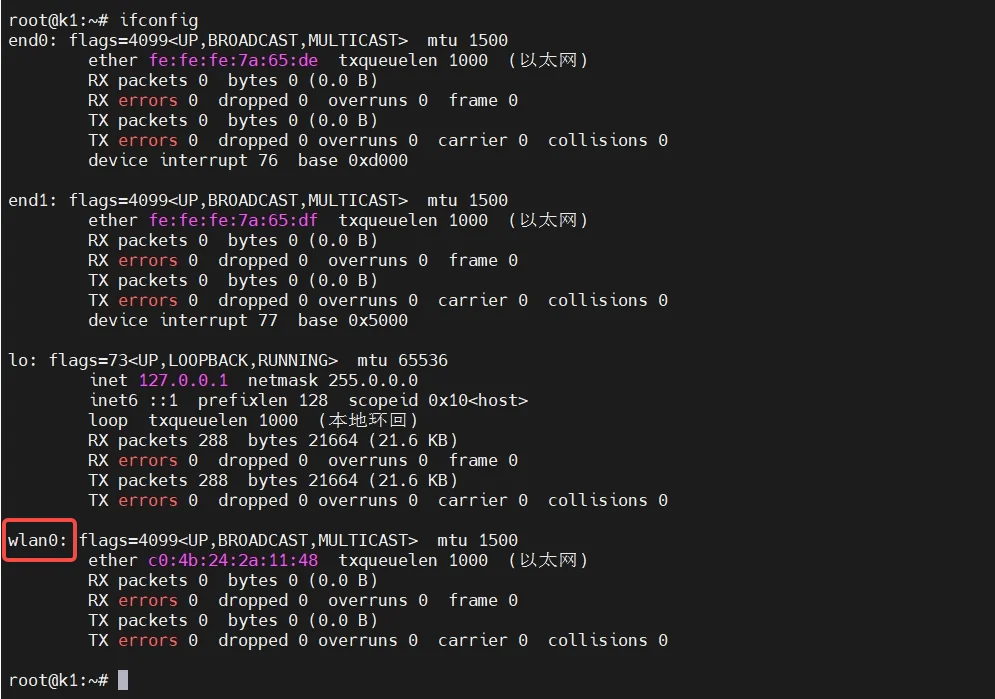

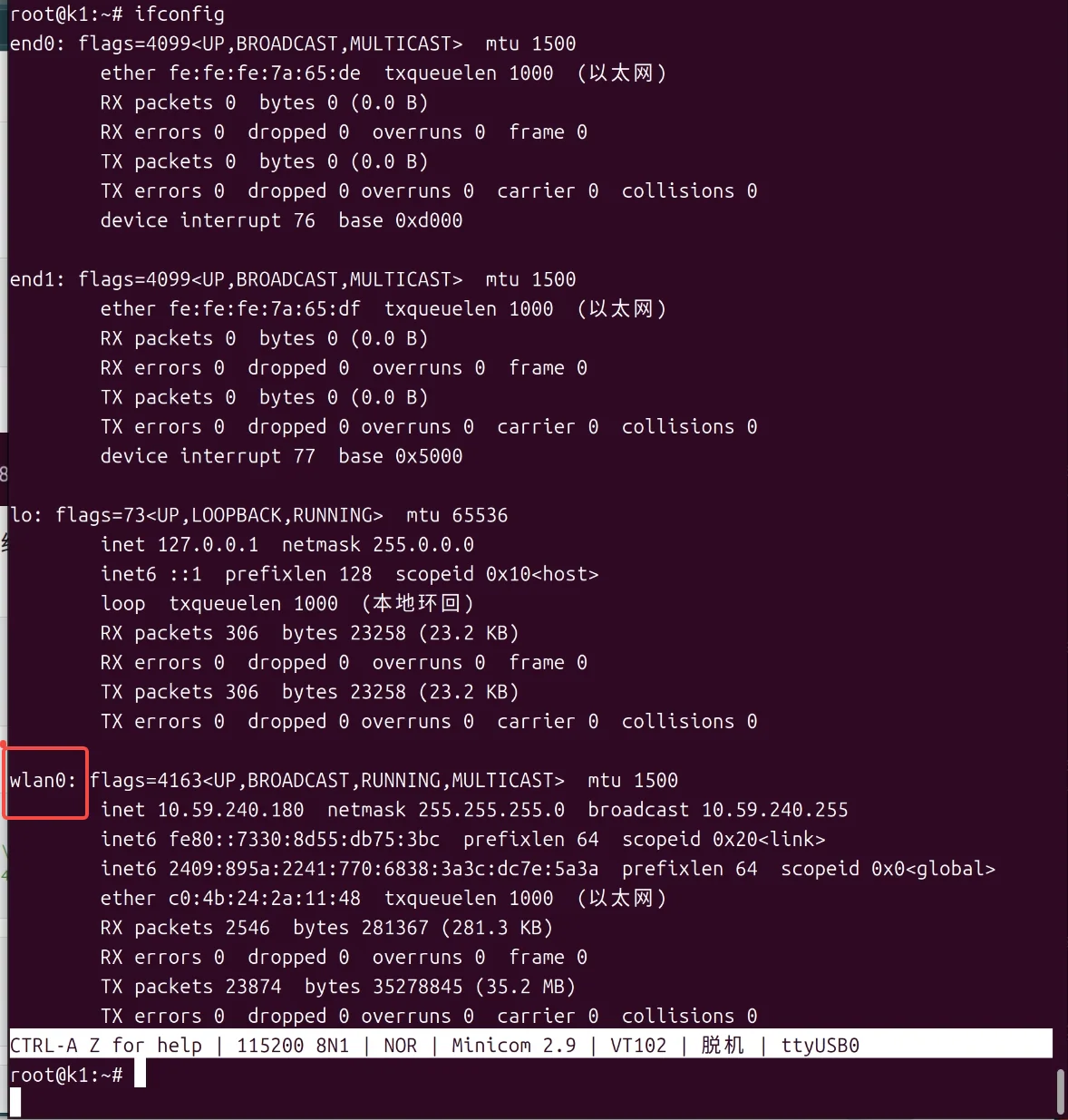

Note the network interface name shown in the screenshot (e.g., wlan0), as it will be needed for the following commands.

Note: The actual network interface name may not be wlan0. Use the name displayed on your system.

Step 2: Run the following command:

Note: Replace wlan0 with your actual network interface name.

wpa_cli -i wlan0 add_network

Step 3: Configure the Wi-Fi SSID and password.

Note: Replace the Wi-Fi name and password in the commands below with your actual credentials.

wpa_cli -i wlan0 set_network 0 ssid "\"WiFi_Name\""
wpa_cli -i wlan0 set_network 0 psk "\"WiFi_Password\""

Step 4: Enable the network configuration:

wpa_cli -i wlan0 enable_network 0

Step 5: Obtain an IP address:

/sbin/dhcpcd wlan0

Step 6: Verify the IP address:

hostname -I

The output will display <remote_ip>:

Stage 2: Remote Desktop Connection for Initial Setup

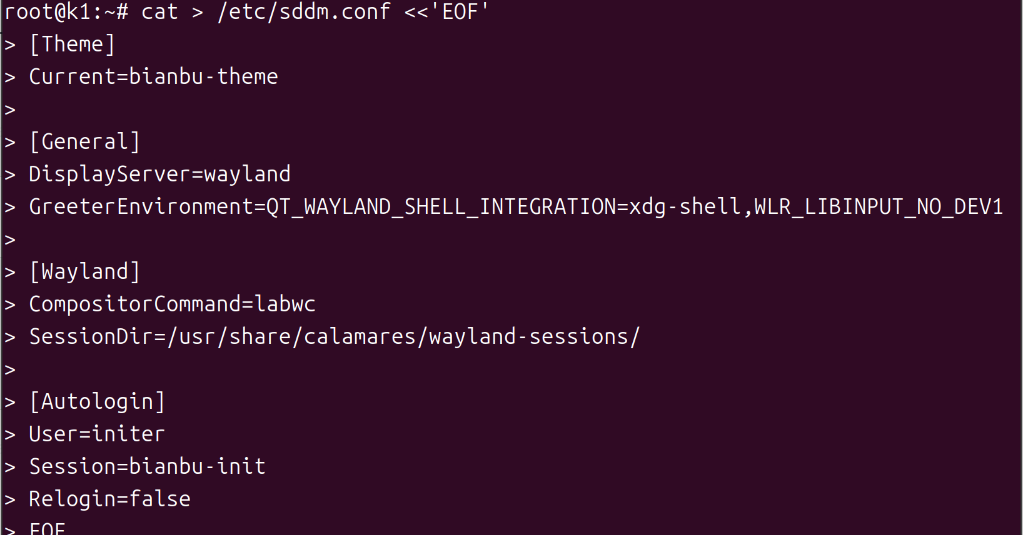

Step 1: Write the SDDM configuration file:

cat > /etc/sddm.conf <<'EOF'
[Theme]
Current=bianbu-theme

[General]
DisplayServer=wayland
GreeterEnvironment=QT_WAYLAND_SHELL_INTEGRATION=xdg-shell,WLR_LIBINPUT_NO_DEVICES=1

[Wayland]
CompositorCommand=labwc
SessionDir=/usr/share/calamares/wayland-sessions/

[Autologin]
User=initer
Session=bianbu-init
Relogin=false
EOF

Step 2: Back up the environment configuration script:

cp /usr/libexec/start-bianbu-init-env /usr/libexec/start-bianbu-init-env.bak_final

Step 3: Set the required environment variables:

sed -i '/export QT_QPA_PLATFORM=wayland/a\export LABWC_FALLBACK_OUTPUT=NOOP-fallback\nexport LABWC_VIRTUAL_OUTPUT_SIZE=1920x1080' /usr/libexec/start-bianbu-init-env

Step 4: Get the labwc process ID:

ps aux | grep labwc | grep -v grep

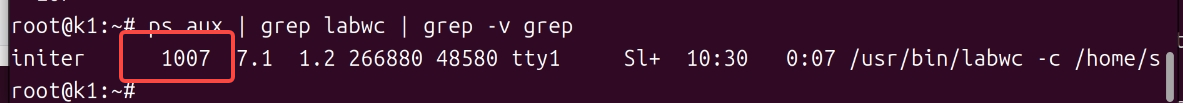

The process ID is shown in the highlighted position in the screenshot below. Use the value displayed on your system.

Step 5: Kill the labwc process, replacing <PID> with the actual process ID:

kill <PID>

Step 6: Restart the SDDM display manager:

systemctl restart sddm

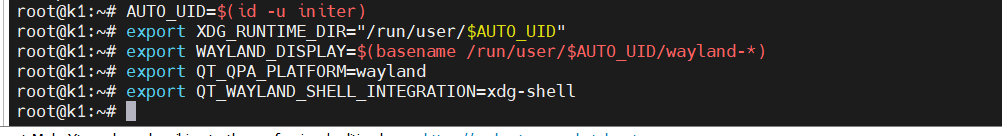

Step 7: Wait 5 seconds, then run the following commands in sequence:

AUTO_UID=$(id -u initer)

export XDG_RUNTIME_DIR="/run/user/$AUTO_UID"

export WAYLAND_DISPLAY=$(basename /run/user/$AUTO_UID/wayland-*)

export QT_QPA_PLATFORM=wayland
export QT_WAYLAND_SHELL_INTEGRATION=xdg-shell

Step 8: Start WayVNC:

XDG_RUNTIME_DIR="$XDG_RUNTIME_DIR" WAYLAND_DISPLAY="$WAYLAND_DISPLAY" wayvnc 0.0.0.0 5900

Note: The host machine and the board must be on the same local network (e.g., connected to the same Wi-Fi network or router) when using any VNC client.

Open a new terminal on the Ubuntu host machine.

The recommended VNC client is Remmina. Set it up as follows:

Step 9: Install Remmina:

sudo apt update
sudo apt install remmina remmina-plugin-rdp remmina-plugin-vnc remmina-plugin-secret

Step 10: Launch Remmina:

remmina

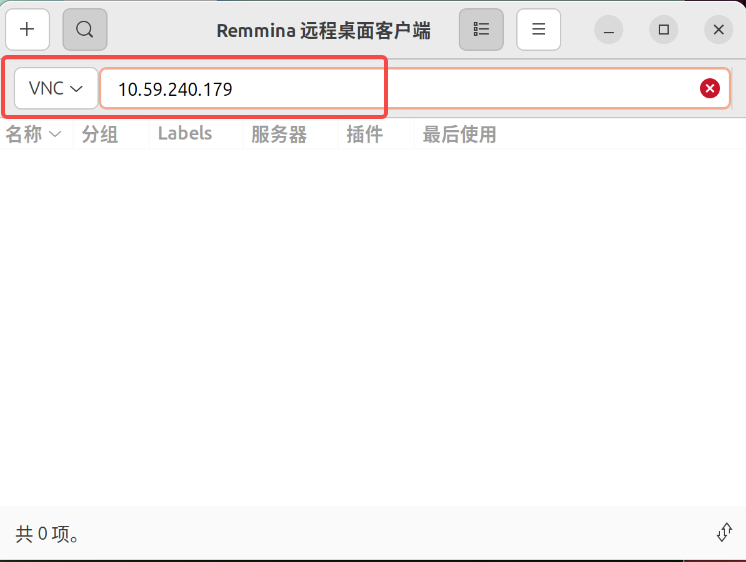

In the connection dialog:

Set the protocol to VNC.
Enter <remote_ip>:5900 as the address.
Press Enter to connect.

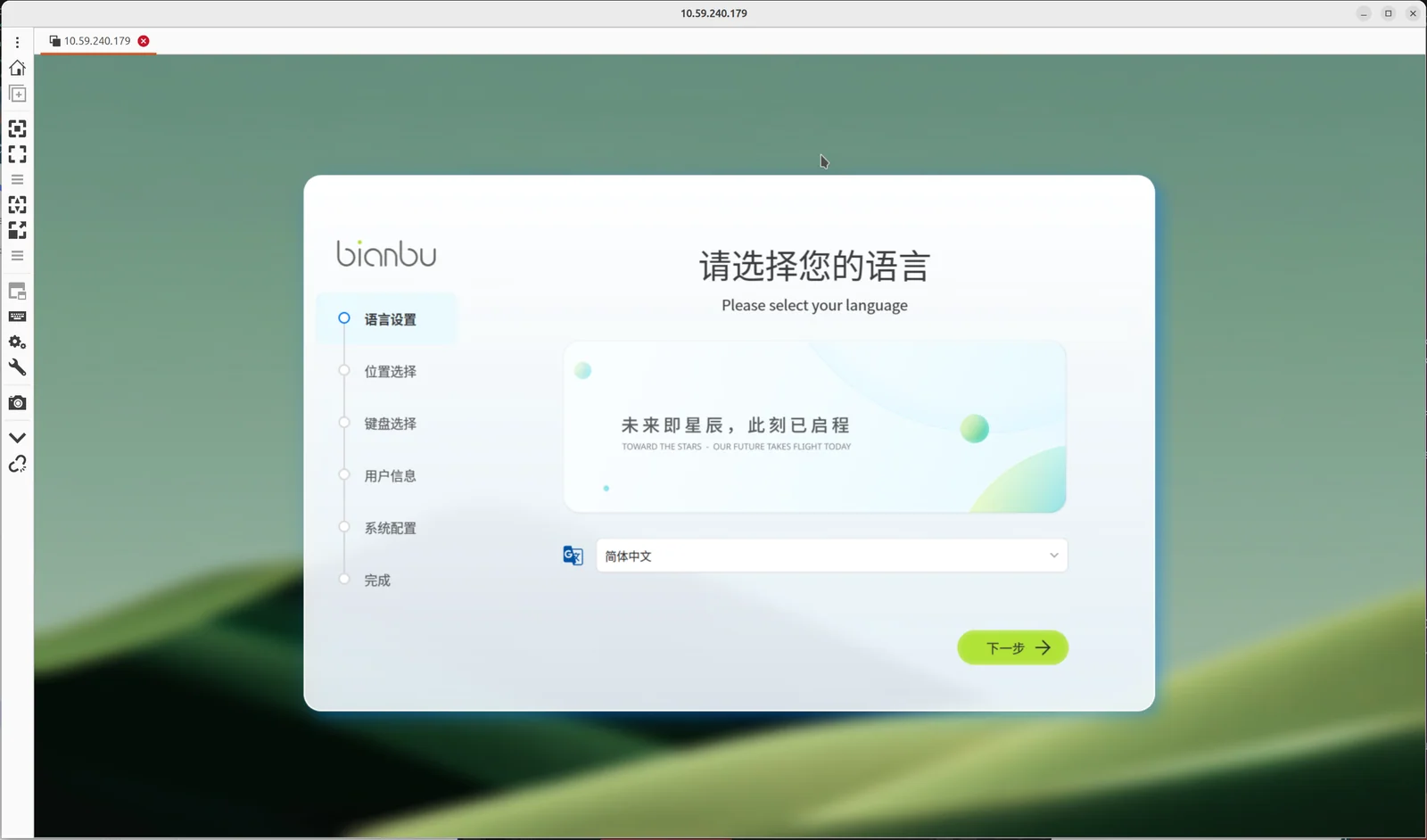

The Bianbu system initialization wizard will appear.

When configuring your user account, keep your credentials in a safe place. It is recommended to set both the username and password to bianbu for convenience in subsequent steps. After completing the configuration, the system will proceed with initialization, which takes approximately 10 seconds.

Already Initialized

Stage 1: Network Configuration and User Switch

Network Configuration

If Ethernet is connected: proceed to the next step.
If Ethernet is not connected: the system will be in an offline state. Go to First Use (Uninitialized) — Stage 1, Scenario 2 to complete network setup, then continue.

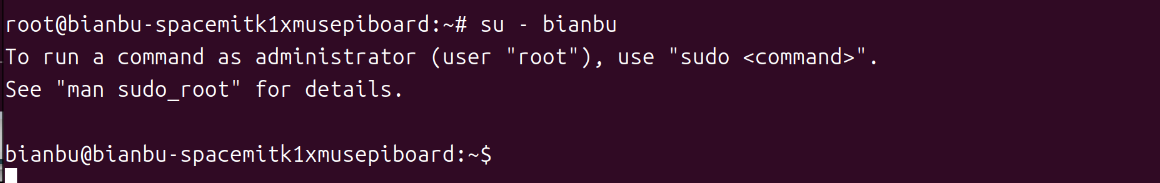

Step 1: Switch to the regular user account. The example below uses bianbu — replace it with the username you created during initialization:

su - <your_username>

Stage 2: Remote Desktop Connection

Step 1: From your user's home directory, run the following commands:

TARGET_USER=$(awk -F: '$3>=1000 && $3<65534 {print $1}' /etc/passwd | head -n1)

sudo tee /etc/sddm.conf > /dev/null <<EOF
[Theme]
Current=bianbu-star

[General]
DisplayServer=wayland
GreeterEnvironment=QT_WAYLAND_SHELL_INTEGRATION=xdg-shell,WLR_LIBINPUT_NO_DEVICES=1
[Wayland]
CompositorCommand=labwc

[Autologin]
User=$TARGET_USER
Session=bianbu-lite
Relogin=false
EOF

Enter your user password when prompted.

Step 2: Back up the session startup script:

sudo cp /usr/bin/startlxqtwayland /usr/bin/startlxqtwayland.clean

Step 3: Set the required environment variables:

sudo sed -i '1a export LABWC_FALLBACK_OUTPUT="NOOP-fallback"\nexport LABWC_VIRTUAL_OUTPUT_SIZE="1920x1080"' /usr/bin/startlxqtwayland

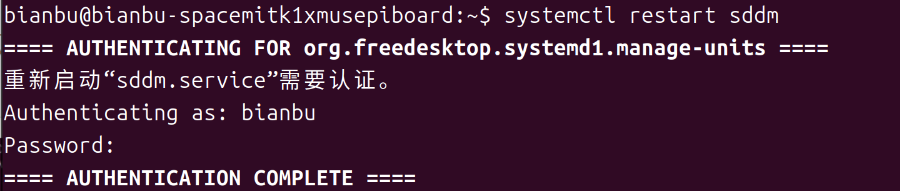

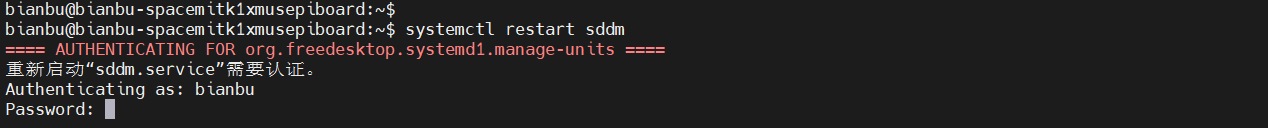

Step 4: Restart the SDDM display manager:

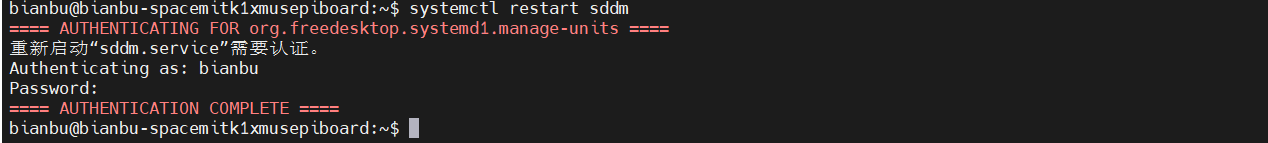

systemctl restart sddm

Enter your password when prompted.

Step 5: Wait 5 seconds, then run:

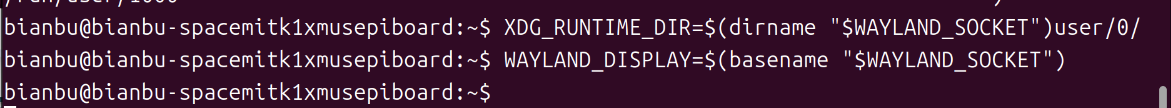

WAYLAND_SOCKET=$(find /run/user -path "/run/user/0/*" -prune -o -name "wayland-*" -type s -print 2>/dev/null | head -n1)
XDG_RUNTIME_DIR=$(dirname "$WAYLAND_SOCKET")
WAYLAND_DISPLAY=$(basename "$WAYLAND_SOCKET")

Step 6: Start WayVNC:

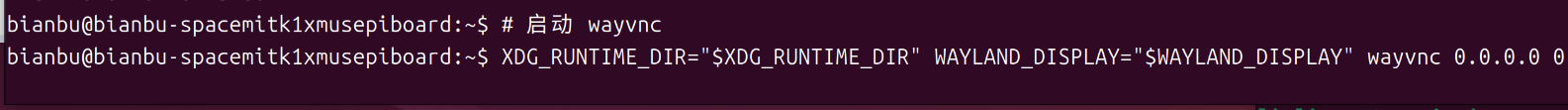

XDG_RUNTIME_DIR="$XDG_RUNTIME_DIR" WAYLAND_DISPLAY="$WAYLAND_DISPLAY" wayvnc 0.0.0.0 5900

Note: The host machine and the board must be on the same local network (e.g., connected to the same Wi-Fi network or router) when using any VNC client.

Open a new terminal on the Ubuntu host machine.

Step 7: Launch Remmina:

remmina

In the connection dialog:

Set the protocol to VNC.
Enter <remote_ip>:5900 as the address.
Press Enter to connect.

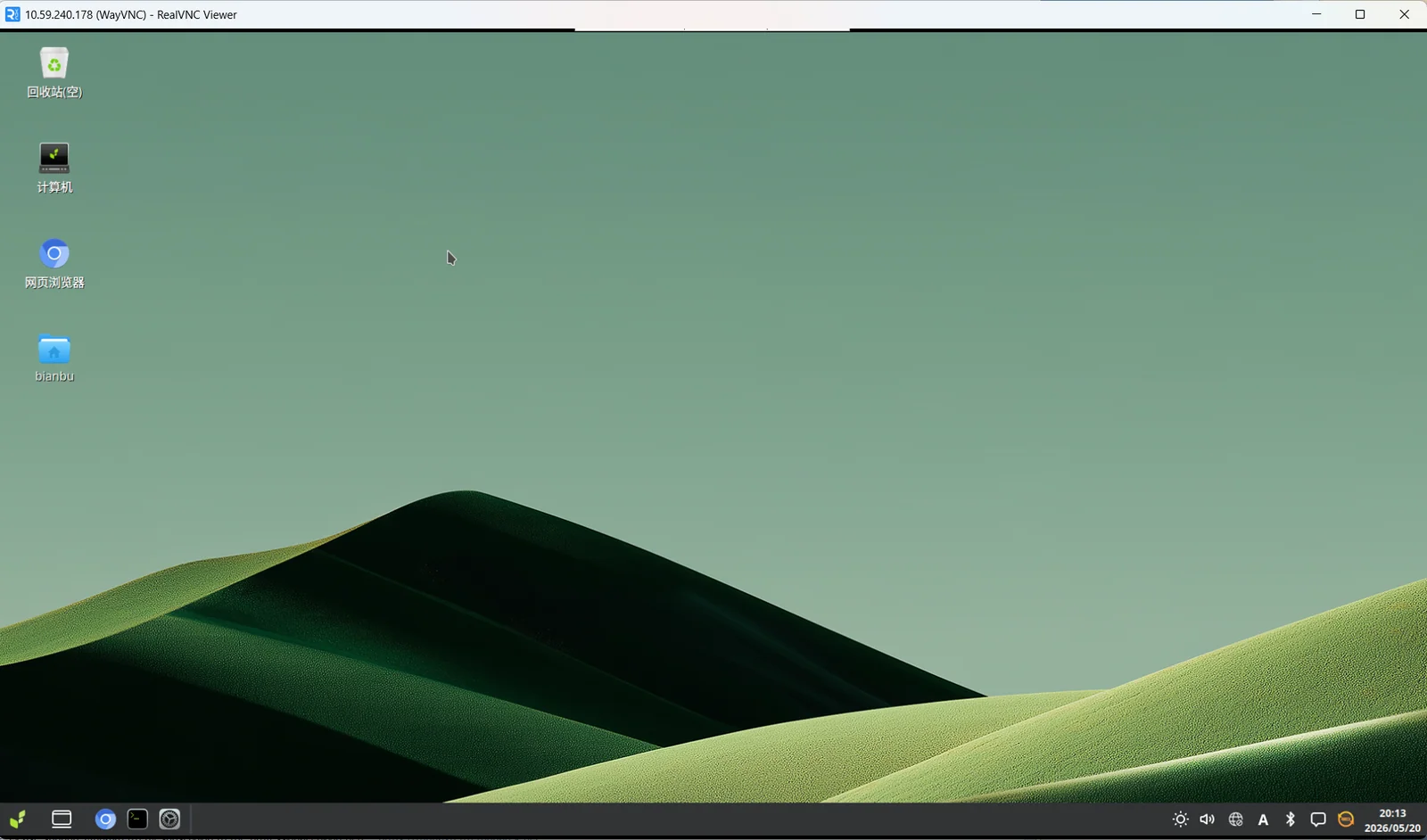

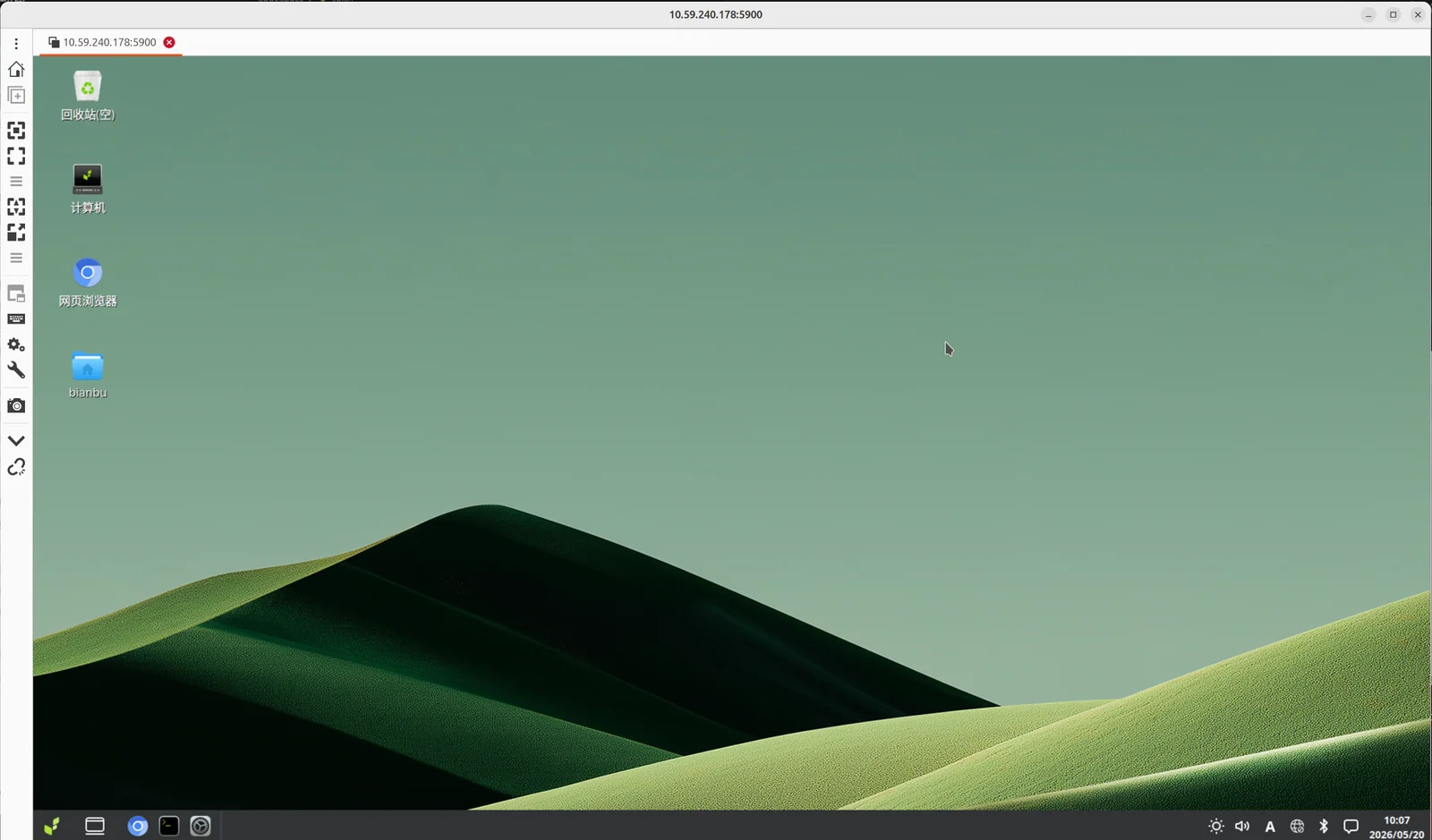

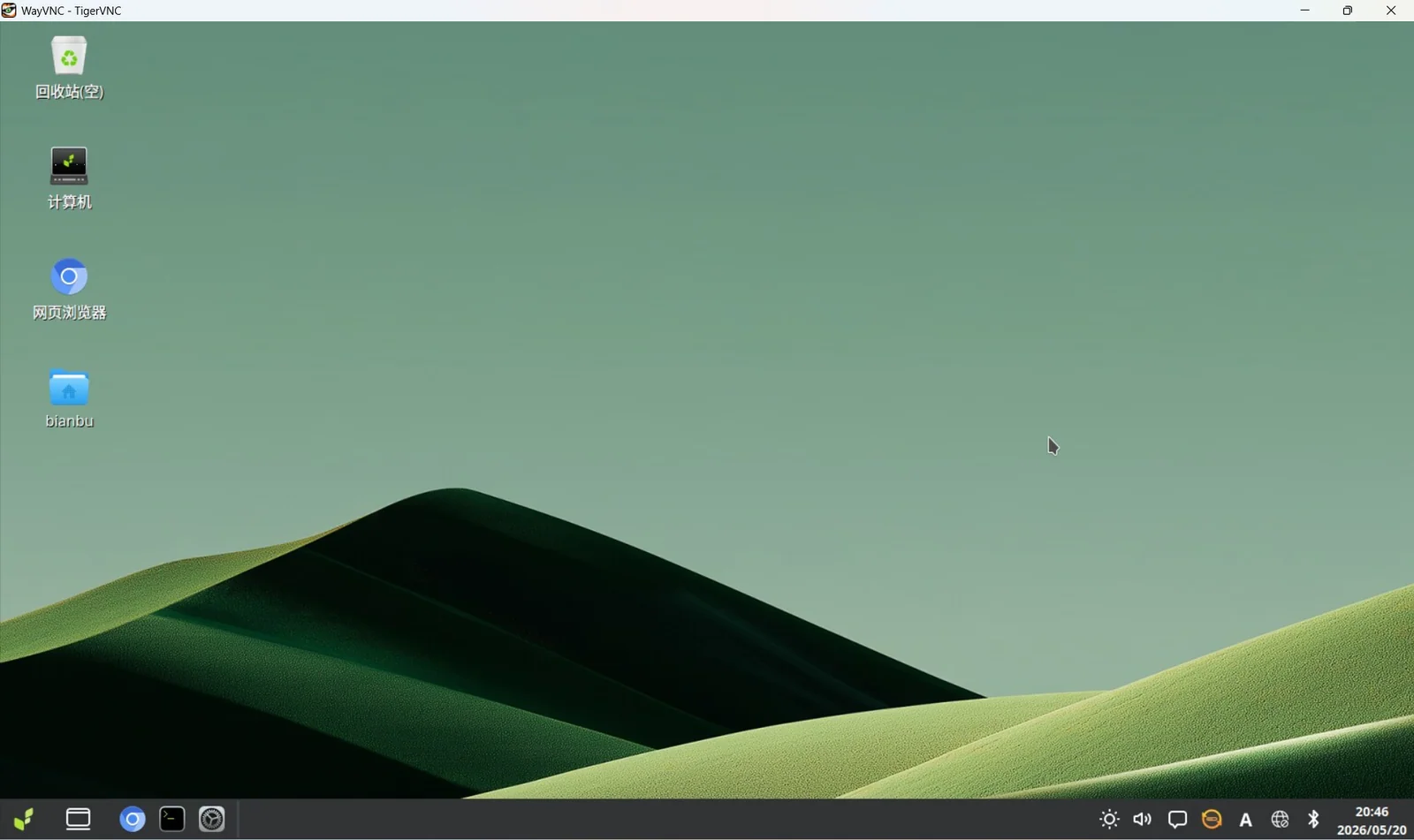

The remote desktop will load and display the board's desktop environment.

Windows 11

Download the MobaXterm serial terminal tool from the official website:

https://mobaxterm.mobatek.net/

Also download either the RealVNC or TigerVNC client for the VNC connection.

Serial Connection Setup

Connect the host machine to the MUSE Pi Pro board's GND, TX, and RX pins using a USB-to-TTL adapter, as shown below:

Using MobaXterm:

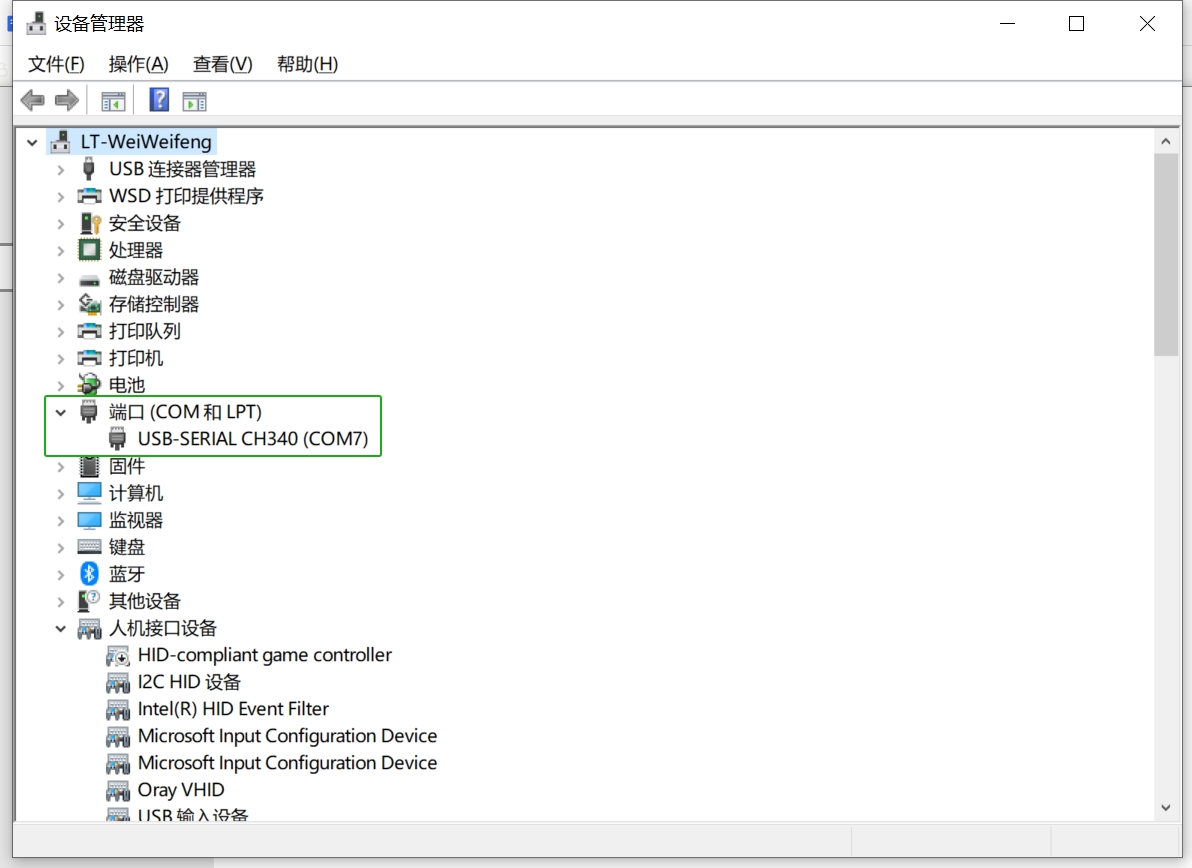

Connect the USB-to-TTL adapter and confirm the COM port is recognized in Device Manager:
Open MobaXterm, click Sessions → New Session, and select Serial as the connection type.

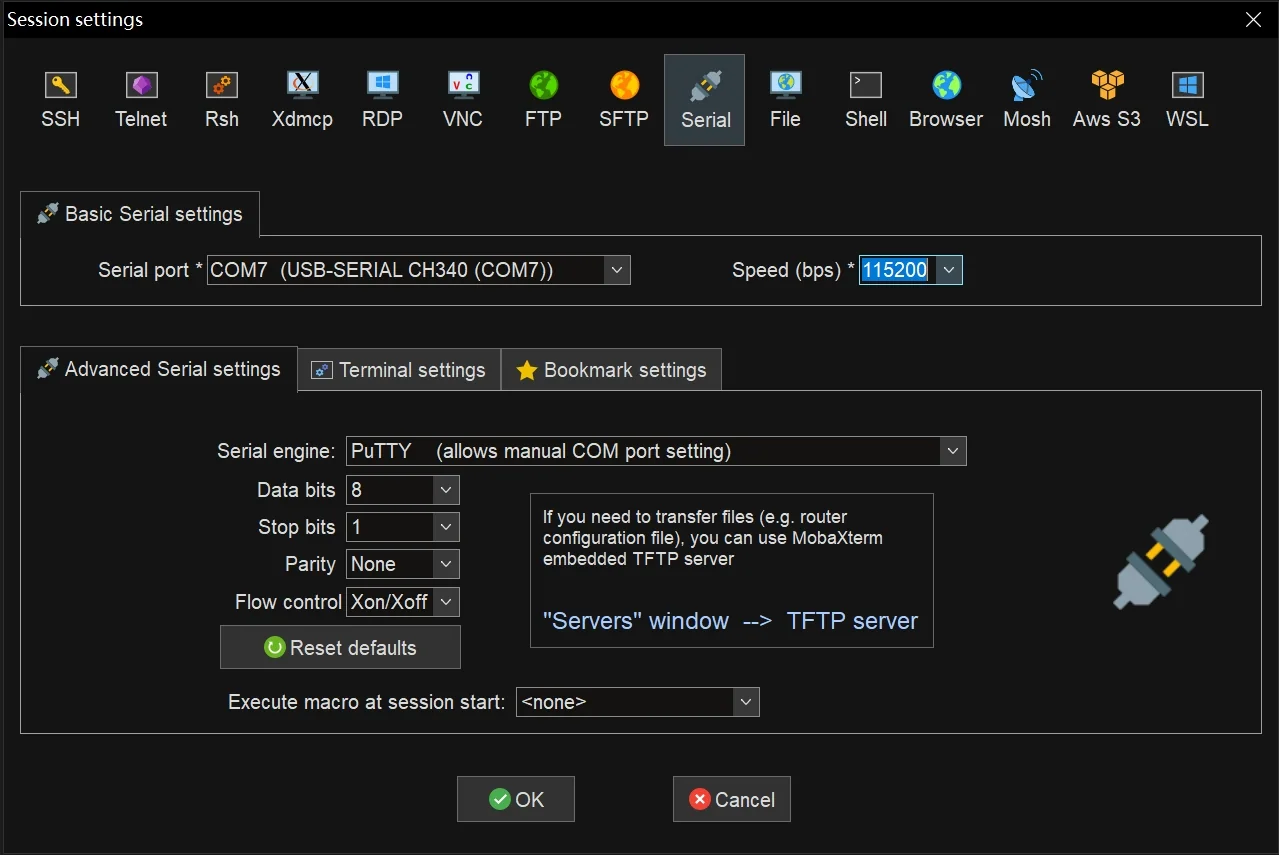

In the configuration window, set the following:
- Serial port: Select the recognized COM port (e.g., COM7)
- Speed: 115200
Click OK to open the serial terminal.

Note: It is normal for MobaXterm to display minor character misalignment or overlap when running commands.

Step 1: Press the board's reset button and wait for the system to finish loading.

Step 2: Press Enter to proceed to the login screen.

Step 3: At the prompt, enter the username root and press Enter.

Step 4: At the password prompt (Password:), enter the password bianbu (characters will not be displayed) and press Enter.

You will be logged in as the root user on the board.

First Use (Uninitialized)

Stage 1: Network Configuration and IP Address

<remote_ip>: The board's local network IP address.

Scenario 1: Board Connected via Ethernet

Run the following command:

hostname -I

The output will display <remote_ip>:

Scenario 2: Board Not Connected via Ethernet (Wi-Fi Setup Required)

⚠️ Important: Before using WiFi, make sure an antenna is connected to the board's antenna connector. Otherwise, the board may fail to detect any WiFi networks, or the signal may be extremely weak.

Step 1: Run the following command:

ifconfig

Note the network interface name shown in the screenshot (e.g., wlan0), as it will be needed for the following commands.

Note: The actual network interface name may not be wlan0. Use the name displayed on your system.

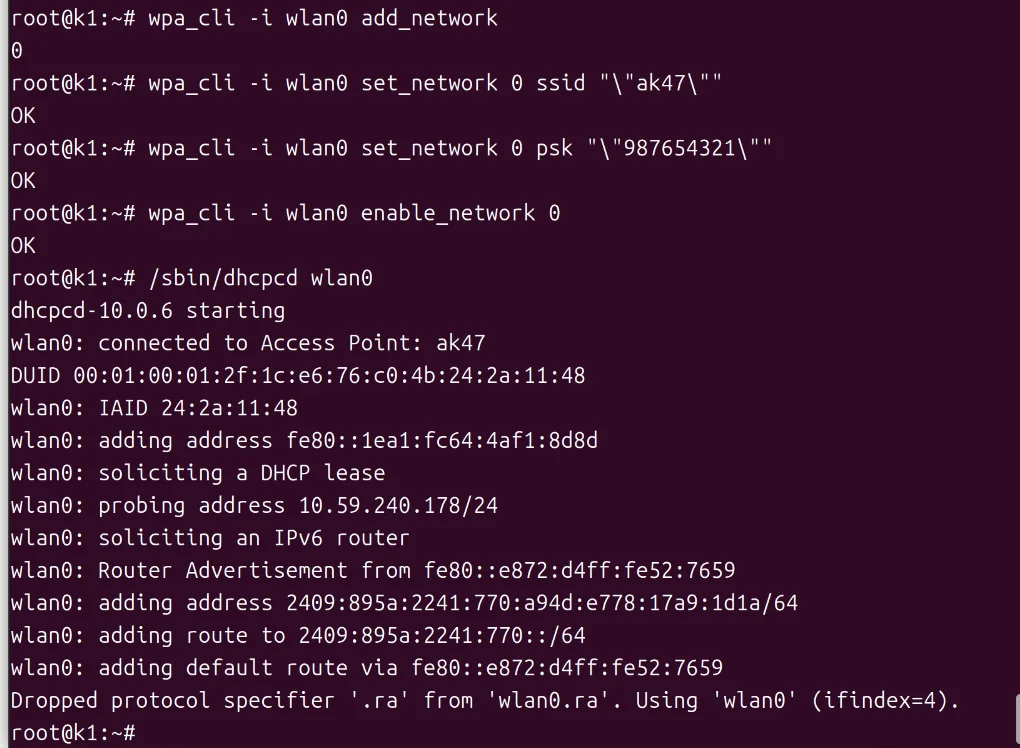

Step 2: Run the following command:

Note: Replace wlan0 with your actual network interface name.

wpa_cli -i wlan0 add_network

Step 3: Configure the Wi-Fi SSID and password.

Note: Replace the Wi-Fi name and password in the commands below with your actual credentials.

wpa_cli -i wlan0 set_network 0 ssid "\"WiFi_Name\""
wpa_cli -i wlan0 set_network 0 psk "\"WiFi_Password\""

Step 4: Enable the network configuration:

wpa_cli -i wlan0 enable_network 0

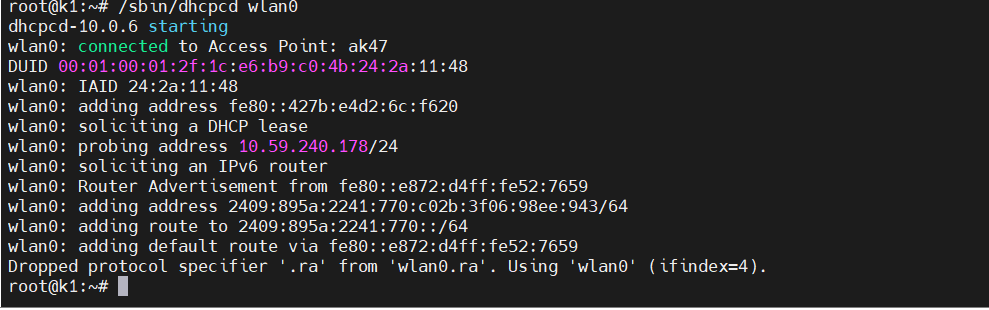

Step 5: Wait 5 seconds, then obtain an IP address:

/sbin/dhcpcd wlan0

Step 6: Verify the IP address:

hostname -I

The output will display <remote_ip>:

Stage 2: Remote Desktop Connection for Initial Setup

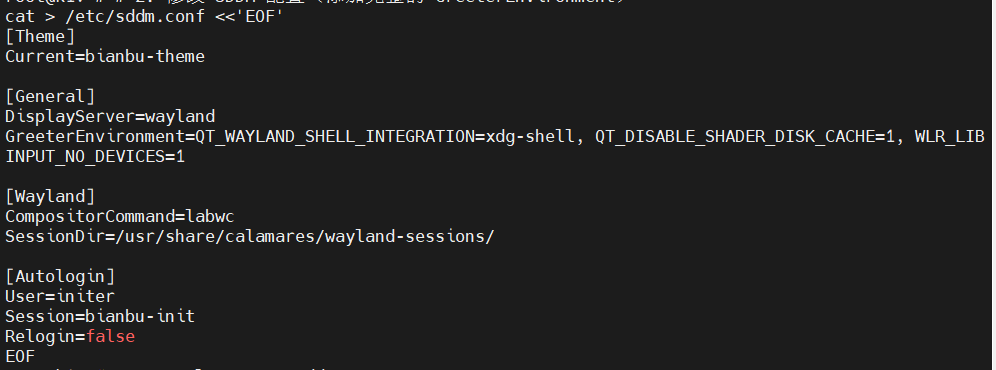

Step 1: Write the SDDM configuration file:

cat > /etc/sddm.conf <<'EOF'
[Theme]
Current=bianbu-theme

[General]
DisplayServer=wayland
GreeterEnvironment=QT_WAYLAND_SHELL_INTEGRATION=xdg-shell,WLR_LIBINPUT_NO_DEVICES=1

[Wayland]
CompositorCommand=labwc
SessionDir=/usr/share/calamares/wayland-sessions/

[Autologin]
User=initer
Session=bianbu-init
Relogin=false
EOF

Step 2: Back up the environment configuration script:

cp /usr/libexec/start-bianbu-init-env /usr/libexec/start-bianbu-init-env.bak_final

Step 3: Set the required environment variables:

sed -i '/export QT_QPA_PLATFORM=wayland/a\export LABWC_FALLBACK_OUTPUT=NOOP-fallback\nexport LABWC_VIRTUAL_OUTPUT_SIZE=1920x1080' /usr/libexec/start-bianbu-init-env

Step 4: Get the labwc process ID:

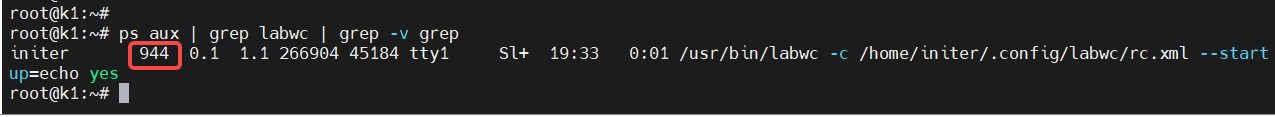

ps aux | grep labwc | grep -v grep

The process ID is shown in the highlighted position in the screenshot below. Use the value displayed on your system.

Step 5: Kill the labwc process, replacing <PID> with the actual process ID:

kill <PID>

Step 6: Restart the SDDM display manager:

systemctl restart sddm

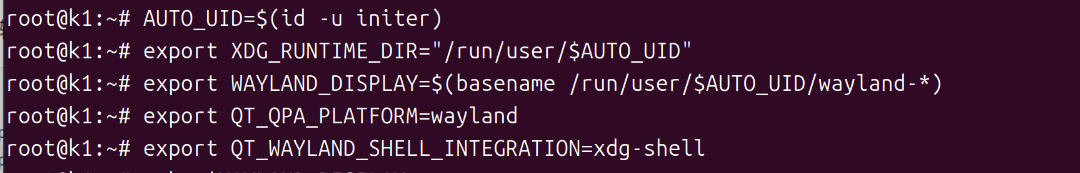

Step 7: Wait 5 seconds, then run the following commands in sequence:

AUTO_UID=$(id -u initer)

export XDG_RUNTIME_DIR="/run/user/$AUTO_UID"

export WAYLAND_DISPLAY=$(basename /run/user/$AUTO_UID/wayland-*)

export QT_QPA_PLATFORM=wayland

export QT_WAYLAND_SHELL_INTEGRATION=xdg-shell

Step 8: Start WayVNC:

XDG_RUNTIME_DIR="$XDG_RUNTIME_DIR" WAYLAND_DISPLAY="$WAYLAND_DISPLAY" wayvnc 0.0.0.0 5900

Step 9: Connect using a VNC client:

Note: The host machine and the board must be on the same local network (e.g., connected to the same Wi-Fi network or router) when using any VNC client.

Option A — RealVNC Viewer:

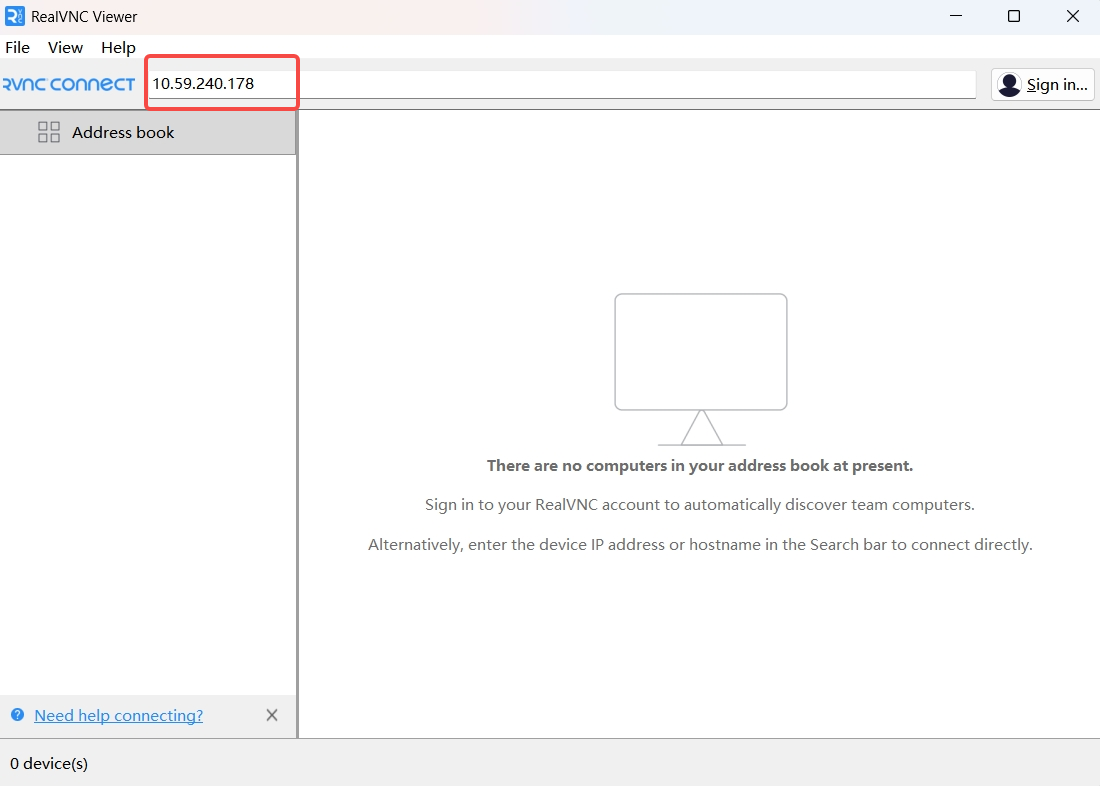

Launch RealVNC Viewer.
Enter <remote_ip> (e.g., 192.168.1.100) in the address bar.
Press Enter to connect.

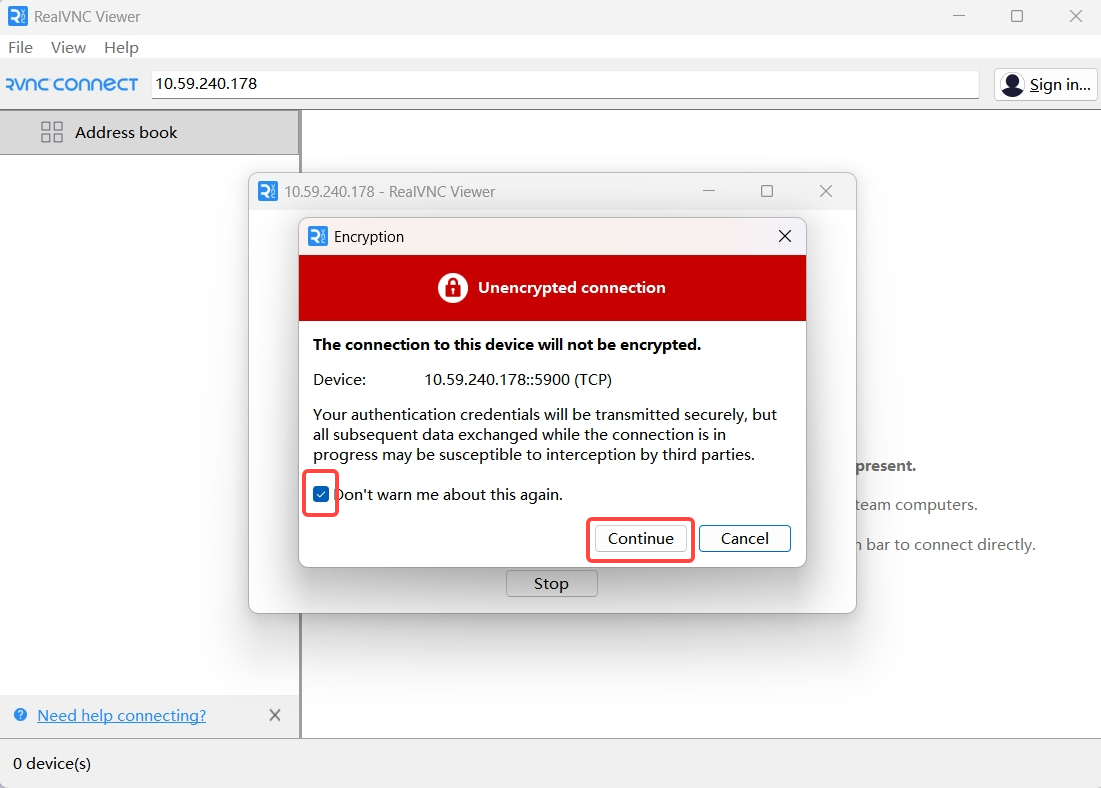

Click the item shown in the highlighted area.

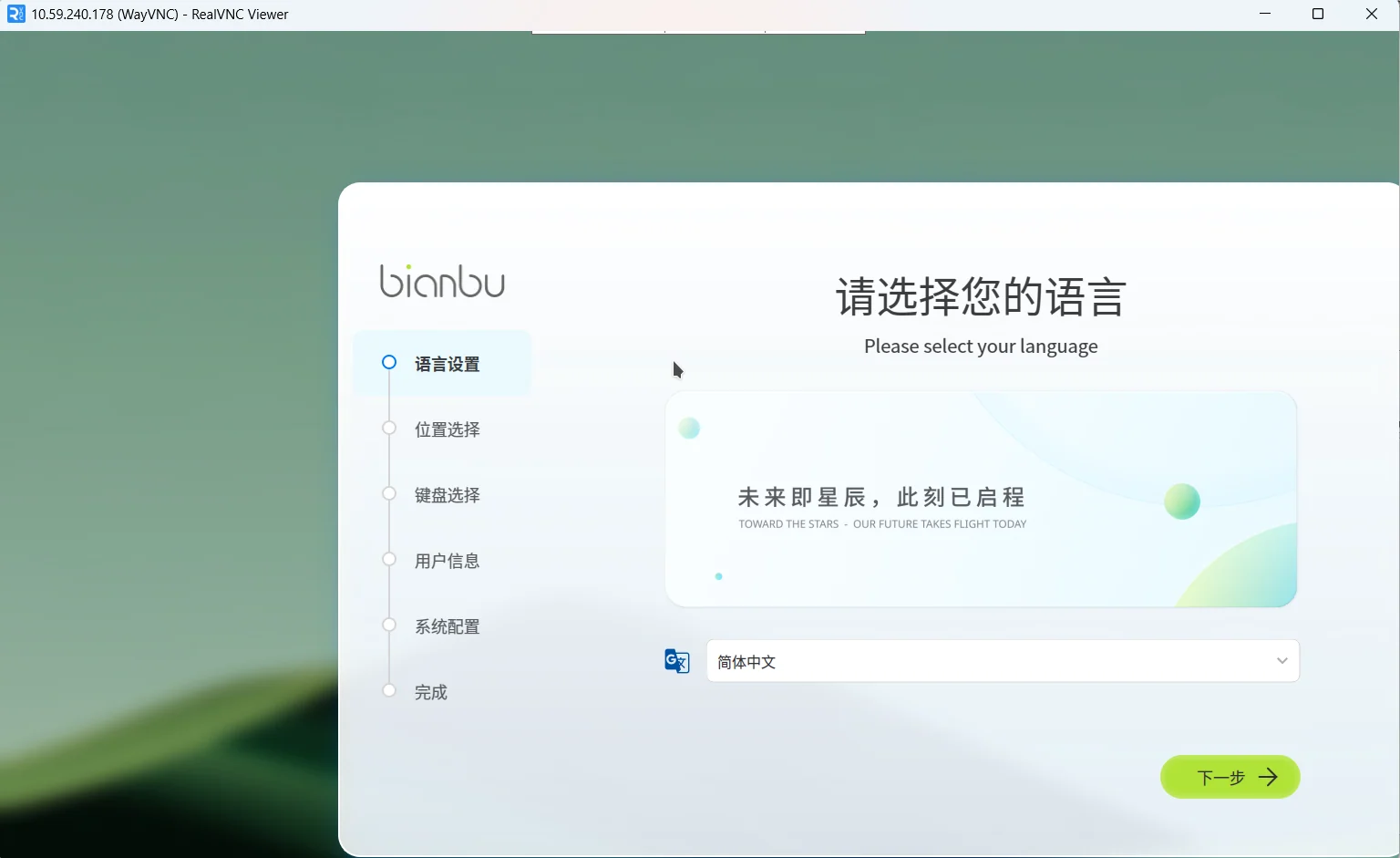

The Bianbu system initialization wizard will appear.

Option B — TigerVNC:

Launch TigerVNC.

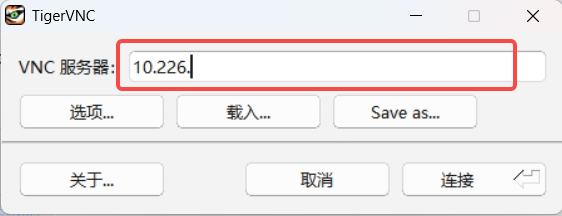

Enter the board's IP address (e.g., 10.59.240.178) in the VNC server address field.
Click Connect.

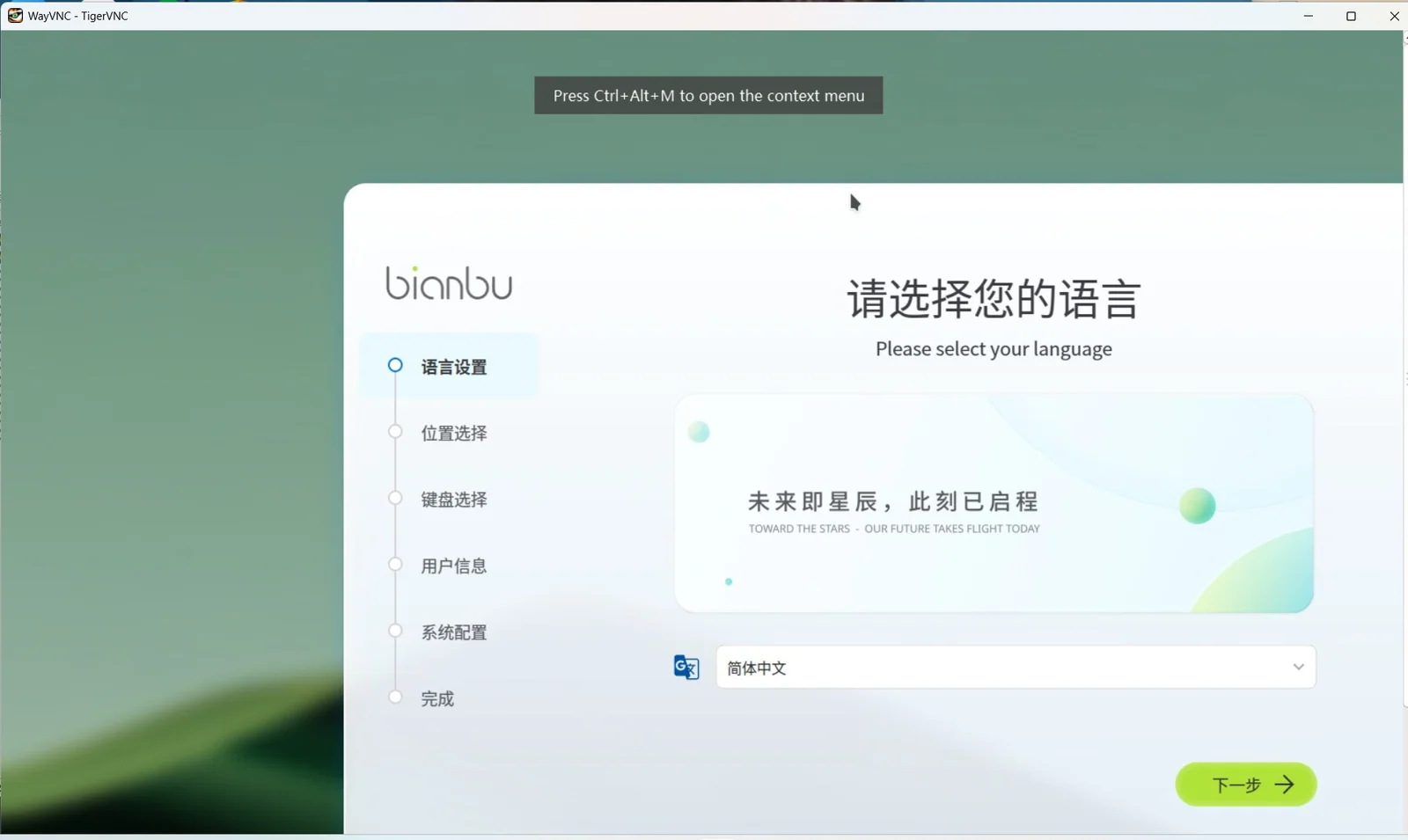

The Bianbu system initialization wizard will appear.

Already Initialized

Stage 1: Network Configuration and User Switch

Network Configuration

If Ethernet is connected: proceed to the next step.
If Ethernet is not connected: the system will be in an offline state. Go to First Use (Uninitialized) — Stage 1, Scenario 2 to complete network setup, then continue.

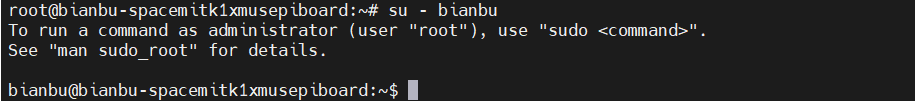

Step 1: Switch to the regular user account. The example below uses bianbu — replace it with the username you created during initialization:

su - <your_username>

Stage 2: Remote Desktop Connection

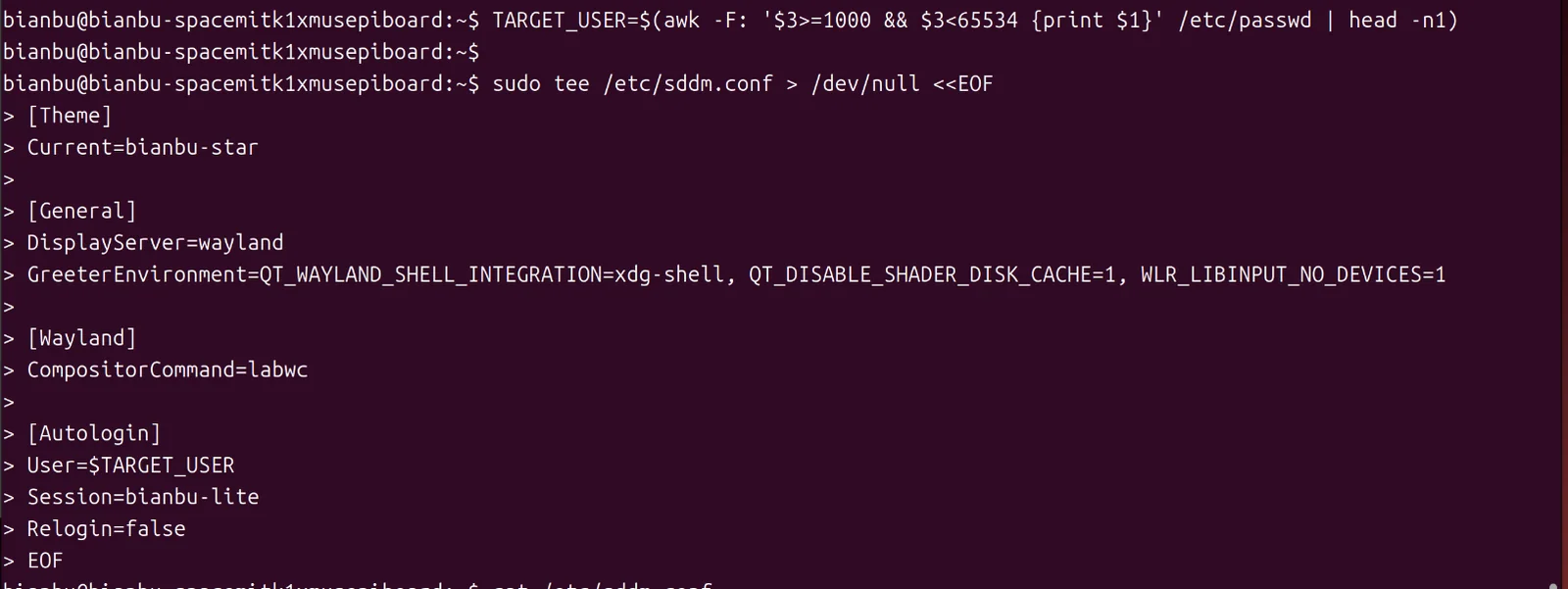

Step 1: From your user's home directory, run the following commands:

TARGET_USER=$(awk -F: '$3>=1000 && $3<65534 {print $1}' /etc/passwd | head -n1)

sudo tee /etc/sddm.conf > /dev/null <<EOF
[Theme]
Current=bianbu-star

[General]
DisplayServer=wayland
GreeterEnvironment=QT_WAYLAND_SHELL_INTEGRATION=xdg-shell,WLR_LIBINPUT_NO_DEVICES=1
[Wayland]
CompositorCommand=labwc

[Autologin]
User=$TARGET_USER
Session=bianbu-lite
Relogin=false
EOF

Enter your user password when prompted.

Step 2: Back up the session startup script:

sudo cp /usr/bin/startlxqtwayland /usr/bin/startlxqtwayland.clean

Step 3: Set the required environment variables:

sudo sed -i '1a export LABWC_FALLBACK_OUTPUT="NOOP-fallback"\nexport LABWC_VIRTUAL_OUTPUT_SIZE="1920x1080"' /usr/bin/startlxqtwayland

Step 4: Restart the SDDM display manager:

systemctl restart sddm

Enter your password when prompted.

Step 5: Run the following commands to locate the Wayland socket:

WAYLAND_SOCKET=$(find /run/user -path "/run/user/0/*" -prune -o -name "wayland-*" -type s -print 2>/dev/null | head -n1)

Step 6: Set the runtime directory:

XDG_RUNTIME_DIR=$(dirname "$WAYLAND_SOCKET")

Step 7: Set the Wayland display:

WAYLAND_DISPLAY=$(basename "$WAYLAND_SOCKET")

Step 8: Start WayVNC:

XDG_RUNTIME_DIR="$XDG_RUNTIME_DIR" WAYLAND_DISPLAY="$WAYLAND_DISPLAY" wayvnc 0.0.0.0 5900

Step 9: Connect using a VNC client:

Note: The host machine and the board must be on the same local network (e.g., connected to the same Wi-Fi network or router) when using any VNC client.

Option A — RealVNC Viewer:

Launch RealVNC Viewer.
Enter <remote_ip> (e.g., 192.168.1.100) in the address bar.
Press Enter to connect.

The remote desktop will load and display the board's desktop environment.

Option B — TigerVNC:

Launch TigerVNC.
Enter the board's IP address (e.g., 10.59.240.178) in the VNC server address field.
Click Connect.

The remote desktop will load and display the board's desktop environment.

x86 Ubuntu 24.04​

Serial Connection Setup​

Ubuntu System Login​

First Use (Uninitialized)​

Stage 1: Network Configuration and IP Address​

Scenario 1: Board Connected via Ethernet​

Scenario 2: Board Not Connected via Ethernet (Wi-Fi Setup Required)​

Stage 2: Remote Desktop Connection for Initial Setup​

Already Initialized​

Stage 1: Network Configuration and User Switch​

Network Configuration​

Stage 2: Remote Desktop Connection​

Windows 11​

Serial Connection Setup​

Windows System Login​

First Use (Uninitialized)​

Stage 1: Network Configuration and IP Address​

Scenario 1: Board Connected via Ethernet​

Scenario 2: Board Not Connected via Ethernet (Wi-Fi Setup Required)​

Stage 2: Remote Desktop Connection for Initial Setup​

Already Initialized​

Stage 1: Network Configuration and User Switch​

Network Configuration​

Stage 2: Remote Desktop Connection​

x86 Ubuntu 24.04

Serial Connection Setup

Ubuntu System Login

First Use (Uninitialized)

Stage 1: Network Configuration and IP Address

Scenario 1: Board Connected via Ethernet

Scenario 2: Board Not Connected via Ethernet (Wi-Fi Setup Required)

Stage 2: Remote Desktop Connection for Initial Setup

Already Initialized

Stage 1: Network Configuration and User Switch

Network Configuration

Stage 2: Remote Desktop Connection

Windows 11

Serial Connection Setup

Windows System Login

First Use (Uninitialized)

Stage 1: Network Configuration and IP Address

Scenario 1: Board Connected via Ethernet

Scenario 2: Board Not Connected via Ethernet (Wi-Fi Setup Required)

Stage 2: Remote Desktop Connection for Initial Setup

Already Initialized

Stage 1: Network Configuration and User Switch

Network Configuration

Stage 2: Remote Desktop Connection
