Boot Development Guide

Overview​

Purpose​

This guide provides a comprehensive introduction to the boot and flashing process for SpacemiT platforms, including methods for custom configuration, as well as techniques for driver development and debugging within U-Boot and OpenSBI. It is designed to help developers quickly master the system boot process and streamline secondary development.

Scope​

This document is applicable to the K1 series SoC (System on Chip) of SpacemiT.

Relevant Personnel​

  • Firmware flashing and boot development engineers
  • Kernel development engineers

Document Structure​

  1. Boot Process and Configuration – Describes the system boot mechanism and customization options.
  2. U-Boot / OpenSBI Development & Debugging – Covers build configurations, driver development, and debugging techniques.
  3. Troubleshooting Guide – Offers solutions to common issues encountered during development.

Firmware Flashing and Boot Process​

This section introduces configurations and implementation principles related to firmware flashing and booting, along with methods for custom flashing and booting setups.

Note: Flashing and booting are closely connected. Customizing the flashing process may require adjusting the boot settings, and vice versa.

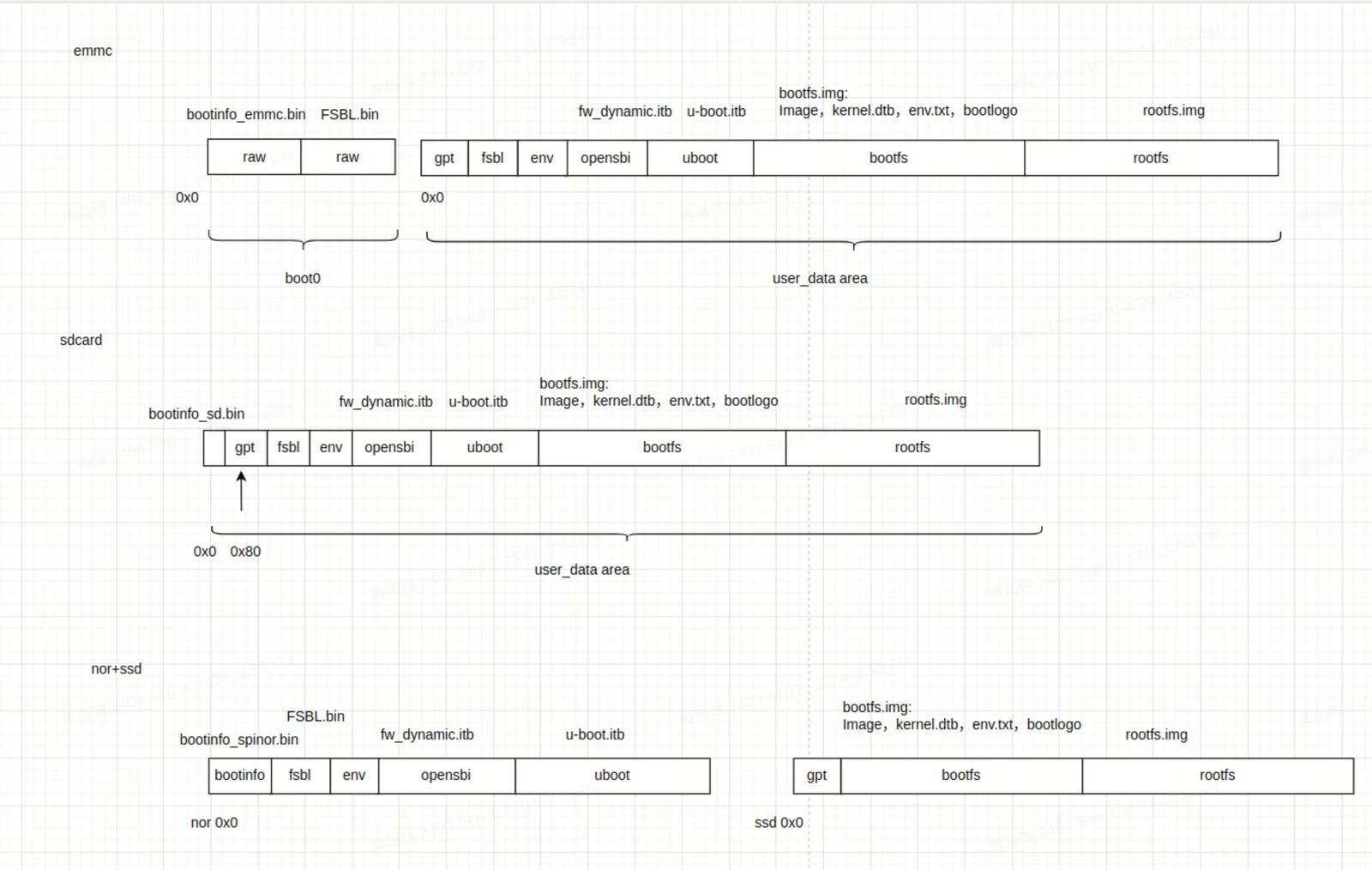

Firmware Layout​

The K1 series SoC commonly supports the following three firmware layout schemes. Their key characteristics are described below:

a

  1. eMMC

    • Consists of a boot0 area (used to store bootinfo_emmc.bin and FSBL.bin) and a user_data_area managed by a GPT partition table.
    • bootinfo_emmc.bin and FSBL.bin are stored in the boot0 area. The fsbl partition in the user_data_area typically contains no actual data.

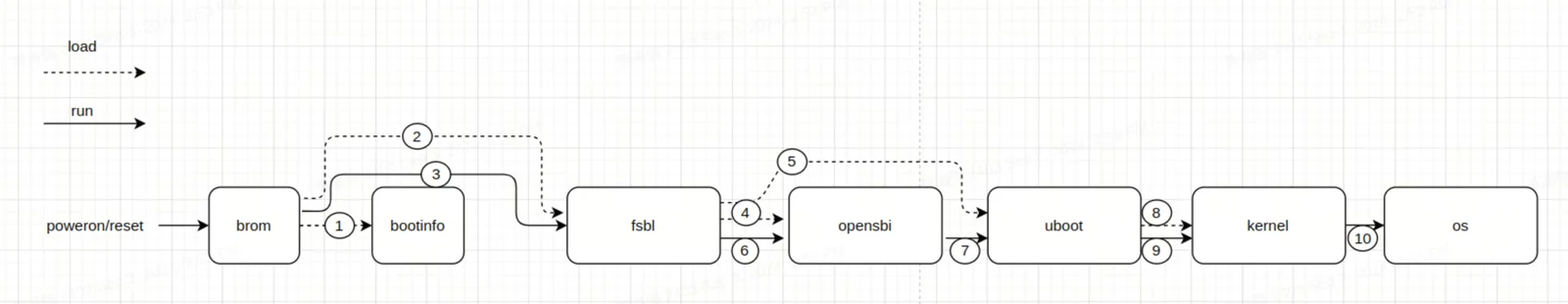

    • After power-on, BROM loads bootinfo_emmc.bin and FSBL.bin from the boot0 area.

  2. SD Card

    • Similar to the eMMC layout, but only includes a user_data_area.
    • bootinfo_sd.bin occupies the first 80 bytes, and the GPT table begins at block 1.

  3. NOR + SSD

    • Firmware on NOR includes FSBL, OpenSBI, and U-Boot, while, the SSD holds bootfs and rootfs.
    • Supports combinations like NOR + eMMC by default. If no SSD is inserted, NOR + eMMC can be used by setting the DIP switch to boot from NOR.
    • Only SSDs connected to the PCIe0 interface can be used to boot during flashing. If the SSD is connected to a different PCIe port, it will only work as a storage device, not for booting.
    • When flashing with the TitanFlasher tool, the SSD’s partition table may include FSBL, U-Boot, and OpenSBI entries, but these contents will not be used during boot.

Firmware Flashing Process and Configuration​

In this guide,

  • Flashing and Burning mean the same thing — writing a system image to storage.
  • Mass production is just another way of flashing — except the source image lives on an SD card, and the tool copies it to your device’s internal storage.
  • Card booting is different: the device actually boots straight from the SD card image instead of copying it anywhere.

Firmware Flashing Process​

Flashing uses the Fastboot protocol to send image files from your PC to the device. These files are written to the corresponding storage like MMC, MTD, or NVMe. The full process includes:

  • Entering Fastboot mode in U-Boot
  • Sending image files
  • Detecting the storage device
  • Creating a GPT partition table
  • Writing the image data to storage
U-Boot Fastboot Mode​

In this platform, the firmware flashing communication protocol is based on the fastboot protocol with some custom extensions. Actual firmware flashing operations occur within the U-Boot's Fastboot mode.

Once the device enters this mode, you can run fastboot devices on your PC to check if the device is detected (make sure Fastboot is set up on your PC):

~$ fastboot devices
c3bc939586f0         Android Fastboot

Below are three methods to enter U-Boot fastboot mode:

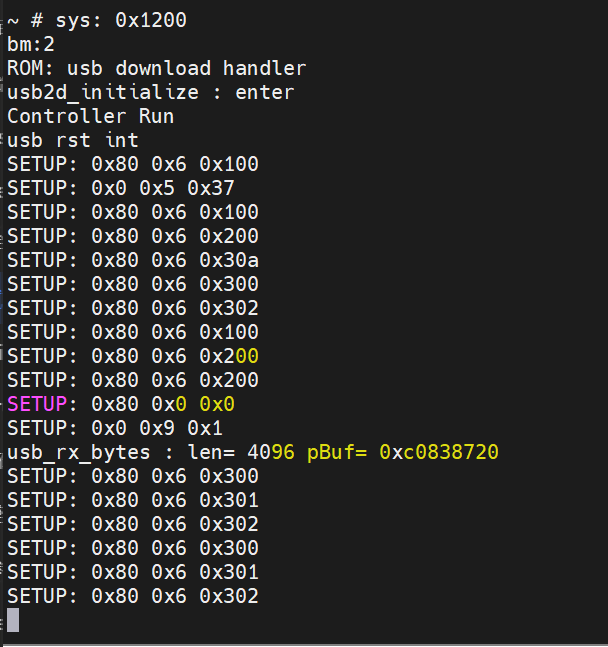

  1. Using Buttons on the Board

    • Hold the FEL button and press the RESET button.
    • This puts the board into BROM-Fastboot mode, which is only used to load U-Boot.
    • On the PC, run the following commands to load U-Boot Fastboot:
    fastboot stage factory/FSBL.bin
    fastboot continue
    #sleep wait for uboot ready
    #On Linux
    sleep 1
    #On Windows
    #timeout /t 1 >null
    fastboot stage u-boot.itb
    fastboot continue

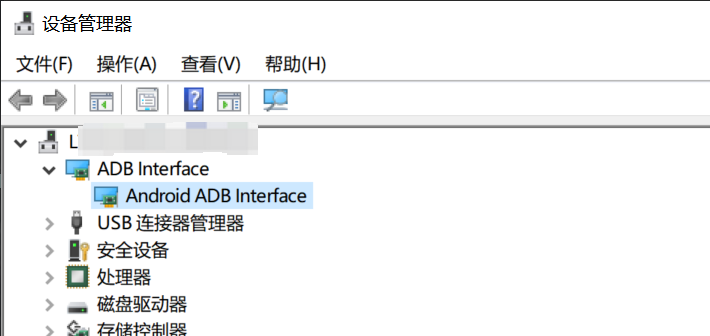

  2. Using ADB Command If the system is already running, use this command on the PC to reboot into U-Boot Fastboot:

    adb reboot bootloader

    Note: Some firmware may not include ADB, so this method won't always work.

  3. Using the Serial Port During startup, hold the S key via serial connection to enter the U-Boot shell, then run:

    fastboot 0

The following subsections introduce the different storage setups which may require different flashing commands. The BROM will boot from the selected storage based on boot pin settings (e.g., NOR/NAND/eMMC). Check your hardware reference design for the exact configuration.

eMMC Flashing​

  • eMMC Flashing Process Flashing eMMC follows this basic flow. The first steps are the same as other storage types: you enter U-Boot Fastboot mode via BROM-Fastboot and then begin flashing.

    fastboot stage factory/FSBL.bin
    fastboot continue

    #sleep to wait for uboot ready
    #linux env
    sleep 1
    #windows env
    #timeout /t 1 >null

    fastboot stage u-boot.itb
    fastboot continue

    fastboot flash gpt partition_universal.json
    # This step is still needed, even though bootinfo_emmc.bin content is not used. See FAQ below.
    fastboot flash bootinfo factory/bootinfo_emmc.bin
    fastboot flash fsbl factory/FSBL.bin
    fastboot flash env env.bin
    fastboot flash opensbi fw_dynamic.itb
    fastboot flash uboot u-boot.itb
    fastboot flash bootfs bootfs.img
    fastboot flash rootfs rootfs.ext4

    For EMMC, the content of bootinfo_emmc.bin is embedded within the U-Boot code. This is done to ensure compatibility with using the same partition_universal.json table for SD card booting, among others. Both bootinfo_emmc.bin and FSBL.bin are actually written to the EMMC's Boot0 partition.

  • EMMC Partition Table Configuration The partition table is stored in buildroot-ext/board/spacemit/k1/partition_universal.json. The bootinfo is not explicitly defined as a partition but is used to store information related to the boot medium.

    {
    "version": "1.0",
    "format": "gpt",
    "partitions": [
      {
        "name": "bootinfo",
        "offset": "0",
        "size": "80B",
        "image": "factory/bootinfo_sd.bin"
      },
      {
        "name": "fsbl",
        "offset": "256K",
        "size": "256K",
        "image": "factory/FSBL.bin"
      },
      {
        "name": "env",
        "offset": "512K",
        "size": "128K"
      },
      {
        "name": "opensbi",
        "offset": "1M",
        "size": "1M",
        "image": "opensbi.itb"
      },
      {
        "name": "uboot",
        "offset": "2M",
        "size": "2M",
        "image": "u-boot.itb"
      },
      {
        "name": "bootfs",
        "offset": "4M",
        "size": "128M",
        "image": "bootfs.img"
      },
      {
        "name": "rootfs",
        "size": "-"
      }
     ]
    }
NOR+BLK Device Flashing​

  • NOR+BLK device Flashing process The K1 supports flashing and booting from a combination of NOR Flash and block devices (like SSD or eMMC). It works in an adaptive way — if both SSD and eMMC are connected, SSD will be used as the default flashing target.

    fastboot stage factory/FSBL.bin
    fastboot continue
    #sleep wait for uboot ready
    #linux env
    sleep 1
    #windows env
    #timeout /t 1 >null
    fastboot stage u-boot.itb
    fastboot continue

    #flashing to spi nor
    fastboot flash mtd partition_2M.json
    fastboot flash bootinfo factory/bootinfo_spinor.bin
    fastboot flash fsbl factory/FSBL.bin
    fastboot flash env env.bin
    fastboot flash opensbi fw_dynamic.itb
    fastboot flash uboot u-boot.itb

    #flashing to block device
    fastboot flash gpt partition_universal.json
    fastboot flash bootfs bootfs.img
    fastboot flash rootfs rootfs.ext4

  • NOR + BLK Partition Table Configuration

    • NOR Flash Partition Table

      • The NOR partition table is located at: buildroot-ext/board/spacemit/k1/partition_2M.json

      • For NAND/NOR devices, the partition table is named like partition_xM.json. Make sure the filename matches your actual flash size, or the system won’t find the correct table.

      • Partition tables are compatible downward — e.g., if NOR is 8MB and only partition_2M.json is available, it will be used.

    • Partition Naming Convention

      • MTD devices (e.g., NAND/NOR) use names like partition_2M.json.
      • BLK devices (eMMC/SD/SSD) all use partition_universal.json.

  • Modifying NOR Flash Partition Tables

    1. Partition offsets and sizes are aligned to 64KB by default (corresponding to an erase size of 64 KB)

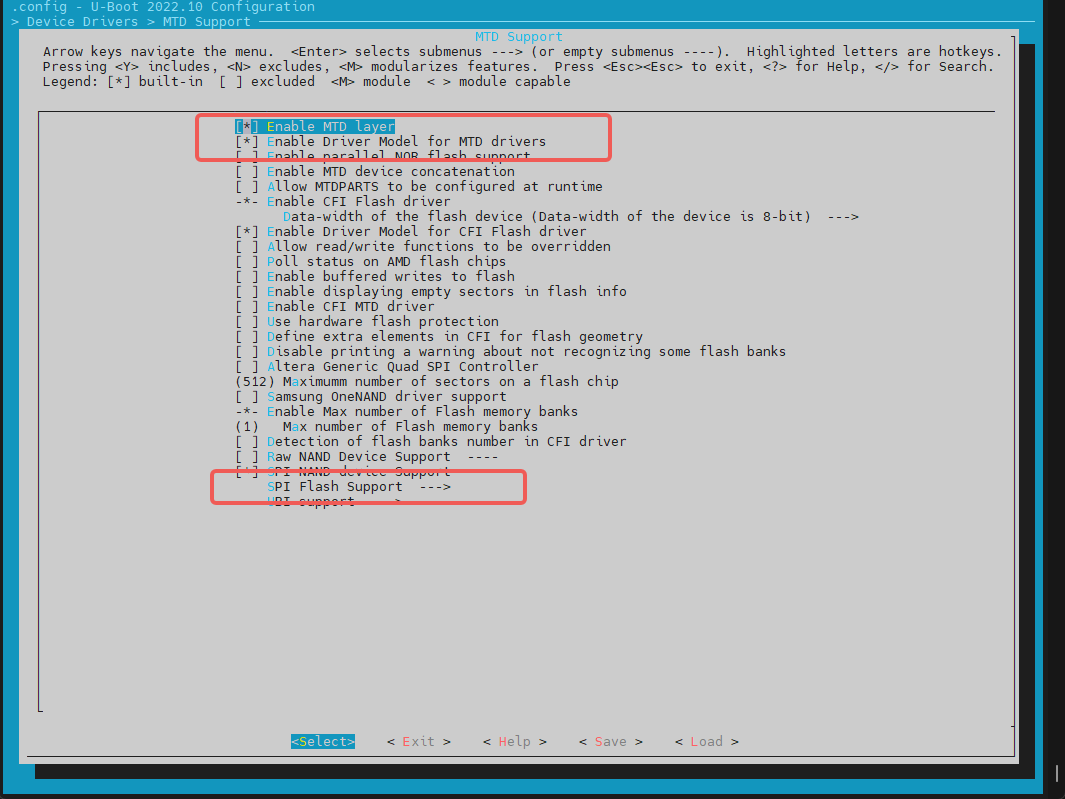

    2. If the offset and size need to align with 4 KB, the U-Boot compilation configuration CONFIG_SPI_FLASH_USE_4K_SECTORS must be enabled.

    //buildroot-ext/board/spacemit/k1/partition_2M.json
    {
      "version": "1.0",
      "format": "mtd",
      "partitions": [
        {
          "name": "bootinfo",
          "offset": "0",
          "size": "128K",
          "image": "factory/bootinfo_spinor.bin"
        },
        {
          "name": "fsbl",
          "offset": "128K",
          "size": "256K",
          "image": "factory/FSBL.bin"
        },
        {
          "name": "env",
          "offset": "384K",
          "size": "64K"
        },
        {
          "name": "opensbi",
          "offset": "448K",
          "size": "192K",
          "image": "fw_dynamic.itb"
        },
        {
          "name": "uboot",
          "offset": "640K",
          "size": "-",
          "image": "u-boot.itb"
        }
      ]
    }

  • SSD Partition Table All block devices (like SSDs and eMMCs) use the same partition table file partition_universal.json. In this case, partitions such as bootinfo, fsbl, env, opensbi, uboot, and the data within them, will not affect normal boot processes.

    //buildroot-ext/board/spacemit/k1/partition_universal.json
    {
        "version": "1.0",
        "format": "gpt",
        "partitions": [
            {
                "name": "bootinfo",
                "offset": "0K",
                "size": "512",
                "image": "factory/bootinfo_sd.bin",
                "holes": "{\"(80;512)\"}"
            },
            {
                "name": "fsbl",
                "offset": "128K",
                "size": "256K",
                "image": "factory/FSBL.bin"
            },
            {
                "name": "env",
                "offset":"384K",
                "size": "64K",
                "image": "env.bin"
            },
            {
                "name": "opensbi",
                "size": "384K",
                "image": "fw_dynamic.itb"
            },
            {
                "name": "uboot",
                "size": "2M",
                "image": "u-boot.itb"
            },
            {
                "name": "bootfs",
                "offset": "4M",
                "size": "256M",
                "image": "bootfs.img",
                "compress": "gzip-5"
            },
            {
                "name": "rootfs",
                "offset": "260M",
                "size": "-",
                "image": "rootfs.ext4",
                "compress": "gzip-5"
            }
        ]
    }
NAND Flashing​

  • NAND Flashing Process The K1 supports NAND flash booting. However, since NAND and NOR share the same SPI interface, only one of these schemes can be selected, with the default support being for NOR booting.

    For NAND flash booting, please refer to the NAND boot configuration section in the programming boot process to configure NAND booting

    fastboot stage factory/FSBL.bin
    fastboot continue
    #sleep wait for uboot ready
    #linux env
    sleep 1
    #windows env
    #timeout /t 1 >null
    fastboot stage u-boot.itb
    fastboot continue

    fastboot flash mtd partition_64M.json
    fastboot flash bootinfo factory/bootinfo_spinand.bin
    fastboot flash fsbl factory/FSBL.bin
    fastboot flash env env.bin
    fastboot flash opensbi fw_dynamic.itb
    fastboot flash uboot u-boot.itb

    fastboot flash user-bootfs bootfs.img
    fastboot flash user-rootfs rootfs.img

  • UBIFS Image Creation File system management on the NAND relies on UBIFS. The methods for creating the bootfs and rootfs partitions are as follows:

    #Creating bootfs.img
    mkfs.ubifs -F -m 2048 -e 124KiB -c 8124 -x zlib -o output/bootfs.img -d input_bootfs/

    #Creating rootfs.img
    mkfs.ubifs -F -m 2048 -e 124KiB -c 8124 -x zlib -o output/rootfs.img -d input_rootfs/

    #input_bootfs and input_rootfs should contain the files to be included in the bootfs and rootfs partitions, respectively.
    # For example, for bootfs, include the following files: Image.itb, env_k1-x.txt, bianbu.bmp

    #Different NANDs require modification of the corresponding parameters; here are some parameter descriptions:
    -m 2048：Sets the minimum input/output unit size to 2048 bytes (2 KiB), which should match the page size of the NAND Flash.
    -e 124KiB：Sets the logical erase block size to 124 KiB (kilobytes), which should be smaller than the actual physical erase block size to leave space for UBI management structures.
    -c 8124：Sets the maximum number of logical erase blocks to 8124, which limits the maximum size of the filesystem based on the size and number of logical erase blocks.
    -x zlib: Sets the compression type to zlib, which will compress the data in the filesystem using zlib.
    -o output/ubifs.img: Specifies the output file name, saving the generated UBIFS filesystem image as output/ubifs.img.
    -d input/: Specifies the source directory as input/, where mkfs.ubifs will create a UBIFS filesystem image from the files and directory structure in this directory.

  • NAND + Block Device Boot K1 also supports booting with a combination of NAND and a block device (e.g., SSD or eMMC). The flashing process is similar to the NOR+BLK configuration.

  • NAND Partition Table Example Below is an example of a 64MB partition layout for NAND (partition_64M.json):

    //buildroot-ext/board/spacemit/k1/partition_64M.json
    {
      "version": "1.0",
      "format": "mtd",
      "partitions": [
        {
          "name": "bootinfo",
          "comment": "private partition, should not overrided it",
          "offset": "0",
          "size": "128K",
          "image": "factory/bootinfo_spinand.bin"
        },
        {
          "name": "fsbl",
          "offset": "128K",
          "size": "256K",
          "image": "factory/FSBL.bin"
        },
        {
          "name": "env",
          "offset": "384K",
          "size": "128K"
        },
        {
          "name": "opensbi",
          "offset": "640K",
          "size": "384K",
          "image": "opensbi.itb"
        },
        {
          "name": "uboot",
          "offset": "1M",
          "size": "2M",
          "image": "u-boot.itb"
        },
        {
          "name": "user",
          "offset": "3M",
          "size": "-",
                 "volume_images": {"bootfs": "bootfs.img", "rootfs": "rootfs.img"}
        }
      ]
    }
Card Booting​

Card booting refers to writing the image to an SD card. When the device is powered on with the SD card inserted, the system will attempt to boot from the card first.

The K1 platform supports card booting and defaults to first attempting to boot from the SD card. If SD boot fails, the system will fall back to another boot source as selected by the boot pin configuration.

Note: The platform does not support flashing SD cards via the Fastboot protocol.

To prepare an SD card for booting, use the TitanFlash tool or the dd command.

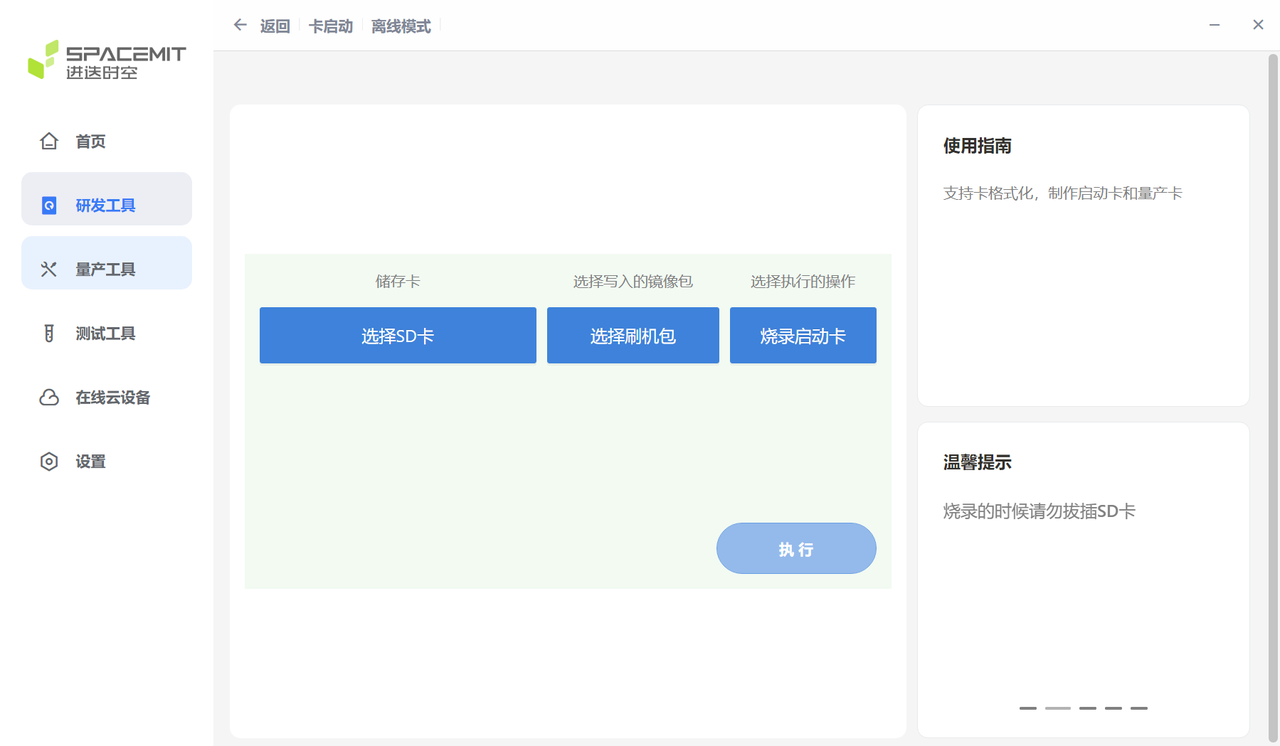

How to Create a Bootable SD Card (with TitanFlash)

  1. Insert a TF (microSD) card into a card reader and connect it to your PC.
  2. Open the TitanFlash utility on your computer (installation guide: TitanFlash Installation).

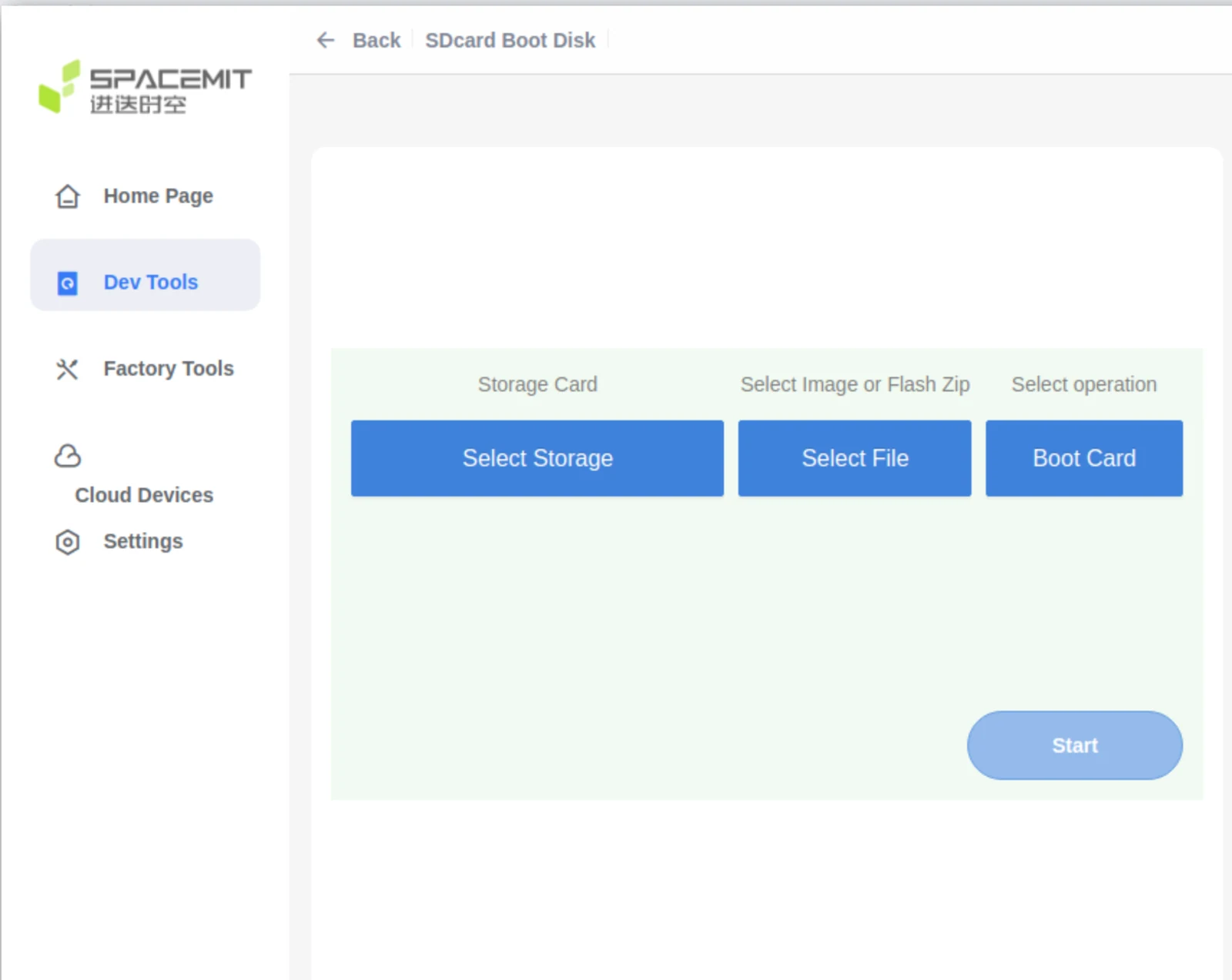

  3. In the top menu, go to Dev Tools → SDCard Boot Disk.
  4. Choose the Boot Card and select the flashing package. TitanFlash Card Boot Tool
  5. Click Start to begin flashing.
  6. Once done, insert the SD card into your device. Power it on to boot from the card.
Card Mass Production​

Card Mass Production refers to preparing an SD card with flashing images, so that when the device powers on:

  • It boots from the SD card first.
  • If mass production mode is detected, the system will automatically write the images from the card to the selected onboard storage (eMMC, NOR, NAND, etc.), based on the partition table.

The K1 supports this process. Using the TitanFlash tool, you can create a mass production SD card. Once the card is inserted and the device is powered on, the system will detect it and automatically flash the internal storage without user interaction.

How to Create a Mass Production SD Card

  1. Insert the TF card into a card reader and connect it to the computer's USB port.

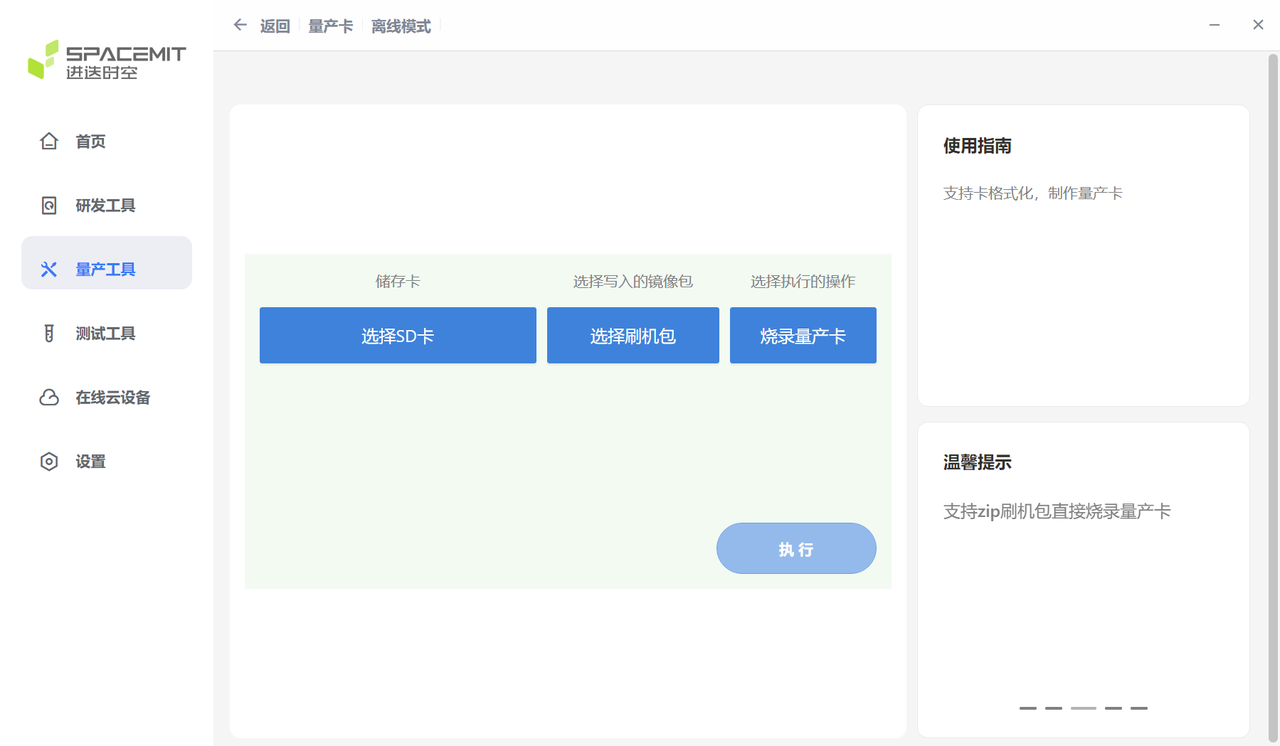

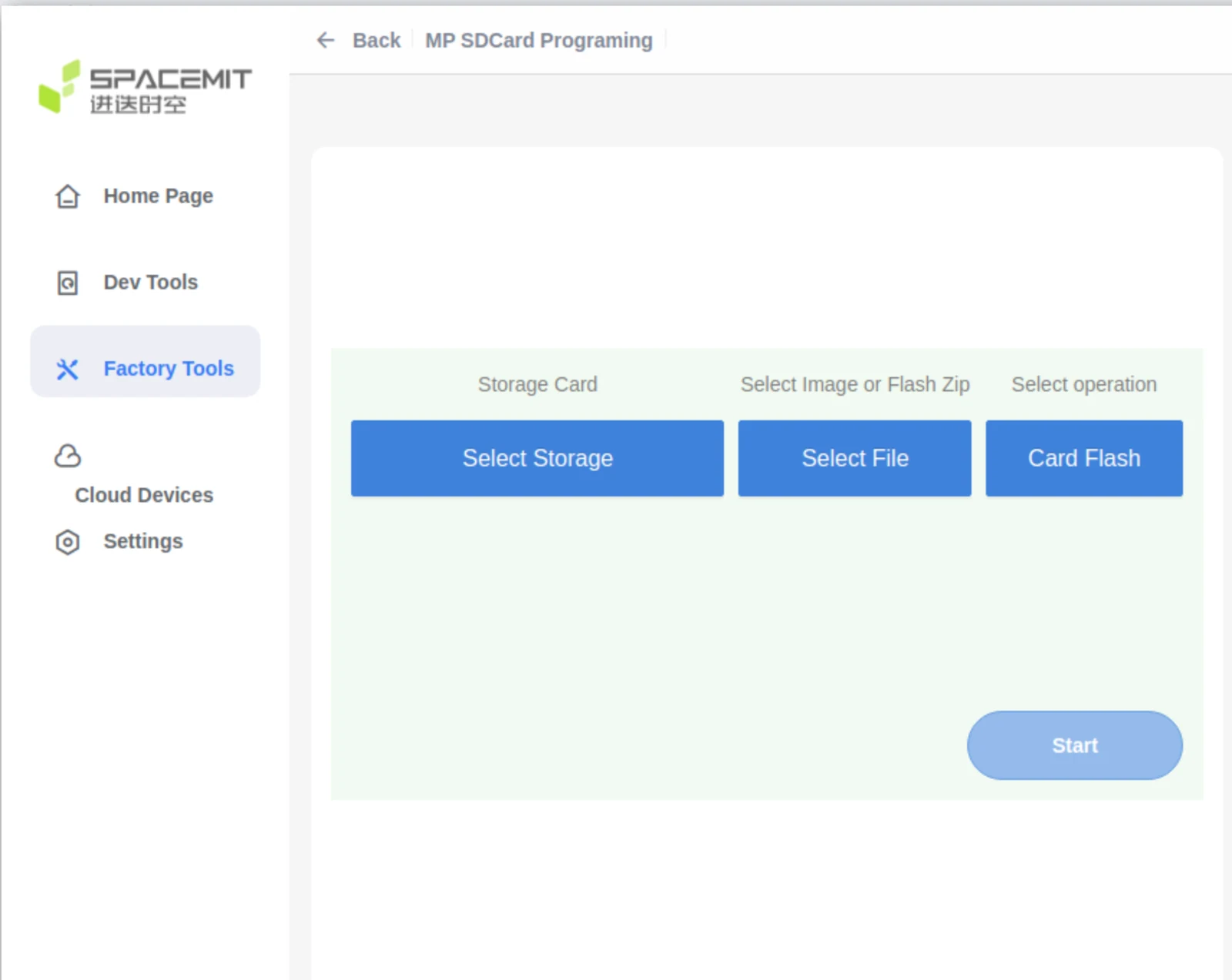

  2. Open the TitanFlash tool, and navigate to Factory Tools → MP SDcard Programming
  3. Select the desired flashing package, then click Start to write it. TitanFlash Mass Production Tool
  4. After the mass production card has been created, insert the SD card into the device.
  5. Power on the device. It will automatically boot from the SD card and flash the internal storage according to the partition table.
  6. After flashing is complete, remove the SD card to prevent re-flashing on the next power-up.

Flashing Tools​

This section gives a brief introduction to the available flashing tools and how to use them.

Usage of Flashing Tools​

The platform supports two main methods for flashing firmware images:

  • TitanFlash Tool Designed for general developers, TitanFlash offers a full-featured, user-friendly GUI for flashing complete image packages. For installation and usage, refer to the official documentation: TitanFlash User Guide

  • Fastboot Tool Intended for advanced users who are comfortable with command-line tools. It’s best for flashing individual image partitions. Note: Incorrect usage (e.g. flashing the wrong partition) may cause boot failures. Proceed with caution. Flashing steps are covered in the Flashing Process section of this document. Fastboot installation guides:

For information on how to build the firmware image, see: Download and Build

Boot Media Selection​

  • The hardware platform supports boot media selection via the Boot Download Sel Switch (DIP switch). For how to use this switch, refer to the Boot Download Sel & JTAG Sel section in the MUSE Pi user guide.

  • For other boards or custom solutions, please refer to their respective hardware manuals.

  • The flashing process supports auto-detection and adapts to the selected boot media.

Boot Configuration​

This section explains how to configure booting from different storage devices such as eMMC, SD, NOR, and NAND, and highlights important considerations when customizing boot settings. To successfully boot the system, both the flashing process and the boot configuration (like partition tables and image offsets) must be correctly set.

Boot Process​

This section outlines the platform’s boot process which follows a multi-stage sequence:

BROM → FSBL → OpenSBI → U-Boot → Kernel

The bootinfo data provides key details for the FSBL, such as its offset, size, and signature.

alt text

At power-on, the system uses the Boot Pin Select configuration to decide which storage device (e.g., SD card, eMMC, NOR) to boot from.

Note: The overall boot sequence remains the same regardless of the boot medium.

For more about the boot pin settings, refer to the Boot Media Selection section under Flashing Tools.

Upon power-on K1, the boot priority is as follows:

  1. Try to boot from the SD card first.
  2. If SD boot fails, the system will fall back to other boot media (eMMC, NAND, or NOR), according to the Boot Pin Select settings. It will attempt to load OpenSBI and U-Boot from the selected device.

The following subsections will explain the configuration details for each boot stage component:

  • bootinfo
  • fsbl
  • opensbi
  • uboot
  • kernel
BROM (Boot ROM)​

BROM is the boot code built into the SoC at the factory — it cannot be changed. It runs automatically when the chip powers up or resets.

Based on the Boot Pin settings, BROM detects the selected boot device (e.g., SD, eMMC, NOR) and loads the bootinfo and fsbl from that storage.

For details on how to set Boot Pins, see Boot Media Selection in the Flashing Tools section.

bootinfo​

After BROM starts, it reads bootinfo from offset 0 of the selected storage device. For example, on eMMC, it reads from the start of the boot0 partition.

bootinfo contains metadata about the FSBL and FSBL1 — including their offsets, sizes, and checksums.

The FSBL locations for each storage type are defined in JSON files:

uboot-2022.10$ ls board/spacemit/k1-x/configs/
bootinfo_emmc.json  bootinfo_sd.json  bootinfo_spinand.json  bootinfo_spinor.json

Each file specifies the default locations of fsbl and fsbl1 (a backup copy). You can adjust the offsets by editing these .json files and recompiling U-Boot.

If you're customizing FSBL positions, ensure they align with the requirements of the storage type. For example:

  • NAND needs sector alignment
  • eMMC only supports FSBL loading from the boot partition

Default Offset Examples

emmc:boot0:0x200, boot1:0x0
sd:0x20000/0x80000
nor:0x20000/0x70000
nand:0x20000/0x80000

bootinfo Output Files When compiling U-Boot, the corresponding bootinfo image files (i.e. *.bin files) are generated in the root directory:

uboot-2022.10$ ls -l
bootinfo_emmc.bin
bootinfo_sd.bin
bootinfo_spinand.bin
bootinfo_spinor.bin

The generation logic is in: uboot-2022.10/board/spacemit/k1-x/config.mk

FSBL (First Stage Boot Loader)​

After BROM reads bootinfo, it loads the FSBL from the specified offset.

The FSBL is made up of:

  • A 4 KB header, which includes essential information for uboot-spl like CRC checksums, and
  • The actual uboot-spl.bin binary (U-Boot SPL = Secondary Program Loader).

What FSBL Does:

  1. Initializes DDR memory
  2. Loads OpenSBI and U-Boot into their designated locations in memory, using information from the partition table.
  3. Runs OpenSBI, which then
  4. Starts U-Boot

Note: How FSBL performs DDR initialization will not be covered in this section.

Booting with OpenSBI and U-Boot​

Different storage media support various ways to load OpenSBI and U-Boot. The following subsections describe how SPL loads and starts OpenSBI and U-Boot for each type of storage device (eMMC, SD, NOR, NAND).

K1 supports two main ways to load OpenSBI and U-Boot during the boot process:

  1. Separate partitions for opensbi and uboot (default)
  2. A combined image (uboot-opensbi.itb)

The default behavior is to load from partition names. For combined image booting, refer to the FAQ section below: “Combined loading of U-Boot and OpenSBI.”

eMMC and SD Card Boot​

Both eMMC and SD use the MMC driver, and U-Boot determines which to boot from based on the Boot Pin Select configuration. The startup configurations for both are similar.

OpenSBI and U-Boot can be stored in various formats depending on the boot method, including raw partitions, files within a filesystem, or a single FIT (Flattened Image Tree) image.

By default, on K1, the system attempts to boot from the SD card first. If that fails, it falls back to other available media (eMMC, NOR, or NAND).

The SPL device tree source (DTS) needs to be configured to enable support for eMMC and SD. Example:

//uboot-2022.10/arch/riscv/dts/k1-x_spl.dts
        /* eMMC */
        sdh@d4281000 {
                bus-width = <8>;
                non-removable;
                mmc-hs400-1_8v;
                mmc-hs400-enhanced-strobe;
                sdh-phy-module = <1>;
                status = "okay";
                u-boot,dm-spl;
        };

        /* sd */
      sdh@d4280000 {
          pinctrl-names = "default";
          pinctrl-0 = <&pinctrl_mmc1 &gpio80_pmx_func0>;
          bus-width = <4>;
          cap-sd-highspeed;
          sdh-phy-module = <0>;
          status = "okay";
          u-boot,dm-spl;
      };

The following introduces different boot methods for eMMC/SD, with a default approach of loading by partition name.

  1. Raw Partition Mode The FSBL loads U-Boot and OpenSBI from named partitions. Here, we use eMMC as an example (SD and NOR are similar and not repeated here).

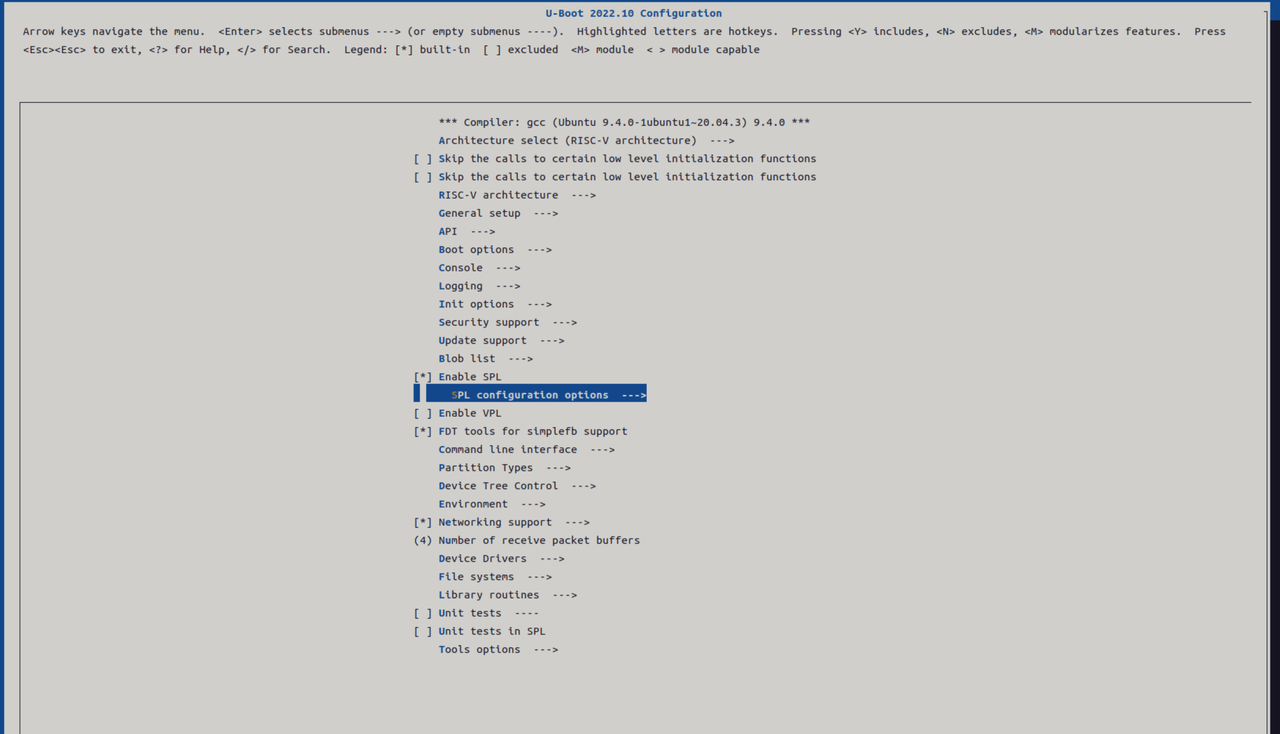

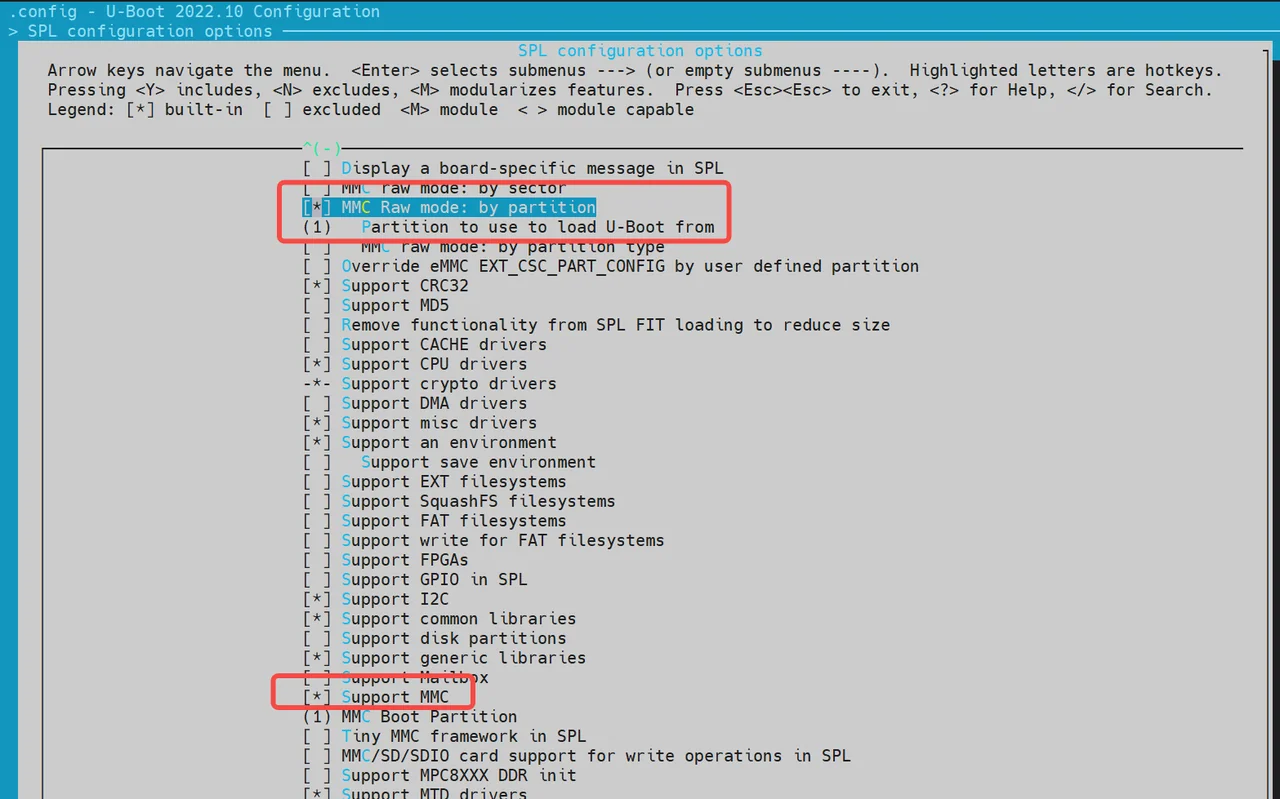

    • Run make uboot_menuconfig to enter the SPL configuration interface.

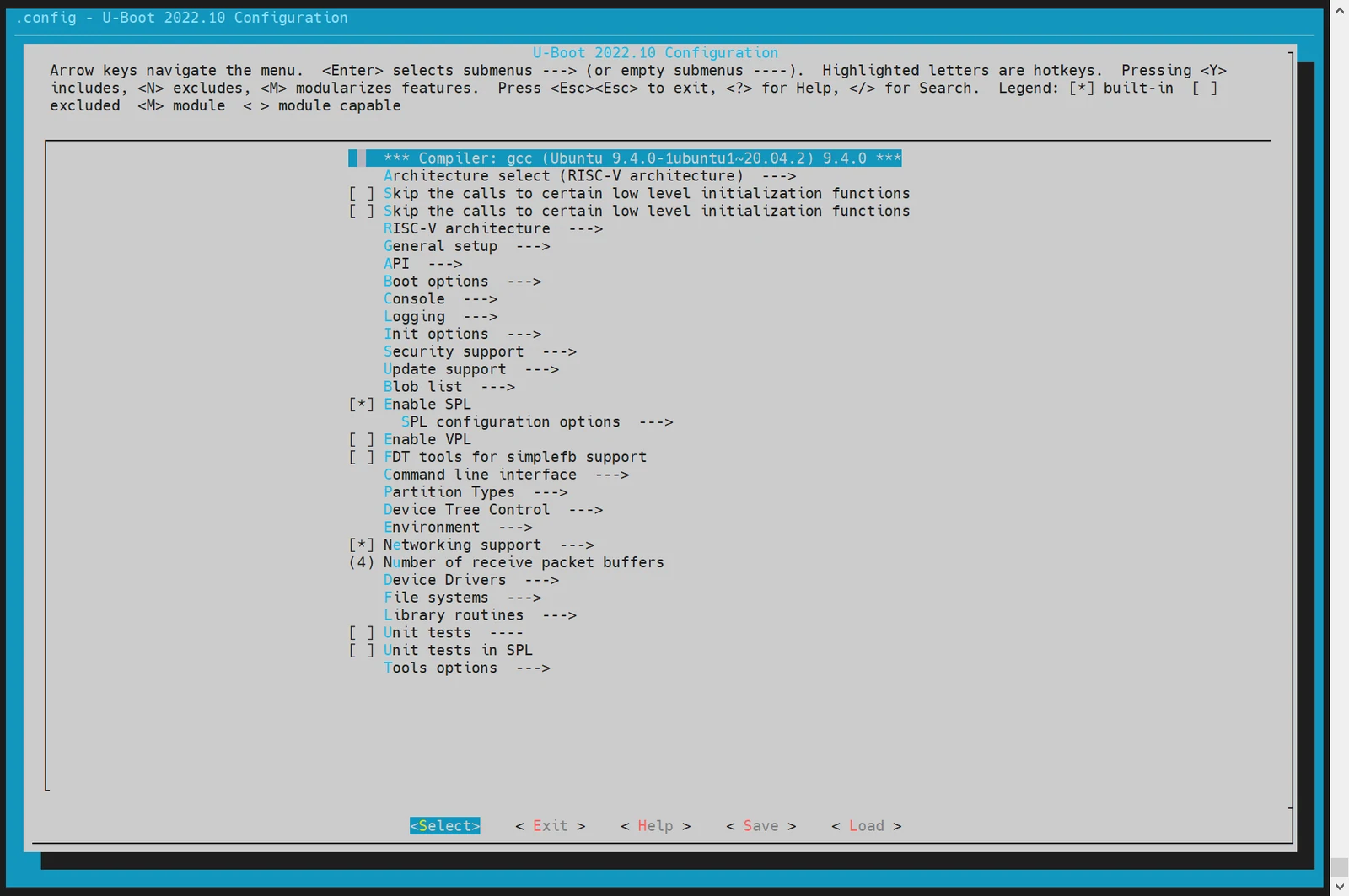

      alt text

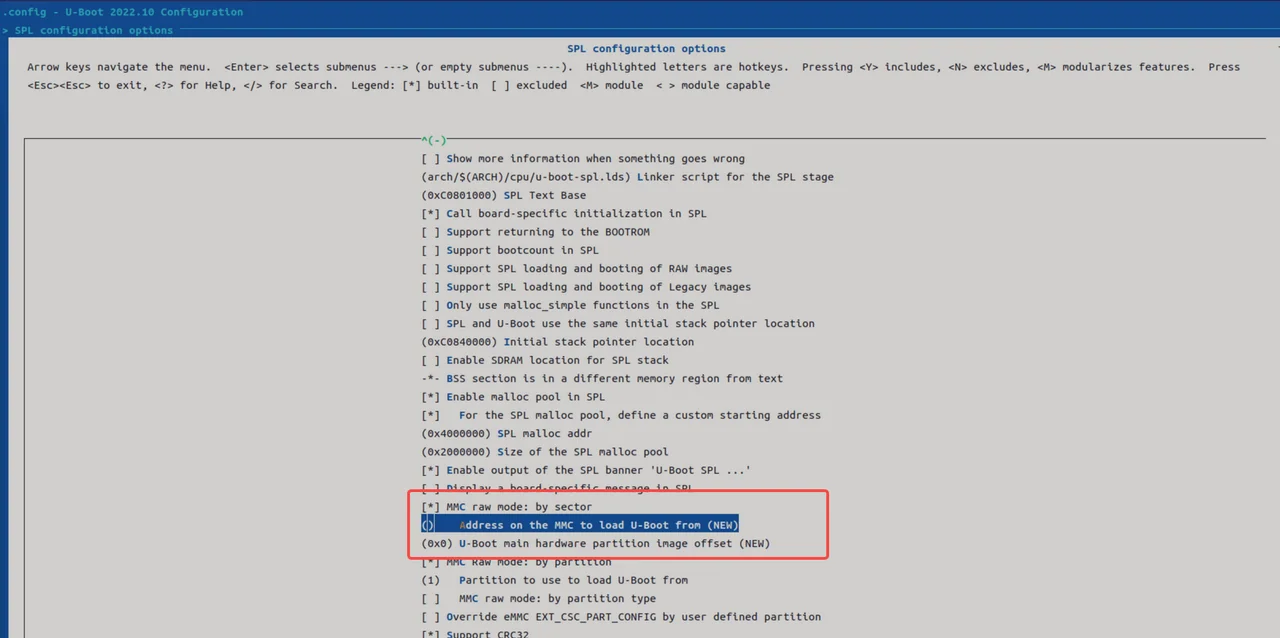

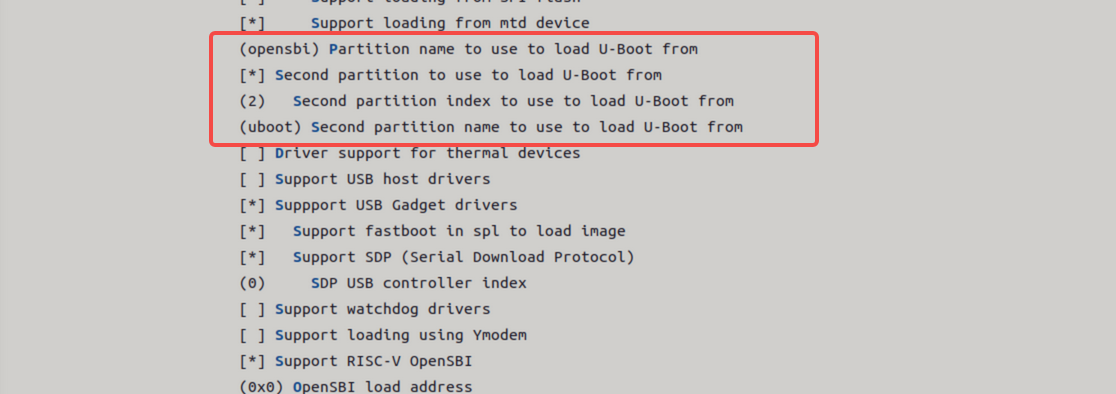

    • Select loading via the partition table. Here, separate loading of U-Boot/OpenSBI is supported by default. SPL will first look for partitions named opensbi and uboot. If they’re missing, it falls back to loading raw images from partition index 1 and 2 respectively.

      alt text

      alt text

    • After SPL successfully loads OpenSBI and U-Boot, it starts OpenSBI and passes the memory address of U-Boot along with the DTB (Device Tree Blob) information. OpenSBI then boots U-Boot according to the provided address and DTB.

  2. Fixed Offset Mode This method loads the image directly from a fixed offset on the eMMC.

    • When enabled, SPL reads a single image—containing both OpenSBI and U-Boot from the configured offset.

      Note: This mode does not support separate loading of OpenSBI and U-Boot. They must be packaged into a single FIT image.

    • If separate loading is needed, refer to the source: uboot-2022.10/common/spl/spl_mmc.c under MMCSD_MODE_RAW.

      alt text

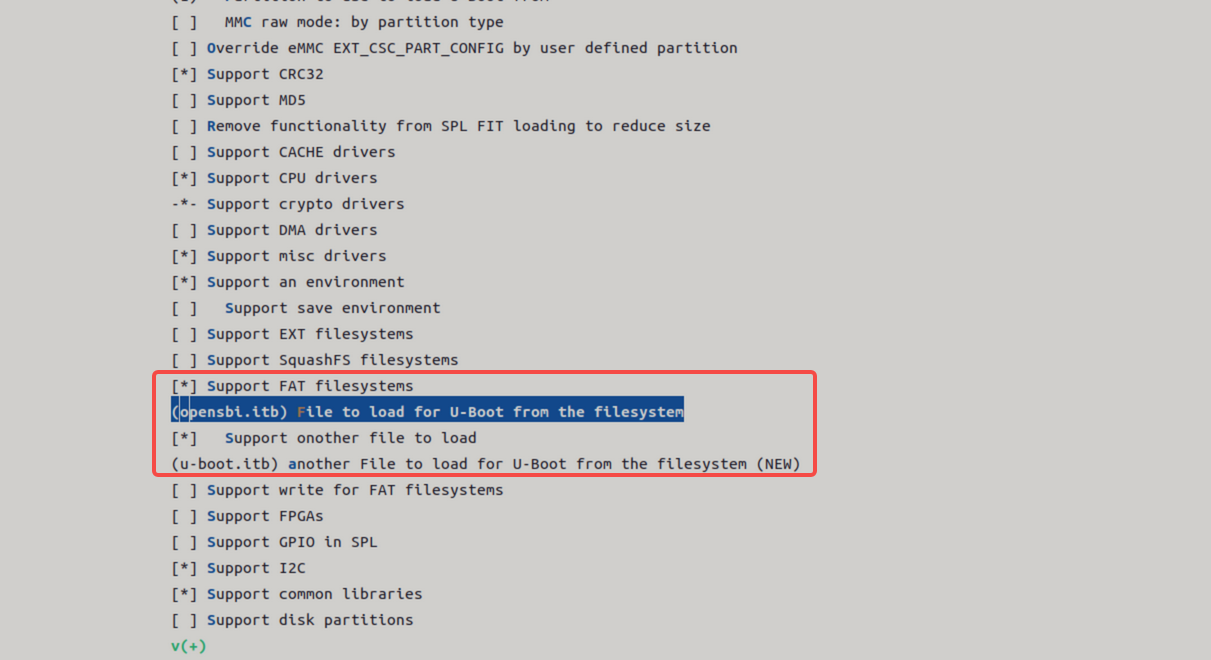

  3. Filesystem Mode This method allows SPL to load boot images from a filesystem (typically FAT).

    • U-Boot SPL can load OpenSBI and U-Boot separately as files from the filesystem (e.g., opensbi.itb, uboot.itb).

    • Run make menuconfig, enable the required SPL options, and turn on FAT filesystem support.

      alt text

NOR Boot​

K1 supports booting from NOR flash. Typical boot combinations include:

  • NOR (u-boot-spl / u-boot / OpenSBI) + SSD (bootfs / rootfs)
  • NOR (u-boot-spl / u-boot / OpenSBI) + eMMC (bootfs / rootfs)

By default, the system attempts to boot from SSD first. If unsuccessful, it falls back to alternative configurations.

The DTS (Device Tree Source) configuration for SPL is as follows:

//uboot-2022.10/arch/riscv/dts/k1-x_spl.dts
        spi@d420c000 {
                status = "okay";
                pinctrl-names = "default";
                pinctrl-0 = <&pinctrl_qspi>;
                u-boot,dm-spl;

                spi-max-frequency = <15140000>;
                flash@0 {
                        compatible = "jedec,spi-nor";
                        reg = <0>;
                        spi-max-frequency = <26500000>;

                        m25p,fast-read;
                        broken-flash-reset;
                        u-boot,dm-spl;
                        status = "okay";
                };
        };

NOR Boot Setup (Loading via SPL)

The following options are enabled by default, however, you can verify or modify them by using menuconfig.

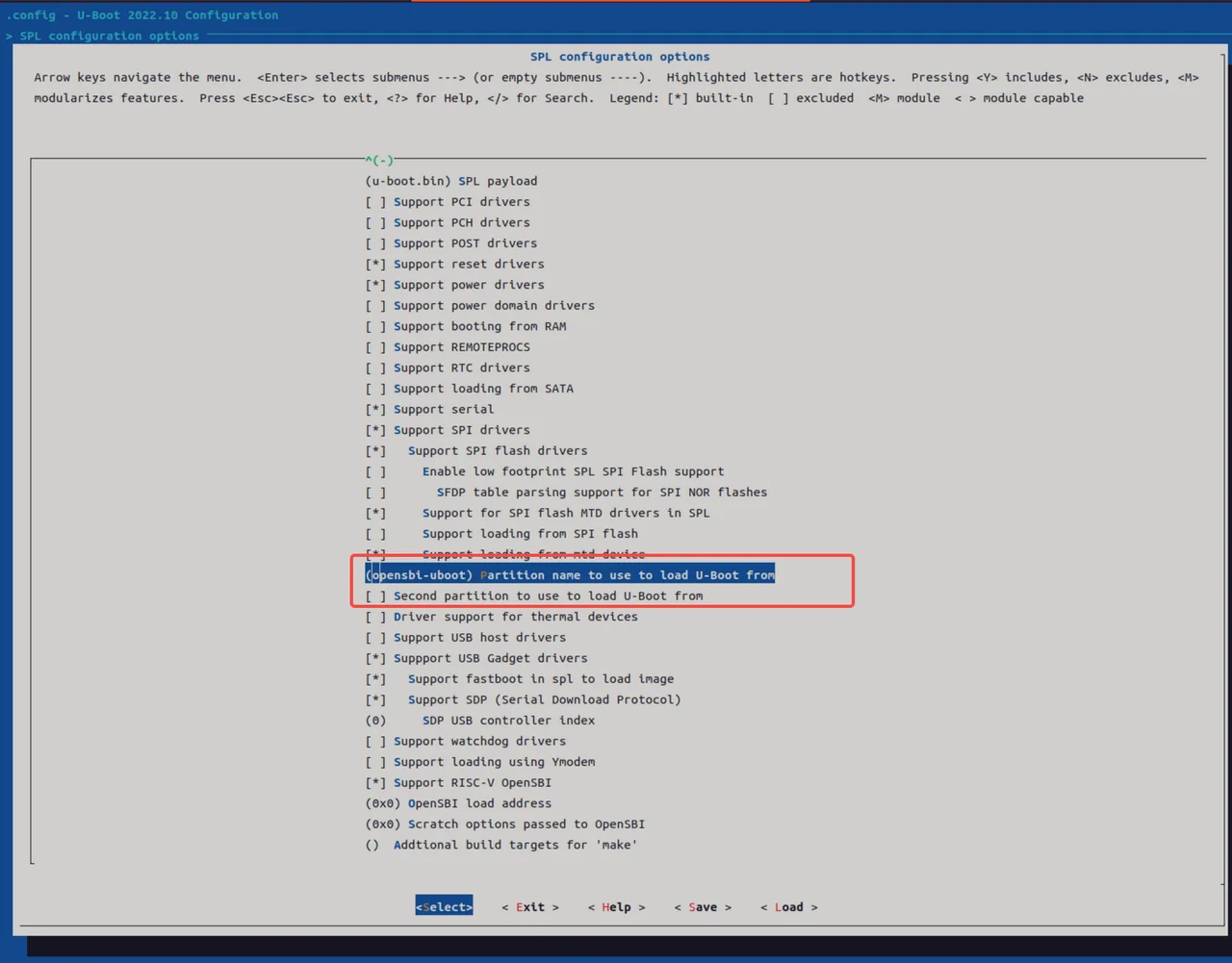

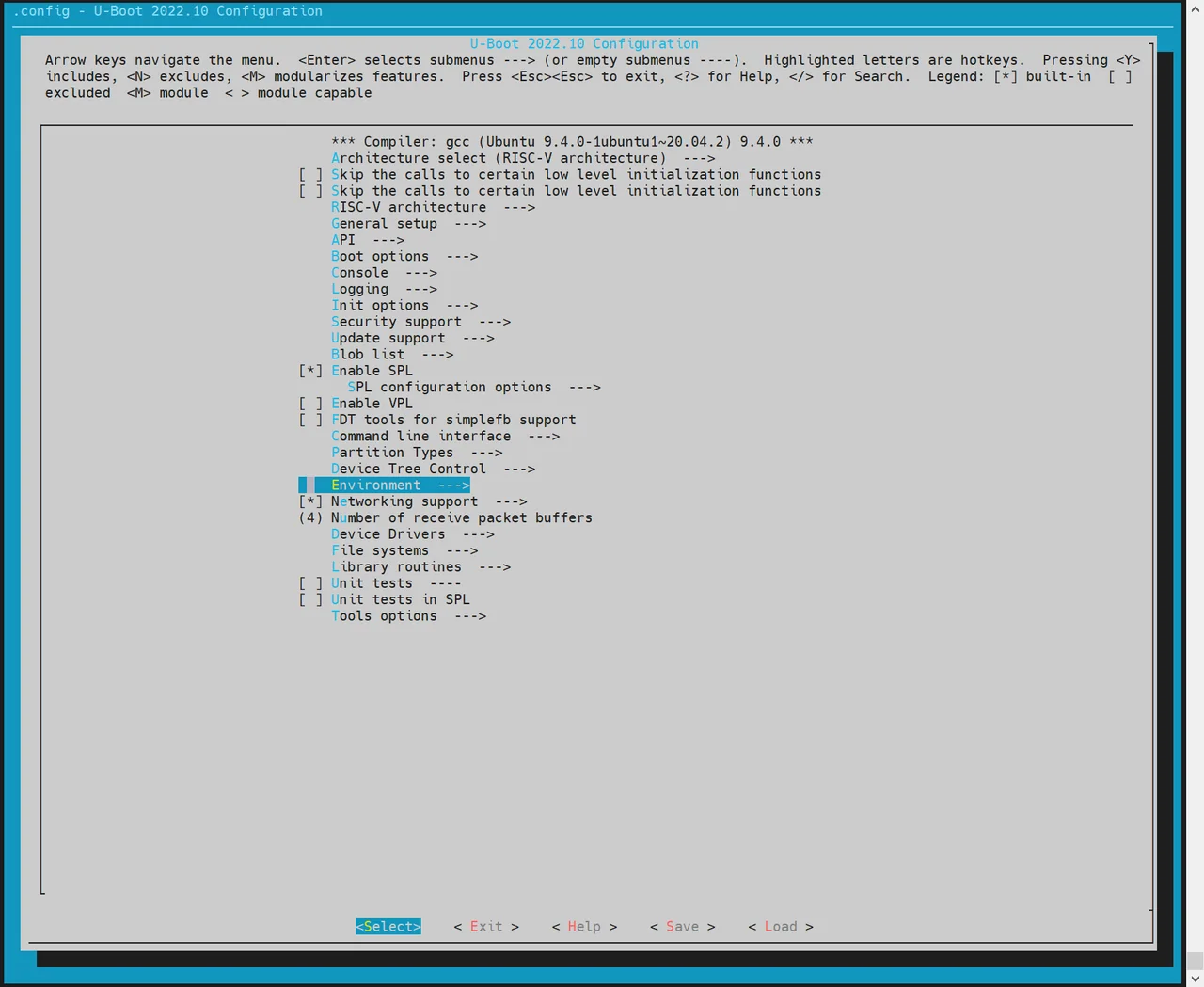

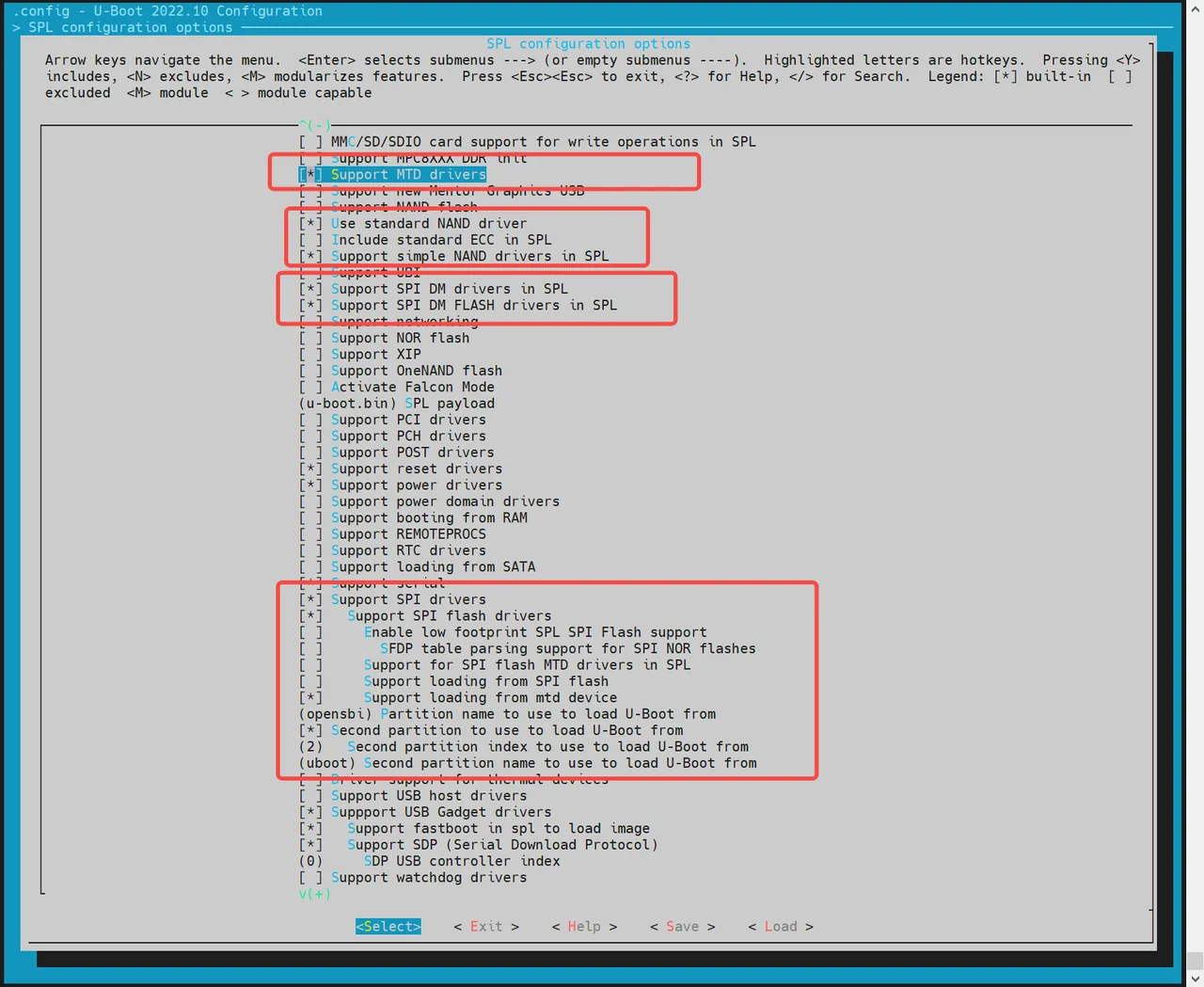

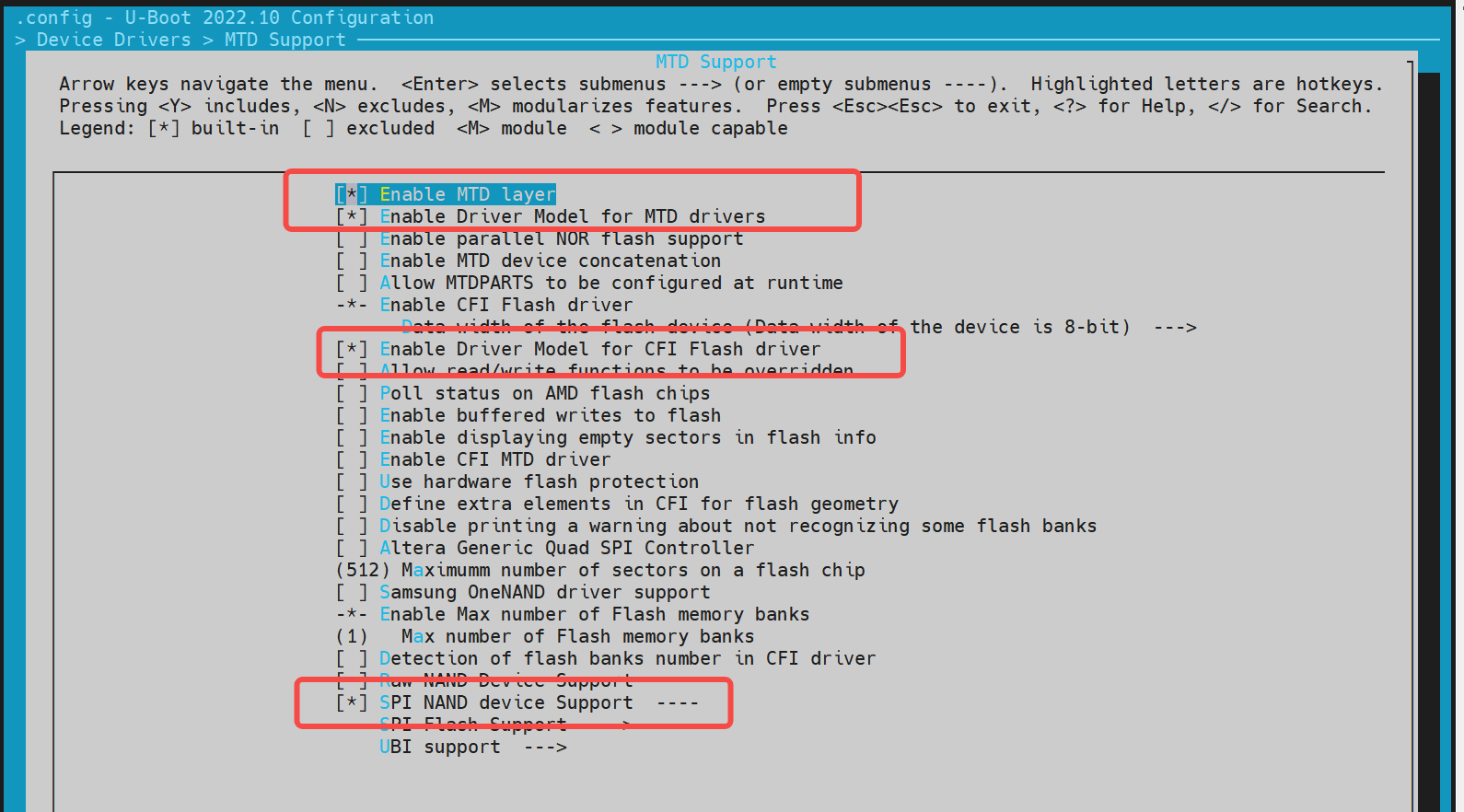

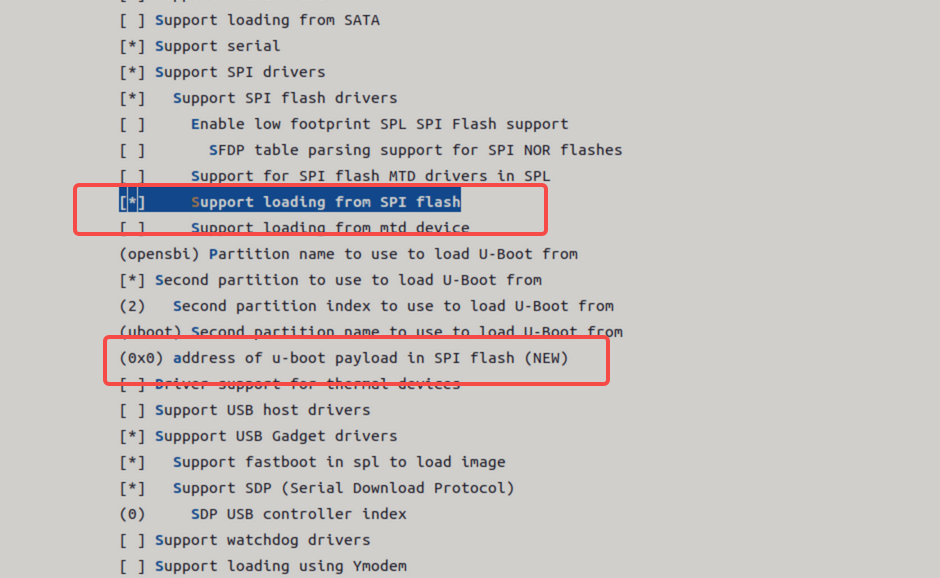

  1. Run make uboot_menuconfig, and then navigate to SPL configuration options.

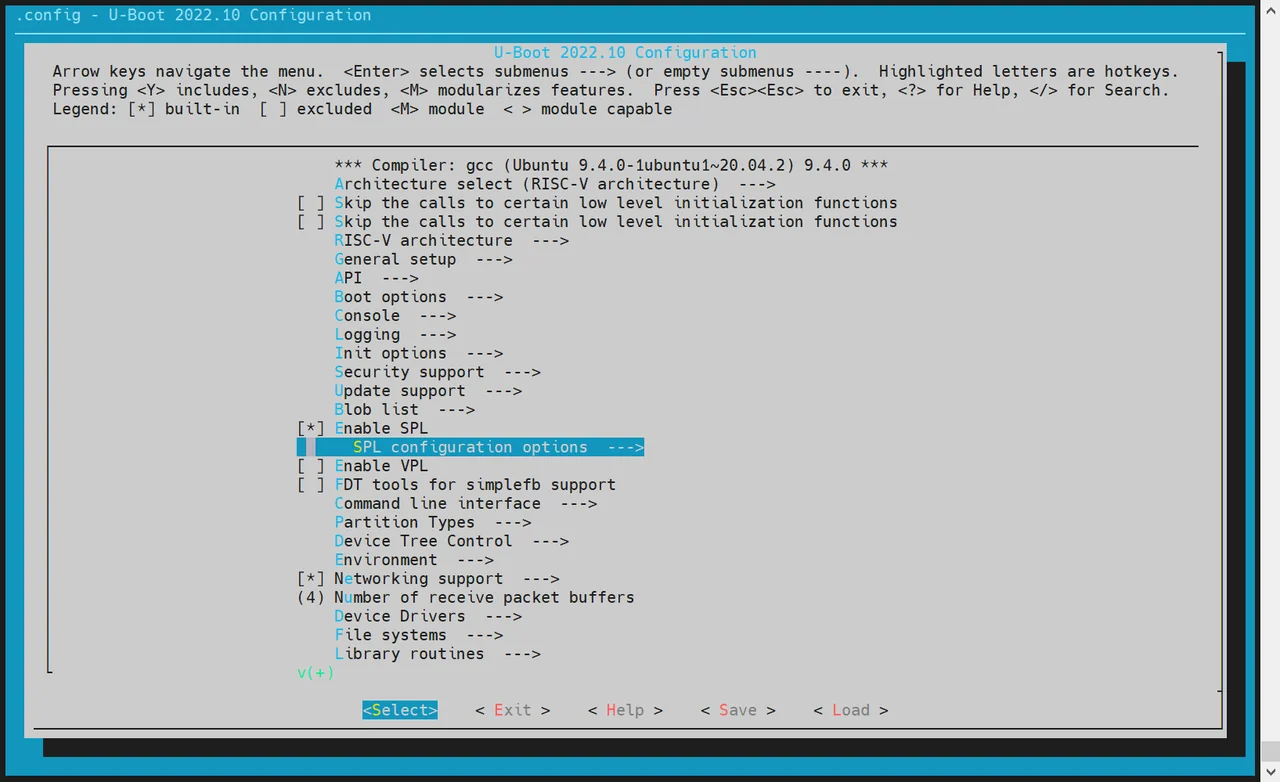

    alt text

  2. Enable the Following Options: Ensure the following are enabled:

    • Support MTD drivers
    • Support SPI DM drivers in SPL
    • Support SPI drivers
    • Support SPI flash drivers
    • Support for SPI flash MTD drivers in SPL
    • Support loading from mtd device
    • Ensure that the Partition name to use to load U-Boot from matches the partition names in the partition table. alt text

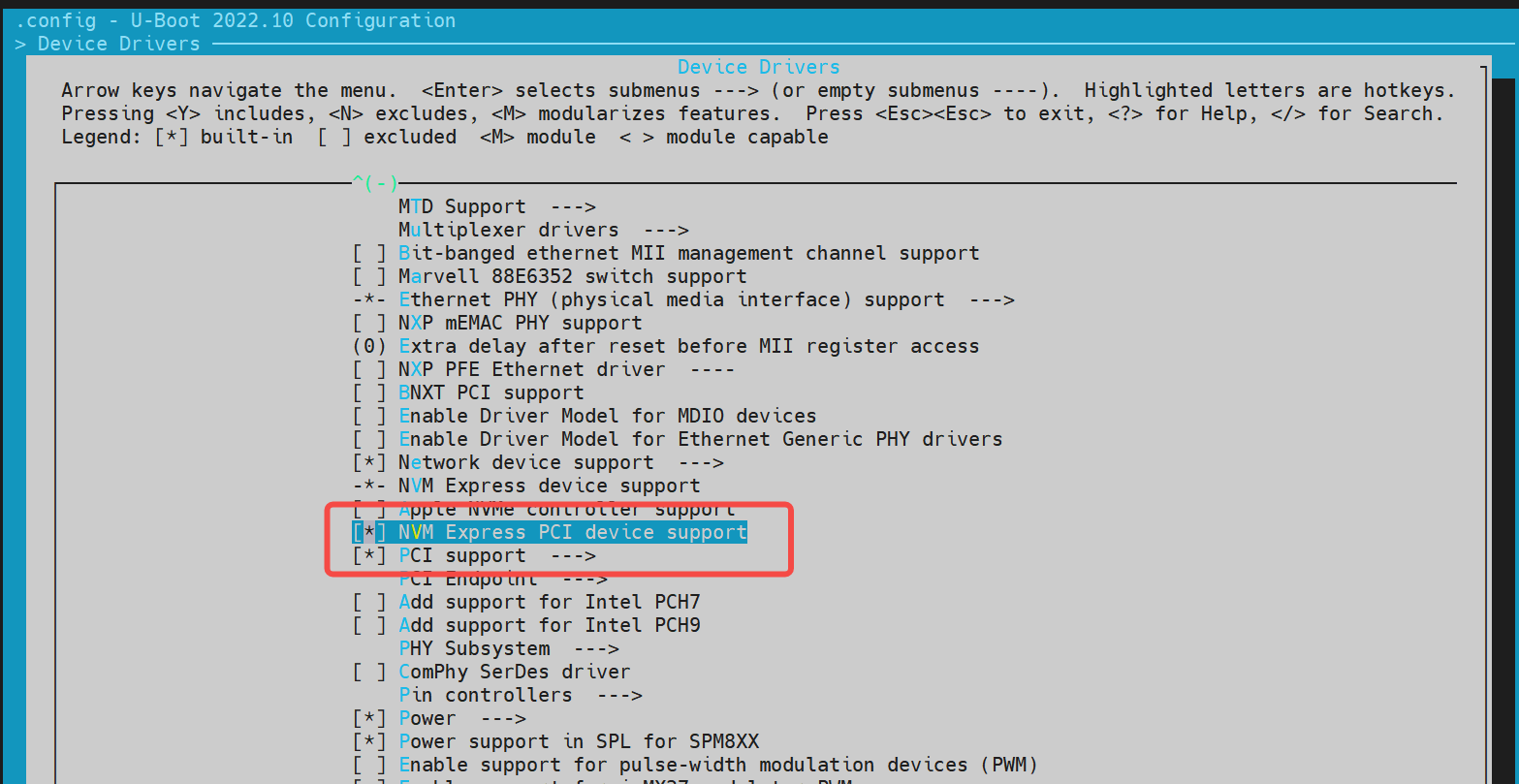

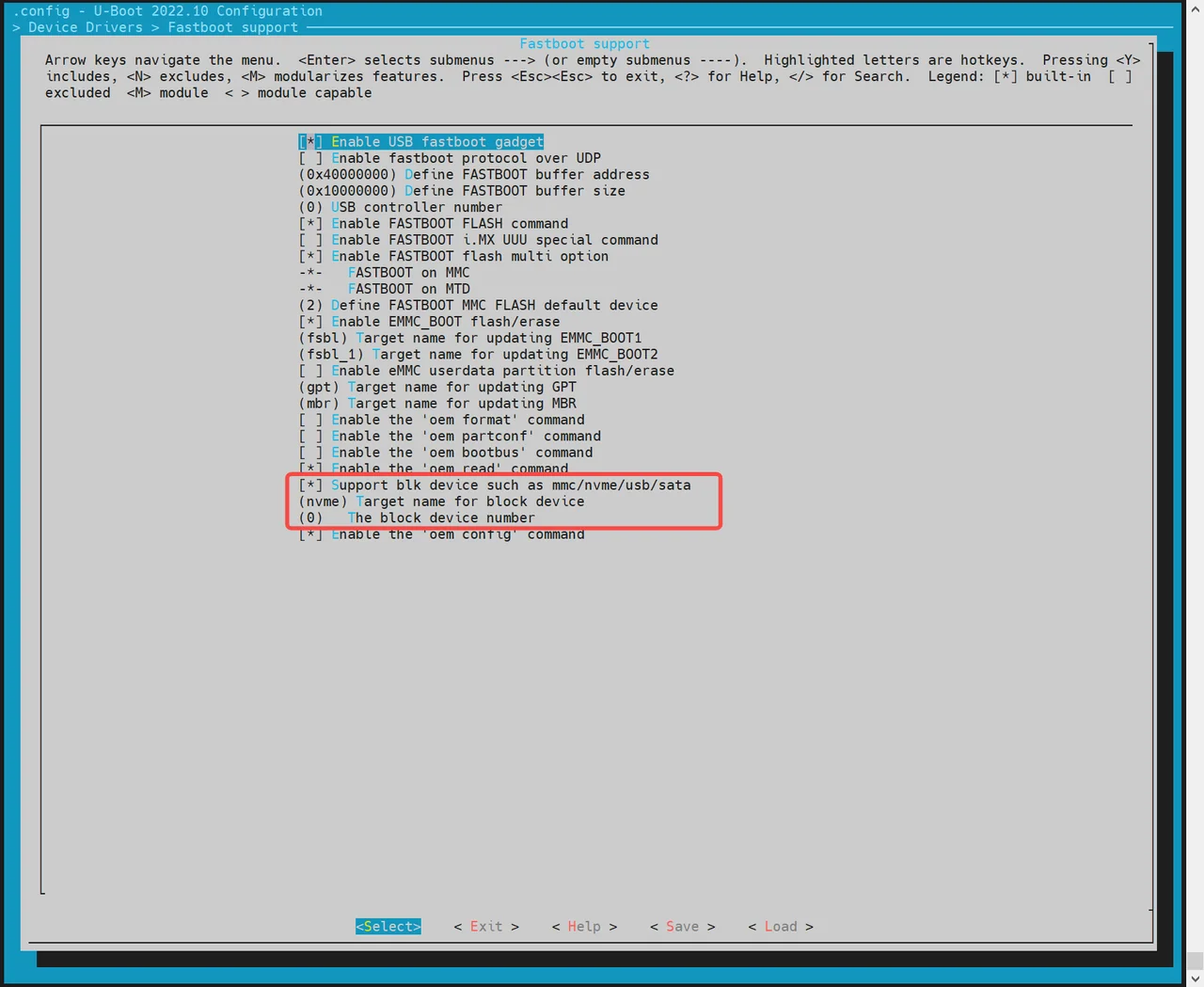

  3. Enable Block Device Support (SSD / eMMC) Navigate to Device Drivers → Fastboot support Enable:

    • Support blk device
    • Select appropriate device type: NVMe (for SSD) or MMC (for eMMC)

    alt text

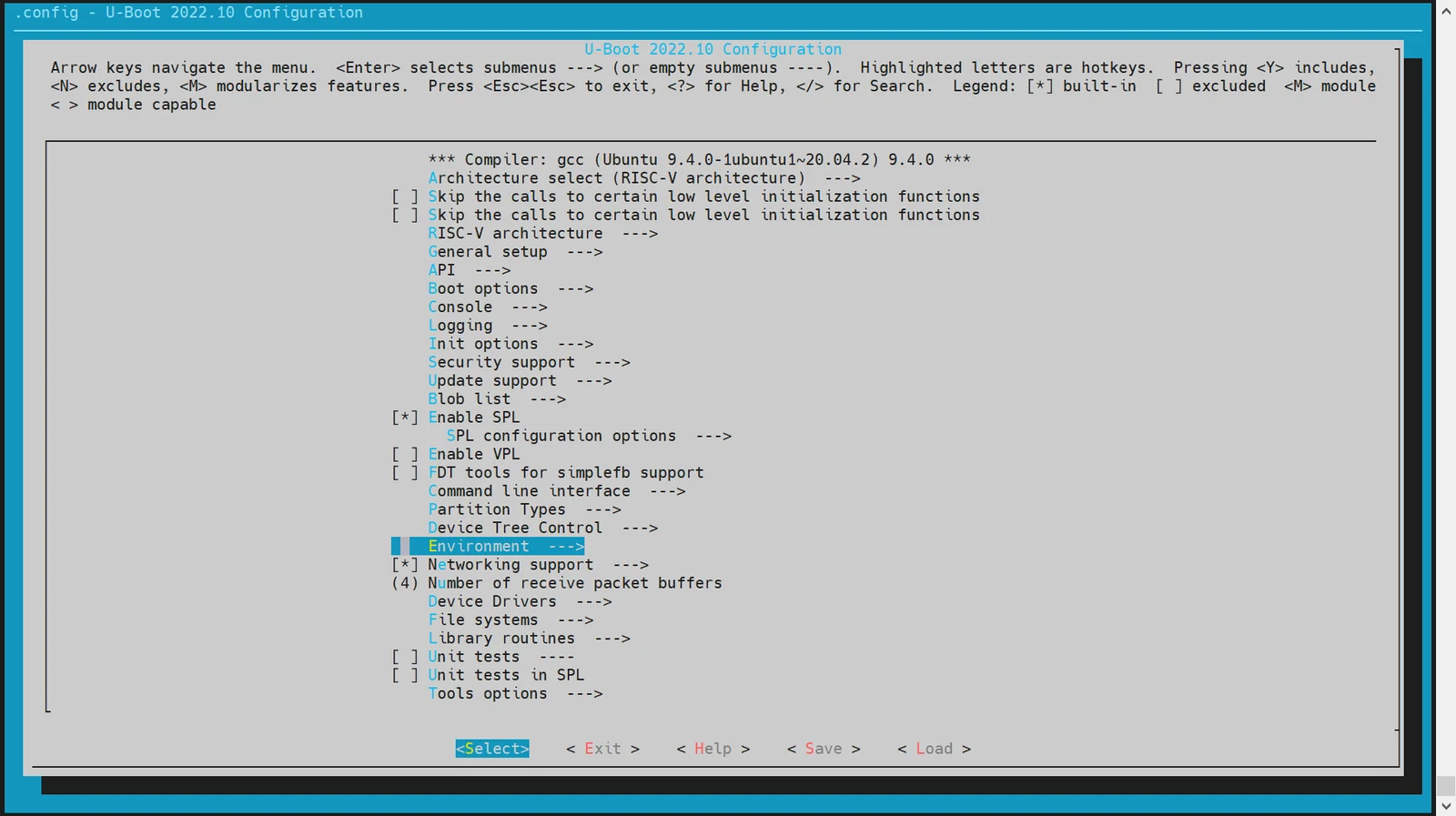

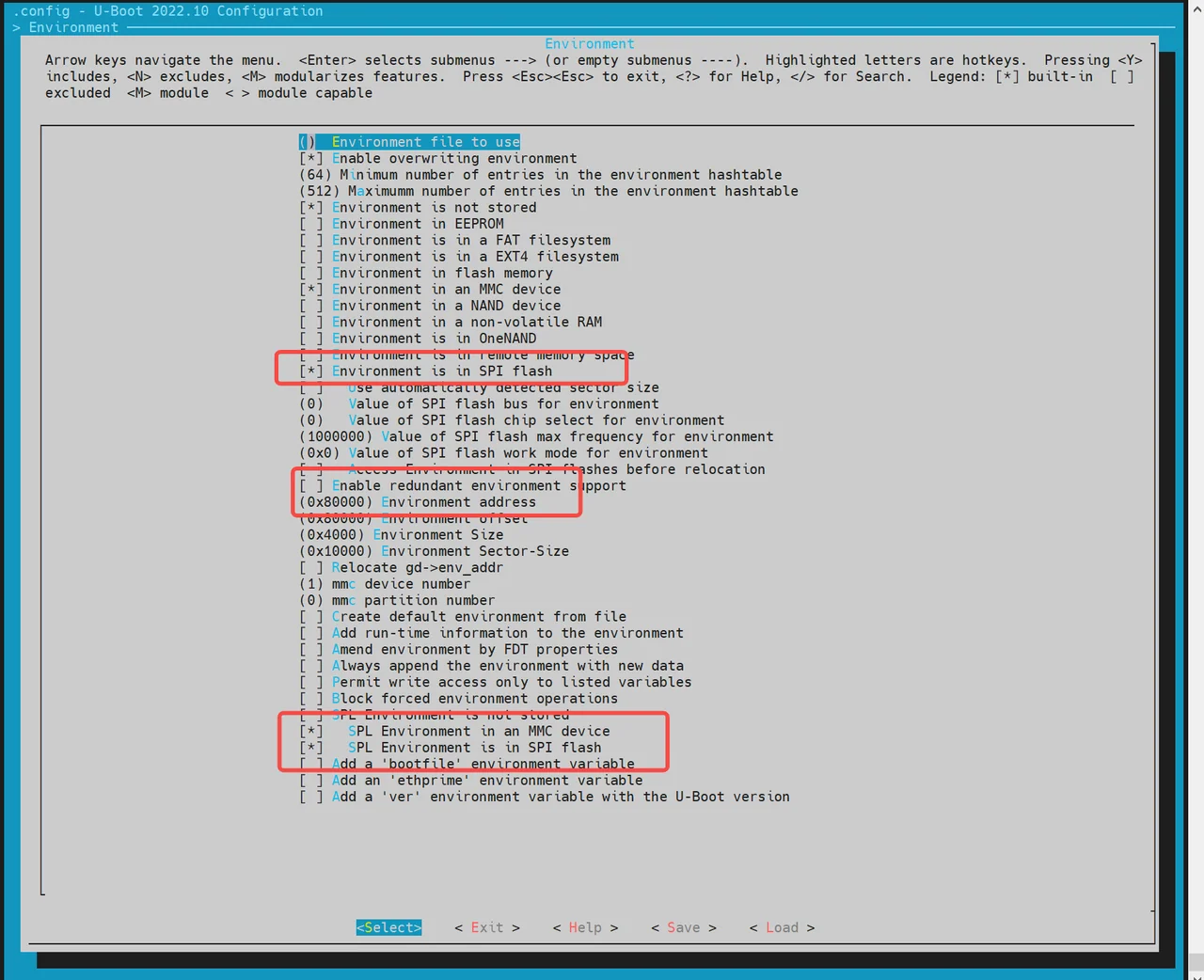

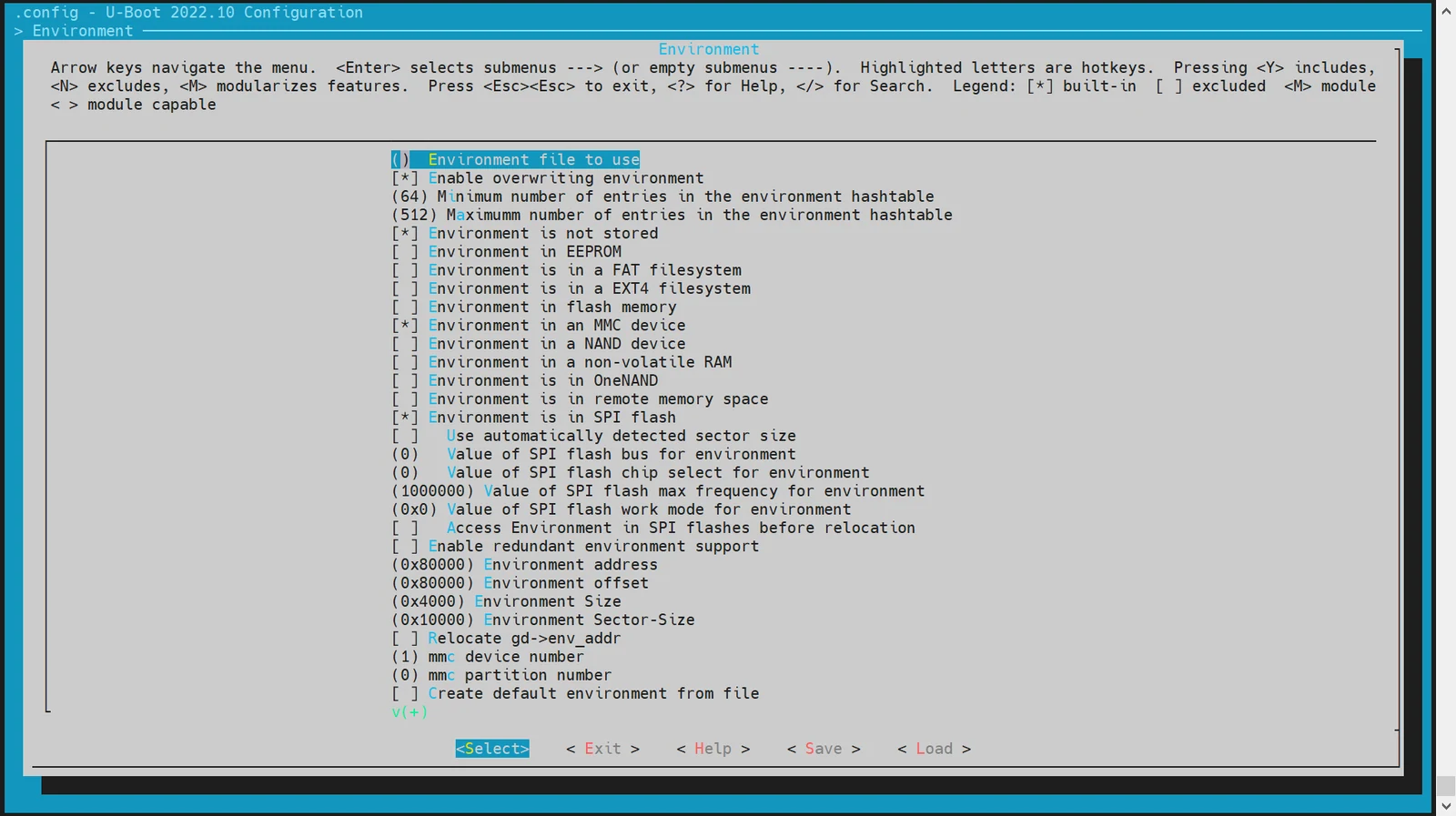

  4. Enable MTD Environment (env) Support SPL uses the environment (env) to locate MTD partition information.

    Steps:

    • Go to the Environment configuration section.

    • Enable SPI env loading.

    • Set the env offset (must match the partition table), e.g.0x80000

      alt text

      alt text

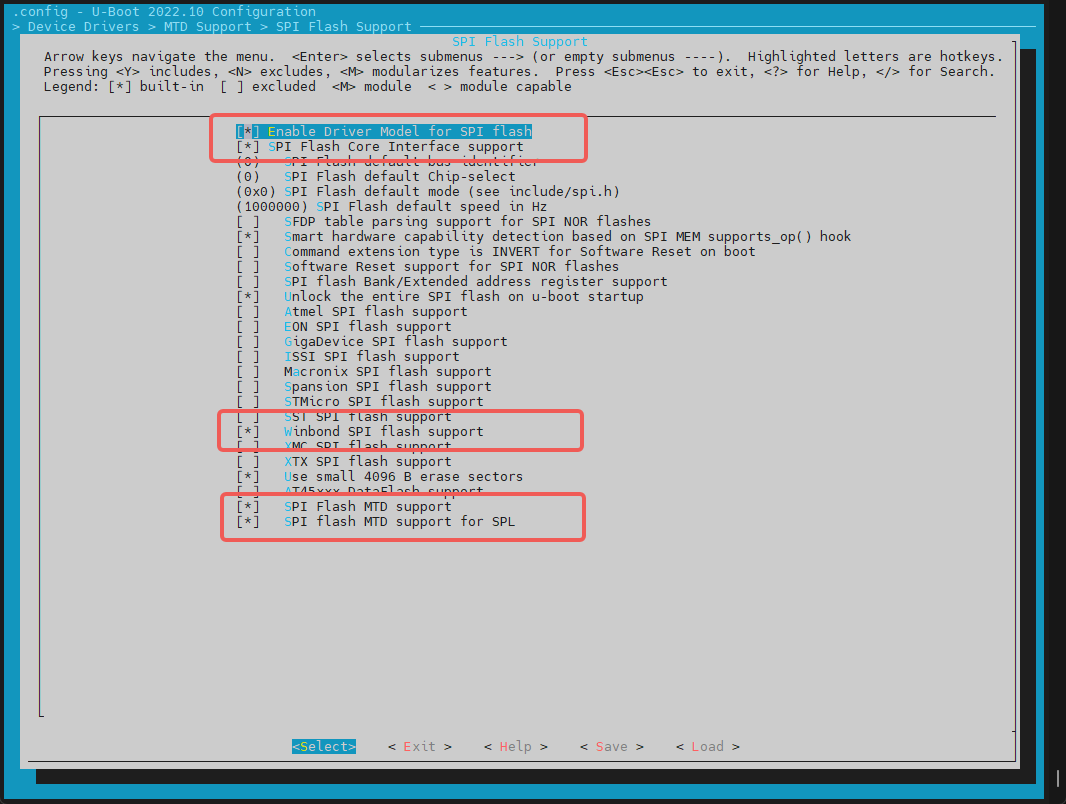

  5. Configure SPI Flash Driver (Based on Hardware) If the default build does not include your flash chip’s driver:

    • Run make uboot_menuconfig

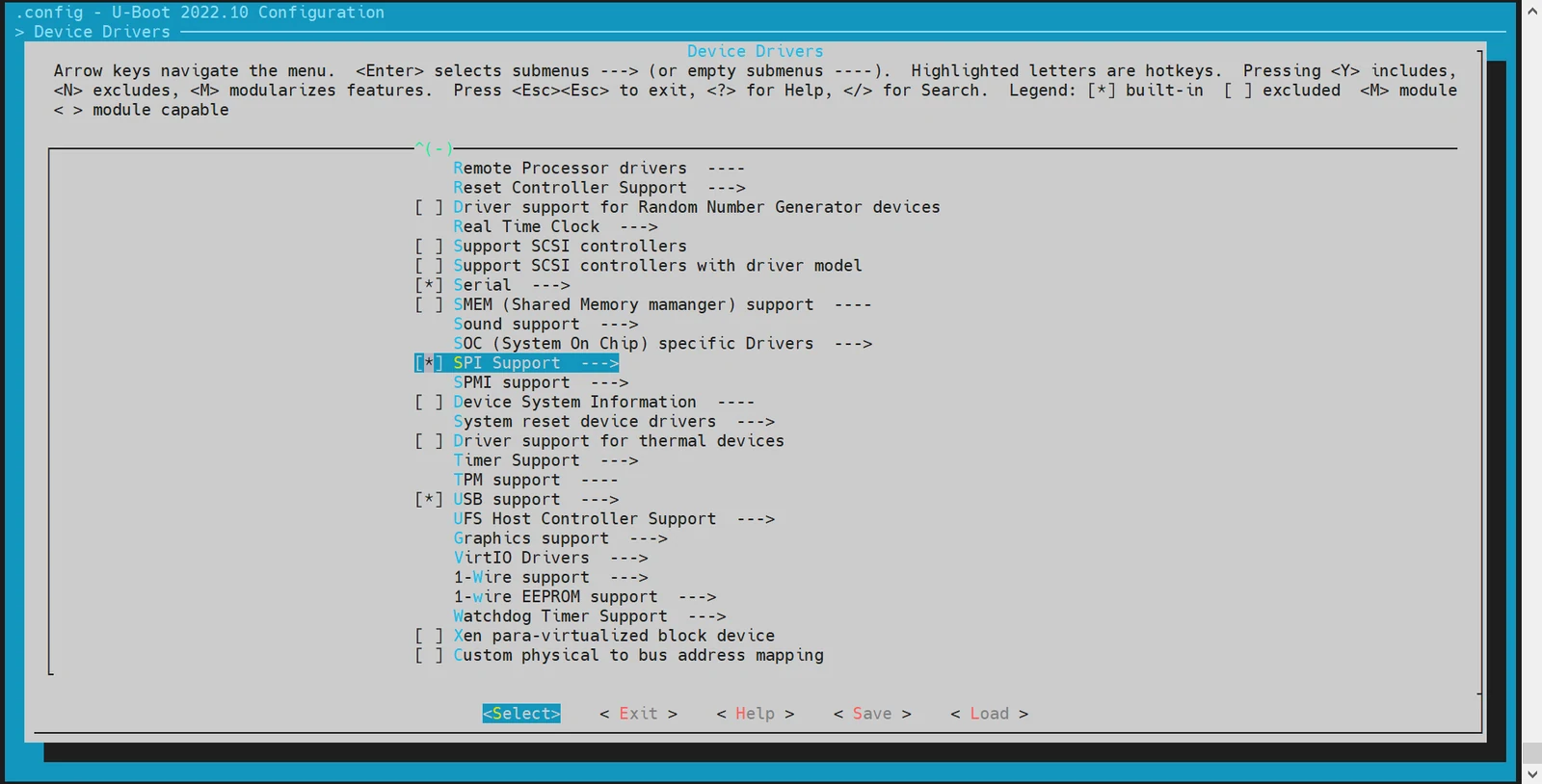

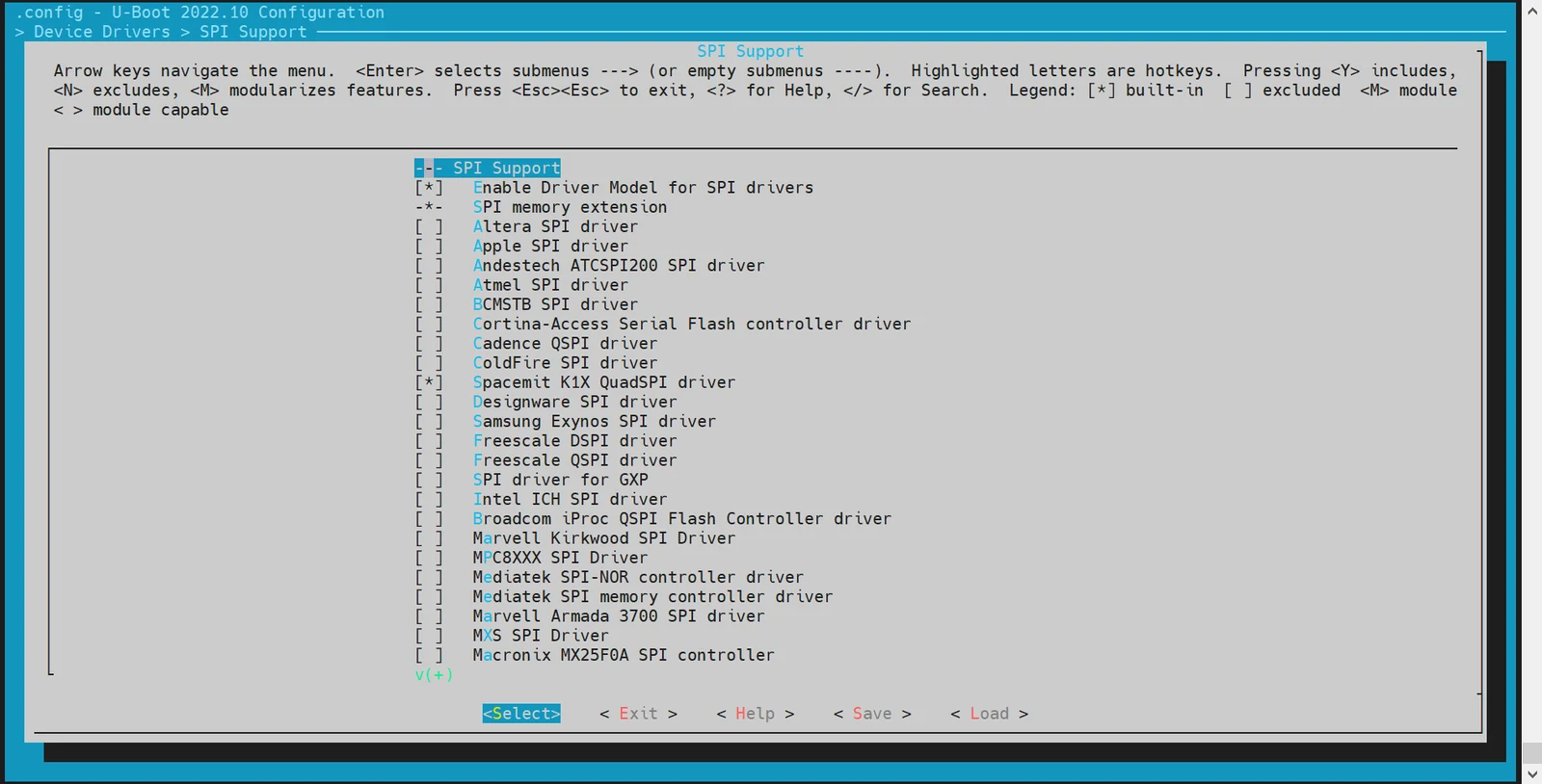

    • Navigate to Device Drivers → MTD Support → SPI Flash Support

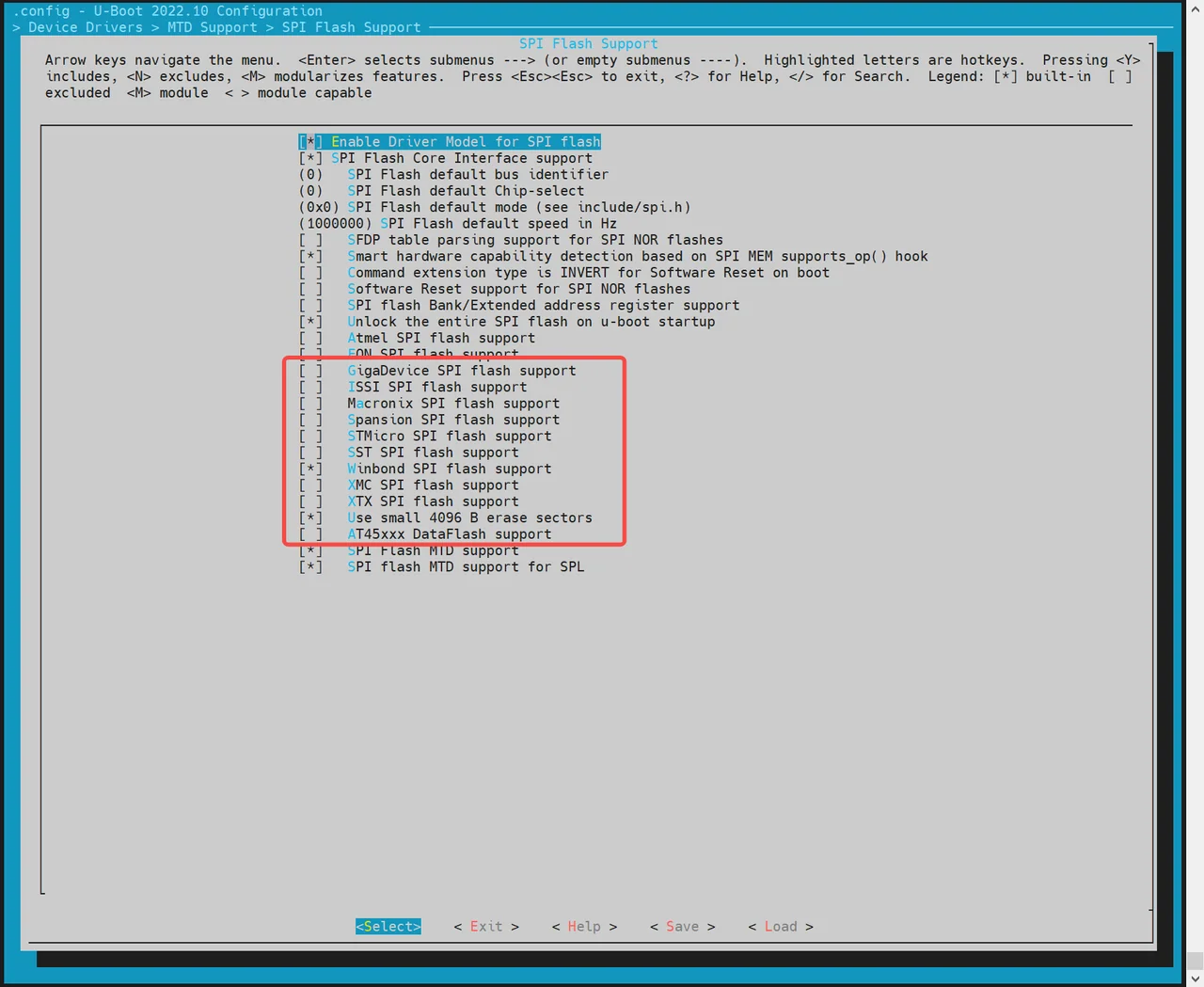

    • Enable the driver matching your SPI NOR Flash vendor. alt text

    If the required driver is not listed, manually add it in the source:

    //uboot-2022.10/drivers/mtd/spi/spi-nor-ids.c
    const struct flash_info spi_nor_ids[] = {
      { INFO("flash_name",    0x1f4501, 0, 64 * 1024,  16, SECT_4K) },
    • flash_name: Custom name for your chip
    • 0x1f4501: JEDEC ID for the target flash
    • Remaining fields depend on your chip’s specs (sector size, number of sectors, etc.)

There are mainly two loading methods, they are:

  • Partition-Based Loading (Recommended) For NOR devices, SPL loads opensbi and u-boot based on names defined in the MTD partition table. Configuation can be followed as:

    alt text

  • Fixed Offset Loading SPL can also load a boot image from a hardcoded offset in NOR flash.

    Notes:

    • This method does not support loading OpenSBI and U-Boot separately.
    • You must package them into a single FIT image.

    Enable fixed offset loading and specify the offset:

    alt text

NAND Boot​

K1 platform supports booting from NAND flash. Two main configurations are available:

  • NAND (u-boot-spl / U-Boot / OpenSBI) + SSD (bootfs / rootfs)
  • Full NAND (u-boot-spl / U-Boot / OpenSBI / kernel)

By default, NAND boot is disabled.

The SPL-DTS configuration is as follows:

//uboot-2022.10/arch/riscv/dts/k1-x_spl.dts
        spi@d420c000 {
                status = "okay";
                pinctrl-names = "default";
                pinctrl-0 = <&pinctrl_qspi>;
                u-boot,dm-spl;

                spi-max-frequency = <15140000>;
                spi-nand@0 {
                       compatible = "spi-nand";
                       reg = <0>;
                       spi-tx-bus-width = <1>;
                       spi-rx-bus-width = <1>;
                       spi-max-frequency = <6250000>;
                       u-boot,dm-spl;
                       status = "okay";
               };
        };

Full NAND boot configuration steps are showing below:

  1. Enable SPL Build Options

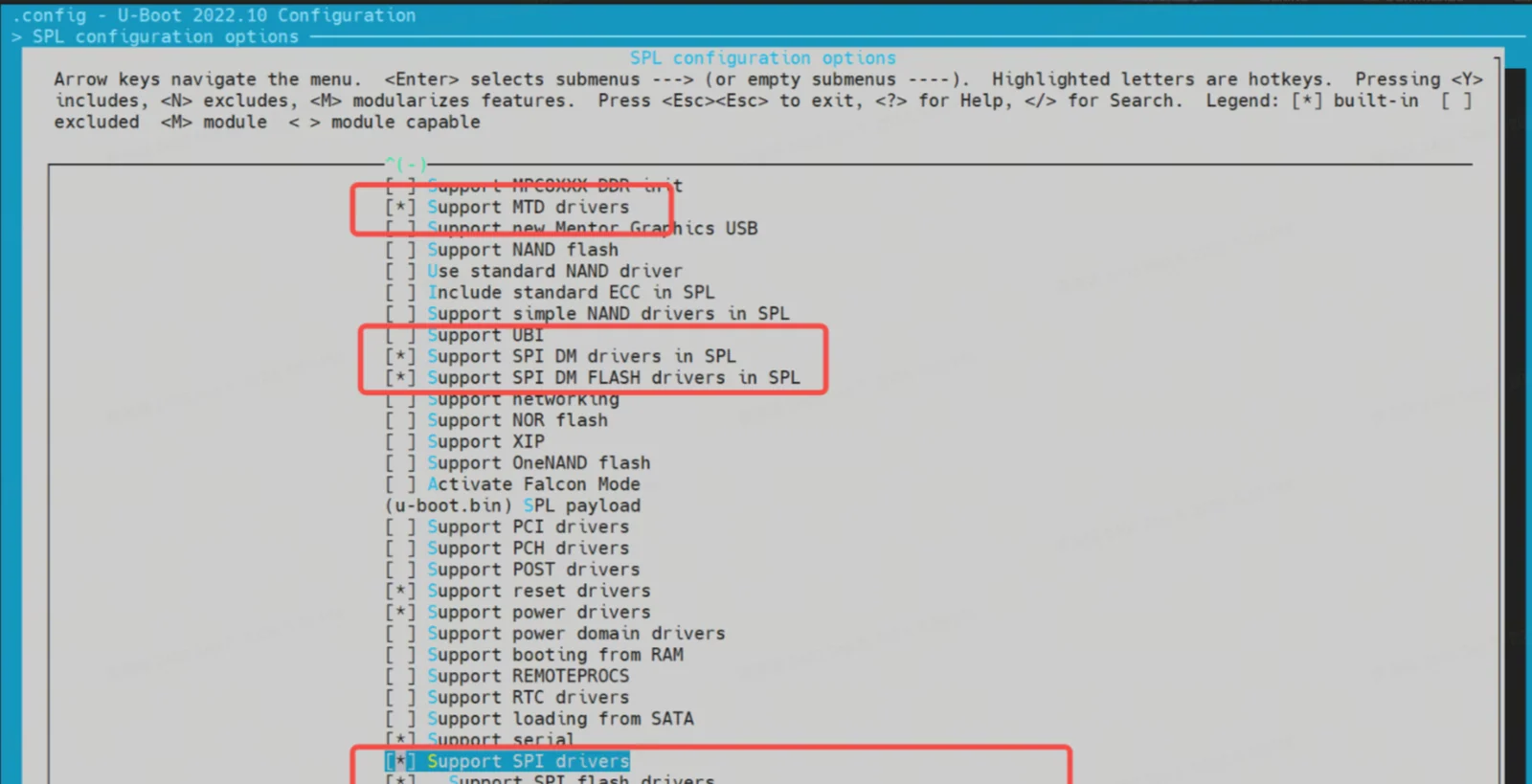

    • Run make uboot_menuconfig and navigate to SPL configuration options and enable the following: alt text

      • Support MTD drivers
      • Support SPI DM drivers in SPL
      • Support SPI drivers
      • Use standard NAND driver
      • Support simple NAND drivers in SPL
      • Support loading from mtd device
      • Partition name to use to load U-Boot fromshould match the partition names in the partition table.

    • If you are loading OpenSBI and U-Boot separately, also enable:

      • Second partition to use to load U-Boot from
      • Ensure the load sequence is: OpenSBI first, then U-Boot.

      alt text

  2. Configure Environment (env) Support

    MTD(Memory Technology Device)-based systems require the env subsystem to retrieve MTD partition information after SPL (Secondary Program Loader) startup.

    • Run:

      make uboot_menuconfig

    • Navigate to Environment configuration.

    • Enable support for loading env from SPI.

    • Set env offset to 0x80000 (must match partition table).

    The NAND flash driver needs to be adapted to the corresponding model of the SPI flash used on the hardware. The currently supported NAND flash drivers are listed below. If there is no corresponding driver, you can add the manufacturer's JEDEC ID (Joint Electron Devices Engineering Council ID) in the other.c driver.

  3. Add or Modify NAND Flash Drivers

    • Ensure your build includes the correct SPI NAND driver matching your actual flash chip. Currently supported vendors include:

      ~/uboot-2022.10$ ls drivers/mtd/nand/spi/*.c
      uboot-2022.10/drivers/mtd/nand/spi/core.c
      uboot-2022.10/drivers/mtd/nand/spi/micron.c
      uboot-2022.10/drivers/mtd/nand/spi/winbond.c
      uboot-2022.10/drivers/mtd/nand/spi/gigadevice.c
      uboot-2022.10/drivers/mtd/nand/spi/other.c
      uboot-2022.10/drivers/mtd/nand/spi/macronix.c
      uboot-2022.10/drivers/mtd/nand/spi/toshiba.c

    • If the chip isn’t listed, add support manually in the other.c source file by defining the JEDEC ID. Example: Adding support for FORESEE or Dosilicon:

    //uboot-2022.10/drivers/mtd/nand/spi/other.c
     static int other_spinand_detect(struct spinand_device *spinand)
    {
      u8 *id = spinand->id.data;
      int ret = 0;

      /*
       * dosilicon nand flash
       */
      if (id[1] == 0xe5)
         ret = spinand_match_and_init(spinand, dosilicon_spinand_table,
                      ARRAY_SIZE(dosilicon_spinand_table),
                      id[2]);

      /*FORESEE nand flash*/
      if (id[1] == 0xcd)
         ret = spinand_match_and_init(spinand, foresee_spinand_table,
                      ARRAY_SIZE(foresee_spinand_table),
                      id[2]);
      if (ret)
          return ret;

      return 1;
     }
Kernel Boot​

After the system enters U-Boot, it automatically loads and boots the Linux kernel based on configuration in the env file. Developers can customize the boot behavior as needed.

Note: The file k1-x_env.txt takes precedence over env.bin — any overlapping variables in env.bin will be overridden.

Kernel Boot Flow

Once FSBL (First Stage Boot Loader) loads and boots OpenSBI, then hands off to U-Boot, the following occurs:

U-Boot executes a defined boot command to load the kernel, dtb, and other image files from either a FAT or EXT4 file system into memory. It then runs the bootm command to boot the kernel.

All related configurations are located in:

uboot-2022.10/board/spacemit/k1-x/k1-x.env

This file includes multiple pre-configured boot flows (eMMC/SD/NOR+BLK, etc.), and U-Boot will auto-detect the appropriate flow based on the active boot device.

Boot Command Examples

  1. MMC Boot (for SD or eMMC) For both SD and eMMC, the boot flow is handled via mmc_boot.

    //uboot-2022.10/board/spacemit/k1-x/k1-x.env
    run mmc_boot;

    mmc_boot=echo "Try to boot from ${bootfs_devname}${boot_devnum} ..."; \
              run commonargs; \
              run set_mmc_root; \
              run set_mmc_args; \
              run detect_dtb; \
              run loadknl; \
              run loaddtb; \
              run loadramdisk; \
              bootm ${kernel_addr_r} ${ramdisk_combo} ${dtb_addr};

    The rootfs is passed from U-Boot to the kernel via bootargs. The kernel or its init script uses this to mount the correct root partition.

    In below example, root=/dev/mmcblk2p6 indicates the partition for the rootfs.

    bootargs=earlycon=sbi earlyprintk console=tty1 console=ttyS0,115200 loglevel=8 clk_ignore_unused swiotlb=65536 rdinit=/init root=/dev/mmcblk2p6 rootwait rootfstype=ext4

  2. NOR + Block Device Boot (e.g., NOR + SSD)

    //uboot-2022.10/board/spacemit/k1-x/k1-x.env
    run nor_boot;

    nor_boot=echo "Try to boot from ${bootfs_devname}${boot_devnum} ..."; \
             run commonargs; \
             run set_nor_root; \
             run set_nor_args; \
             run detect_dtb; \
             run loadknl; \
             run loaddtb; \
             run loadramdisk; \
             bootm ${kernel_addr_r} ${ramdisk_combo} ${dtb_addr};

  3. NAND Boot

    //uboot-2022.10/board/spacemit/k1-x/k1-x.env
    run nand_boot;

    //to be adapted

U-Boot Features and Configuration​

This section introduces the key features of U-Boot and common configuration methods used in development.

Functions​

The main functions of U-Boot are:

  • Loading the Boot Kernel Loads the Linux kernel image from storage devices (eMMC / SD / NAND / NOR / SSD, etc.) into a designated memory address and initiates kernel execution.

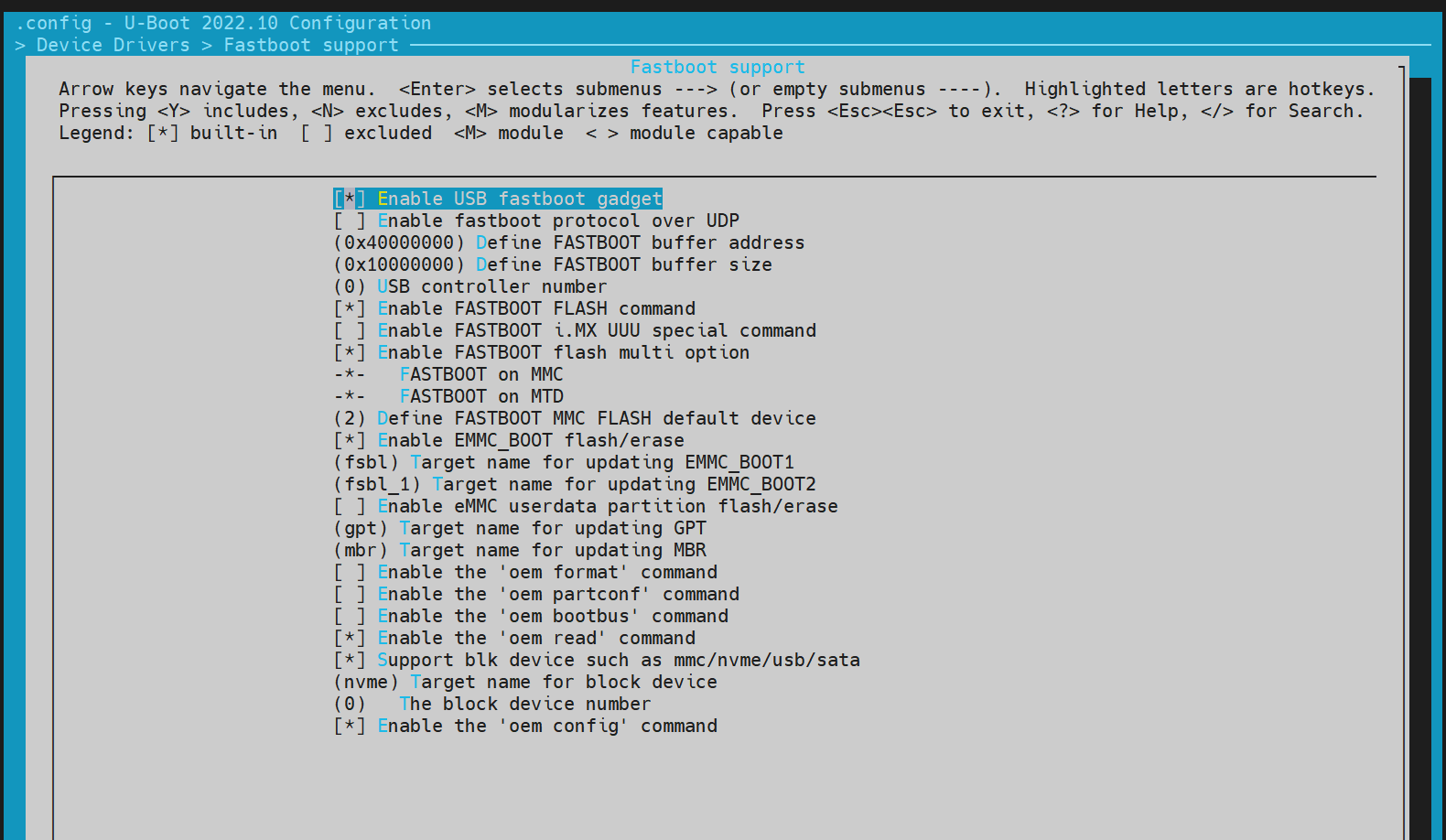

  • Fastboot Flashing Support Enables image flashing to designated partitions via the fastboot tool.

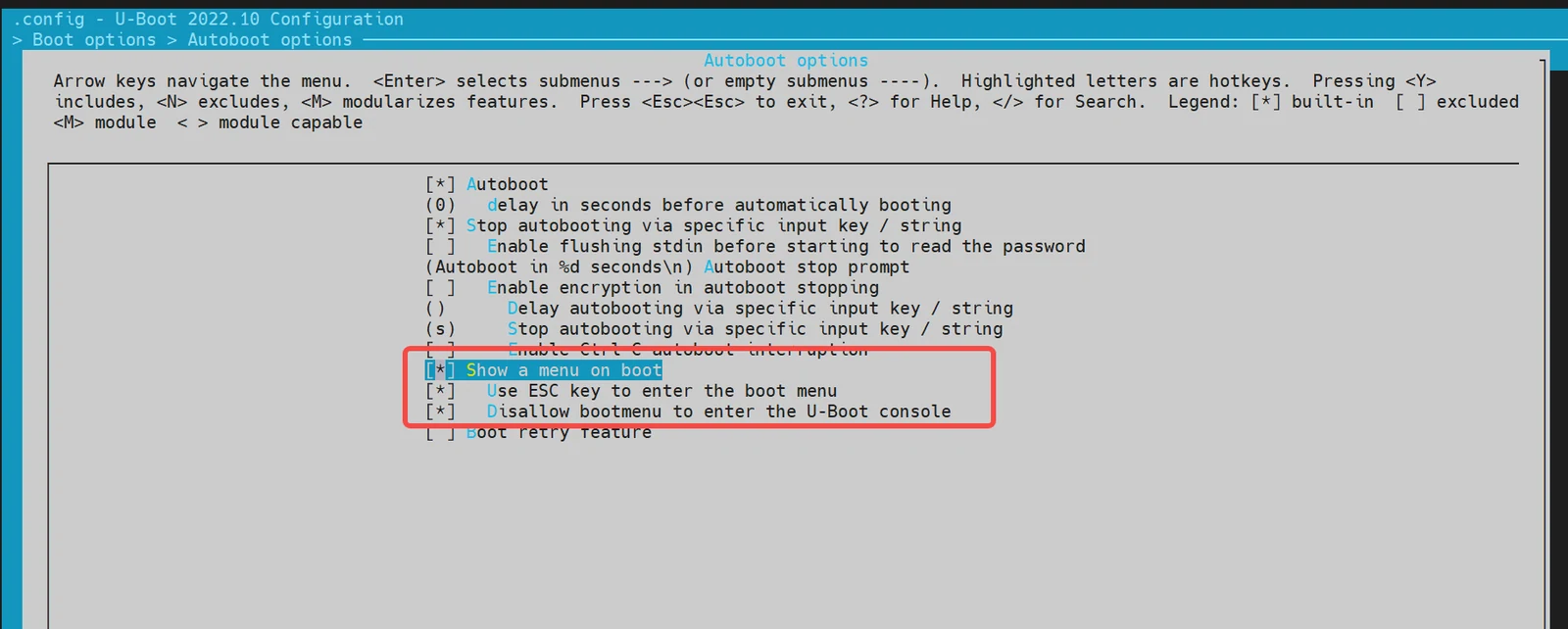

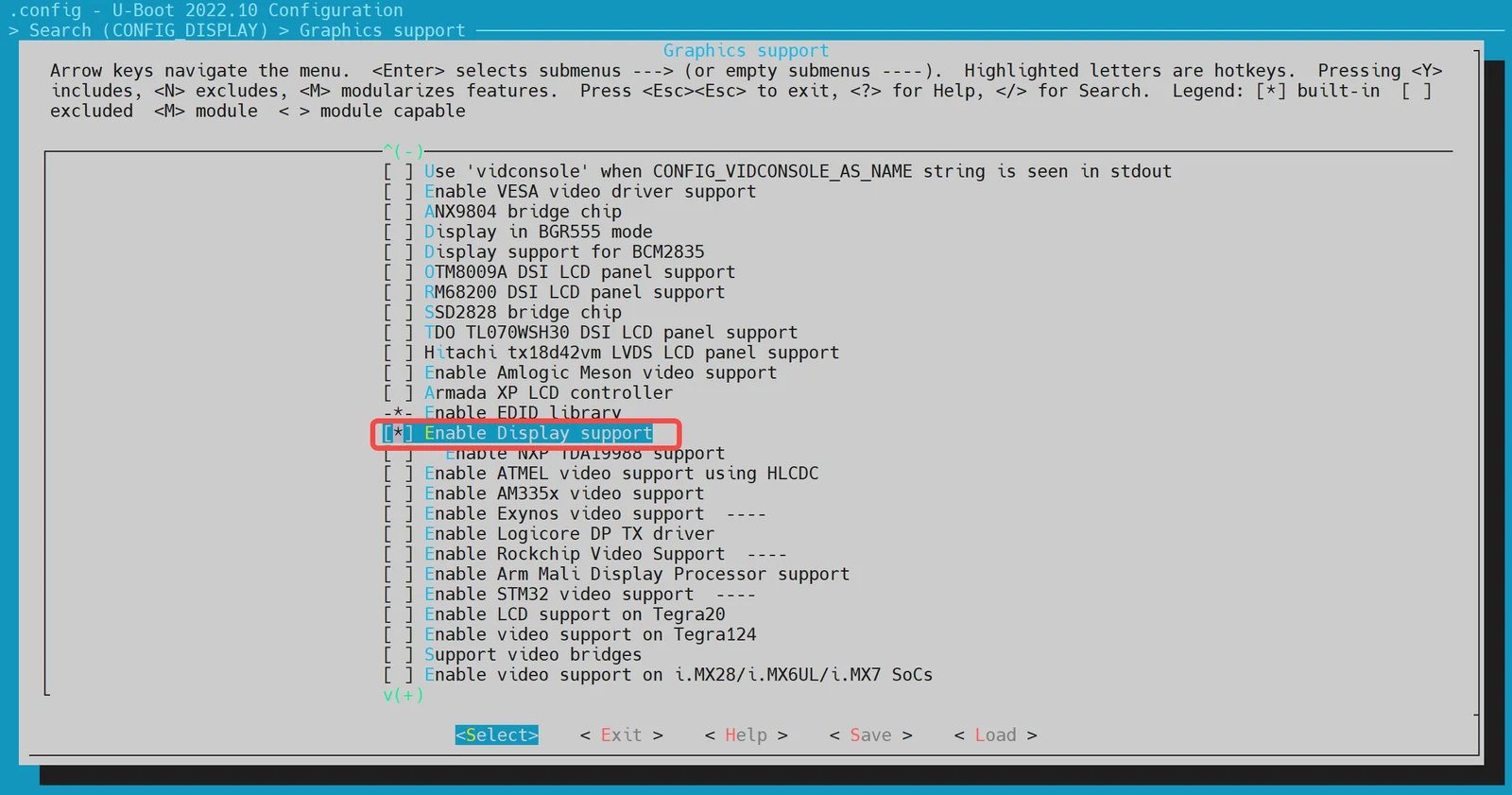

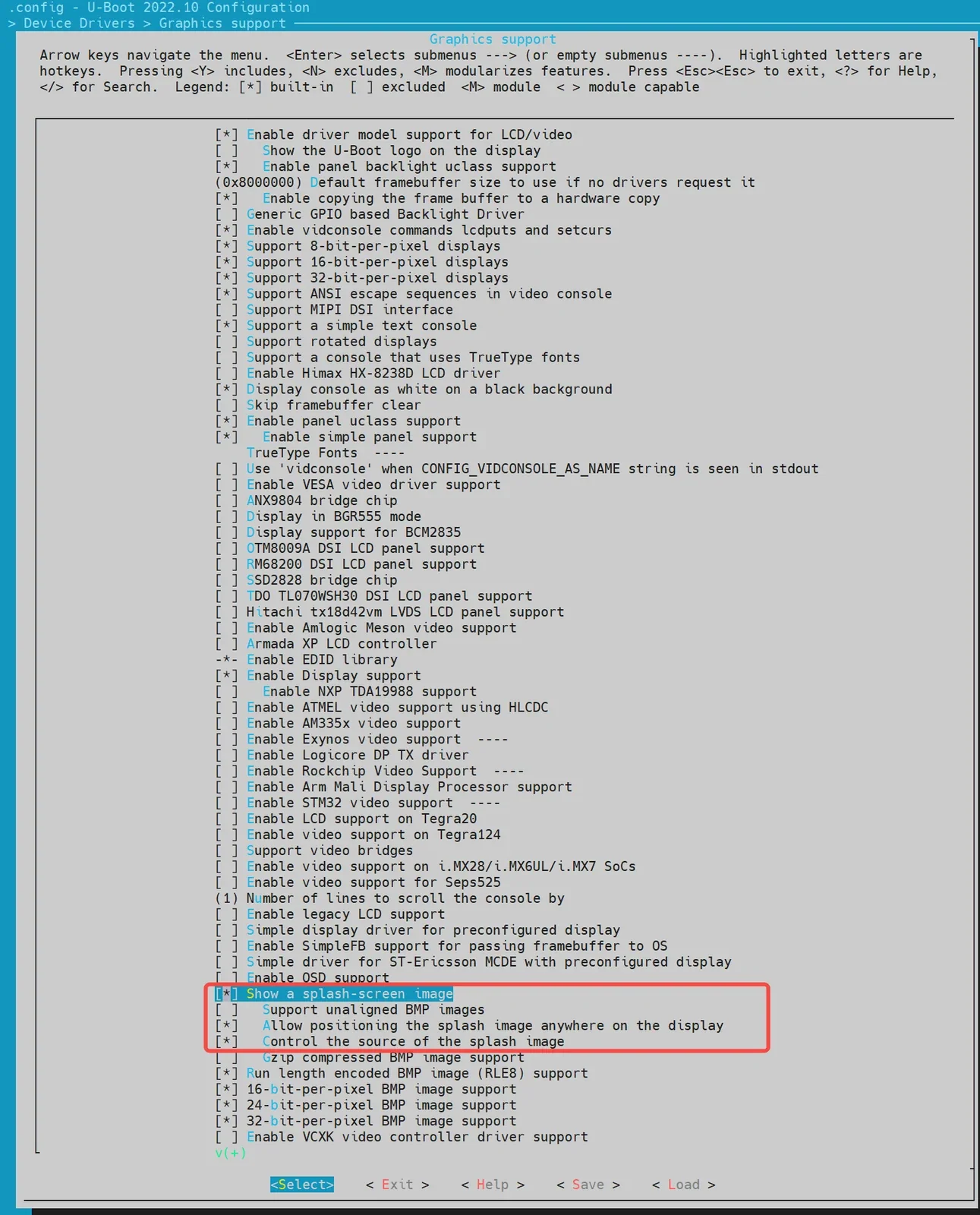

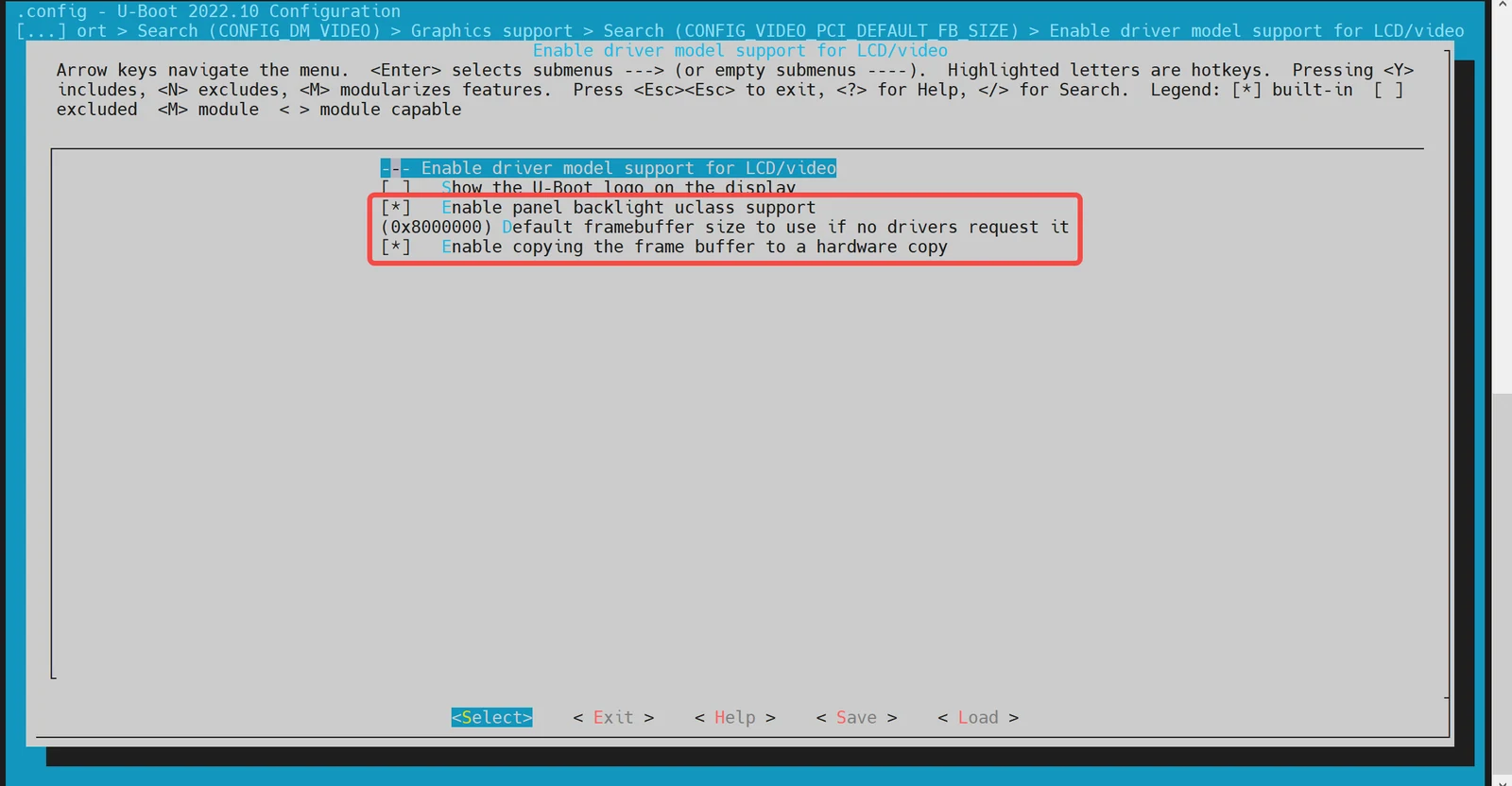

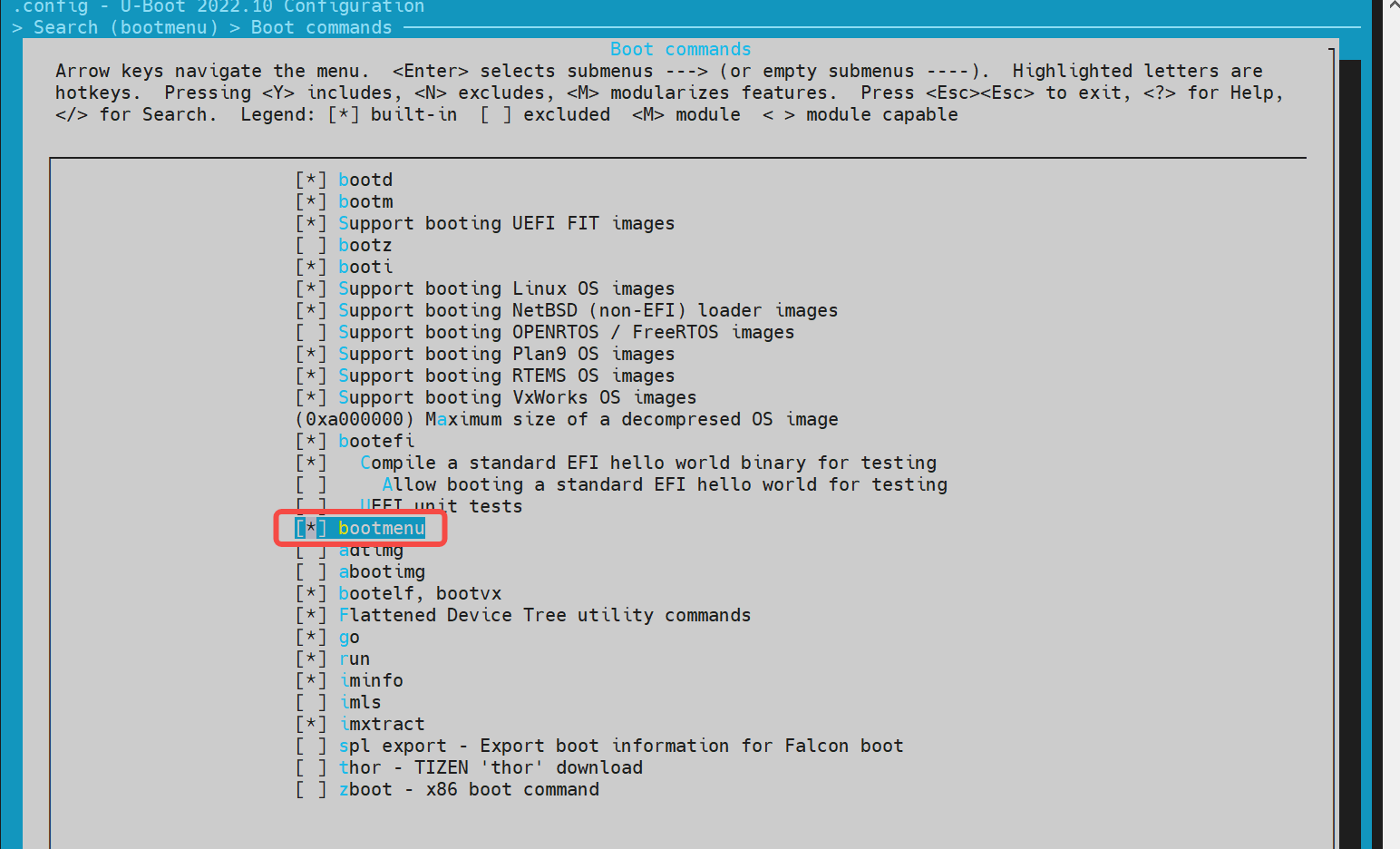

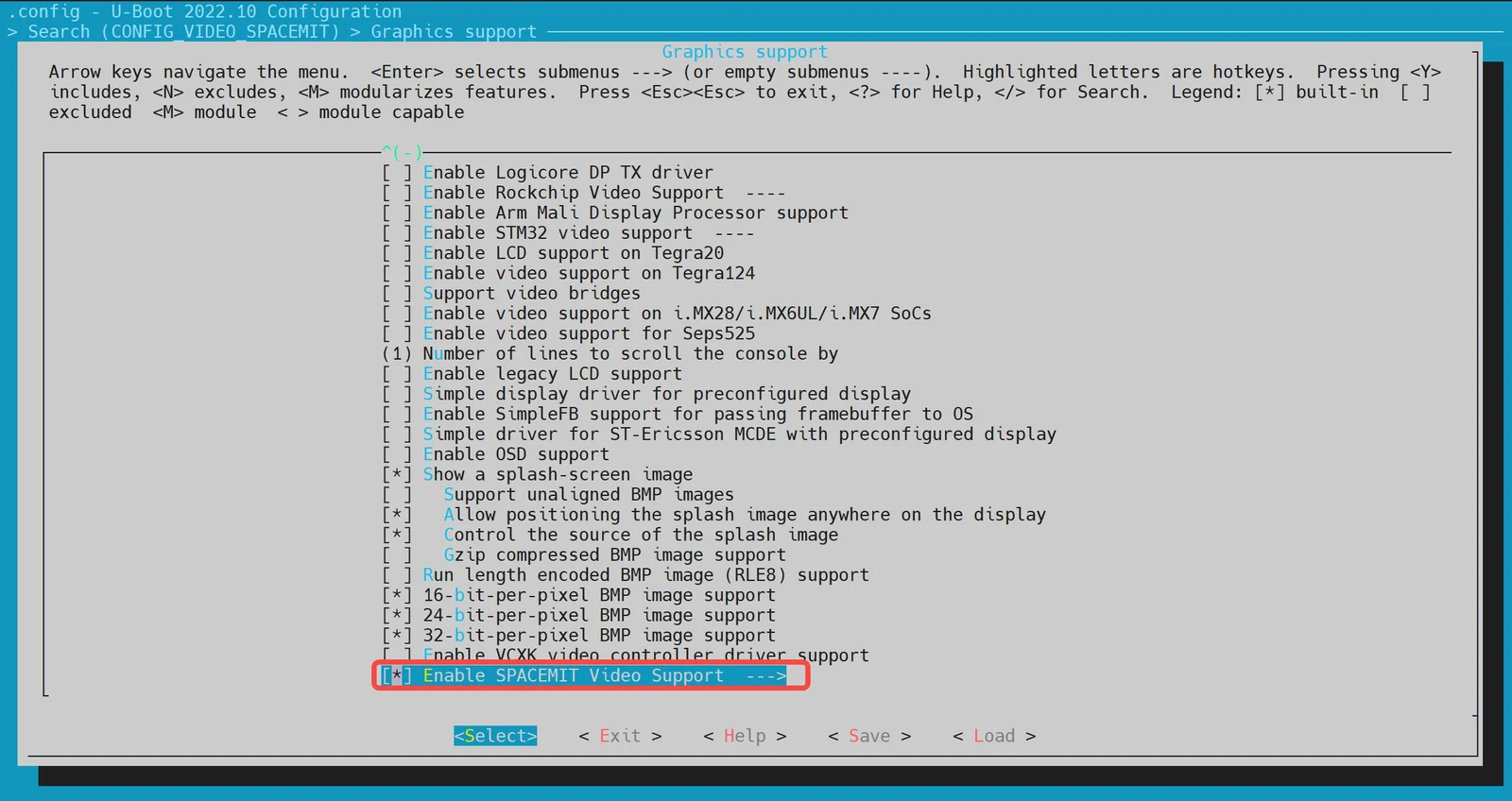

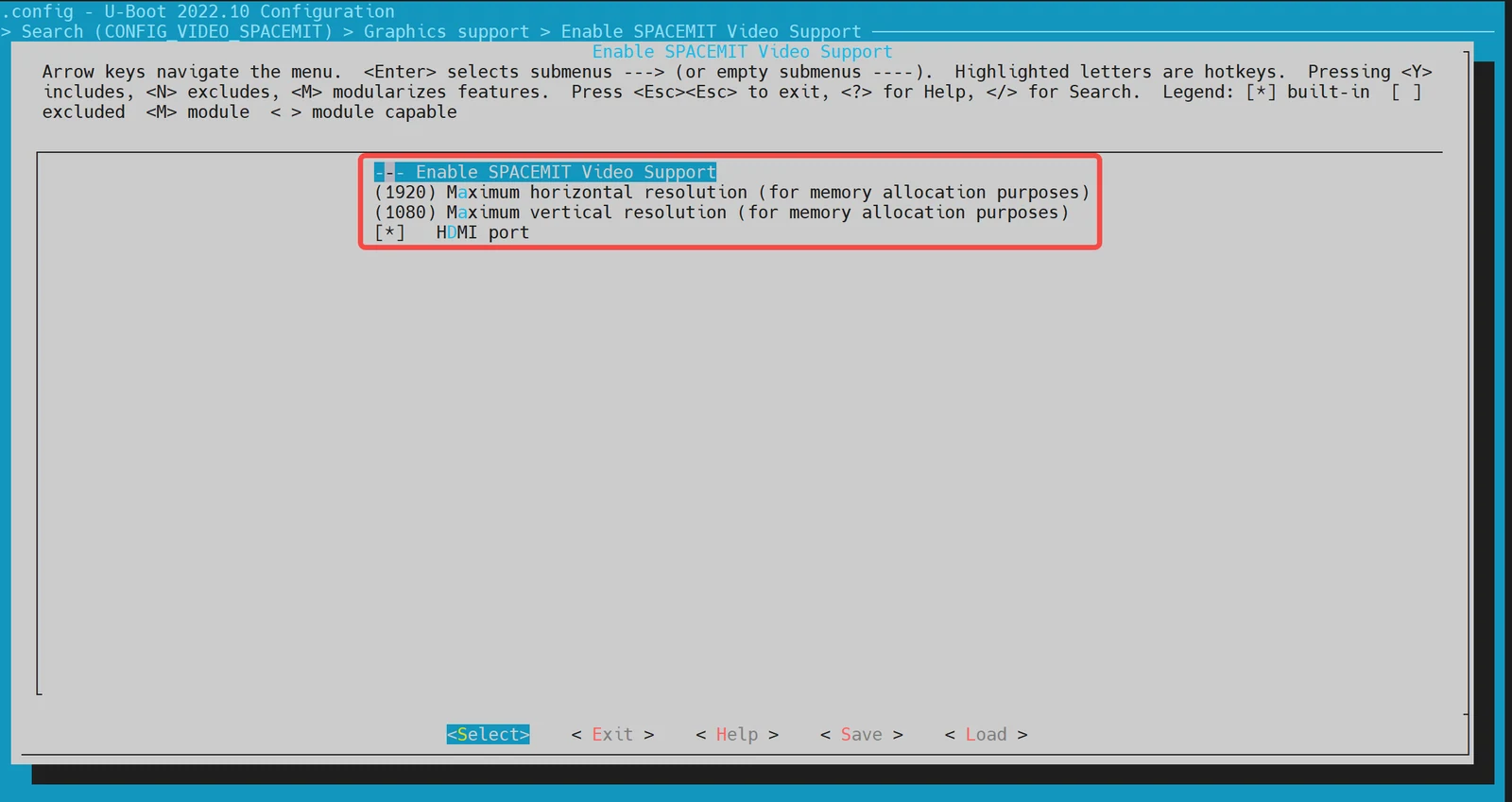

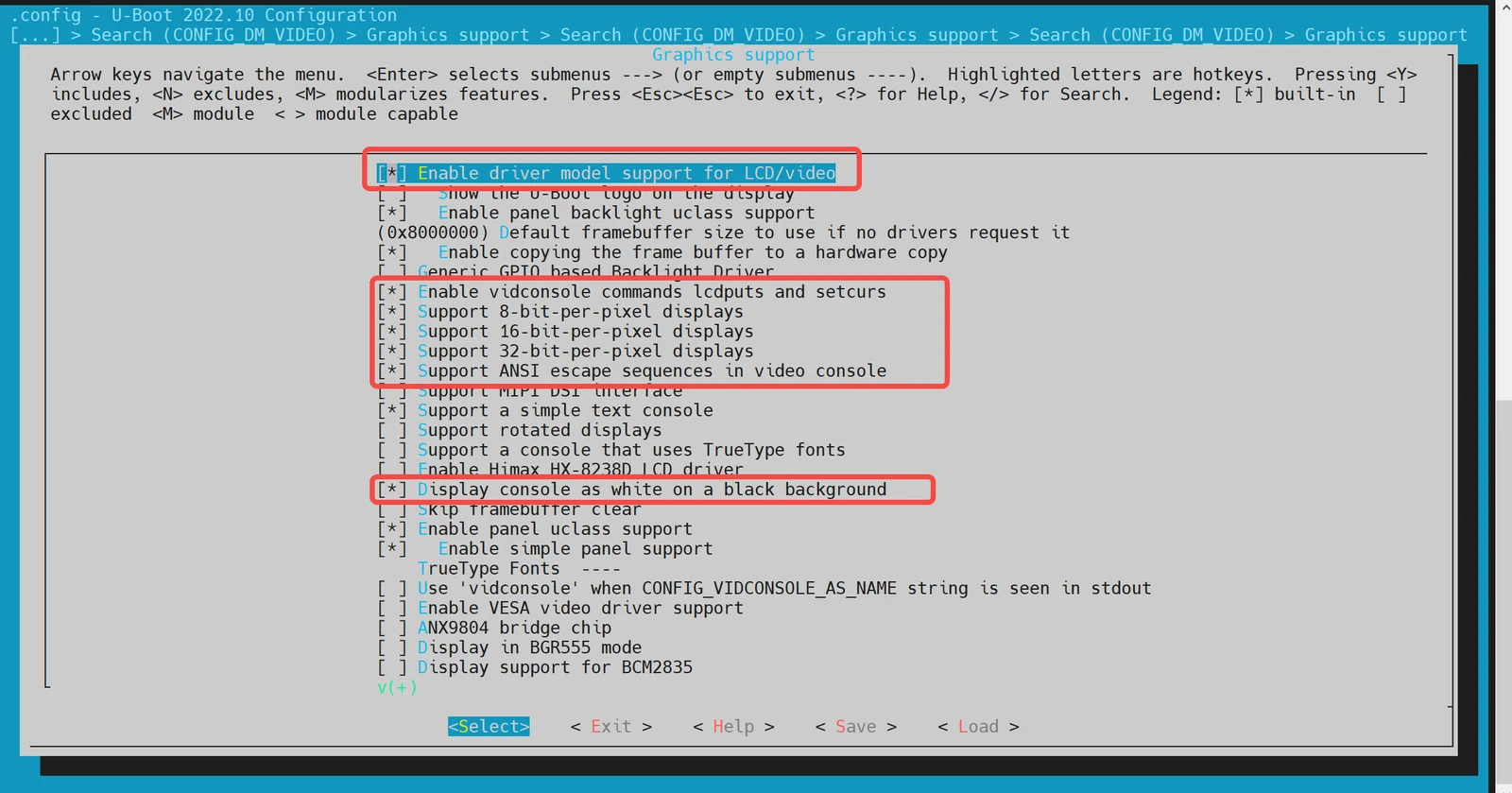

  • Boot Logo Display Shows a boot logo and boot menu during the U-Boot boot phase.

  • Driver Debugging U-Boot provides a shell interface for testing hardware drivers including MMC, SPI, NAND, NOR, NVMe, etc. All drivers are located under the drivers/ directory of the U-Boot source tree.

Compilation​

This section describes how to compile U-Boot images from the codebase.

  • Build Configuration

    Before the first build or when switching target boards or configurations, set the appropriate defconfig (example for K1):

    cd ~/uboot-2022.10
    make ARCH=riscv k1_defconfig -C ~/uboot-2022.10/

    To modify the build configuration interactively, you can use the following command:

    make ARCH=riscv menuconfig

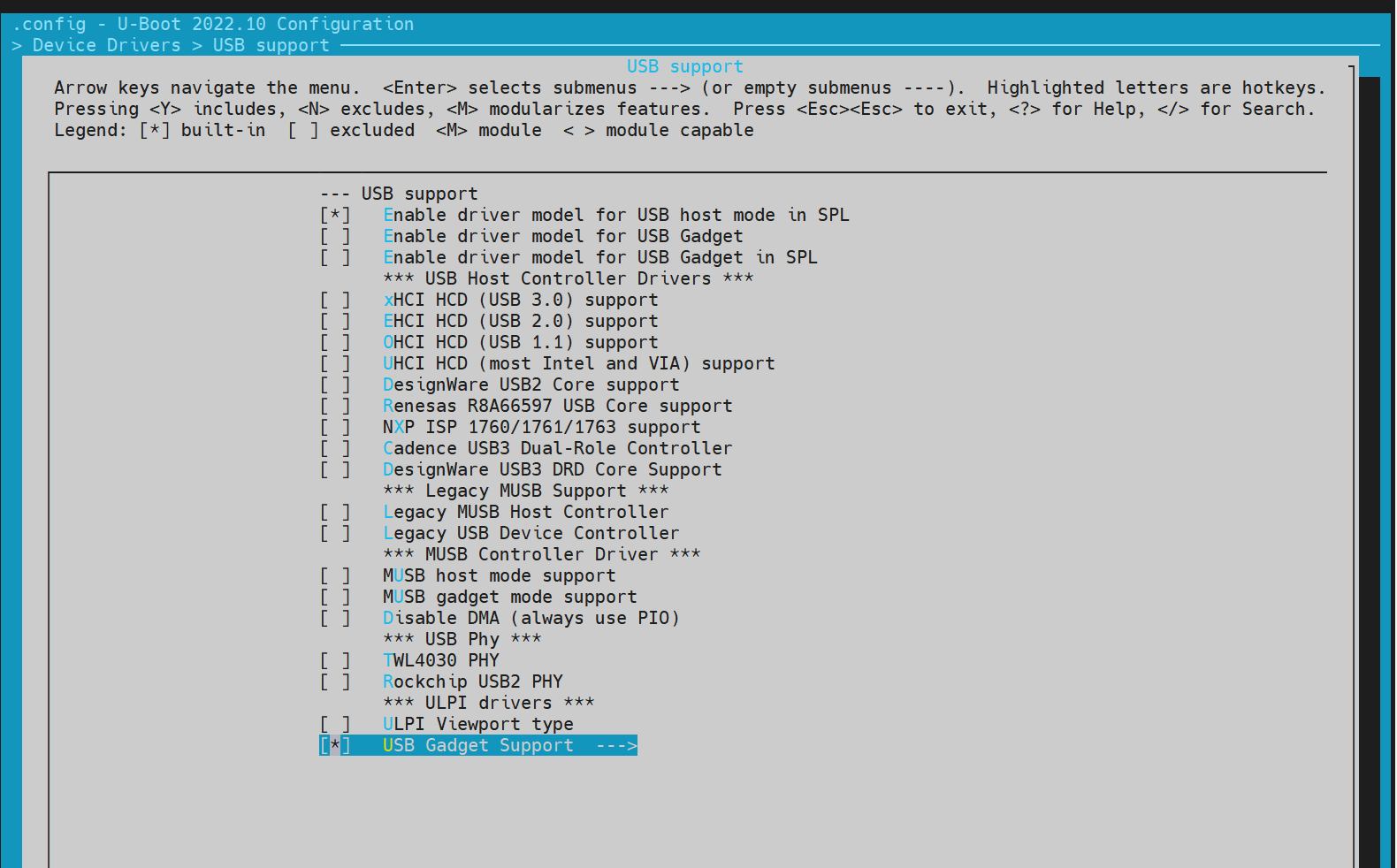

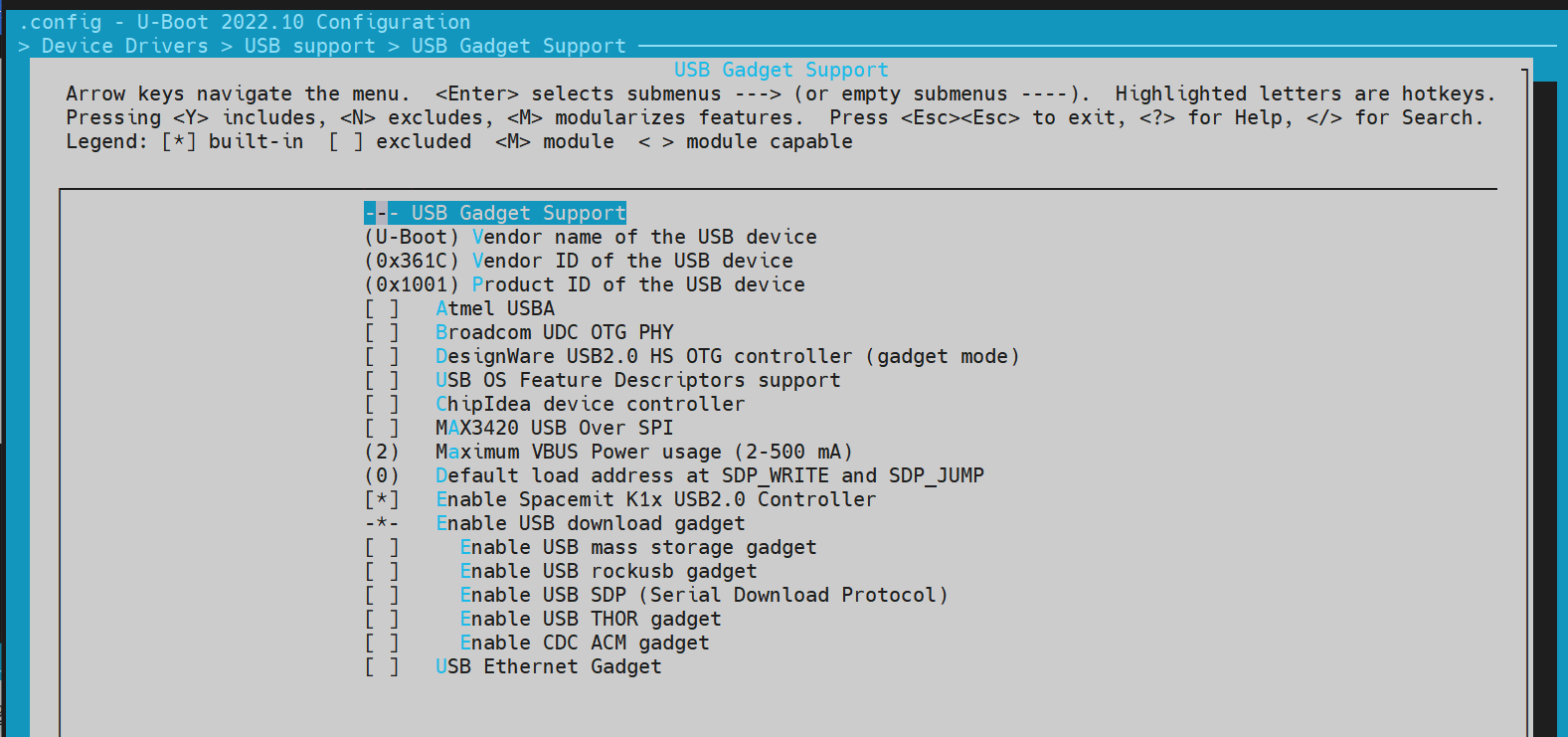

    a

    Use "Y" to enable or "N" to disable specific features. Changes will be saved to the .config file in the root directory.

  • Compiling U-Boot

    cd ~/uboot-2022.10
    GCC_PREFIX=riscv64-unknown-linux-gnu-
    make ARCH=riscv CROSS_COMPILE=${GCC_PREFIX} -C ~/uboot-2022.10 -j4

  • Compiling Output

    ~/uboot-2022.10$ ls u-boot* -l
    u-boot
    u-boot.bin           # U-Boot image
    u-boot.dtb           # DTB file
    u-boot-dtb.bin       # U-Boot image with DTB
    u-boot.itb           # Packs u-boot-nodtb.bin and DTB into FIT format
    u-boot-nodtb.bin
    bootinfo_emmc.bin    # Records SPL location for eMMC boot
    bootinfo_sd.bin
    bootinfo_spinand.bin
    bootinfo_spinor.bin
    FSBL.bin             # u-boot-spl.bin with header information, loaded and started by BROM
    k1-x_deb1.dtb        # DTB file for the deb1 solution
    k1-x_spl.dtb         # SPL DTB file

DTS Configuration​

All U-Boot device tree source files (DTS) are located under:

~/uboot-2022.10/arch/riscv/dts/

Edit the corresponding DTS file for the specific solution (e.g., deb1):

~/uboot-2022.10$ ls arch/riscv/dts/k1*.dts -l
arch/riscv/dts/k1-x_deb1.dts
arch/riscv/dts/k1-x_deb2.dts
arch/riscv/dts/k1-x_evb.dts
arch/riscv/dts/k1-x_fpga_1x4.dts
arch/riscv/dts/k1-x_fpga_2x2.dts
arch/riscv/dts/k1-x_fpga.dts
arch/riscv/dts/k1-x_spl.dts

U-Boot Driver Development and Debugging​

This section outlines how to use and debug drivers within U-Boot. By default, all necessary drivers are enabled in the build configuration, no manual activation is required.

Booting the Linux Kernel​

This part demonstrates how to boot a Linux kernel from U-Boot, including setting up custom partition configurations and executing the boot sequence.

Step 1: Enter U-Boot Shell

After powering on the development board, press the s key immediately to enter the U-Boot shell.

Step 2: Enter Fastboot Mode

From the U-Boot shell, run the following command to enter Fastboot mode:

=> fastboot 0

The device will wait for incoming image files from the host.

Step 3: Download the Kernel Image

On the host PC, run the following command to send the kernel image to the board:

C:\Users>fastboot stage Z:\k1\output\Image

On the development board, run the following command in the U-Boot shell to receive the image:

=> fastboot -l 0x40000000 0

Expected Output (U-Boot):

Starting download of 50687488 bytes
...
downloading/uploading of 50687488 bytes finished

Expected Output (PC):

Sending 'Z:\k1\output\Image' (49499 KB)           OKAY [  1.934s]
Finished. Total time: 3.358s

Step 4: Download DTB

On the host PC, send the DTB file with the below command:

C:\Users>fastboot stage Z:\k1\output\k1-x_deb1.dtb

On the development board, receive the DTB file with the below command::

=> fastboot -l 0x50000000 0

Expected Output (U-Boot):

Starting download of 33261 bytes
downloading/uploading of 33261 bytes finished

Expected Output (PC):

Sending 'Z:\k1\output\k1-x_deb1.dtb' (32 KB)      OKAY [  0.004s]
Finished. Total time: 0.054s

Step 5: Exit Fastboot Mode

After completing the transfers, press CTRL+C in the U-Boot shell to exit Fastboot mode.

Step 6: Boot the Kernel

Run the following command to start the Linux kernel:

=> booti 0x40000000 - 0x50000000

Expected Boot Output:

Moving Image from 0x40000000 to 0x200000, end=3d4f000
## Flattened Device Tree blob at 50000000
   Booting using the fdt blob at 0x50000000
   Using Device Tree in place at 0000000050000000, end 0000000050014896

Starting kernel ...

[    0.000000] Linux version 6.1.15+ ...
[    0.000000] OF: fdt: Ignoring memory range 0x0 - 0x200000
[    0.000000] Machine model: spacemit k1-x deb1 board
[    0.000000] earlycon: sbi0 at I/O port 0x0 (options '')
[    0.000000] printk: bootconsole [sbi0] enabled

Configuring env​

  1. Configuration via make menuconfig During U-Boot build configuration, run the following command to open the interactive configuration menu:

    make menuconfig

  2. Navigate to Environment Settings In the menuconfig interface, go to the Environment section to configure environment variable loading.

    alt text

    alt text

    Supported Storage Devices: Currently, U-Boot supports loading environment variables from:

    • MMC devices (e.g., SD cards or eMMC)
    • MTD devices (including SPI NOR and SPI NAND)

  3. Set Environment Variable Offset Address

    The environment offset must align with the layout defined in your partition table. The default offset is 0x80000. Configuration examples:

    • For SPI NOR devices:

      (0x80000) Environment address       # Offset for SPI NOR env

    • For MMC devices:

      (0x80000) Environment offset        # Offset for MMC env

MMC Driver Configuration and Debugging​

This section explains how to configure and debug MMC drivers in U-Boot, covering both eMMC and SD card support.

Both devices use the MMC driver but have different device numbers:

  • eMMC: dev number = 2
  • SD card: dev number = 0

  1. Configuration via make menuconfig

    • Enter make menuconfig Run the following command to launch the interactive configuration menu:

      make menuconfig

    • Enable MMC Host Controller Support Navigate to: Device Drivers → MMC Host controller Support Enable the necessary controller options as:

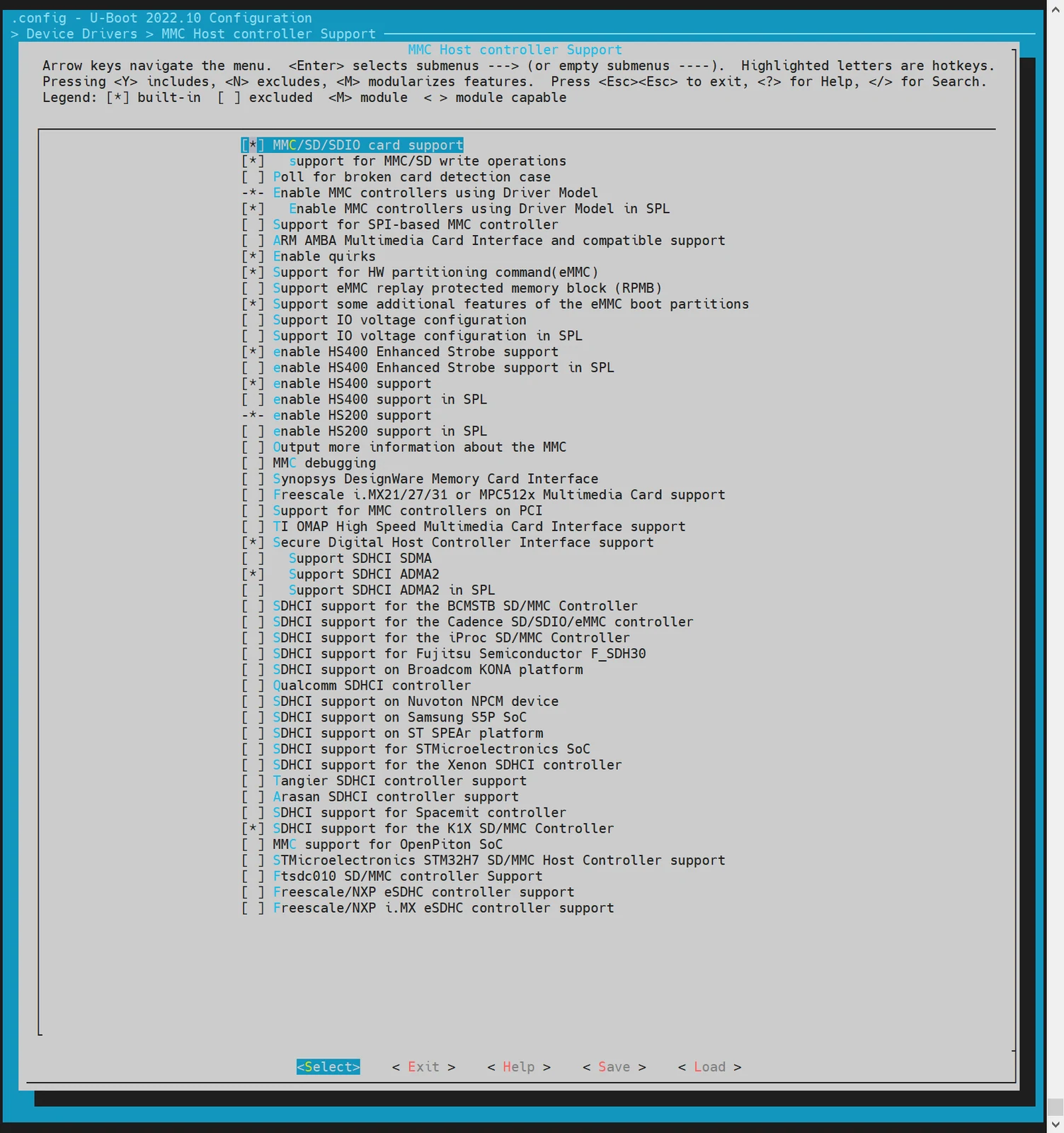

      MMC config

  2. DTS Configuration Define device tree nodes for eMMC and SD card interfaces in U-Boot's DTS files.

    Example configuration:

    // uboot-2022.10/arch/riscv/dts/k1-x.dtsi
    sdhci0: sdh@d4280000 {
        compatible = "spacemit,k1-x-sdhci";
        reg = <0x0 0xd4280000 0x0 0x200>;
        interrupt-parent = <&intc>;
        interrupts = <99>;
        resets = <&reset RESET_SDH_AXI>, <&reset RESET_SDH0>;
        reset-names = "sdh_axi", "sdh0";
        clocks = <&ccu CLK_SDH0>, <&ccu CLK_SDH_AXI>;
        clock-names = "sdh-io", "sdh-core";
        status = "disabled";
    };

    sdhci2: sdh@d4281000 {
        compatible = "spacemit,k1-x-sdhci";
        reg = <0x0 0xd4281000 0x0 0x200>;
        interrupt-parent = <&intc>;
        interrupts = <101>;
        resets = <&reset RESET_SDH_AXI>, <&reset RESET_SDH2>;
        reset-names = "sdh_axi", "sdh2";
        clocks = <&ccu CLK_SDH2>, <&ccu CLK_SDH_AXI>;
        clock-names = "sdh-io", "sdh-core";
        status = "disabled";
    };
    // uboot-2022.10/arch/riscv/dts/k1-x_deb1.dts
    &sdhci0 {
        pinctrl-names = "default";
        pinctrl-0 = <&pinctrl_mmc1 &gpio80_pmx_func0>;
        bus-width = <4>;
        cd-gpios = <&gpio 80 0>;
        cd-inverted;
        cap-sd-highspeed;
        sdh-phy-module = <0>;
        status = "okay";
    };

    /* eMMC */
    &sdhci2 {
        bus-width = <8>;
        non-removable;
        mmc-hs400-1_8v;
        mmc-hs400-enhanced-strobe;
        sdh-phy-module = <1>;
        status = "okay";
    };

  3. Debug and Validation U-Boot provides a command-line interface for MMC driver debugging. Make sure the CONFIG_CMD_MMC option is enabled in the build.

    => mmc list
    sdh@d4280000: 0 (SD)
    sdh@d4281000: 2 (eMMC)
    => mmc dev 2 #Switch to eMMC
    switch to partitions #0, OK
    mmc2(part 0) is current device

    #Read 0x1000 blocks from offset 0 into memory address 0x40000000
    => mmc read 0x40000000 0 0x1000

    MMC read: dev # 2, block # 0, count 4096 ... 4096 blocks read: OK

    #Write 0x1000 blocks from memory address 0x40000000 to offset 0
    => mmc write 0x40000000 0 0x1000

    MMC write: dev # 2, block # 0, count 4096 ... 4096 blocks written: OK

    #For other usage options, refer to mmc -h

  4. Common Interfaces For further implementation details, refer to cmd/mmc.c.

NVMe Driver Configuration and Debugging​

This section explains how to configure and debug the NVMe driver. The NVMe driver is primarily used for accessing and testing SSD storage.

  1. Configuration via make menuconfig

    • Enter the Configuration Menu

      make menuconfig

    • Enable NVMe Driver in Device Drivers

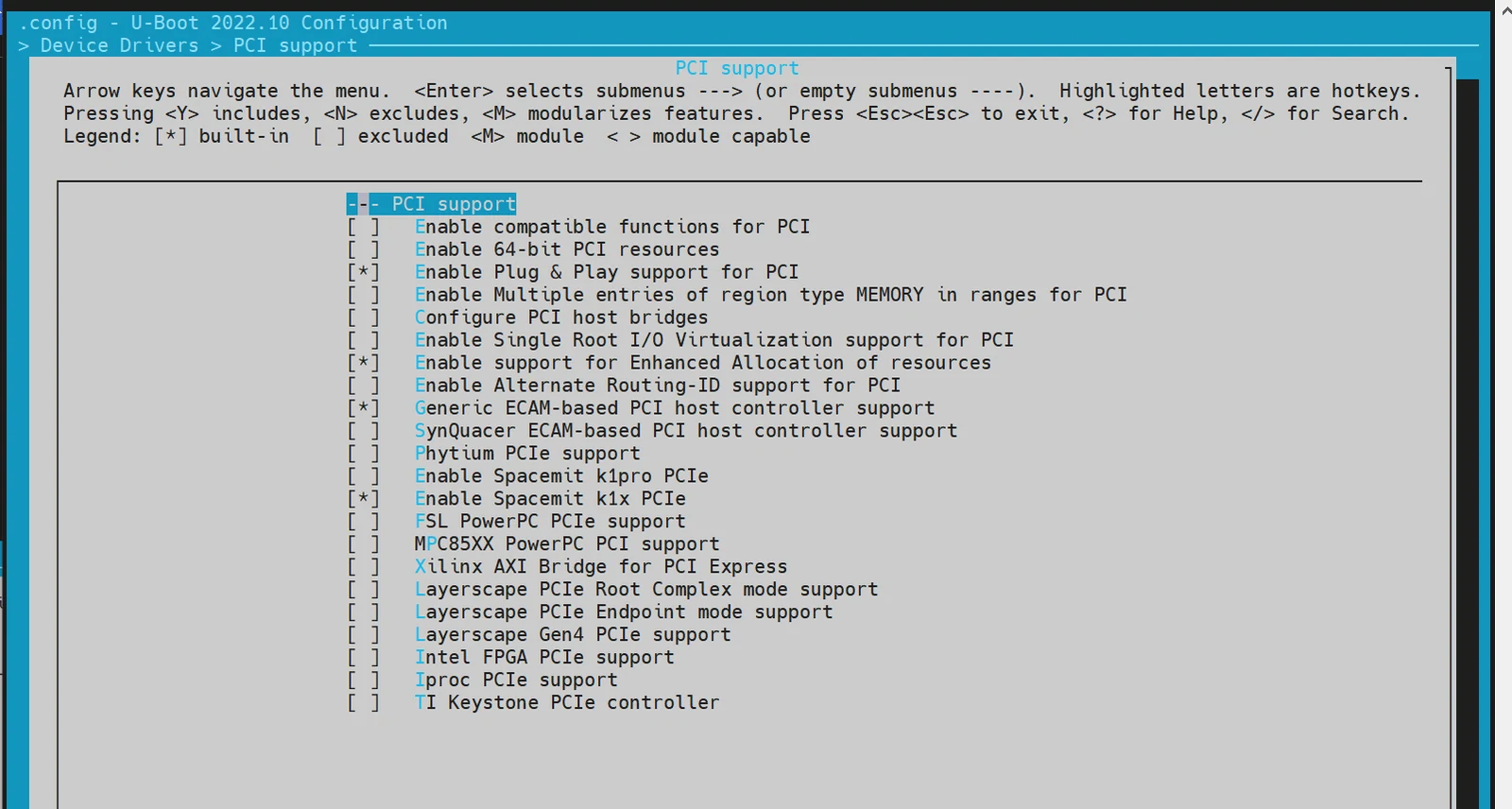

      Navigate to Device Drivers and enable NVMe-related options:

      menuconfig menuconfig

  2. DTS Configuration

    In the U-Boot device tree configuration, you need to define the device tree node for the NVMe driver.

    Example configuration:

    //uboot-2022.10/arch/riscv/dts/k1-x.dtsi
             pcie1_rc: pcie@ca400000 {
                 compatible = "k1x,dwc-pcie";
                 reg = <0x0 0xca400000 0x0 0x00001000>, /* dbi */
                       <0x0 0xca700000 0x0 0x0001ff24>, /* atu registers */
                       <0x0 0x90000000 0x0 0x00100000>, /* config space */
                       <0x0 0xd4282bd4 0x0 0x00000008>, /*k1x soc config addr*/
                       <0x0 0xc0c20000 0x0 0x00001000>, /* phy ahb */
                       <0x0 0xc0c10000 0x0 0x00001000>, /* phy addr */
                       <0x0 0xd4282bcc 0x0 0x00000008>, /* conf0 addr */
                       <0x0 0xc0b10000 0x0 0x00001000>; /* phy0 addr */
                 reg-names = "dbi", "atu", "config",
                                "k1x_conf", "phy_ahb",
                                "phy_addr", "conf0_addr",
                                "phy0_addr";

                 k1x,pcie-port = <1>;
                 clocks = <&ccu CLK_PCIE1>;
                 clock-names = "pcie-clk";
                 resets = <&reset RESET_PCIE1>;
                 reset-names = "pcie-reset";

                 bus-range = <0x00 0xff>;
                 max-link-speed = <2>;
                 num-lanes = <2>;
                 num-viewport = <8>;
                 device_type = "pci";
                 #address-cells = <3>;
                 #size-cells = <2>;
                 ranges = <0x01000000 0x0 0x90100000
                              0 0x90100000 0x0 0x100000>,
                      <0x02000000 0x0 0x90200000
                          0 0x90200000 0x0 0x0fe00000>;

                 interrupts = <142>, <146>;
                 interrupt-parent = <&intc>;
                 #interrupt-cells = <1>;
                 interrupt-map-mask = <0 0 0 0x7>;
                 interrupt-map = <0000 0 0 1 &pcie1_intc 1>, /* int_a */
                         <0000 0 0 2 &pcie1_intc 2>, /* int_b */
                         <0000 0 0 3 &pcie1_intc 3>, /* int_c */
                         <0000 0 0 4 &pcie1_intc 4>; /* int_d */
                 linux,pci-domain = <1>;
                 status = "disabled";
                 pcie1_intc: interrupt-controller@0 {
                     interrupt-controller;
                     reg = <0 0 0 0 0>;
                     #address-cells = <0>;
                     #interrupt-cells = <1>;
                 };
             };

    //uboot-2022.10/arch/riscv/dts/k1-x_deb1.dts
     &pcie1_rc {
         pinctrl-names = "default";
         pinctrl-0 = <&pinctrl_pcie1_3>;
         status = "okay";
     };

  3. Debugging and Verification Enable configuration CONFIG_CMD_NVME, follow below steps for debugging:

    => nvme scan
    => nvme detail
    Blk device 0: Optional Admin Command Support:
            Namespace Management/Attachment: no
            Firmware Commit/Image download: yes
            Format NVM: yes
            Security Send/Receive: yes
    Blk device 0: Optional NVM Command Support:
            Reservation: yes
            Save/Select field in the Set/Get features: yes
            Write Zeroes: yes
            Dataset Management: yes
            Write Uncorrectable: yes
    Blk device 0: Format NVM Attributes:
            Support Cryptographic Erase: No
            Support erase a particular namespace: Yes
            Support format a particular namespace: Yes
    Blk device 0: LBA Format Support:
            LBA Foramt 0 Support: (current)
                    Metadata Size: 0
                    LBA Data Size: 512
                    Relative Performance: Good
    Blk device 0: End-to-End DataProtect Capabilities:
            As last eight bytes: No
            As first eight bytes: No
            Support Type3: No
            Support Type2: No
            Support Type1: No
    Blk device 0: Metadata capabilities:
            As part of a separate buffer: No
            As part of an extended data LBA: No
    => nvme read/write addr blk_off blk_cnt

  4. Common Interfaces For further implementation details, refer to cmd/nvme.c.

Network Configuration (Net)​

  1. Configuration via make menuconfig

    • Enter menuconfig Run the following command to enter the configuration menu:

      make menuconfig

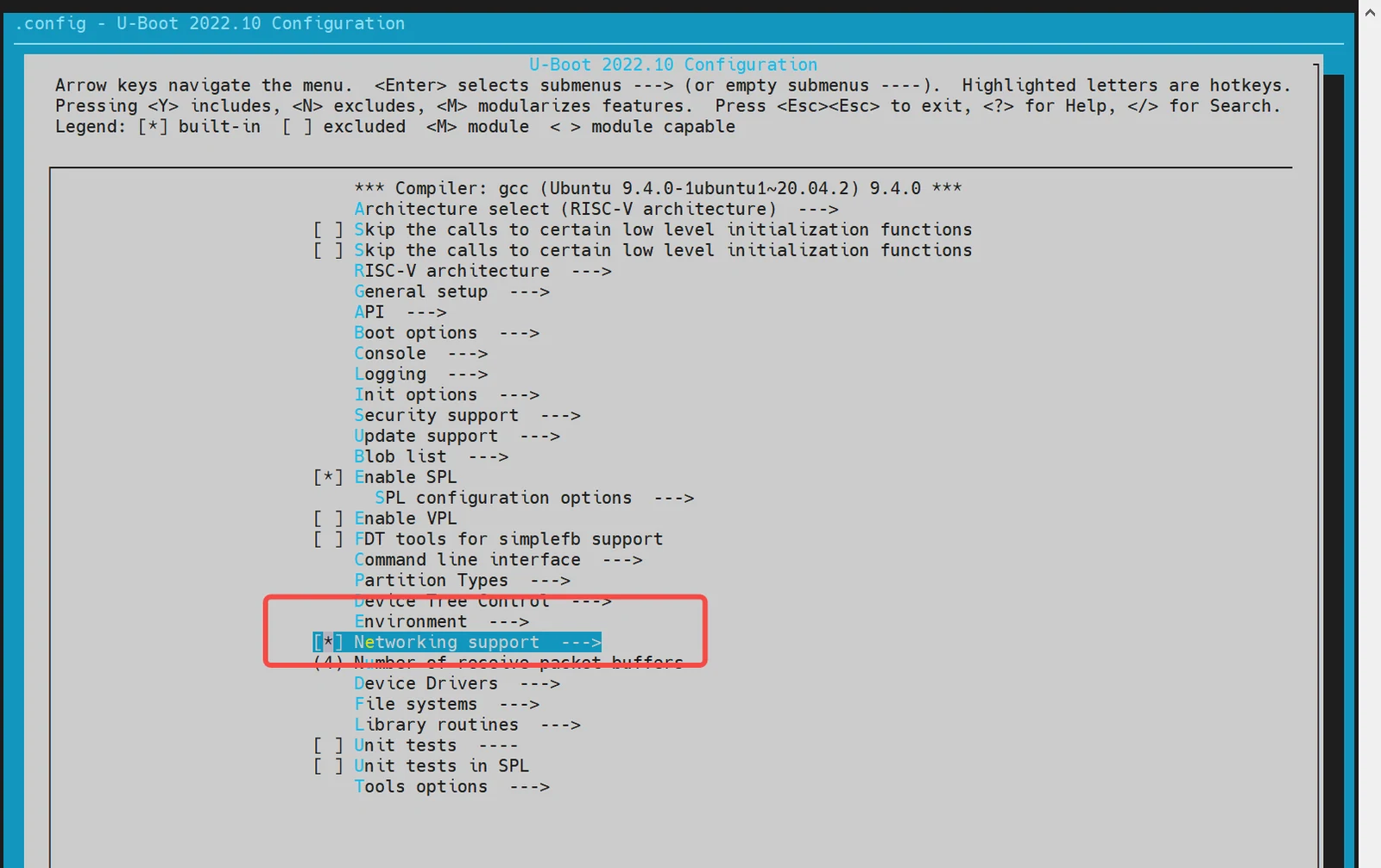

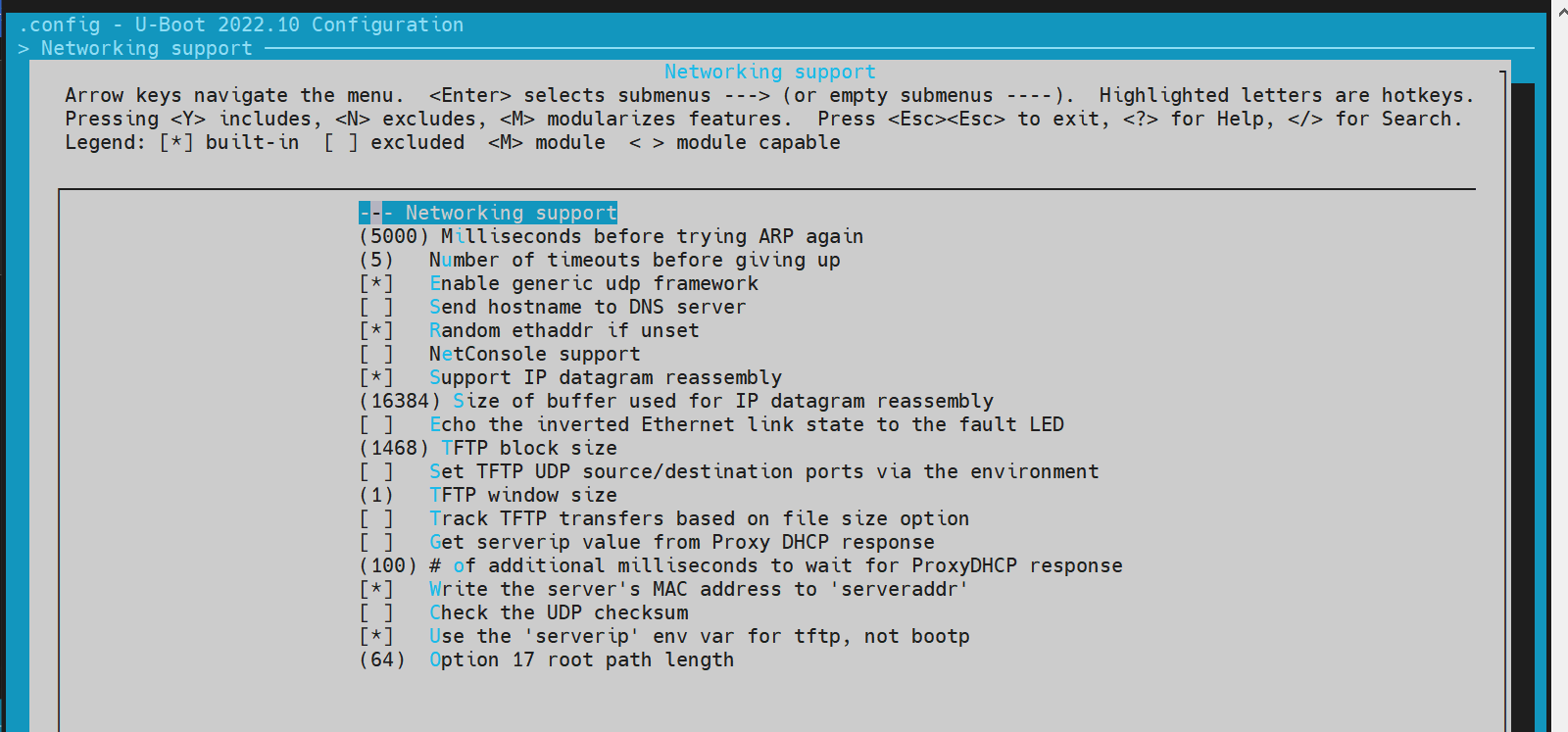

    • Enable network-related options Navigate to Device Drivers and enable the necessary network options:

      a

      a

  2. DTS Configuration

    In the U-Boot device tree, add the node for the Ethernet controller.

    Example configuration:

    //uboot-2022.10/arch/riscv/dts/k1-x.dtsi
             eth0: ethernet@cac80000 {
              compatible = "spacemit,k1x-emac";
              reg = <0x00000000 0xCAC80000 0x00000000 0x00000420>;
              ctrl-reg = <0x3e4>;
              dline-reg = <0x3e8>;
              clocks = <&ccu CLK_EMAC0_BUS>;
              clock-names = "emac-clk";
              resets = <&reset RESET_EMAC0>;
              reset-names = "emac-reset";
              status = "disabled";
          };

    //uboot-2022.10/arch/riscv/dts/k1-x_deb1.dts
     &eth0 {
      status = "okay";
      pinctrl-names = "default";
      pinctrl-0 = <&pinctrl_gmac0>;

      phy-reset-pin = <110>;

      clk_tuning_enable;
      clk-tuning-by-delayline;
      tx-phase = <90>;
      rx-phase = <73>;

      phy-mode = "rgmii";
      phy-addr = <1>;
      phy-handle = <&rgmii>;

      ref-clock-from-phy;

      mdio {
          #address-cells = <0x1>;
          #size-cells = <0x0>;
          rgmii: phy@0 {
              compatible = "ethernet-phy-id001c.c916";
              device_type = "ethernet-phy";
              reg = <0x1>;
          };
      };
     };

  3. Debugging and Verification

    Make sure the build configuration includes CONFIG_CMD_NET, and that the board is connected to an Ethernet cable with a running TFTP server (not covered here).

    Debugging commands:

    => dhcp #After executing dhcp, if an address is returned, it indicates a successful connection to the network server. Any other situation indicates a connection failure.
    ethernet@cac80000 Waiting for PHY auto negotiation to complete...... done
    emac_adjust_link link:1 speed:1000 duplex:full
    BOOTP broadcast 1
    BOOTP broadcast 2
    BOOTP broadcast 3
    BOOTP broadcast 4
    BOOTP broadcast 5
    BOOTP broadcast 6
    BOOTP broadcast 7
    DHCP client bound to address 10.0.92.130 (7982 ms)

    => tftpboot 0x40000000 site11/uImage.itb
    ethernet@cac80000 Waiting for PHY auto negotiation to complete...... done
    emac_adjust_link link:1 speed:1000 duplex:full
    Using ethernet@cac80000 device
    TFTP from server 10.0.92.134; our IP address is 10.0.92.130
    Filename 'site11/uImage.itb'.
    Load address: 0x40000000
    Loading: ##############################################################
             ########
             1.1 MiB/s
    done
    Bytes transferred = 66900963 (3fcd3e3 hex)
    =>

    # booting kernel
    =>bootm 0x40000000

  4. Common Interfaces For further implementation details, refer to cmd/net.c.

SPI Configuration and Debugging​

SPI (Serial Peripheral Interface) is a widely used serial communication protocol for connecting microcontrollers with peripheral devices. In U-Boot, the SPI driver supports NAND or NOR Flash.

  1. Configuration via make menuconfig

    • Enter menuconfig Run the following command to enter the configuration menu:

      make menuconfig

    • Enable SPI support Navigate to Device Drivers and enable the required SPI options:

      a a

  2. DTS Configuration Add SPI nodes in the U-Boot device tree to enable hardware support.

    Example configuration:

    //k1-x.dtsi
    /dts-v1/;

    / {
            compatible = "spacemit,k1x", "riscv";
            #address-cells = <2>;
            #size-cells = <2>;

            soc:soc {
                    compatible = "simple-bus";
                    #address-cells = <2>;
                    #size-cells = <2>;
                    ranges;

                    qspi: spi@d420c000 {
                            compatible = "spacemit,k1x-qspi";
                            #address-cells = <1>;
                            #size-cells = <0>;
                            reg = <0x0 0xd420c000 0x0 0x1000>,
                                  <0x0 0xb8000000 0x0 0xd00000>;
                            reg-names = "qspi-base", "qspi-mmap";
                            qspi-sfa1ad = <0xa00000>;
                            qspi-sfa2ad = <0xb00000>;
                            qspi-sfb1ad = <0xc00000>;
                            qspi-sfb2ad = <0xd00000>;
                            clocks = <&ccu CLK_QSPI>,
                                    <&ccu CLK_QSPI_BUS>;
                            clock-names = "qspi_clk", "qspi_bus_clk";
                            resets = <&reset RESET_QSPI>,
                                    <&reset RESET_QSPI_BUS>;
                            reset-names = "qspi_reset", "qspi_bus_reset";
                            qspi-pmuap-reg = <0xd4282860>;
                            spi-max-frequency = <26500000>;
                            qspi-id = <4>;
                            status = "disabled";
                    };
            };
    };

    //k1-x_deb1.dts
    &qspi {
            status = "okay";
            pinctrl-names = "default";
            pinctrl-0 = <&pinctrl_qspi>;
    };

  3. Debugging and Verification

    Make sure CONFIG_CMD_SPI is enabled to access the sspi command in the U-Boot shell.

    Debugging command:

    sspi -h

        "SPI utility command",
        "[<bus>:]<cs>[.<mode>][@<freq>] <bit_len> <dout> - Send and receive bits\n"
        "<bus>     - Identifies the SPI bus\n"
        "<cs>      - Identifies the chip select\n"
        "<mode>    - Identifies the SPI mode to use\n"
        "<freq>    - Identifies the SPI bus frequency in Hz\n"
        "<bit_len> - Number of bits to send (base 10)\n"
        "<dout>    - Hexadecimal string that gets sent"

  4. Common Interfaces For further implementation details, refer to cmd/spi.c.

NAND Configuration and Debugging​

The NAND driver in U-Boot is implemented based on the SPI interface, so SPI support must be enabled first. This section provides instructions on configuring and debugging the NAND driver.

  1. Configuration via make menuconfig Run the following command to enter the configuration menu:

    make menuconfig

    Navigate to Device Drivers → MTD Support to enable the necessary options for SPI NAND:

    a

    For adding support for a new NAND flash device, you can register its JEDEC ID in the corresponding vendor driver.

    ~/uboot-2022.10$ ls drivers/mtd/nand/spi/*.c -l
    drivers/mtd/nand/spi/core.c
    drivers/mtd/nand/spi/gigadevice.c
    drivers/mtd/nand/spi/macronix.c
    drivers/mtd/nand/spi/micron.c
    drivers/mtd/nand/spi/other.c
    drivers/mtd/nand/spi/toshiba.c
    drivers/mtd/nand/spi/winbond.c

    To add a new flash to the Gigadevice chip, follow these steps:

    //uboot-2022.10/drivers/mtd/nand/spi/gigadevice.c
     static const struct spinand_info gigadevice_spinand_table[] = {
         SPINAND_INFO("GD5F1GQ4UExxG", 0xd1,
                  NAND_MEMORG(1, 2048, 128, 64, 1024, 1, 1, 1),
                  NAND_ECCREQ(8, 512),
                  SPINAND_INFO_OP_VARIANTS(&gd5fxgq4_read_cache_variants,
                               &write_cache_variants,
                               &update_cache_variants),
                  0,
                  SPINAND_ECCINFO(&gd5fxgqxxexxg_ooblayout,
                          gd5fxgq4xexxg_ecc_get_status)),
         SPINAND_INFO("GD5F1GQ5UExxG", 0x51,
                  NAND_MEMORG(1, 2048, 128, 64, 1024, 1, 1, 1),
                  NAND_ECCREQ(4, 512),
                  SPINAND_INFO_OP_VARIANTS(&gd5f1gq5_read_cache_variants,
                               &write_cache_variants,
                               &update_cache_variants),
                  0,
                  SPINAND_ECCINFO(&gd5fxgqxxexxg_ooblayout,
                          gd5fxgq5xexxg_ecc_get_status)),
     };

    Note: For other NAND vendors, refer to the structure and methods used in the Gigadevice driver.

  2. DTS Configuration

    Since SPI NAND is a child device under the SPI controller, the node must be defined under the SPI node.

    Example configuration:

     &qspi {
            status = "okay";
            pinctrl-names = "default";
            pinctrl-0 = <&pinctrl_qspi>;

            spi-nand@0 {
                compatible = "spi-nand";
                reg = <0>;
                spi-tx-bus-width = <1>;
                spi-rx-bus-width = <1>;
                spi-max-frequency = <6250000>;
                u-boot,dm-spl;
                status = "okay";
            };
        };

  3. Debugging and Verification

    Enable CONFIG_CMD_MTD in U-Boot to use the mtd command for interacting with NAND devices.

    Sample Commands:

    => mtd
    mtd - MTD utils

    Usage:
    mtd - generic operations on memory technology devices

    => mtd list
    mtd read[.raw][.oob]                  <name> <addr> [<off> [<size>]]
    mtd dump[.raw][.oob]                  <name>        [<off> [<size>]]
    mtd write[.raw][.oob][.dontskipff]    <name> <addr> [<off> [<size>]]
    mtd erase[.dontskipbad]               <name>        [<off> [<size>]]

    Specific functions:
    mtd bad                               <name>

    With:
            <name>: NAND partition/chip name (or corresponding DM device name or OF path)
            <addr>: user address from/to which data will be retrieved/stored
            <off>: offset in <name> in bytes (default: start of the part)
                    * must be block-aligned for erase
                    * must be page-aligned otherwise
            <size>: length of the operation in bytes (default: the entire device)
                    * must be a multiple of a block for erase
                    * must be a multiple of a page otherwise (special case: default is a page with dump)

    The .dontskipff option forces writing empty pages, don't use it if unsure.

    => mtd list
    [RESET]spacemit_reset_set assert=1, id=77
    [RESET]spacemit_reset_set assert=1, id=78
    clk qspi_bus_clk already disabled
    clk qspi_clk already disabled
    ccu_mix_set_rate of qspi_clk timeout
    [RESET]spacemit_reset_set assert=0, id=77
    [RESET]spacemit_reset_set assert=0, id=78
    SF: Detected w25q32 with page size 256 Bytes, erase size 64 KiB, total 4 MiB
    Could not find a valid device for spi-nand
    List of MTD devices:
    * nor0
      - device: flash@0
      - parent: spi@d420c000
      - driver: jedec_spi_nor
      - path: /soc/spi@d420c000/flash@0
      - type: NOR flash
      - block size: 0x10000 bytes
      - min I/O: 0x1 bytes
      - 0x000000000000-0x000000400000 : "nor0"
              - 0x0000000a0000-0x000000100000 : "opensbi"
              - 0x000000100000-0x000000300000 : "uboot"
    => mtd read/write partname addr off size

  4. Common Interfaces For further implementation details, refer to cmd/mtd.c.

NOR Configuration and Debugging​

The NOR driver is based on SPI, so it's necessary to first enable the SPI driver functionality. This section explains how to configure and debug the NOR driver.

  1. Configuration via make menuconfig Run the following command to enter the configuration menu:

    make menuconfig

    Navigate to Device Drivers → MTD Support → SPI Flash Support. Enable the following configurations:

    a

    a

    Adding Support for a New SPI NOR Flash

    • For supported NOR Flash chips from known vendors (e.g., GigaDevice), simply enable the appropriate config options.

    • To check or extend the JEDEC ID list: The JEDEC ID table is maintained in:

      uboot-2022.10/drivers/mtd/spi/spi-nor-ids.c

      If your specific NOR chip is missing from the table, you can manually add its JEDEC ID based on the datasheet. (Look for the manufac keyword; e.g., Winbond's manufacturer ID is 0xfe.)

  2. DTS Configuration

    The NOR flash device is configured as a child node under the SPI controller node in the device tree.

    Example Configuration:

    //k1/uboot-2022.10/arch/riscv/dts/k1-x_deb1.dts
     &qspi {
         status = "okay";
         pinctrl-names = "default";
         pinctrl-0 = <&pinctrl_qspi>;

         flash@0 {
             compatible = "jedec,spi-nor";
             reg = <0>;
             spi-max-frequency = <26500000>;
             m25p,fast-read;
             broken-flash-reset;
             status = "okay";
         };
     };

  3. Debugging and Verification Ensure the following configs are enabled:

    • CONFIG_CMD_MTD=y
    • CONFIG_CMD_SF=y

    Debug NOR using mtd Commands:

    => mtd list
    List of MTD devices:
    * nor0
      - device: flash@0
      - parent: spi@d420c000
      - driver: jedec_spi_nor
      - path: /soc/spi@d420c000/flash@0
      - type: NOR flash
      - block size: 0x1000 bytes
      - min I/O: 0x1 bytes
      - 0x000000000000-0x000000400000 : "nor0"
              - 0x0000000a0000-0x0000000e0000 : "opensbi"
              - 0x000000100000-0x000000200000 : "uboot"
    =>

    => mtd
    mtd - MTD utils

    Usage:
    mtd - generic operations on memory technology devices

    mtd list
    mtd read[.raw][.oob]                  <name> <addr> [<off> [<size>]]
    mtd dump[.raw][.oob]                  <name>        [<off> [<size>]]
    mtd write[.raw][.oob][.dontskipff]    <name> <addr> [<off> [<size>]]
    mtd erase[.dontskipbad]               <name>        [<off> [<size>]]

    Specific functions:
    mtd bad                               <name>

    With:
            <name>: NAND partition/chip name (or corresponding DM device name or OF path)
            <addr>: user address from/to which data will be retrieved/stored
            <off>: offset in <name> in bytes (default: start of the part)
                    * must be block-aligned for erase
                    * must be page-aligned otherwise
            <size>: length of the operation in bytes (default: the entire device)
                    * must be a multiple of a block for erase
                    * must be a multiple of a page otherwise (special case: default is a page with dump)

    The .dontskipff option forces writing empty pages, don't use it if unsure.

    =>
    => mtd read uboot 0x40000000
    Reading 1048576 byte(s) at offset 0x00000000
    => mtd dump uboot 0 0x10
    Reading 16 byte(s) at offset 0x00000000

    Dump 16 data bytes from 0x0:
    0x00000000:     d0 0d fe ed 00 0d e8 95  00 00 00 38 00 0d e4 44
    =>

    Debug NOR using sf (SPI Flash) Commands:

    => sf
    sf - SPI flash sub-system

    Usage:
    sf probe [[bus:]cs] [hz] [mode] - init flash device on given SPI bus
                                      and chip select
    sf read addr offset|partition len       - read `len' bytes starting at
                                              `offset' or from start of mtd
                                              `partition'to memory at `addr'
    sf write addr offset|partition len      - write `len' bytes from memory
                                              at `addr' to flash at `offset'
                                              or to start of mtd `partition'
    sf erase offset|partition [+]len        - erase `len' bytes from `offset'
                                              or from start of mtd `partition'
                                             `+len' round up `len' to block size
    sf update addr offset|partition len     - erase and write `len' bytes from memory
                                              at `addr' to flash at `offset'
                                              or to start of mtd `partition'
    sf protect lock/unlock sector len       - protect/unprotect 'len' bytes starting
                                              at address 'sector'
    => sf probe
    SF: Detected w25q32 with page size 256 Bytes, erase size 4 KiB, total 4 MiB
    => sf read 0x40000000 0 0x10
    device 0 offset 0x0, size 0x10
    SF: 16 bytes @ 0x0 Read: OK
    =>

  4. Common Interfaces

    include <spi.h>
    #include <spi_flash.h>

    struct udevice *new, *bus_dev;
    int ret;
    static struct spi_flash *flash;

    //Specify SPI bus and cs (chip select), e.g. 0，0
    ret = spi_find_bus_and_cs(bus, cs, &bus_dev, &new);
    flash = spi_flash_probe(bus, cs, speed, mode);

    ret = spi_flash_read(flash, offset, len, buf);

HDMI Configuration and Debugging​

This section primarily focuses on how to enable the HDMI (High-Definition Multimedia Interface) driver.

  1. Configuration via make uboot_menuconfig Run the following command to enter the U-Boot configuration menu:

    make uboot_menuconfig

    Navigate to: Device Drivers → Graphics support

    Enable the following configurations (enabled by default):

    a

    a

    a

    a

    a

  2. DTS Configuration The HDMI driver requires device tree support. The relevant nodes must be configured in the U-Boot device tree source files.

    Example Configuration:

    &dpu {
            status = "okay";
    };

    &hdmi {
            pinctrl-names = "default";
            pinctrl-0 = <&pinctrl_hdmi_0>;
            status = "okay";
    };

Boot Logo Configuration and Display​

This section explains how to configure and display a boot logo during the U-Boot startup phase.

  1. Configuration via make menuconfig

    • Ensure HDMI is Enabled First, confirm HDMI support is enabled in U-Boot. Refer to the section HDMI Configuration and Debugging for details.

    • Enable Boot Logo Support Run the following command to open the U-Boot configuration menu:

      make menuconfig

      Navigate to Device Drivers → Graphics support, and enable the following option:

    a

  2. Environment Variable Setup Add the following environment variables (splashimage、splashpos and splashfile ) to support boot logo display. These should be defined in U-Boot’s configuration file located at uboot-2022.10/include/configs/k1-x.h

    //uboot-2022.10/include/configs/k1-x.h
     ... ...
     ... ...
    #define CONFIG_EXTRA_ENV_SETTINGS \
         ... ...
         ... ...
      "splashimage=" __stringify(CONFIG_FASTBOOT_BUF_ADDR) "\0" \
      "splashpos=m,m\0" \
      "splashfile=bianbu.bmp\0" \

         ... ...
         ... ...
      BOOTENV_DEVICE_CONFIG \
      BOOTENV

    #endif /* __CONFIG_H */

    Explanation:

    • splashimage: Memory address where the boot logo image will be loaded.
    • splashpos: Image position on the screen. "m,m" means centered both horizontally and vertically.
    • splashfile: Filename of the BMP image to be displayed. This image must be placed in the same partition as bootfs.

  3. Packaging the BMP Image into BootFS To ensure the BMP logo is included in BootFS:

    • Prepare the BMP Image Place the bianbu.bmp image file under:

      ./buildroot-ext/board/spacemit/k1/

      The filename must match both:

      • UBOOT_LOGO_FILE in buildroot-ext/board/spacemit/k1/prepare_img.sh
      • The splashfile environment variable

    • Update the Packaging Script Check that prepare_img.sh correctly includes the BMP file bianbu.bmp:

      //buildroot-ext/board/spacemit/k1/prepare_img.sh
      #!/bin/bash

      ######################## Prepare sub-iamges and pack ####################
      #$0 is this file path
      #$1 is buildroot output images dir

      IMGS_DIR=$1
      DEVICE_DIR=$(dirname $0)

      ... ...

      UBOOT_LOGO_FILE="$DEVICE_DIR/bianbu.bmp"

  4. Updating the Boot Logo To update the boot logo, simply replace the existing bianbu.bmp file located in the following directory:

    buildroot-ext/board/spacemit/k1/

    Make sure the new image file retains the same filename (bianbu.bmp)

Boot Menu Configuration and Usage​

This section mainly introduces how to enable and use the Boot Menu feature in U-Boot.

  1. Configuration via make menuconfig

    • Launch the configuration menu Run the following command:

      make menuconfig

    • Enable Boot Menu Support Navigate to Command line interface → Boot commands, and enable the following option:

      a

    • Enable Autoboot Options Then go to Boot options → Autoboot options, and enable the following option:

      a

  2. Environment Configuration In the file buildroot-ext/board/spacemit/k1/env_k1-x.txt, add the environment variables bootdelay and bootmenu_delay.

    For example:

    • bootmenu_delay=5: the system waits 5 seconds on the boot menu for user to choose a boot option.
    • bootdelay=5: after a boot option is selected, the system waits another 5 seconds before starting.
    //buildroot-ext/board/spacemit/k1/env_k1-x.txt
    bootdelay=5

    # Boot menu definitions
    boot_default=echo "Current Boot Device: ${boot_device}"
    flash_default=echo "Returning to Boot Menu..."
    spacemit_flashing_usb=echo "recovery from usb...... "; \
                          spacemit_flashing usb;
    spacemit_flashing_mmc=echo "recovery from mmc...... " \
                          spacemit_flashing mmc;
    spacemit_flashing_net=echo "recovery from net...... " \
                          spacemit_flashing net;
    bootmenu_delay=5
    bootmenu_0="-------- Boot Options --------"=run boot_default
    bootmenu_1="Boot from Nor"=run nor_boot
    bootmenu_2="Boot from Nand"=run nand_boot
    bootmenu_3="Boot from MMC"=run try_mmc
    bootmenu_4="Autoboot"=run autoboot
    bootmenu_5="Show current Boot Device"=run boot_default
    bootmenu_6="-------- Flash Options --------"=run flash_default
    bootmenu_7="recovery from usb"=run spacemit_flashing_usb
    bootmenu_8="recovery from mmc"=run spacemit_flashing_mmc
    bootmenu_9="recovery from net"=run spacemit_flashing_net

  3. Accessing the Boot Menu After powering on the board, press and hold the Esc key to enter the Boot Menu interface.

Fastboot Command Configuration and Usage​

This section introduces the Fastboot command support for the K1-DEB1 solution.

Configuration​

To enable Fastboot support, follow these steps:

  • Launch the configuration menu

    make menuconfig

  • Navigate to Device Drivers → Fastboot support, and enable the Fastboot configuration options:

    a

  • Enable USB Support Since Fastboot relies on USB drivers, also enable Device Drivers → USB support:

    a

    a

Entering Fastboot Mode​

Method 1: Using U-Boot Shell

  • Access U-Boot Shell During system boot-up, press the s key to enter the U-Boot shell.

  • Execute Fastboot Command

    => fastboot 0

    The default fastboot buffer address/size is defined by the macros CONFIG_FASTBOOT_BUF_ADDR and CONFIG_FASTBOOT_BUF_SIZE.

    #or fastboot -l 0x30000000 -s 0x10000000 0，Specify the buffer address and size.
    => fastboot 0
    k1xci_udc: phy_init
    k1xci_udc probe
       k1xci_udc: pullup 1
       -- suspend --
       handle setup GET_DESCRIPTOR, 0x80, 0x6 index 0x0 value 0x100 length 0x40
       handle setup SET_ADDRESS, 0x0, 0x5 index 0x0 value 0x22 length 0x0
       handle setup GET_DESCRIPTOR, 0x80, 0x6 index 0x0 value 0x100 length 0x12
       ..

Method 2: From Bianbu OS

If the device boots into Bianbu OS, it can be rebooted it into Fastboot mode using ADB:

adb reboot bootloader

Note: This method may not be supported by all configurations.

Supported Fastboot Commands​

For PC-side Fastboot installation, refer to the section 电脑环境安装.

#Native fastboot protocol commands
fastboot devices              # Display available devices
fastboot reboot               # Restart the device
fastboot getvar [version/product/serialno/max-download-size]
fastboot flash partname image # Flash the image to the partname partition
fastboot erase partname       # Erase the partname partition
fastboot stage file           # Download the file to the buffer address

# OEM vendor-specific commands and functionalities
fastboot getvar [mtd-size/blk-size] # Get the size of mtd/blk devices; return NULL if not available
fastboot oem read part              # Read data from part to buffer address
fastboot get_staged file            # Upload data and name it file. Depends on the oem read part command

Files System​

  • FAT

    => fat
      fatinfo fatload fatls fatmkdir fatrm fatsize fatwrite
    => fatls mmc 2:5
     50896911   uImage.itb
         4671   env_k1-x.txt

    2 file(s), 0 dir(s)

    => fatload mmc 2:5 0x40000000 uImage.itb #load uImage.itb到0x40000000
    50896911 bytes read in 339 ms (143.2 MiB/s)
    =>

  • EXT4

    similar to fat command.

    => ext4
      ext4load ext4ls ext4size
    => ext4load
    ext4load - load binary file from a Ext4 filesystem

    Usage:
    ext4load <interface> [<dev[:part]> [addr [filename [bytes [pos]]]]]
        - load binary file 'filename' from 'dev' on 'interface'
          to address 'addr' from ext4 filesystem
    =>

Common U-Boot Commands​

This section outlines frequently used U-Boot commands

  1. Basic Commands

    printenv  - print environment variables
    md        - memory display
    mw        - memory write (fill)
    fdt       - flattened device tree utility commands

    help      - print command description/usage

  2. fdt

    The fdt command is primarily used to print the contents of DTS (Device Tree Source), such as the DTB (Device Tree Blob) file loaded after U-Boot starts.

    => fdt
    fdt - flattened device tree utility commands

    Usage:
    fdt addr [-c] [-q] <addr> [<size>]  - Set the [control] fdt location to <addr>
    fdt move   <fdt> <newaddr> <length> - Copy the fdt to <addr> and make it active
    fdt resize [<extrasize>]            - Resize fdt to size + padding to 4k addr + some optional <extrasize> if needed
    fdt print  <path> [<prop>]          - Recursive print starting at <path>
    fdt list   <path> [<prop>]          - Print one level starting at <path>
    fdt get value <var> <path> <prop> [<index>] - Get <property> and store in <var>
                                       In case of stringlist property, use optional <index>
                                       to select string within the stringlist. Default is 0.
    fdt get name <var> <path> <index>   - Get name of node <index> and store in <var>
    fdt get addr <var> <path> <prop>    - Get start address of <property> and store in <var>
    fdt get size <var> <path> [<prop>]  - Get size of [<property>] or num nodes and store in <var>
    fdt set    <path> <prop> [<val>]    - Set <property> [to <val>]
    fdt mknode <path> <node>            - Create a new node after <path>
    fdt rm     <path> [<prop>]          - Delete the node or <property>
    fdt header [get <var> <member>]     - Display header info
                                       get - get header member <member> and store it in <var>
    fdt bootcpu <id>                    - Set boot cpuid
    fdt memory <addr> <size>            - Add/Update memory node
    fdt rsvmem print                    - Show current mem reserves
    fdt rsvmem add <addr> <size>        - Add a mem reserve
    fdt rsvmem delete <index>           - Delete a mem reserves
    fdt chosen [<start> <size>]         - Add/update the /chosen branch in the tree
                                         <start>/<size> - initrd start addr/size
    NOTE: Dereference aliases by omitting the leading '/', e.g. fdt print ethernet0.
    =>

    => fdt addr $fdtcontroladdr
    => fdt print
    / {
         compatible = "spacemit,k1x", "riscv";
         #address-cells = <0x00000002>;
         #size-cells = <0x00000002>;
         model = "spacemit k1-x deb1 board";
    ... ...
         memory@0 {
                 device_type = "memory";
                 reg = <0x00000000 0x00000000 0x00000000 0x80000000>;
         };
         chosen {
                 bootargs = "earlycon=sbi console=ttyS0,115200 debug loglevel=8,initcall_debug=1 rdinit=/init.tmp";
                 stdout-path = "serial0:115200n8";
         };
    };

    => fdt print /chosen
    chosen {
         bootargs = "earlycon=sbi console=ttyS0,115200 debug loglevel=8,initcall_debug=1 rdinit=/init.tmp";
         stdout-path = "serial0:115200n8";
    };
    =>

  3. shell command

    U-Boot supports shell-style commands such as if/fi, echo, etc.

    => if test ${boot_device} = nand; then echo "nand boot"; else echo "not nand boot";fi
    not nand boot
    => printenv boot_device
    boot_device=nor
    => if test ${boot_device} = nor; then echo "nor boot"; else echo "not nor boot";fi
    nor boot
    =>

OpensBI Functionality and Configuration​

This section introduces the compilation configuration for OpensBI.

OpensBI Compilation​

cd ~/opensbi/

#Note: The toolchain used for compilation must be provided by spacemiT. Using a different toolchain may result in compilation errors.
GCC_PREFIX=riscv64-unknown-linux-gnu-

CROSS_COMPILE=${GCC_PREFIX} PLATFORM=generic \
PLATFORM_DEFCONFIG=k1-x_deb1_defconfig \
PLATFORM_RISCV_ISA=rv64gc \
FW_TEXT_START=0x0  \
make

Generated Compilation Files​

~/opensbi$ ls build/platform/generic/firmware/ -l
fw_dynamic.bin     # Dynamic firmware image; passes boot parameters to the next stage
fw_dynamic.elf
fw_dynamic.elf.dep
fw_dynamic.itb     # FIT image generated from fw_dynamic.bin
fw_dynamic.its
fw_dynamic.o
fw_jump.bin       # Jump image that only performs a jump
fw_payload.bin    # Payload image that includes the U-Boot image

Configuring OpenSBI Features​

To enable or disable optional OpenSBI features by running menuconfig:

make PLATFORM=generic PLATFORM_DEFCONFIG=k1-x_deb1_defconfig menuconfig

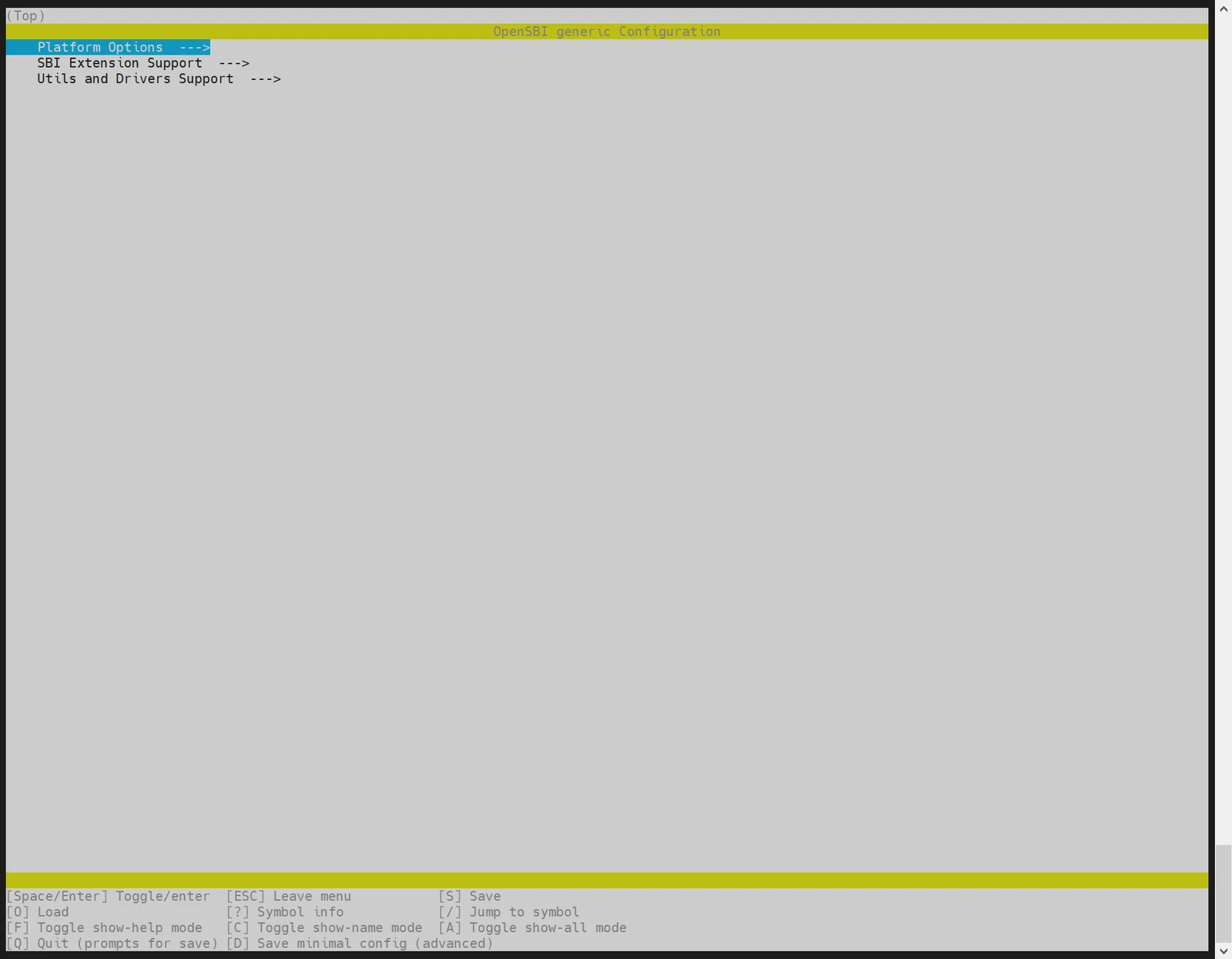

a

OTA Upgrade​

Scope and Implementation Notes​

This section describes how to add OTA functionality to the k1-bl-v2.2.10-release baseline. The patch applies only to the current k1-bl-v2.2.10-release baseline. Applying it to earlier versions may result in patch conflicts that require manual resolution.

The patch supports eMMC and SPI NAND. It adds the recovery, misc, userdata, and backup U-Boot uboot_b partitions; an independent recovery system; and the recovery-updater, misc-state, ota-start, and reboot-to-recovery tools. U-Boot uses the OTA state stored in misc to determine whether to enter recovery. The updated system restores the normal state after passing a health check.

Note: Initial OTA enablement changes the partition layout and U-Boot boot logic. An OTA package cannot be used to migrate directly from an unadapted earlier firmware. First flash the complete standard flashing package built as described in this section. Full flashing repartitions the device; back up device data beforehand. OTA updates of the FSBL, opensbi, and recovery partitions are not recommended. If power is lost during an update, the next reboot continues in upgrade mode.

The patch package contains:

Target Repository/DirectoryPatch/SourcePurpose
buildroot-ext0001-feat-Add-recovery-system-with-dedicated-partition.patchAdds recovery system and eMMC OTA partitions
buildroot-ext0002-add-recovery-updater-and-misc-state-to-system.patchIntegrates upgrade tools, state utilities, and OTA scripts
buildroot-ext0003-add-state-change-deel.patchCompletes upgrade state transitions
buildroot-ext0004-add-misc-state-recovery-updater-compile.patchEnables OTA tools in the K1 v2 default config
buildroot-ext0005-create-ota.zip.patchGenerates the eMMC OTA package
buildroot-ext0006-mmc-support-buot_b-flash.patchAdds eMMC uboot_b partition and upgrade flow
buildroot-ext0007-support-nand-flash-and-boot.patchImproves SPI NAND flashing and boot
buildroot-ext0008-support-nand-ota.patchAdds SPI NAND recovery, partitions, and OTA package
bsp/uboot-2022.100001-uboot-support-recovery-start.patchBoots into recovery based on misc state
bsp/uboot-2022.100002-mmc-support-uboot_b-partition-boot.patchSupports booting from the eMMC backup U-Boot partition
bsp/uboot-2022.100003-support-nand-flash-and-boot.patchImproves SPI NAND flashing, detection, and boot
bsp/uboot-2022.100004-support-nand-ota.patchSupports SPI NAND OTA and recovery boot
bsp/linux-6.60001-support-gd-nand.patchAdds GigaDevice SPI NAND models
package-srcmisc-state, recovery-updaterOTA state management and recovery updater source code

Preparing the OTA Patch​

The OTA patch package is available from the SpacemiT download server. Run the following commands from the parent directory of the SDK:

cd /path/to/workdir
wget https://archive.spacemit.com/solutions/buildroot_ota/ota_support_adapt_k1-bl-v2.2.10-release.zip
unzip ota_support_adapt_k1-bl-v2.2.10-release.zip

The commands create the ota_support_adapt_k1-bl-v2.2.10-release directory.

The following procedure assumes that the SDK and patch directories are at the same level:

workdir/
├── k1-bl-v2.2.10-release/
└── ota_support_adapt_k1-bl-v2.2.10-release/

Enter the SDK root directory downloaded from k1-bl-v2.2.10-release. Confirm that the SDK builds successfully and contains no local changes. To avoid conflicts, apply the patches to the following commit baselines:

cd /path/to/k1-bl-v2.2.10-release

cd buildroot-ext
gitl
commit aec6a45b44904033159b6143e4f05371b3a50470 (HEAD -> robot-dev, tag: k1-bl-v2.2.10-release, origin/k1-bl-v2.2.y, m/main, k1-bl-v2.2.y)
Merge: 64d5d53 063e2bc
Author: liujing <jing.liu@spacemit.com>
Date:   Fri Jun 5 10:42:33 2026 +0800

    Update for v2.2.10

    Change-Id: Ia51431ef09484d6d308ed79b8b3a2a7294bfb78d

cd ../bsp-src/uboot-2022.10/
gitl
commit 46a4f510352684407c074b7c0e9114b5443dcc59 (HEAD -> robot-dev, tag: k1-bl-v2.2.10-release, origin/k1-bl-v2.2.y, m/main, k1-bl-v2.2.y)
Merge: d61c8c77e2 dcdcab9e95
Author: liujing <jing.liu@spacemit.com>
Date:   Fri Jun 5 10:38:21 2026 +0800

    Update for v2.2.10

    Change-Id: Icd5172b4b621e491617f54fbcf9a0f8dd8276774

cd ../linux-6.6/
gitl
commit 21f2edd50954020f22954d3be8b9202120ae1ae4 (HEAD -> robot-dev, tag: k1-bl-v2.2.10-release, origin/k1-bl-v2.2.y, m/main, k1-bl-v2.2.y)
Merge: 0c505572f3e0 e01ff0f2bc31
Author: liujing <jing.liu@spacemit.com>
Date:   Fri Jun 5 10:36:37 2026 +0800

    Update for v2.2.10

    Change-Id: I5270c04112dd12ffa96f60880c02d32058da572e

If any affected repository contains local changes, stash them with git stash. Then record the absolute path to the patch directory and copy the two source packages:

cp -r ota_support_adapt_k1-bl-v2.2.10-release/package-src/misc-state/ package-src/
cp -r ota_support_adapt_k1-bl-v2.2.10-release/package-src/recovery-updater/ package-src/

Applying Patches​

Apply the three patch series in the numeric order specified by their filename prefixes. The following wildcard expansions preserve that order:

# From the SDK root directory
cd buildroot-ext/
git am ../ota_support_adapt_k1-bl-v2.2.10-release/buildroot-ext/*.patch

# Apply patches 0001–0004 (4 U-Boot patches in total)
cd ../bsp-src/uboot-2022.10/
git am ../../ota_support_adapt_k1-bl-v2.2.10-release/bsp/uboot-2022.10/*.patch

# Apply 1 Linux 6.6 patch
cd ../linux-6.6/
git am ../../ota_support_adapt_k1-bl-v2.2.10-release/bsp/linux-6.6/*.patch

The patch application should complete without errors. If a conflict occurs, check for local changes and verify that the repository commits match the v2.2.10 baseline.

Recompiling​

The patches modify the eMMC and SPI NAND defconfigs. Before the first OTA firmware build, make envconfig must be run again; an incremental build alone is insufficient.

make envconfig  # Select the required target solution/version
make uboot-rebuild && make linux-rebuild && make

First Deployment of OTA Firmware​

Initial deployment must use the full flashing package appropriate for the storage medium and capacity. Flash the device completely by following the procedure described earlier in this document:

  • eMMC: use Buildroot-k1_v2.zip
  • 512 MiB SPI NAND: use Buildroot-k1_v2_nand-512M.zip. A 256 MiB NAND device does not have sufficient capacity for the default partition layout. Supporting a smaller NAND device requires manually reducing the partition layout.

A complete flash creates the OTA partitions and writes the new SPL/U-Boot, recovery, and system images. Flashing only bootfs or rootfs is not sufficient because the U-Boot boot logic would not match the actual partition table.

After the first boot, verify the OTA tools and initial state:

command -v ota-start
command -v recovery-updater
command -v misc-state
misc-state get-state

The initial output of misc-state get-state must be NORMAL.

Performing eMMC OTA Upgrade​

Copy the new Buildroot-k1_v2-ota.zip package to the device's /userdata/ directory. To upgrade the default partitions, run:

# Transfer the OTA package to the board as required.
ota-start /userdata/Buildroot-k1_v2-ota.zip

By default, eMMC OTA upgrades uboot, uboot_b, bootfs, and rootfs. The partitions for an individual upgrade can also be specified:

# Upgrade system partitions only
ota-start -p bootfs,rootfs /userdata/Buildroot-k1_v2-ota.zip

# Upgrade U-Boot and system partitions
ota-start -p uboot,uboot_b,bootfs,rootfs /userdata/Buildroot-k1_v2-ota.zip

ota-start saves the package as /userdata/update.zip, writes the partition list and the UPDATING state to misc, and reboots automatically. After U-Boot enters recovery, recovery-updater writes the images and performs readback verification, then changes the state to UPDATED_PENDING_BOOT. After the new system passes its health check, the state returns to NORMAL and /userdata/update.zip is deleted.

If power is lost during the upgrade, the next boot re-enters upgrade mode according to the misc state. The upgrade is not retried after more than three failed attempts.

Performing SPI NAND OTA Upgrade​

Select the OTA package that matches the actual SPI NAND capacity. The 256 MiB and 512 MiB packages are not interchangeable. By default, NAND OTA upgrades uboot, uboot_b, and bootfs. Updating rootfs is not recommended because the userdata partition must reserve space for the OTA package.

# 256 MiB SPI NAND
ota-start /userdata/Buildroot-k1_v2_nand-256M-ota.zip

# 512 MiB SPI NAND
ota-start /userdata/Buildroot-k1_v2_nand-512M-ota.zip

An individual upgrade can also be limited to a subset of the allowed partitions:

ota-start -p bootfs /path/to/Buildroot-k1_v2_nand-512M-ota.zip

SPI NAND OTA permits updates only to uboot, uboot_b, and bootfs. The rootfs, recovery, misc, and env partitions are not included in the NAND OTA allowlist; ota-start rejects requests to update them. To update recovery or rootfs, or to change the NAND partition layout, reflash the device using a full flashing package.

NAND recovery selects partition_256M.json or partition_512M.json according to capacity and uses flash_erase, nandwrite, or ubiformat to write the corresponding MTD partition. Readback verification is enabled by default.

OTA FAQ​

NAND 256 MiB Capacity Support​

To support a 256 MiB NAND device, use the following configuration. Each partition must accommodate its corresponding image. Adapt the values as required for other capacities.

  • Enable 256 MiB image generation

    In prepare_img.sh, configure:

    NAND_VARIANTS=(
        "256M:partition_256M.json:2048:126976:128KiB:300:256:256"
    )

    The parameters are defined as follows:

    min_io            2048
    LEB               126976
    PEB               128KiB
    bootfs max LEB    300
    recovery max LEB  256
    userdata max LEB  256

    If only 256 MiB is supported, remove the 512 MiB entry. Retain both entries to generate both packages.

  • Modify U-Boot default partition table

    Set uboot_defconfig to:

    spi4.0:
    256K@512K(env),
    256K@768K(opensbi),
    2M@1M(uboot),
    2M@3M(uboot_b),
    24M@5M(recovery),
    1M@29M(misc),
    24M@30M(bootfs),
    32M@54M(userdata),
    -@86M(rootfs)

    The combined configuration is:

    CONFIG_MTDPARTS_DEFAULT="spi4.0:256K@512K(env),256K@768K(opensbi),2M@1M(uboot),2M@3M(uboot_b),24M@5M(recovery),1M@29M(misc),24M@30M(bootfs),32M@54M(userdata),-@86M(rootfs)"

  • Modify U-Boot DTS

    partition@3600000 {
        label = "userdata";
        reg = <0x03600000 0x02000000>;
    };

    partition@5600000 {
        label = "rootfs";
        reg = <0x05600000 0x00000000>;
    };

  • Modify the 256 MiB flashing JSON

    partition_256M.json:

    {
      "name": "userdata",
      "offset": "54M",
      "size": "32M",
      "image": "userdata.ubi"
    },
    {
      "name": "rootfs",
      "offset": "86M",
      "size": "170M",
      "image": "rootfs.ubi"
    }

  • Modify the default output symlink

    The script currently links the 512 MiB package by default:

    ln -sf "${TARGET_IMAGE_BASE}-512M.zip" "$latest_path"

    For 256 MiB-only support, change it to:

    ln -sf "${TARGET_IMAGE_BASE}-256M.zip" "$latest_path"

  • Preserve userdata auto-expansion

    Retain the following setting. For 256 MiB, the maximum userdata UBIFS LEB count must be 256; do not reuse the previous value of 160 or the 512 MiB value of 80.

    vol_flags=autoresize

Custom Partition Upgrade Protection​

By default, partitions such as fsbl and recovery are protected from OTA updates to prevent a power interruption during an update from leaving the device unbootable.

To customize the protected partitions, first assess the risk associated with a power interruption during the update:

  • OTA allowed update list

    Edit bianbu-linux-pub/buildroot-ext/board/spacemit/k1_nand/target_overlay/usr/sbin/ota-start, line 5:

    PARTITIONS=uboot,uboot_b,bootfs

    Also modify the parameter validation:

    case "$part" in
        uboot|uboot_b|bootfs)

    Removing a partition from this list prevents the normal system from updating it through ota-start.

  • Recovery default update list

    Edit bianbu-linux-pub/buildroot-ext/board/spacemit/k1_nand/dracut-modules/99recovery/recovery-init, line 119:

    partitions="uboot,uboot_b,bootfs"
    # Must remain consistent with the ota-start default list.

  • recovery-updater partition policy

    Edit bianbu-linux-pub/package-src/recovery-updater/src/main.c, line 22:

    static const char *dangerous_partitions[] = {
        "bootinfo", "fsbl", "env", "opensbi",
        "uboot", "uboot_b", "userdata", "misc", NULL
    };

    static const char *nand_default_partitions[] = {
        "uboot", "uboot_b", "bootfs", NULL
    };

    Notes:

    • nand_default_partitions specifies the default partitions permitted for NAND OTA updates.
    • dangerous_partitions requires an explicit --partitions argument; it does not prohibit the update.
    • For absolute protection, add a protected_partitions[] array that rejects updates even when -p is explicitly specified.

  • OTA package contents

    Edit bianbu-linux-pub/buildroot-ext/board/spacemit/k1_nand/prepare_img.sh, line 265:

    zip "$target_ota_zip" \
        u-boot.itb \
        bootfs.ubi \
        partition_512M.json

    Do not include images for protected partitions in the OTA package. Add images for any newly permitted partitions.

State and Recovery​

Use the following commands to view the OTA state:

misc-state get-state
misc-state get-bootcount
misc-state get-partitions
StateMeaning
NORMALNormal boot, no pending OTA
UPDATINGThe upgrade package is ready; the next boot enters recovery to perform the update
UPDATED_PENDING_BOOTThe partition write succeeded; the new system is awaiting boot and health-check completion
RECOVERY_REQUIREDRecovery is required, or the update failed and is awaiting recovery processing

To enter recovery manually for investigation, run:

reboot-to-recovery
# After entering recovery, run misc-state clear-all to clear the flags.

This command sets RECOVERY_REQUIRED, clears the boot counter, and reboots. Do not modify the OTA state manually during normal operation. U-Boot and the system health check handle boot retries and state recovery. If repeated boot failures persist, inspect the U-Boot and recovery logs through the serial port, then restore the device using the appropriate full flashing package.

FAQ​

This section introduces common issues and their solutions, as well as common debugging methods and frequently encountered problems.

Device Not Detected by TitanFlash During Firmware Flashing​

Ensure the USB cable is securely connected to the host PC and that the serial output from the device is visible, as shown below: alt text

If serial output indicates the device is connected but TitanFlash still fails to detect it, proceed to the next checks.

  • Check Device Manager (Windows) Open Device Manager and verify whether the device appears under ADB Interface. If not, the required USB driver may be missing.

alt text

  • Refer to Installation Guide If ADB devices are not listed in Device Manager, please refer to the 电脑环境安装 section for instructions on installing the Fastboot and ADB drivers.

Changes to def_config Do Not Take Effect After Updating Code​

If changes are made to the defconfig file but those changes are not reflected during the build process, you must run the following command to update the .config file accordingly:

make menuconfig

This ensures that the new configuration is applied before building.

Merging U-Boot and OpensBI for Loading​

The SDK design separates U-Boot and OpensBI loading. Developers can merge the two based on their requirements. Follow these steps.

Step 1: SPL Boot Configuration

  • Disable U-Boot "Second Partition" Setting In U-Boot configuration, deselect the option “Second partition to use to load U-Boot from.”

  • Rename the Partition to opensbi-uboot Update the partition name in the configuration to opensbi-uboot and recompile U-Boot.

alt text

Step 2: Generate u-boot-opensbi.itb

  • Create the ITS Description File Create a new file named u-boot-opensbi.its with the following contents:

    /dts-v1/;

    / {
            description = "U-boot FIT image for k1x";
            #address-cells = <2>;
            fit,fdt-list = "of-list";

            images {
                    uboot {
                            description = "U-Boot";
                            type = "standalone";
                            os = "U-Boot";
                            arch = "riscv";
                            compression = "none";
                            load = <0x0 0x00200000>;
                            data = /incbin/("./u-boot-nodtb.bin");
                    };

                    opensbi {
                            description = "OpenSBI fw_dynamic Firmware";
                            type = "firmware";
                            os = "opensbi";
                            arch = "riscv";
                            compression = "none";
                            load = <0x0 0x0>;
                            entry = <0x0 0x0>;
                            data = /incbin/("./fw_dynamic.bin");
                    };
                    fdt_14 {
                            description = "k1-x_MUSE-Card";
                            type = "flat_dt";
                            compression = "none";
                            data = /incbin/("./uboot/k1-x_MUSE-Card.dtb");
                    };
            };

            configurations {
                    default = "conf_14";
                    conf_14 {
                            description = "k1-x_MUSE-Card";
                            firmware = "opensbi";
                            loadables = "uboot";
                            fdt = "fdt_14";
                    };
            };
    };

  • Generate uboot-opensbi.itb by placing the required files in the same directory

    • u-boot-opensbi.its
    • u-boot-nodtb.bin
    • fw_dynamic.bin
    • k1-x_MUSE-Card.dtb (Replace k1-x_MUSE-Card.dtb with the actual DTB name for your platform if different.)

  • Build the Unified Image Run:

    uboot-2022.10/tools/mkimage -f u-boot-opensbi.its -r u-boot-opensbi.itb

Step 3: Modify Partition Table

As an example, in partition_universal.json, remove the separate uboot partition and rename the opensbi partition to opensbi-uboot. Ensure the new size accommodates both images, as follows:

~$ cat partition_universal.json
{
  "version": "1.0",
  "format": "gpt",
  "partitions": [
    {
      "name": "bootinfo",
      "offset": "0",
      "size": "80B",
      "image": "factory/bootinfo_sd.bin"
    },
    {
      "name": "fsbl",
      "offset": "128K",
      "size": "256K",
      "image": "factory/FSBL.bin"
    },
    {
      "name": "env",
      "offset": "384K",
      "size": "64K"
    },
    {
      "name": "opensbi-uboot",
      "offset": "1M",
      "size": "3M",
      "image": "u-boot-opensbi.itb"
    },
    {
      "name": "bootfs",
      "offset": "4M",
      "size": "256M",
      "image": "bootfs.img",
      "compress": "gzip-5"
    },
    {
      "name": "rootfs",
      "size": "-"
    }
  ]
}

Step 4: Flashing Procedure

For eMMC devices, use the following fastboot commands:

fastboot stage factory/FSBL.bin
fastboot continue
#sleep to wait for uboot ready
#linux env
sleep 1
#windows env
#timeout /t 1 >null
fastboot stage u-boot-opensbi.itb
fastboot continue

fastboot flash gpt partition_universal.json
#bootinfo_emmc.bin # it is not used during boot, but flashing this partition is still required.
fastboot flash bootinfo factory/bootinfo_emmc.bin
fastboot flash fsbl factory/FSBL.bin
fastboot flash env env.bin
fastboot flash opensbi-uboot u-boot-opensbi.itb
fastboot flash bootfs bootfs.img
fastboot flash rootfs rootfs.ext4

Using TitanFlasher

For using the TitanFlasher tool provided by SpacemiT, make sure to update the fastboot.yaml in the flashing package. Replace any reference to u-boot.itb with:

image: u-boot-opensbi.itb

Define FSBL Location for eMMC Boot​

Unlike NOR, NAND, or SD cards, which use a single storage region, eMMC devices have separate boot0 and user regions.

By design, the hardware loads bootinfo and fsbl from the boot0 region — not the user region. So they must be placed in boot0.

During the flashing process, the bootinfo information for eMMC is fixed in the U-Boot code inside the fastboot_oem_flash_bootinfo function. This is done so that the same partition_universal.json partition table can be used for card booting and other purposes.

When flashing the system, U-Boot generates the bootinfo content for eMMC using the fastboot_oem_flash_bootinfo function.

This design allows the same partition_universal.json to be reused across different boot media, such as SD cards and eMMC.

How to Modify FSBL Load Offset on eMMC To change the FSBL load offset for eMMC, edit the following code directly:

//uboot-2022.10/drivers/fastboot/fb_mmc.c
516 void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
517                   u32 download_bytes, char *response)
518 {
        ... ...

554     if (strcmp(cmd, "bootinfo") == 0) {
555         printf("flash bootinfo\n");
556         fastboot_oem_flash_bootinfo(cmd, fastboot_buf_addr, download_bytes,
557                                     response, fdev);
558         return;
559     }

//uboot-2022.10/drivers/fastboot/fb_spacemit.c
 816 void fastboot_oem_flash_bootinfo(const char *cmd, void *download_buffer,
 817         u32 download_bytes, char *response, struct flash_dev *fdev)
 818 {

 830     /*fill up emmc bootinfo*/
 831     struct boot_parameter_info *boot_info;
 832     boot_info = (struct boot_parameter_info *)download_buffer;
 833     memset(boot_info, 0, sizeof(boot_info));
 834     boot_info->magic_code = BOOT_INFO_EMMC_MAGICCODE;
 835     boot_info->version_number = BOOT_INFO_EMMC_VERSION;
 836     boot_info->page_size = BOOT_INFO_EMMC_PAGESIZE;
 837     boot_info->block_size = BOOT_INFO_EMMC_BLKSIZE;
 838     boot_info->total_size = BOOT_INFO_EMMC_TOTALSIZE;
 839     boot_info->spl0_offset = BOOT_INFO_EMMC_SPL0_OFFSET;
 840     boot_info->spl1_offset = BOOT_INFO_EMMC_SPL1_OFFSET;
 841     boot_info->spl_size_limit = BOOT_INFO_EMMC_LIMIT;
 842     strcpy(boot_info->flash_type, "eMMC");
 843     boot_info->crc32 = crc32_wd(0, (const uchar *)boot_info, 0x40, CHUNKSZ_CRC32);
 844
 845     /*flash bootinfo*/

For eMMC boot0, the Fastboot flashing service handles the bootinfo and fsbl partitions specially by writing the image files directly to the boot0 area. This logic is implemented in uboot-2022.10/drivers/fastboot/fb_mmc.c::fastboot_mmc_flash_write, specifically in the if (strcmp(cmd, "bootinfo") == 0) and if (strcmp(cmd, CONFIG_FASTBOOT_MMC_BOOT1_NAME) == 0) branches.

//uboot-2022.10/drivers/fastboot/fb_mmc.c
void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
517                   u32 download_bytes, char *response)
518 {

554     if (strcmp(cmd, "bootinfo") == 0) {
555         printf("flash bootinfo\n");
556         fastboot_oem_flash_bootinfo(cmd, fastboot_buf_addr, download_bytes,
557                                     response, fdev);
558         return;
559     }

563 #ifdef CONFIG_FASTBOOT_MMC_BOOT_SUPPORT
564     if (strcmp(cmd, CONFIG_FASTBOOT_MMC_BOOT1_NAME) == 0) {
565         dev_desc = fastboot_mmc_get_dev(response);
566         if (dev_desc){
567 #ifdef CONFIG_SPACEMIT_FLASH
568             flash_mmc_boot_op(dev_desc, download_buffer, 1,
569                     download_bytes, BOOT_INFO_EMMC_SPL0_OFFSET);
570             fastboot_okay(NULL, response);
571 #else
572             fb_mmc_boot_ops(dev_desc, download_buffer, 1,
573                     download_bytes, response);
574 #endif
575         }
576         return;
577     }

Will bootinfo_sd.bin at Address 0 Conflict with the GPT Table?​

Placing bootinfo_sd.bin at address 0 on the SD card will not conflict with the GPT table. The GPT header actually starts at offset 0x100, and bootinfo is not treated as a recognized partition.

How to Set Up Hidden Partitions​

The partition table partition_universal.json supports hidden partitions. The hidden tag is used to mark hidden partitions. After flashing and booting, hidden partitions do not appear in the GPT table.

To flash hidden partitions, you must use TitanFlasher or run:

fastboot flash gpt partition_universal.json

After flashing the partition table, you can use Fastboot to flash images to hidden partitions.

Note: Only block devices like eMMC and SSD currently support hidden partitions. The bootinfo partition is only supported as a hidden partition.

Example: Partition Table with Hidden Partitions

If hidden is not specified, the partition is treated as visible by default.

cat k1/common/flash_config/partition_universal.json

{
  "version": "1.0",
  "format": "gpt",
  "partitions": [
    {
      "name": "bootinfo",
      "hidden": true,
      "offset": "0",
      "size": "80B",
      "image": "factory/bootinfo_sd.bin"
    },
    {
      "name": "fsbl",
      "hidden": true,
      "offset": "128K",
      "size": "256K",
      "image": "factory/FSBL.bin"
    },
    {
      "name": "env",
      "hidden": true,
      "offset": "384K",
      "size": "64K",
      "image": "u-boot-env-default.bin"
    },
    {
      "name": "opensbi",
      "offset": "1M",
      "size": "1M",
      "image": "opensbi.itb"
    },
    {
      "name": "uboot",
      "offset": "2M",
      "size": "2M",
      "image": "u-boot.itb"
    },
    {
      "name": "bootfs",
      "offset": "4M",
      "size": "256M",
      "image": "bootfs.img",
      "compress": "gzip-5"
    },
    {
      "name": "rootfs",
      "size": "-"
    }
  ]
}

For U-Boot versions prior to v1.0.9, a patch is required to support hidden partitions.

  1. Save the patch file (e.g., support-hidden-partition.patch).

  2. Apply the patch in the U-Boot source directory.

  3. Rebuild U-Boot.

cat support-hidden-partition.patch

From 504a003ad33b2dc90749632b4abe05a8fc3a2f21 Mon Sep 17 00:00:00 2001
From: chris <chris.huang@spacemit.com>
Date: Tue, 23 Jul 2024 20:32:54 +0800
Subject: [PATCH] [add]1.support flash hidden partition to blk dev. not support
 for mtd dev currently.

Change-Id: Ic78817a3c84e6e02829376990649b477f3c9248d
---
 drivers/fastboot/fb_blk.c      | 28 ++++++++++++++++++++++++++-
 drivers/fastboot/fb_mmc.c      | 26 +++++++++++++++++++++++++
 drivers/fastboot/fb_spacemit.c | 35 ++++++++++++++++------------------
 include/fb_spacemit.h          | 10 +++++++++-
 4 files changed, 78 insertions(+), 21 deletions(-)

diff --git a/drivers/fastboot/fb_blk.c b/drivers/fastboot/fb_blk.c
index bb756d3f99..11219bc6a6 100644
--- a/drivers/fastboot/fb_blk.c
+++ b/drivers/fastboot/fb_blk.c
@@ -186,6 +186,8 @@ void fastboot_blk_flash_write(const char *cmd, void *download_buffer,
         static char __maybe_unused part_name_t[20] = "";
         unsigned long __maybe_unused src_len = ~0UL;
         bool gzip_image = false;
+        bool is_hidden_part = false;
+        int part_index = 0;

         if (fdev == NULL){
                 fdev = malloc(sizeof(struct flash_dev));
@@ -202,6 +204,15 @@ void fastboot_blk_flash_write(const char *cmd, void *download_buffer,
                 printf("init fdev success\n");
         }

+        for (part_index = 0; part_index < MAX_PARTITION_NUM; part_index++){
+                if (fdev->parts_info[part_index].part_name != NULL
+                                && strcmp(cmd, fdev->parts_info[part_index].part_name) == 0){
+                        if (fdev->parts_info[part_index].hidden)
+                                is_hidden_part = true;
+                        break;
+                }
+        }
+
         /*blk device would not flash bootinfo except emmc*/
         if (strcmp(cmd, "bootinfo") == 0) {
                 fastboot_okay(NULL, response);
@@ -213,9 +224,24 @@ void fastboot_blk_flash_write(const char *cmd, void *download_buffer,
                                                 response, fdev);
                 return;
         }
+
+        if (is_hidden_part){
+                /*find available blk dev*/
+                do_get_part_info(&dev_desc, cmd, &info);
+                if (!dev_desc){
+                        fastboot_fail("can not get available blk dev", response);
+                        return;
+                }
+
+                strlcpy((char *)&info.name, cmd, sizeof(info.name));
+                info.size = fdev->parts_info[part_index].part_size / dev_desc->blksz;
+                info.start = fdev->parts_info[part_index].part_offset / dev_desc->blksz;
+                info.blksz = dev_desc->blksz;
+                printf("!!! flash image to hidden partition !!!\n");
+        }
 #endif

-        if (fastboot_blk_get_part_info(cmd, &dev_desc, &info, response) < 0)
+        if (!is_hidden_part && fastboot_blk_get_part_info(cmd, &dev_desc, &info, response) < 0)
                 return;

         if (check_gzip_format((uchar *)download_buffer, src_len) >= 0) {
diff --git a/drivers/fastboot/fb_mmc.c b/drivers/fastboot/fb_mmc.c
index 26e45f4a60..6b417b4ddc 100644
--- a/drivers/fastboot/fb_mmc.c
+++ b/drivers/fastboot/fb_mmc.c
@@ -528,6 +528,8 @@ void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
         static char __maybe_unused part_name_t[20] = "";
         unsigned long __maybe_unused src_len = ~0UL;
         bool gzip_image = false;
+        bool is_hidden_part = false;
+        int part_index = 0;

         if (fdev == NULL){
                 fdev = malloc(sizeof(struct flash_dev));
@@ -544,6 +546,15 @@ void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
                 printf("init fdev success\n");
         }

+        for (part_index = 0; part_index < MAX_PARTITION_NUM; part_index++){
+                if (fdev->parts_info[part_index].part_name != NULL
+                                && strcmp(cmd, fdev->parts_info[part_index].part_name) == 0){
+                        if (fdev->parts_info[part_index].hidden)
+                                is_hidden_part = true;
+                        break;
+                }
+        }
+
         if (strcmp(cmd, "bootinfo") == 0) {
                 printf("flash bootinfo\n");
                 fastboot_oem_flash_bootinfo(cmd, fastboot_buf_addr, download_bytes,
@@ -659,6 +670,21 @@ void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
         }
 #endif

+#ifdef CONFIG_SPACEMIT_FLASH
+        if (is_hidden_part){
+                /*find available blk dev*/
+                dev_desc = fastboot_mmc_get_dev(response);
+                if (!dev_desc)
+                        return;
+
+                strlcpy((char *)&info.name, cmd, sizeof(info.name));
+                info.size        = fdev->parts_info[part_index].part_size / dev_desc->blksz;
+                info.start = fdev->parts_info[part_index].part_offset / dev_desc->blksz;
+                info.blksz        = dev_desc->blksz;
+                printf("!!! flash image to hidden partition !!!\n");
+        }
+#endif
+
         if (!info.name[0] &&
             fastboot_mmc_get_part_info(cmd, &dev_desc, &info, response) < 0)
                 return;
diff --git a/drivers/fastboot/fb_spacemit.c b/drivers/fastboot/fb_spacemit.c
index ab25ddb1ef..3d2ae02b48 100644
--- a/drivers/fastboot/fb_spacemit.c
+++ b/drivers/fastboot/fb_spacemit.c
@@ -110,12 +110,6 @@ int _clear_env_part(void *download_buffer, u32 download_bytes,
 {
         u32 boot_mode = get_boot_pin_select();

-        /* char cmdbuf[64] = {"\0"}; */
-        /* sprintf(cmdbuf, "env export -c -s 0x%lx 0x%lx", (ulong)CONFIG_ENV_SIZE, (ulong)download_buffer); */
-        /* if (run_command(cmdbuf, 0)){ */
-        /*         return -1; */
-        /* } */
-
         switch(boot_mode){
 #ifdef CONFIG_ENV_IS_IN_MMC
         case BOOT_MODE_EMMC:
@@ -147,12 +141,6 @@ int _clear_env_part(void *download_buffer, u32 download_bytes,
                         ret = _fb_mtd_erase(mtd, CONFIG_ENV_SIZE);
                         if (ret)
                                 return -1;
-
-                        /*should not write env to env part*/
-                        /* ret = _fb_mtd_write(mtd, download_buffer, 0, CONFIG_ENV_SIZE, NULL); */
-                        /* if (ret){ */
-                        /*         pr_err("can not write env to mtd flash\n"); */
-                        /* } */
                 }
                 break;
 #endif
@@ -208,7 +196,7 @@ int _write_mtd_partition(struct flash_dev *fdev)
  * @brief transfer the string of size 'K' or 'M' to u32 type.
  *
  * @param reserve_size , the string of size
- * @return int , return the transfer result.
+ * @return int , return the transfer result of KB.
  */
 int transfer_string_to_ul(const char *reserve_size)
 {
@@ -303,6 +291,7 @@ int _parse_flash_config(struct flash_dev *fdev, void *load_flash_addr)
                         const char *node_file = NULL;
                         const char *node_offset = NULL;
                         const char *node_size = NULL;
+                        fdev->parts_info[part_index].hidden = false;

                         cJSON *arraypart = cJSON_GetArrayItem(cj_parts, i);
                         cJSON *cj_name = cJSON_GetObjectItem(arraypart, "name");
@@ -311,11 +300,12 @@ int _parse_flash_config(struct flash_dev *fdev, void *load_flash_addr)
                         else
                                 node_part = "";

-                        /*only blk dev would not add bootinfo partition*/
-                        if (!parse_mtd_partition){
-                                if (strlen(node_part) > 0 && !strncmp("bootinfo", node_part, 8)){
-                                        pr_info("bootinfo would not add as partition\n");
-                                        continue;
+                        cJSON *cj_hidden = cJSON_GetObjectItem(arraypart, "hidden");
+                        if (cj_hidden){
+                                if ((cj_hidden->type == cJSON_String && strcmp("true", cj_hidden->valuestring) == 0)
+                                                || cj_hidden->type == cJSON_True){
+                                        printf("!!!! patr name:%s would set to hidden part !!!!\n", node_part);
+                                        fdev->parts_info[part_index].hidden = true;
                                 }
                         }

@@ -374,19 +364,26 @@ int _parse_flash_config(struct flash_dev *fdev, void *load_flash_addr)
                         if (off > 0)
                                 combine_size = off;

+                        /*TODO: support hidden partition for mtd dev*/
                         if (parse_mtd_partition){
                                 /*parse mtd partition*/
                                 if (strlen(combine_str) == 0)
                                         sprintf(combine_str, "%s%s@%dK(%s)", combine_str, node_size, combine_size, node_part);
                                 else
                                         sprintf(combine_str, "%s,%s@%dK(%s)", combine_str, node_size, combine_size, node_part);
-                        }else if (fdev->gptinfo.fastboot_flash_gpt){
+                        }else if (!fdev->parts_info[part_index].hidden && fdev->gptinfo.fastboot_flash_gpt){
                                 /*parse gpt partition*/
                                 if (strlen(node_offset) == 0)
                                         sprintf(combine_str, "%sname=%s,size=%s;", combine_str, node_part, node_size);
                                 else
                                         sprintf(combine_str, "%sname=%s,start=%s,size=%s;", combine_str, node_part, node_offset, node_size);
                         }
+
+                        /*save part offset and size to byte*/
+                        fdev->parts_info[part_index].part_offset = combine_size * 1024;
+                        fdev->parts_info[part_index].part_size = transfer_string_to_ul(node_size) * 1024;
+
+                        /*save as the next part offset*/
                         combine_size += transfer_string_to_ul(node_size);

                         /*after finish recovery, it would free the malloc paramenter at func recovery_show_result*/
diff --git a/include/fb_spacemit.h b/include/fb_spacemit.h
index 801895d7d4..3f633d30a1 100644
--- a/include/fb_spacemit.h
+++ b/include/fb_spacemit.h
@@ -58,8 +58,16 @@ struct flash_volume_image {
 struct flash_parts_info {
         char *part_name;
         char *file_name;
-        /*partition size info, such as 128MiB*/
+
+        /*save partition size to string*/
         char *size;
+
+        /*partition size info*/
+        u64 part_size;
+
+        /*partition offset info*/
+        u64 part_offset;
+
         /*use for fsbl, if hidden that gpt would reserve a raw memeory
           for fsbl and the partition is not available.
         */
--
2.25.1

Flashing gzip format image file is not supported​

To speed up USB transfers of large image files, SpacemiT’s flashing process compresses them using gzip. By default, the flashing service detects and decompresses gzip data automatically.

If you want to flash gzip images directly to a custom partition (without decompressing), here are two options:

  • Option 1: Skip gzip check for specific partitions For example, to skip gzip handling for a partition named usbfs as below:

    diff --git a/drivers/fastboot/fb_mmc.c b/drivers/fastboot/fb_mmc.c
    index 88d8778376..a37cbde596 100644
    --- a/drivers/fastboot/fb_mmc.c
    +++ b/drivers/fastboot/fb_mmc.c
    @@ -689,7 +689,7 @@ void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
                fastboot_mmc_get_part_info(cmd, &dev_desc, &info, response) < 0)
                    return;

    -       if (check_gzip_format((uchar *)download_buffer, src_len) >= 0) {
    +       if (check_gzip_format((uchar *)download_buffer, src_len) >= 0 && strcmp("usbfs", cmd) != 0) {
                    /*is gzip data and equal part name*/
                    gzip_image = true;
                    if (strcmp(cmd, part_name_t)){

  • Option 2: Disable Gzip Support for Flashing (Not Recommended: Slower Flashing)

    //Disable gzip detection in U-Boot
    //uboot-2022.10
    diff --git a/drivers/fastboot/fb_mmc.c b/drivers/fastboot/fb_mmc.c
    index 88d8778376..5f8d4f8931 100644
    --- a/drivers/fastboot/fb_mmc.c
    +++ b/drivers/fastboot/fb_mmc.c
    @@ -689,7 +689,7 @@ void fastboot_mmc_flash_write(const char *cmd, void *download_buffer,
                fastboot_mmc_get_part_info(cmd, &dev_desc, &info, response) < 0)
                    return;

    -       if (check_gzip_format((uchar *)download_buffer, src_len) >= 0) {
    +       if (false) {
                    /*is gzip data and equal part name*/
                    gzip_image = true;
                    if (strcmp(cmd, part_name_t)){

    //Disable image compression with the flash tool
    //buildroot-ext: You can directly modify the partition_universal.json file inside the flashing package. Make sure the last line in the JSON file does not have a trailing comma
    diff --git a/board/spacemit/k1/partition_universal.json b/board/spacemit/k1/partition_universal.json
    index e02a1d0..e9da5a9 100644
    --- a/board/spacemit/k1/partition_universal.json
    +++ b/board/spacemit/k1/partition_universal.json
    @@ -36,15 +36,13 @@
                 "name": "bootfs",
                 "offset": "4M",
                 "size": "256M",
    -            "image": "bootfs.img",
    -            "compress": "gzip-5"
    +            "image": "bootfs.img"
             },
             {
                 "name": "rootfs",
                 "offset": "260M",
                 "size": "-",
    -            "image": "rootfs.ext4",
    -            "compress": "gzip-5"
    +            "image": "rootfs.ext4"
             }
         ]
    }
