GStreamer User Guide

GStreamer Introduction​

GStreamer is an open-source multimedia framework. Designed based on plugins, it enables all plugins to be linked to any predefined data stream pipeline.

Official website: https://gstreamer.freedesktop.org

GStreamer Framework​

By creating and linking elements, GStreamer creates a pipeline that enables data streams to flow between these linked elements, thereby accomplishing a specific task such as media playback or audio recording.

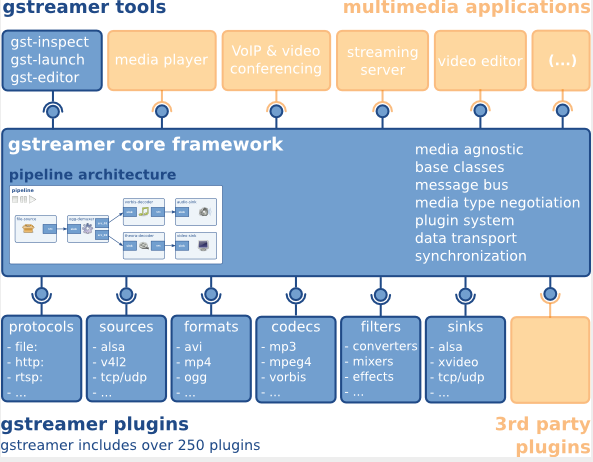

Gstreamer framework:

GStreamer Source Code Distribution Structure​

GStreamer codes are divided into different code repos according to functional modules with each repo responsible for different functions. The brief description of each repo are as follows:

Repo NameFunction Description
gstreamerFramework and base repo
gst-plugins-baseFramework and base repo
gst-plugins-goodMature and stable plugins
gst-plugins-badPlugins under development, potentially unstable
gst-plugins-uglyPlugins with license issues, which are optional for users according to local laws and regulations
gst-libavCodec plugins based on libav

This structure ensures that each repo is independent, yet all depend on gstreamer and gst-plugins-base.

GStreamer Installation​

Run the following command to install Gstreamer-1.0:

sudo apt-get update

sudo apt-get install gstreamer1.0-tools gstreamer1.0-alsa gstreamer1.0-plugins-base gstreamer1.0-plugins-good  gstreamer1.0-plugins-bad gstreamer1.0-plugins-ugly gstreamer1.0-libav

sudo apt-get install libgstreamer1.0-dev libgstreamer-plugins-base1.0-dev libgstreamer-plugins-good1.0-dev libgstreamer-plugins-bad1.0-dev

Run the following command to inspect the version of Gstreamer-1.0:

gst-inspect-1.0 --version

Gstreamer Plugin Description​

Run the following command to inspect the default GStreamer plugins supported in current Bianbu OS/Buildroot system:

gst-inspect-1.0

Running the gst-inspect-1.0 command followed by a specific plugin name will display detailed information about that plugin.

Video Decoder Plugins​

Video decoder converts the source video format into a raw format that can be interpreted by target sink (e.g., display device). SpacemiT GStreamer supports the spacemitdec proprietary plugin, which helps users achieve superior results.

Video DecoderPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
decodebingst-plugins-baseAutoplug and decode to raw mediaYY
spacemitdecgst-plugins-badDecodes H264/H265/MJPEG/VP8/VP9/MPEG2/MPEG4 via MPP APIYY
avdec_xxxxgstreamer1.0-libavffmpeg plugin for GStreamerYY
mpeg2decgst-plugins-uglympeg1 and mpeg2 video decoderYN
openh264decgst-plugins-badOpenH264 video decoderYN
jpegdecgst-plugins-goodDecode images from JPEG formatYN
vp8decgst-plugins-goodOn2 VP8 DecoderYN
vp9decgst-plugins-goodOn2 VP9 DecoderYN

Video Encoder Plugins​

Video encoder converts raw data into an encoded video format, such as H.264. SpacemiT GStreamer supports the spacemitenc proprietary plugins, which help users achieve superior results.

Video EncoderPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
encodebingst-plugins-baseConvenience encoding/muxing elementYN
spacemith264encgst-plugins-badEncodes H264 via MPP APIYY
spacemith265encgst-plugins-badEncodes H265 via MPP APIYY
spacemitmjpegencgst-plugins-badEncodes MJPEG via MPP APIYY
spacemitmpegencgst-plugins-badEncodes MPEG2/MPEG4 via MPP APIYY
spacemitvp8encgst-plugins-badEncodes vp8 via MPP APIYY
spacemitvp9encgst-plugins-badEncodes vp9 via MPP APIYY
avenc_xxxxgstreamer1.0-libavffmpeg plugin for GStreamerYY
mpeg2encgst-plugins-uglympeg2enc video encoderYN
openh264encgst-plugins-badOpenH264 video encoderYN
jpegencgst-plugins-goodJPEG image encoderYN
vp8encgst-plugins-goodOn2 VP8 EncoderYN
vp9encgst-plugins-goodOn2 VP9 EncoderYN

Video Sink Plugins​

Video sink plugins displays processed data by visual output. SpacemiT GStreamer optimizes glimagesink/gtkglsink/waylandsink plugins, which help users achieve superior results.

Video EncoderPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
autovideosinkgst-plugins-goodWrapper video sink for automatically detected videosinkYY
glimagesinkgst-plugins-baseInfrastructure to process GL texturesYN
waylandsinkgst-plugins-badOutput to wayland surfaceYY
gtkglsinkgst-plugins-goodA video sink that renders to a GtkWidget using OpenGLYN
fpsdisplaysinkgst-plugins-badVideo sink with current and average framerateYN

Demux Plugins​

Demux plugins convert different video/audio format into a raw format.

Video DemuxPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
qtdemuxgst-plugins-goodDemux a .mov/.mp4 file to raw dataYY
matroskedemuxgst-plugins-goodDemux a .mkv file to raw dataYN
flvdemuxgst-plugins-goodDemux a .flv file to raw dataYN
avidemuxgst-plugins-goodDemux a .avi file to raw dataYY

Mux Plugins​

Mux plugins convert undermuxed raw data into specific video/audio data.

Video MuxPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
qtmuxgst-plugins-goodMux a raw data to a .mov fileYY
matroskemuxgst-plugins-goodMux a raw data to a .mkv fileYN
flvmuxgst-plugins-goodMux a raw data to a .flv fileYN
avimuxgst-plugins-goodMux a raw data to a .avi fileYY
mp4muxgst-plugins-goodMux a raw data to a .mp4 fileYY

Audio Plugins​

Audio plugins process data from raw audio formats or specific audio formats (e.g. WAV).

Audio PluginPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
mpg123audiodecgst-plugins-goodMP3 decoding plugin based on the mpg123 libraryYN
vorbisdecgst-plugins-baseDecodes raw vorbis streams to float audioYN
vorbisencgst-plugins-baseEncodes audio in Vorbis formatYN
alsasinkgst-plugins-baseOutput to a sound card via ALSAYN
pulsesinkgst-plugins-goodPlays audio to a PulseAudio serverYN

Image Plugins​

Image plugins process data from raw image formats or specific data formats (e.g. JPEG).

Image PluginPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
spacemitdecgst-plugins-badDecodes H264/H265/MJPEG/VP8/VP9/MPEG2/MPEG4 via MPP APIYY
spacemitmjpegencgst-plugins-badEncodes MJPEG via MPP APIYY
imagefreezegst-plugins-goodGenerates a still frame stream from an imageYN
jpegdecgst-plugins-goodDecode images from JPEG formatYN
jpegencgst-plugins-goodJPEG image encoderYN
pngdecgst-plugins-goodDecode a png video frame to a raw imageYN
pngencgst-plugins-goodEncode a video frame to a .png imageYN

Network Protocol Plugins​

Network protocol plugins establish connection between devices.

Network PluginsPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
udpsinkgst-plugins-goodSend data over the network via UDPYY
multiudpsinkgst-plugins-goodSend data over the network via UDP to one or multiple recipientsYY
udpsrcgst-plugins-goodReceive data over the network via UDPYY
tcpserversinkgst-plugins-baseSend data as a server over the network via TCPYN
tcpclientsrcgst-plugins-baseReceive data as a client over the network via TCPYN
rtspsrcgst-plugins-goodReceive data over the network via RTSPYN

Payload/Depayload Plugins​

Payload plugins transmit data over a network, while depayload plugins are used in conjunction with them to receive and unpack the data.

Payload/Depayload PluginsPackageDescriptionBianbu OS(Y/N)Buildroot(Y/N)
gdppaygst-plugins-badPayloads GStreamer Data Protocol buffersYN
gdpdepaygst-plugins-badDepayloads GStreamer Data Protocol buffersYN
rtpvrawpaygst-plugins-goodPayload raw video as RTP packetsYY
rtpvrawdepaygst-plugins-goodExtracts raw video as RTP packetsYY
rtph264paygst-plugins-goodPayload-encode H264 video into RTP packetsYY
rtph264depaygst-plugins-goodExtracts H264 video from RTP packetsYY
rtpmpapaygst-plugins-goodPayload MPEG audio as RTP packetsYY
rtpmpadepaygst-plugins-goodExtracts MPEG audio from RTP packetsYY
rtpjitterbuffergst-plugins-goodA buffer that deals with network jitter and other transmission faultsYY

Gstreamer Basic Command​

gst-launch-1.0​

gst-launch-1.0: Used to initiate a pipeline to perform multimedia tasks, such as media playback and audio recording.

There are some common usage examples (mainly includes GStreamer plugins adapted by SpacemiT):

Camera Application Scenario​

UVC Camera​

  • UVC camera information can be obtained via the following command：

    $ gst-device-monitor-1.0
    Device found:

          name  : UvcH264 HD Pro Webcam C920
          class : Video/CameraSource
          caps  : video/x-raw, format=YUY2, width=2304, height=1536, pixel-aspect-ratio=1/1, framerate=2/1
                  video/x-raw, format=YUY2, width=2304, height=1296, pixel-aspect-ratio=1/1, framerate=2/1
                  video/x-raw, format=YUY2, width=1920, height=1080, pixel-aspect-ratio=1/1, framerate=5/1
                  video/x-raw, format=YUY2, width=1600, height=896, pixel-aspect-ratio=1/1, framerate={ (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=1280, height=720, pixel-aspect-ratio=1/1, framerate={ (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=960, height=720, pixel-aspect-ratio=1/1, framerate={ (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=1024, height=576, pixel-aspect-ratio=1/1, framerate={ (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=800, height=600, pixel-aspect-ratio=1/1, framerate={ (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=864, height=480, pixel-aspect-ratio=1/1, framerate={ (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=800, height=448, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=640, height=480, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=640, height=360, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=432, height=240, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=352, height=288, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=320, height=240, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=320, height=180, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=176, height=144, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=160, height=120, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-raw, format=YUY2, width=160, height=90, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=1920, height=1080, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=1600, height=896, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=1280, height=720, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=960, height=720, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=1024, height=576, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=800, height=600, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=864, height=480, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=800, height=448, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=640, height=480, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=640, height=360, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=432, height=240, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=352, height=288, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=320, height=240, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=320, height=180, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=176, height=144, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=160, height=120, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  image/jpeg, parsed=true, width=160, height=90, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=1920, height=1080, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=1600, height=896, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=1280, height=720, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=960, height=720, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=1024, height=576, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=800, height=600, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=864, height=480, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=800, height=448, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=640, height=480, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=640, height=360, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=432, height=240, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=352, height=288, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=320, height=240, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=320, height=180, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=176, height=144, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=160, height=120, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
                  video/x-h264, stream-format=byte-stream, alignment=au, width=160, height=90, pixel-aspect-ratio=1/1, framerate={ (fraction)30/1, (fraction)24/1, (fraction)20/1, (fraction)15/1, (fraction)10/1, (fraction)15/2, (fraction)5/1 }
          properties:
                  device.path = /dev/video20
                  udev-probed = false
                  device.api = uvch264
                  v4l2.device.driver = uvcvideo
                  v4l2.device.card = HD Pro Webcam C920
                  v4l2.device.bus_info = usb-xhci-hcd.0.auto-1.3
                  v4l2.device.version = 394815 (0x0006063f)
                  v4l2.device.capabilities = 2225078273 (0x84a00001)
                  v4l2.device.device_caps = 69206017 (0x04200001)
                  device.is-camerasrc = true
          gst-launch-1.0 uvch264src device=/dev/video20.vfsrc name=camerasrc ! ... camerasrc.vidsrc ! [video/x-h264] ...

    As shown, the command outputs various critical information, such as camera resolution, frame rate, supported formats and corresponding video capture codes for the UVC camera.

    Alternatively, relevent information can be obtained using v4l2-ctl, which will not be detailed here.

    $ v4l2-ctl --list-devices
    HD Pro Webcam C920 (usb-xhci-hcd.0.auto-1.3):
          /dev/video20
          /dev/video21
          /dev/media1

    There are some examples of using GStreamer to capture images from a UVC camera, including displaying, discarding, and saving the images. These examples use /dev/video20 as the video device to capture YUY2 formatted images with a resolution of 640x480 at 30fps.

    • Capture the image and send it to the display.

      gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "video/x-raw,framerate=30/1,format=YUY2,width=640,height=480" ! videoconvert ! glsinkbin sink=gtkglsink

    • Capture the image and send it to the display while showing frame rate.

      gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "video/x-raw,framerate=30/1,format=YUY2,width=640,height=480" ! videoconvert ! fpsdisplaysink  video-sink='glsinkbin sink='gtkglsink''

    • Capture the image and then discard it.

      gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "video/x-raw,framerate=30/1,format=YUY2,width=640,height=480" ! fakesink

    • Capture the image and then save it as file.

      gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "video/x-raw,framerate=30/1,format=YUY2,width=640,height=480" ! filesink location=output.yuv

  • Using /dev/video20 as the UVC camera device, capture 600 frames of 480p JPEG format images and decode them.(Resolution and frame rate can be adjusted according to needs, provided that the camera itself supports output in these specifications.)

    • Decode the image and send it to the display.

      gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "image/jpeg,framerate=30/1,width=640,height=480" ! typefind ! spacemitdec ! waylandsink sync=0 render-rectangle="<0,0,1280,720>"

    • Decode the image and re-encode it before saving it as file.

      gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "image/jpeg,framerate=30/1,width=640,height=480" ! typefind ! spacemitdec !  spacemith264enc ! filesink location=test.h264
MIPI Camera Usage Examples​

There are examples using GStreamer to output 1080P@NV12 from MIPI camera with OV16A10. These examples assume that the JSON configuration file for spacemitsrc has been correctly set up. For detailed configurations, please refer to Camera development guide.

  • After image capture, the frame is sent for display at a resolution of 720p. (The display position cannot be configured for now.)

    gst-launch-1.0  spacemitsrc location=/usr/share/camera_json/csi1_camera_auto.json close-dmabuf=0 ! "video/x-raw(memory:DMABuf),format=NV12,width=1920,height=1080" ! waylandsink sync=0 render-rectangle="<0,0,1280,720>"

  • Capture image and then discard it.

    gst-launch-1.0  spacemitsrc location=/usr/share/camera_json/csi1_camera_auto.json close-dmabuf=0 ! "video/x-raw(memory:DMABuf),format=NV12,width=1920,height=1080" ! fakesink

  • Capture 10 frames and save them to a file.

    gst-launch-1.0  spacemitsrc location=/usr/share/camera_json/csi1_camera_auto.json close-dmabuf=0 num-buffers=10 ! "video/x-raw(memory:DMABuf),format=NV12,width=1920,height=1080" ! filesink location=test.yuv

  • Capture 1000 frames, encode them in H.264 format, and save to a file.

    gst-launch-1.0  spacemitsrc location=/usr/share/camera_json/csi1_camera_auto.json close-dmabuf=0 num-buffers=1000 ! "video/x-raw(memory:DMABuf),format=NV12,width=1920,height=1080" ! spacemith264enc ! filesink location=test.h264

On Bianbu, use OpenCV to capture and display video from a MIPI camera via GStreamer. The detailed steps are as follows:

  1. Install required tools and libraries

    sudo apt install libopencv-dev python3 python3-opencv

  2. Create the py script capture_video_opencv.py

    import cv2

    gst_str = 'spacemitsrc location=/home/bianbu/camtest_ov16a10.json close-dmabuf=1 ! video/x-raw,format=NV12,width=1280,height=720 ! appsink'

    cap = cv2.VideoCapture(gst_str, cv2.CAP_GSTREAMER)  # open default camera

    while True:
     ret, frame = cap.read()  # read video frame
     frame = cv2.cvtColor(frame, cv2.COLOR_YUV2BGR_NV12)
     cv2.imshow('Video', frame)  # show video frame

     if cv2.waitKey(1) & 0xFF == ord('q'):  # press the 'q' key to break the loop
         break

    cap.release()  # release camera
    cv2.destroyAllWindows()  # destroy all windows

  3. Execute the script

    python3 capture_video_opencv.py

In the above demo, OpenCV leverages GStreamer for image capture, outputting data in 720p@NV12 format. After acquiring the data, OpenCV converts it to RGB format and then displays it.

Decoding Application Scenarios​

  • Raw stream video decoding

    • h264 decoding and display
    gst-launch-1.0  filesrc location=/root/compressed/h264/h264_w1280_h720_f30_r4_p1_8bit_300f_2112kb_high_cabac.264 ! h264parse ! spacemitdec ! queue ! waylandsink render-rectangle="<0,0,1280,720>"
    • h265 decoding and display
    gst-launch-1.0  filesrc location=/root/compressed/hevc/hevc_w1920_h1080_f25_r_p1_8bit_200f_1878kb_main.265 ! queue ! h265parse ! spacemitdec ! queue ! waylandsink render-rectangle="<0,0,1280,720>"
    • vp8, vp9 decoding and display
    gst-launch-1.0  filesrc location=/root/compressed/vp9/vp9_w1280_h720_f25_r_p1_8bit_120f_1996kb.ivf ! typefind ! ivfparse ! spacemitdec ! queue ! waylandsink render-rectangle="<0,0,1280,720>"
    • mjpeg decoding and display
    gst-launch-1.0  filesrc location=/root/compressed/mjpeg/mjpeg_w1280_h720_f_r_p1_8bit_120f_kb_yuv420.mjpeg ! typefind ! spacemitdec ! queue ! waylandsink render-rectangle="<0,0,1280,720>"
    • mpeg2 decoding and display
    gst-launch-1.0  filesrc location=/root/compressed/mpeg2/mpeg2_w1920_h1080_f30_r_p1_8bit_120f_6236kb_main.mpg ! mpegpsdemux ! mpegvideoparse ! spacemitdec ! queue ! waylandsink render-rectangle="<0,0,1280,720>"
    • mpeg4 decoding and display
    gst-launch-1.0  filesrc location=/root/compressed/mpeg4/mpeg4_w1280_h720_f_r_p1_8bit_120f_3429kb_simple.mpeg4 ! mpeg4videoparse ! spacemitdec ! queue ! waylandsink sync=0 render-rectangle="<0,0,1280,720>"

  • video decoding for container formats

    • H.264/H.265/VP8/VP9/MJPEG/MPEG decoding and display
    gst-launch-1.0 filesrc location=C079_1080P_AVC_AAC_8M_24F.mp4 ! qtdemux name=d d.video_0 ! queue ! **h264parse** ! spacemitdec ! queue ! waylandsink  render-rectangle="<0,0,1280,720>"

spacemitdec supports multiple video formats. To use it correctly, please be sure to invoke the appropriate parser (for example: use h264parse for H.264 format, h265parse for the H.265 format, etc.).

Encoding Application Scenarios​

Testing video source: NV12 format, 720p (1280×720), 25fps

  • encoded as H.264

    gst-launch-1.0 videotestsrc num-buffers=100 ! 'video/x-raw,format=NV12, width=1280, height=720, framerate=25/1' ! spacemith264enc ! filesink location=test.264

    or input from YUV file:

    gst-launch-1.0 filesrc location=nv12_720p_100f.yuv ! videoparse format=23 width=1280 height=720 framerate=30/1 ! spacemith264enc ! filesink location=test.264

  • encoded as H.265

    gst-launch-1.0 videotestsrc num-buffers=100 ! 'video/x-raw,format=NV12, width=1280, height=720, framerate=25/1' ! spacemith265enc ! filesink location=test.265

  • encoded as VP9 (encapsulated in WebM)

    gst-launch-1.0 -v videotestsrc num-buffers=1000 ! spacemitvp9enc ! webmmux ! filesink location=videotestsrc.webm
    //corresponding decoding command is
    gst-launch-1.0 -v filesrc location=videotestsrc.webm ! matroskademux ! vp9dec ! videoconvert ! videoscale ! autovideosink

  • encoded as VP8 (encapsulated in WebM)

    gst-launch-1.0 -v videotestsrc num-buffers=1000 ! spacemitvp8enc ! webmmux ! filesink location=videotestsrc.webm
    //corresponding decoding command is
    gst-launch-1.0 -v filesrc location=videotestsrc.webm ! matroskademux ! vp8dec ! videoconvert ! videoscale ! autovideosink

  • encoded as MJPEG

    gst-launch-1.0 videotestsrc num-buffers=100 ! 'video/x-raw,format=NV12, width=1280, height=720, framerate=25/1' ! spacemitmjpegenc ! filesink location=test.mjpeg

Mux/Demux Application Scenarios​

Mux plugins(encapsulate stream into file)​

  • qtmux encapsulates camera JPEG strem into .mov file:

    gst-launch-1.0 v4l2src device=/dev/video20 num-buffers=600  ! "image/jpeg,framerate=30/1,width=640,height=480" ! qtmux ! filesink location=video.mov

  • matroskamux
    encapsulates MP3 audio into .mkv file:

    gst-launch-1.0 filesrc location=test.mp3 ! mpegaudioparse ! matroskamux ! filesink location=test.mkv

  • mp4mux
    encodes camera video as H.264 and encapsulates it into .mp4:

    gst-launch-1.0 v4l2src num-buffers=50 ! queue ! x264enc ! mp4mux ! filesink location=video.mp4

  • flvmux
    merge the audio and video into a .flv file:

    gst-launch-1.0 filesrc location=/root/K001-MPEG-16bit-44.1kHz-CBR-192kbps-stereo.mp3 ! decodebin ! queue !  flvmux name=mux ! filesink location=test.flv  filesrc location=../mp4/480p.mp4 ! decodebin ! queue ! mux.

  • avimux
    generate a test video in .avi format:

    gst-launch-1.0 videotestsrc num-buffers=100 ! 'video/x-raw,format=I420,width=640,height=480,framerate=30/1' ! avimux ! filesink location=test.avi
Demux plugins​

  • qtdemux

    gst-launch-1.0 filesrc location=test.mov ! qtdemux name=demux  demux.audio_0 ! queue ! decodebin ! audioconvert ! audioresample ! autoaudiosink   demux.video_0 ! queue ! decodebin ! videoconvert ! videoscale ! autovideosink
    //If the video source contains only video, use the following command to perform demuxing:
    gst-launch-1.0 filesrc location=video.mov ! qtdemux name=demux   demux.video_0 ! queue ! decodebin ! videoconvert ! videoscale ! autovideosink

  • matroskademux

    gst-launch-1.0 -v filesrc location=/path/to/mkv ! matroskademux ! vorbisdec ! audioconvert ! audioresample ! autoaudiosink

  • flvdemux

    gst-launch-1.0 -v filesrc location=/path/to/flv ! flvdemux ! audioconvert ! autoaudiosink

  • avidemux

    gst-launch-1.0 filesrc location=test.avi ! avidemux name=demux  demux.audio_00 ! decodebin ! audioconvert ! audioresample ! autoaudiosink   demux.video_00 ! queue ! decodebin ! videoconvert ! videoscale ! autovideosink

Audio Application Scenarios​

This describes some basic pipelines for audio output using GStreamer.

  • Audio Playback

    Audio playback refers to the process of playing a specific audio file according to its corresponding format. The pipeline below uses the audiotestsrc plugin to output standard audio to the headphone jack.

    gst-launch-1.0 audiotestsrc wave=5 ! alsasink device=plughw:1

  • Audio decoding

    • play mp3 format file

      gst-launch-1.0 filesrc location=test.mp3 ! mpegaudioparse ! mpg123audiodec
      ! audioconvert ! audioresample ! autoaudiosink

    • play ogg vorbis format file

      gst-launch-1.0 -v filesrc location=test.ogg ! oggdemux ! vorbisdec ! audioconvert ! audioresample ! autoaudiosink

  • Audio format conversion

    Audio conversion refers to the process of changing audio file format to another desired format, such as changing convert .wav to .aac.

    gst-launch-1.0 -v autoaudiosrc ! audioconvert ! vorbisenc ! oggmux ! filesink location=alsasrc.ogg

Image Application Scenarios​

This describes some basic pipelines for image output using GStreamer.

  • Image output

    Image output includes all processes of displaying the desired image file on the required screen or any other type of output source.

  • Display PNG image

    gst-launch-1.0 -v filesrc location=some.png ! decodebin ! videoconvert ! imagefreeze ! autovideosink

  • Display JPEG image

    gst-launch-1.0 -v filesrc location=<output_image>.jpeg ! jpegdec ! imagefreeze ! videoconvert ! autovideosink

  • Image capture For image capture, images can be acquired from the camera.

    • JPG format

      gst-launch-1.0 v4l2src num-buffers=1 ! jpegenc ! filesink location=capture.jpg

    • PNG format

      gst-launch-1.0 v4l2src num-buffers=1 ! pngenc ! filesink location=capture.png

    • JPEG format

      gst-launch-1.0 v4l2src num-buffers=1 ! jpegenc ! filesink location=capture.jpeg

Transcoding Application Scenarios​

This describes how to configure and run basic transcoding pipelines.

  • Video transcoding Transcodes MJPEG data from camera output into an MKV file:

    gst-launch-1.0 v4l2src device=/dev/video20 ! jpegparse ! spacemitdec ! queue ! videoconvert ! spacemith264enc ! h264parse ! matroskamux ! filesink location=out.mkv

Video Streaming Scenarios​

Rtsp

  1. Download source code
    Visit https://github.com/GStreamer/gst-rtsp-server，and switch to the 1.18 branch.

  2. Compilation installation

  3. Start the RTSP server Run the following command on the server side to start the RTSP server and publish the video stream:

    ./test-launch "( spacemitsrc location=/usr/share/camera_json/csi1_camera_auto.json close-dmabuf=0 ! spacemith264enc ! rtph264pay name=pay0 pt=96 )"

  4. Connect the client to the RTSP server to start video playback

Video Composition Scenarios​

  • Multichannel data mixing and output

    gst-launch-1.0 videotestsrc ! video/x-raw,width=1280,height=720 ! tee name=testsrc ! queue ! compositor name=comp sink_0::xpos=0 sink_0::ypos=0 \
    sink_1::xpos=100 sink_1::ypos=100 sink_1::width=200 sink_1::height=200 \
    sink_2::xpos=300 sink_2::ypos=300 sink_2::width=100 sink_2::height=200 \
    sink_3::xpos=400 sink_3::ypos=600 sink_3::width=100 sink_3::height=100 ! videoconvert ! autovideosink testsrc. ! queue ! comp.sink_1 testsrc. ! queue ! comp.sink_2 testsrc. ! queue ! comp.sink_3

  • Dual-camera mixing and output

    gst-launch-1.0 -v compositor name=comp sink_0::xpos=0 sink_0::ypos=0 sink_0::width=640 sink_0::height=480 sink_1::xpos=0 sink_1::ypos=480 sink_1::width=640 sink_1::height=480 ! autovideosink v4l2src device=/dev/video20 ! video/x-raw,width=640,height=480 ! comp.sink_0  v4l2src device=/dev/video22 ! video/x-raw,width=640,height=480 ! comp.sink_1

Gstreamer Debugging Method​

This introduces common GStreamer debugging tools and their usage scenarios.

Use GStreamer Logging system​

When a pipeline encounters errors or behaves unexpectedly, GStreamer's built-in logging system is the primary tool for debugging. By analyzing key information in the logs, you can quickly locate issues.

  • GST_DEBUG

    GStreamer framework and its plugins provide different levels of log information, which includes timestamps, process IDs, thread IDs, types, source code line numbers, function names, Element information and corresponding log messages. For example:

    $ GST_DEBUG=2 gst-launch-1.0 playbin uri=file:///x.mp3Setting pipeline to PAUSED ...
    0:00:00.014898047 47333      0x2159d80 WARN                 filesrc gstfilesrc.c:530:gst_file_src_start:<source> error: No such file "/x.mp3"
    ...

    The corresponding log information can be retrieved by simply setting the GST_DEBUG environment variable and specifying the desired log level when running. Since GStreamer logs are highly detailed, enabling full logging can impact system performance. Therefore, the system provides eight distinct log levels to output information at varying degrees of detail as needed.

    • Level 0：No log information is output
    • Level 1：ERROR information
    • Level 2：WARNING information
    • Level 3：FIXME information
    • Level 4：INFO information
    • Level 5：DEBUG information
    • Level 6：LOG information
    • Level 7：TRACE information
    • Level 8：MEMDUMP information, the highest log level

    When in use, only set GST_DEBUG to specified level, all log messages at or below this level will be output. For example: GST_DEBUG=2 will display logs of ERROR level and WARNING level.

    The above settings apply when all modules use the same level. If you need to set level for specified plugins individually, use the format of module name:level. For example: GST_DEBUG=2,audiotestsrc:6 indicates that the global level is set to 2, and only the log level of the audiotestsrc element is set to 6.

    In this case, the value of GST_DEBUG consists of "module name:level" key-value pairs separated by commas. You can add a default log level for all unspecified modules at the very beginning, and multiple module names can be separated by commas. Additionally, the value of GST_DEBUG also supports the "*" wildcard character.

    The value of GST_DEBUG consists of "module name:Level" separated by commas, and supports the following features:

    • A default level can be set at the beginning (unspecified modules will use this level);
    • Supports separate settings for multiple modules;
    • Supports * wildcard for fuzzy matching.

    Example: GST_DEBUG=2,audio*:6 — All modules starting with audio use level 6, and all other modules use level 2.

    Equivalent syntax:
    GST_DEBUG=*:2 has the same effect as GST_DEBUG=2, meaning all modules use level 2.

  • GST_DEBUG_FILE

    In actual debugging, to facilitate subsequent analysis, log output is usually saved to a file. You can specify the log file path by setting the GST_DEBUG_FILE environment variable, and GStreamer will automatically write debug information to this file.

    GST_DEBUG=2 GST_DEBUG_FILE=pipeline.log GST_DEBUG=5 gst-launch-1.0 audiotestsrc ! autoaudiosink

Use Graphviz Tools​

When a pipeline structure becomes complex, it is essential to verify if it is running as expected and to identify which Elements are being utilized—especially when using playbin or uridecodebin. To facilitate this, GStreamer provides a feature that exports the current state of all elements and their interconnections into a .dot file. This file can then be converted into an image using tools such as Graphviz.

To obtain .dot files, simply set the GST_DEBUG_DUMP_DOT_DIR environment variable to specify the output directory. gst-launch-1.0 will generate a .dot file for each state. For example, running the following command, we can obtain the Pipeline generated when using playbin to play a network file:

$ GST_DEBUG_DUMP_DOT_DIR=. gst-launch-1.0 playbin uri=https://www.freedesktop.org/software/gstreamer-sdk/data/media/sintel_trailer-480p.webm
$ ls *.dot
0.00.00.013715494-gst-launch.NULL_READY.dot
0.00.00.170999259-gst-launch.PAUSED_PLAYING.dot
0.00.07.642049256-gst-launch.PAUSED_READY.dot
0.00.00.162033239-gst-launch.READY_PAUSED.dot
0.00.07.606477348-gst-launch.PLAYING_PAUSED.dot

$ apt-get install graphviz
$ dot 0.00.00.170999259-gst-launch.PAUSED_PLAYING.dot -Tpng -o play.png

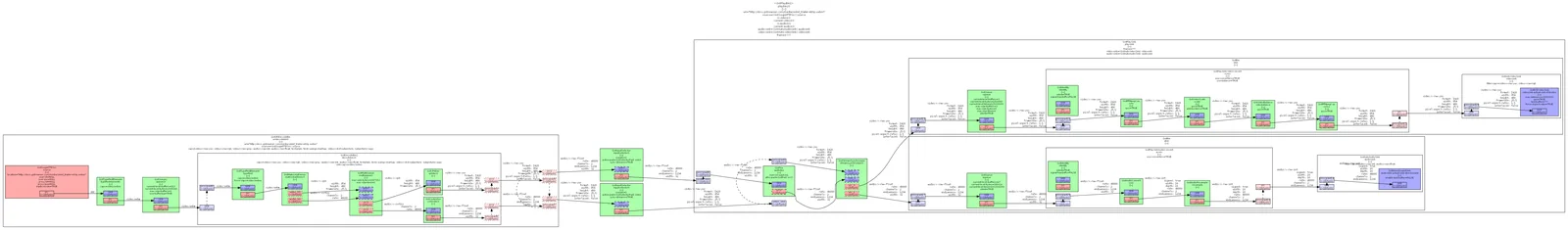

Generated play.png is as follows (results vary according to the plugins installed):

Note: In custom applications, setting only the GST_DEBUG_DUMP_DOT_DIR environment variable is insufficient. To generate .dot files, you must actively call the GST_DEBUG_BIN_TO_DOT_FILE() or GST_DEBUG_BIN_TO_DOT_FILE_WITH_TS() functions in the code to output the structural information of the Pipeline.

Other Debugging Methods​

There are some common methods for debugging GStreamer display and decoding issues in some specific embedded environments.

  1. Run the preview by specifying the Wayland display environment

    • Buildroot Executes the command via the serial port to enable preview. You can add WAYLAND_DISPLAY=wayland-1 XDG_RUNTIME_DIR=/root/ before the GStreamer command. For example:

      WAYLAND_DISPLAY=wayland-1 XDG_RUNTIME_DIR=/root/  gst-launch-1.0 spacemitsrc l
      ocation=k1-x_MUSE-Paper_sensor0_gc08a8.json ! waylandsink sync=0 render-rectangl
      e="<0,0,1280,720>"

    • Bianbu OS Executes the command via the serial port to enable preview. You need to log into the desktop first, then add WAYLAND_DISPLAY=wayland-0 XDG_RUNTIME_DIR=/run/user/1000 before the GStreamer command. For example:

      WAYLAND_DISPLAY=wayland-0 XDG_RUNTIME_DIR=/run/user/1000 gst-launch-1.0 filesrc location=/root/3840x2160_24bits_30fps_266p.h265 ! h265parse ! spacemitdec ! fpsdisplaysink video-sink='glsinkbin sink='gtkglsink sync=0''

  2. Troubleshooting decoding issues: rule out source stream abnormalities

    When decoding fails with dedicated hardware decoder plugins such as spacemitdec, you should first confirm whether the source stream (raw stream) itself is problematic. It is recommended to troubleshoot in the following order:

    • Use a general GStreamer plugin to replace the SpacemiT decoder plugin for debugging.
    • Use ffplay to decode the source stream and check for issues.
    • Use the built-in test tool of MPP to decode the source stream and check for issues. Refer to SpacemiT MPP to perform decoding tests using test tools it provides.
