GMAC

This document describes the K3 GMAC features and usage.

Overview​

The K3 GMAC module is based on the Synopsys DesignWare Ethernet QoS controller (version 5.40a). It complies with IEEE 802.3-2015, supports 10/100/1000 Mbps communication, and provides a broad set of advanced networking features.

Typical application scenarios include:

  • AV bridging
  • switches
  • network interface cards
  • data center networking equipment

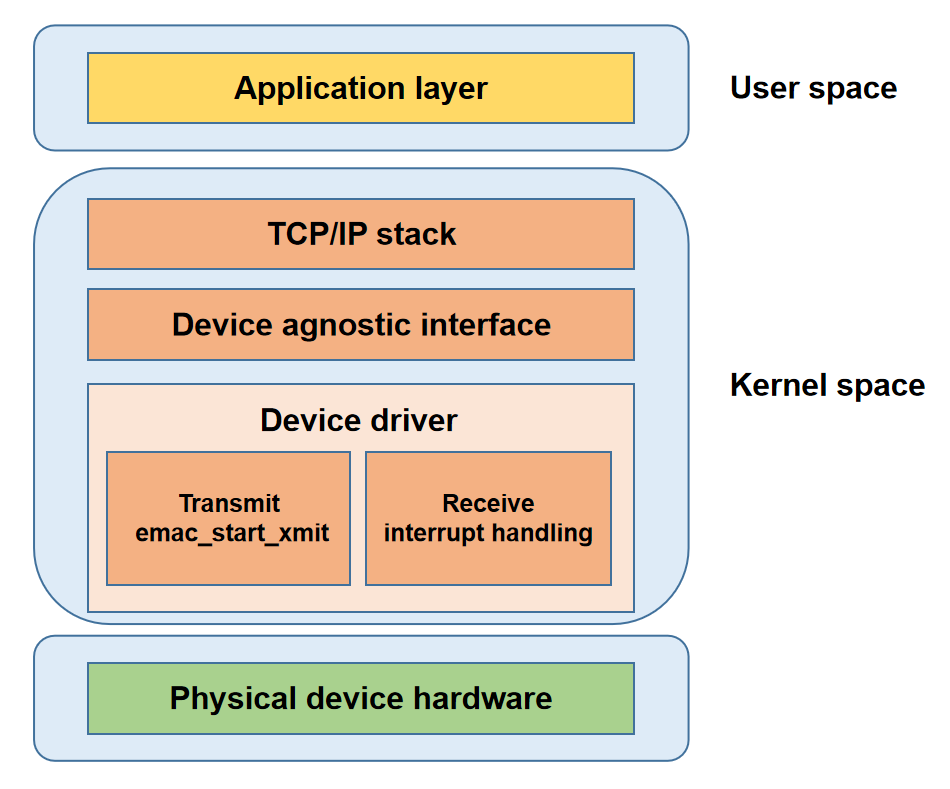

Functionality​

  • Application layer: Provides application-facing network services.
  • Protocol (TCP/IP) stack: Implements network protocols and provides system call interfaces to the application layer.
  • Network Device agnostic Interface: Hides driver implementation details and provides a unified interface to the protocol stack.
  • Network Device driver: Handles data transmission and device management.
  • Physical device hardware: Consists of the networking hardware devices.

Source Tree​

The driver source code is located in drivers/net/ethernet/stmicro/stmmac. The main file is listed below:

drivers/net/ethernet/stmicro/stmmac
|-- ...
|-- dwmac-spacemit-ethqos.c         # SpacemiT platform EQoS glue-layer driver
|-- ...

Key Features​

FeatureDescription
Supports MII/RMII/RGMII interfacesSupports multiple PHY interface types
Supports 10/100/1000 MbpsSupports multiple link speeds
Supports Jumbo framesSupports Ethernet frames up to 8 KB
Supports source address insertion and replacementAutomatically inserts or modifies source MAC addresses
Supports VLAN tag insertion/replacement/removalProcesses VLAN tags in hardware
Supports VLAN filteringFilters packets by VLAN ID
Supports destination address filteringFilters packets by destination MAC address
Supports source address filteringFilters packets by source MAC address
Supports Hash filteringFilters packets based on MAC address hash values
Supports L3 filteringFilters packets by IP address
Supports L4 filteringFilters packets by TCP/UDP port number
Supports IEEE 802.3x PauseSupports Pause-frame flow control
Supports PFCSupports priority flow control
Supports one-step timestampingInserts timestamps into synchronization packets
Supports one PPS outputOutputs a pulse-per-second signal based on the hardware clock
Supports WoLSupports Wake-on-LAN
Supports MAC loopback modeUseful for interface self-test and debug isolation
Supports programmable burst lengthConfigurable AXI burst transfer length
Supports up to 4 TX/RX queuesSupports multi-queue scheduling and traffic distribution
Supports Store-and-ForwardBuffers the entire frame in FIFO before transmission
Supports Threshold modeStarts transmission once FIFO data reaches the threshold
Supports SP schedulingStrict-priority scheduling
Supports WRR schedulingWeighted round-robin scheduling
Supports DWRR schedulingDeficit weighted round-robin scheduling
Supports WFQ schedulingWeighted fair queuing
Supports CBSCredit-based shaping
Supports ESTTime-aware gate scheduling
Supports frame preemptionHigh-priority frames can preempt low-priority frames
Supports TBSPrecise scheduling based on the hardware clock
Supports up to 4 DMA channelsMulti-channel parallel transfer
Supports TSOHardware TCP segmentation offload
Supports IPv4 checksum offloadHardware IPv4 checksum calculation
Supports TCP checksum offloadHardware TCP checksum calculation
Supports UDP checksum offloadHardware UDP checksum calculation
Supports ICMP checksum offloadHardware ICMP checksum calculation
Supports header/payload split storageStores Ethernet headers and payload separately
Supports ARP offloadHardware response to ARP requests
Supports CRC offloadHardware CRC generation and verification
Supports priority-based traffic distributionAssigns channels based on priority

Note: The K3 platform provides four GMAC instances (GMAC0 - GMAC3). Only GMAC0 and GMAC1 fully support MII, RMII, and RGMII interfaces. The remaining GMAC instances support only RGMII and RMII.

Performance Data​

Throughput

ProtocolTest ModeTX Throughput (Mbps)RX Throughput (Mbps)
TCPUnidirectional942941
TCPBidirectional935934
UDPUnidirectional956956
UDPBidirectional956955

PTP Synchronization Accuracy

ProtocolTimestampSteady-State Synchronization Accuracy
IEEE 802.3/L2Hardware Timestamp< 250 ns
UDP/IPv4Hardware Timestamp< 250 ns

Note: Throughput fluctuates under bidirectional traffic.

Performance Testing​

Throughput Testing​

Test devices: Two K3 deb1 boards, referred to as deb1 A and deb1 B

Network topology: The Gigabit Ethernet ports of deb1 A and deb1 B are connected directly with an Ethernet cable.

Environment: iperf3 needs to be installed on deb1 A and deb1 B

Step 1: Configure the Gigabit Ethernet ports of both boards in the same subnet, then start the iperf3 server on deb1 A.

# deb1 A shell: set interface IP to 192.168.0.1
ifconfig end0 192.168.0.1 netmask 255.255.255.0

# deb1 A shell: start iperf3 server
iperf3 -s -B 192.168.0.1
# deb1 B shell: set interface IP to 192.168.0.2
ifconfig end0 192.168.0.2 netmask 255.255.255.0

Step 2: Start the iperf3 client on deb1 B.

Test Item 1: Unidirectional traffic test based on TCP

# deb1 B shell: test TCP TX throughput
iperf3 -c 192.168.0.1 -B 192.168.0.2 -t 60
# deb1 B shell: test TCP RX throughput
iperf3 -c 192.168.0.1 -B 192.168.0.2 -t 60 -R

Test Item 2: Bidirectional traffic test based on TCP

# deb1 B shell: test TCP full-duplex throughput
iperf3 -c 192.168.0.1 -B 192.168.0.2 -t 100 --bidir

Test Item 3: Unidirectional traffic test based on UDP

# deb1 B shell: test UDP TX throughput
iperf3 -c 192.168.0.1 -B 192.168.0.2 -u -b 1000M -t 60
# deb1 B shell: test UDP RX throughput
iperf3 -c 192.168.0.1 -B 192.168.0.2 -u -b 1000M -t 60 -R

Test Item 4: Bidirectional traffic test based on UDP

# deb1 B shell: test UDP full-duplex throughput
iperf3 -c 192.168.0.1 -B 192.168.0.2 -u -b 1000M -t 60 --bidir

PTP Testing​

Test devices: Two K3 deb1 boards, referred to as deb1 A and deb1 B

Network topology: The Gigabit Ethernet ports of deb1 A and deb1 B are connected directly with an Ethernet cable.

Environment: linuxptp needs to be installed on deb1 A and deb1 B

Test Item 1: Synchronize time based on L2 Ethernet frames

# deb1 A shell: start PTP master over L2 Ethernet frames
ptp4l -i end0 -2 -H -m
# deb1 B shell: start PTP slave over L2 Ethernet frames
ptp4l -i end0 -2 -H -m -s

Test Item 2: Synchronize time based on UDP/IPv4

# deb1 A shell: set interface IP to 192.168.0.1
ifconfig end0 192.168.0.1 netmask 255.255.255.0

# deb1 A shell: start PTP master over UDP/IPv4
ptp4l -i end0 -4 -H -m

# deb1 B shell: set interface IP to 192.168.0.2
ifconfig end0 192.168.0.2 netmask 255.255.255.0

# deb1 B shell: start PTP slave over UDP/IPv4
ptp4l -i end0 -4 -H -m -s

Functionality Testing​

This section focuses on TSN functions.

Test devices: Two K3 deb1 boards, referred to as deb1 A and deb1 B

Network topology: The Gigabit Ethernet ports of deb1 A and deb1 B are connected directly with an Ethernet cable.

Environment: iperf3 and tcpdump should be installed on deb1 A; iperf3, netsniff-ng, linuxptp and ethtool should be installed on deb1 B.

Step 1: Configure the Gigabit Ethernet ports of both boards in the same subnet

# deb1 A shell: set interface IP to 192.168.0.1
ifconfig end0 192.168.0.1 netmask 255.255.255.0

# deb1 B shell: set interface IP to 192.168.0.2
ifconfig end0 192.168.0.2 netmask 255.255.255.0

Step 2: Synchronize the system time and GMAC hardware timestamp on the deb1 B

# deb1 B shell: /dev/ptp1 is the PTP clock node for end0
phc2sys -s /dev/ptp1 -c CLOCK_REALTIME -O 0 -m > ptp.txt 2>&1 &

# deb1 B shell: check sync accuracy is below 1 us
tail -n 10 ptp.txt

Expected result: CLOCK_REALTIME phc offset < 1000, as shown below:

phc2sys[137.942]: CLOCK_REALTIME phc offset       -51 s2 freq     +28 delay    250
phc2sys[138.942]: CLOCK_REALTIME phc offset       -12 s2 freq     +52 delay    291
phc2sys[139.942]: CLOCK_REALTIME phc offset        29 s2 freq     +90 delay    291
phc2sys[140.943]: CLOCK_REALTIME phc offset      -101 s2 freq     -32 delay    291
phc2sys[141.943]: CLOCK_REALTIME phc offset       101 s2 freq    +140 delay    291
phc2sys[142.943]: CLOCK_REALTIME phc offset       -21 s2 freq     +48 delay    292
phc2sys[143.943]: CLOCK_REALTIME phc offset        32 s2 freq     +95 delay    291
phc2sys[144.944]: CLOCK_REALTIME phc offset       -85 s2 freq     -12 delay    291
phc2sys[145.944]: CLOCK_REALTIME phc offset        36 s2 freq     +83 delay    291
phc2sys[146.944]: CLOCK_REALTIME phc offset        10 s2 freq     +68 delay    292

Step 3: Configure the gate control scheduling algorithm with tc tool. The K3 SoC is configured with 2 TX queues by default. The following script configures 2 Traffic Classes (TCs) and maps them to the 2 TX queues respectively.

#!/bin/sh

NOW=$(date +%s)
BASE_TIME=$((NOW + 2))
NOW_NS=$((BASE_TIME * 1000000000))
echo "Base Time (ns): $NOW_NS"

tc qdisc replace dev end0 parent root stab overhead 24 linklayer ethernet taprio \
 num_tc 2 \
 map 0 0 0 0 0 0 0 1 \
 queues 1@0 1@1 \
 base-time $NOW_NS \
 sched-entry S 0x2 50000 \
 sched-entry S 0x1 450000 \
 fp P E \
 flags 0x2

Step 4: Enable FPE and wait for verification completion

# deb1 A shell: enable FPE
ethtool --set-mm end0 pmac-enabled on tx-enabled on verify-enabled on verify-time 128

# deb1 B shell: enable FPE
ethtool --set-mm end0 pmac-enabled on tx-enabled on verify-enabled on verify-time 128

After enabling FPE, wait for 1~2 minutes to allow the hardware to complete the verification process.

ethtool --show-mm end0

Expected result:

MAC Merge layer state for end0:
pMAC enabled: on
TX enabled: on
TX active: on
TX minimum fragment size: 60
RX minimum fragment size: 60
Verify enabled: on
Verify time: 128
Max verify time: 128
Verification status: SUCCEEDED

Step 5: Generate background traffic with iperf3

# deb1 A shell: start iperf3 server on deb1 A
iperf3 -s -B 192.168.0.1

# deb1 B shell: start iperf3 client on deb1 B
iperf3 -c 192.168.0.1 -B 192.168.0.2 -t 10000

Step 6: Generate critical traffic with mausezahn

# deb1 B shell: start critical traffic with priority=7, UDP=5000, payload=18B, period=1 ms
sudo mausezahn end0 -q -c 0 -d 1000 \
  -R 7 \
  -a own \
  -b 50:0a:52:0b:ca:26 \
  -A 192.168.0.2 \
  -B 192.168.0.1 \
  -t udp "sp=4000,dp=5000" \
  -P "CCCCCCCCCCCCCCCCCC"

Step 7: Capture critical traffic packets on deb1 A. The packet interval shall be approximately 1 ms.

sudo tcpdump -i end0 -e -n \
  'udp and src host 192.168.0.2 and dst host 192.168.0.1 and src port 4000 and dst port 5000 and less 100'

Output:

tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on end0, link-type EN10MB (Ethernet), snapshot length 262144 bytes
17:30:55.691980 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.692981 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.693982 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.694980 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.695978 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.697398 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.698398 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.699398 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.700396 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.701398 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.702397 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18
17:30:55.703397 fe:fe:fe:ec:26:7c > 50:0a:52:0b:ca:26, ethertype IPv4 (0x0800), length 60: 192.168.0.2.4000 > 192.168.0.1.5000: UDP, length 18

Note: This is a rough measurement. tcpdump captures packets at the protocol stack level, which comes with inherent measurement errors. For accurate measurements, a dedicated TSN protocol analyzer is required to capture the on-wire data.

Configuration​

Configuration mainly includes:

  • Kconfig settings
  • DTS settings

Kconfig Settings​

DWMAC_SPACEMIT_ETHQOS: enables the SpacemiT EQoS controller driver.

config DWMAC_SPACEMIT_ETHQOS
  tristate "Spacemit ETHQOS support"
  depends on OF && (SOC_SPACEMIT || COMPILE_TEST)
  help
    Support for the Spacemit ETHQOS core.

    This selects the Spacemit ETHQOS glue layer support for the
    stmmac device driver.

DTS Settings​

pinctrl​

GMAC pin configuration depends on the board-level hardware design. In k3-pinctrl.dtsi, GMAC-related pins are grouped by function. GMAC0 is used as an example below:

  • gmac0_base_pins: base pin group used directly in RMII mode
  • gmac0_rgmii_add_pins: additional pins required in RGMII mode on top of the base pin group
  • gmac0_mii_add_pins: additional pins required in MII mode on top of the RGMII configuration
  • gmac0_int_pins: PHY interrupt pin. Some PHY devices can output an interrupt when link status changes or a wake event occurs. This is optional.
  • gmac0_pps_pins: PPS (pulse per second) output pin. This is optional.
  • gmac0_refclk_pins: 25 MHz reference clock output pin used to provide a working clock to the PHY. This is optional.

All the pin groups above use function = 1, which selects the GMAC function.

gmac0_cfg: gmac0-cfg {
 /* Base pins: - Used by RMII directly */
 gmac0_base_pins: gmac0-0-pins {
  pinmux = <K3_PADCONF(0, 1)>, /* gmac0: MII=rxdv | RMII=crs_dv | RGMII=rx_ctl */
    <K3_PADCONF(1, 1)>,     /* gmac0 rx d0 */
    <K3_PADCONF(2, 1)>,     /* gmac0 rx d1 */
    <K3_PADCONF(3, 1)>,     /* gmac0: MII=rxc | RMII=ref_clk | RGMII=rxc */
    <K3_PADCONF(6, 1)>,     /* gmac0 tx d0 */
    <K3_PADCONF(7, 1)>,     /* gmac0 tx d1 */
    <K3_PADCONF(11, 1)>,    /* gmac0: MII=tx_en | RMII=tx_en | RGMII=tx_ctl */
    <K3_PADCONF(12, 1)>,    /* gmac0 mdc */
    <K3_PADCONF(13, 1)>;    /* gmac0 mdio */

  bias-disable;                /* normal bias disable */
  drive-strength = <9>;      /* DS4 */
 };

 /* RGMII extra pins: add on top of base pins */
 gmac0_rgmii_add_pins: gmac0-1-pins {
  pinmux = <K3_PADCONF(4, 1)>, /* gmac0 rx d2 */
    <K3_PADCONF(5, 1)>,     /* gmac0 rx d3 */
    <K3_PADCONF(8, 1)>,     /* gmac0 tx clk */
    <K3_PADCONF(9, 1)>,     /* gmac0 tx d2 */
    <K3_PADCONF(10, 1)>;    /* gmac0 tx d3 */

  bias-disable;                /* normal bias disable */
  drive-strength = <9>;      /* DS4 */
 };

 /* MII extra pins: add on top of (base + rgmii extra pins) */
 gmac0_mii_add_pins: gmac0-2-pins {
  pinmux = <K3_PADCONF(15, 1)>, /* gmac0 rxer */
    <K3_PADCONF(16, 1)>,     /* gmac0 txer */
    <K3_PADCONF(17, 1)>,     /* gmac0 crs */
    <K3_PADCONF(18, 1)>;     /* gmac0 col */

  bias-disable;                 /* normal bias disable */
  drive-strength = <9>;      /* DS4 */
 };

 /* Optional int pins */
 gmac0_int_pins: gmac0-3-pins {
  pinmux = <K3_PADCONF(14, 1)>; /* gmac0 int (from phy) */

  bias-disable;                 /* normal bias disable */
  drive-strength = <9>;      /* DS4 */
 };

 /* Optional pps pins */
 gmac0_pps_pins: gmac0-4-pins {
  pinmux = <K3_PADCONF(19, 1)>; /* gmac0 pps (tsn/1588) */

  bias-disable;                 /* normal bias disable */
  drive-strength = <9>;      /* DS4 */
 };

 /* Optional reference clock output */
 gmac0_refclk_pins: gmac0-5-pins {
  pinmux = <K3_PADCONF(20, 1)>; /* gmac0 clk ref */

  bias-disable;                 /* normal bias disable */
  drive-strength = <9>;      /* DS4 */
 };
};

During actual configuration, select the appropriate pinmux groups based on the board-level hardware design. For example, on K3 deb1:

  • GMAC0 is connected to an external RGMII PHY
  • the PHY working clock is provided by an external crystal
  • GMAC0 PPS output is not enabled
  • PHY interrupt is not used
  • the IO voltage domain is 1.8 V

Based on this hardware design:

  • gmac0-2-pins, gmac0-4-pins, and gmac0-5-pins can be removed from the solution DTS
  • the power-source property should be set to 1.8 V
&pinctrl {
 gmac0-cfg {
  /delete-node/ gmac0-2-pins;     // release unused pins, which may be required by other modules
  /delete-node/ gmac0-4-pins;
  /delete-node/ gmac0-5-pins;

  gmac0-0-pins {
   power-source = <1800>;      // must match the actual IO supply voltage, or back-powering and malfunction may occur
  };

  gmac0-1-pins {
   power-source = <1800>;
  };

  gmac0-3-pins {
   power-source = <1800>;
  };

  /**
   * Add a PHY reset pin configuration.
   * This pin uses function 0 so that it is multiplexed as GPIO.
   * It is used to control PHY hardware reset. See the next section for details.
   */
  gmac0-6-pins {
   pinmux = <K3_PADCONF(15, 0)>;

   bias-disable;
   drive-strength = <25>;
   power-source = <1800>;
  };
 };
}

Then reference the pin configuration from the Ethernet node in the board DTS:

&eth0 {
 pinctrl-names = "default";
 pinctrl-0 = <&gmac0_cfg>;
 ...
}

GPIO​

Check the board schematic to identify the GPIO used for the Ethernet PHY reset signal. On K3 deb1, the PHY reset control pin is GPIO15.
In addition to configuring the pin function as described in the previous section, add the reset-related properties to the eth0 node in the board DTS:

&eth0 {
 ...
 snps,reset-gpios = <&gpio 0 15 GPIO_ACTIVE_LOW>;
 snps,reset-delays-us = <0 20000 100000>;
 ...
}

In this example, reset is held for 20 us, and the post-reset wait time is 100 us. The actual timing must satisfy the requirements defined in the PHY datasheet.

PHY Configuration​

The main PHY-related settings include:

  • phy-mode
  • phy-handle
  • the phy child node

Within the phy child node:

  • device matching is performed through the PHY ID in compatible
  • the PHY address is configured through reg
  • optional LED settings can be added when needed

The following example shows the configuration used on K3 deb1:

&eth0 {
 ...
 phy-mode = "rgmii";
 phy-handle = <&gmac0_phy>;
 ...
 mdio {
  #address-cells = <1>;
  #size-cells = <0>;
  compatible = "snps,dwmac-mdio";

  gmac0_phy: ethernet-phy@1 {
   compatible = "ethernet-phy-id001c.c916",
      "ethernet-phy-ieee802.3-c22";
   reg = <1>;

   leds {
    #address-cells = <1>;
    #size-cells = <0>;

    led@1 {
     reg = <1>;
     function = LED_FUNCTION_LAN;
     color = <LED_COLOR_ID_GREEN>;
     default-state = "keep";
    };

    led@2 {
     reg = <2>;
     function = LED_FUNCTION_LAN;
     color = <LED_COLOR_ID_YELLOW>;
     default-state = "keep";
    };
   };
  };
 }
 ...
};

TX phase and RX phase​

With an RGMII interface, phase skew between clock and data signals is affected by board-level PCB routing. In severe cases, this can cause PHY sampling errors.
The K3 platform supports clock phase offset configuration to:

  • optimize the sampling window
  • help meet strict setup and hold timing margins

The following example shows the configuration used on K3 deb1:

&eth0 {
 ...
 spacemit,clk-tuning-enable;
 spacemit,clk-tuning-by-delayline;
 spacemit,tx-phase = <73>;
 spacemit,rx-phase = <61>;
 ...
};

spacemit,clk-tuning-enable enables clock phase adjustment on the K3 platform.
In the following cases, this feature is usually not required:

  • the PHY uses an RMII or MII interface
  • delay is already provided on the PHY side
    When phase adjustment is handled by the K3 side, one of the following methods can be used:
spacemit,clk-tuning-by-reg
spacemit,clk-tuning-by-delayline
spacemit,clk-tuning-by-clk-revert

The values of spacemit,tx-phase and spacemit,rx-phase correspond to actual adjustment amounts. However, the actual effect depends heavily on factors such as board-level power conditions, so there is no exact absolute mapping between the configured value and the physical phase shift.

Different tuning methods provide different adjustment ranges:

  • spacemit,clk-tuning-by-reg: tx-phase and rx-phase range from 0 to 7, providing 8 tuning steps
  • spacemit,clk-tuning-by-delayline: tx-phase and rx-phase range from 0 to 254, providing 255 tuning steps
  • spacemit,clk-tuning-by-clk-revert: the clock phase is inverted by 180°; this method is used only in RMII mode

Other Settings​

  1. max-speed: Sets the maximum speed supported by the platform.

    &eth0 {
     ...
     max-speed = <1000>;
     ...
    };

  2. Enable WoL interrupt support.

    &eth0 {
     ...
     spacemit,wake-irq-enable;
     ...
    };

Note: When this property is present, the controller can respond to wake events and generate an interrupt to notify the CPU. Without this property, the controller can still respond to wake events, but the wake interrupt remains masked.

Complete DTS Configuration​

Based on the settings described above, a complete configuration example is shown below.


&eth0 {
 pinctrl-names = "default";
 pinctrl-0 = <&gmac0_cfg>;

 max-speed = <1000>;
 phy-mode = "rgmii";
 phy-handle = <&gmac0_phy>;
 snps,reset-gpios = <&gpio 0 15 GPIO_ACTIVE_LOW>;
 snps,reset-delays-us = <0 20000 100000>;

 spacemit,wake-irq-enable;

 spacemit,clk-tuning-enable;
 spacemit,clk-tuning-by-delayline;
 spacemit,tx-phase = <73>;
 spacemit,rx-phase = <61>;

 status = "okay";

 mdio {
  #address-cells = <1>;
  #size-cells = <0>;
  compatible = "snps,dwmac-mdio";

  gmac0_phy: ethernet-phy@1 {
   compatible = "ethernet-phy-id001c.c916",
      "ethernet-phy-ieee802.3-c22";
   reg = <1>;

   leds {
    #address-cells = <1>;
    #size-cells = <0>;

    led@1 {
     reg = <1>;
     function = LED_FUNCTION_LAN;
     color = <LED_COLOR_ID_GREEN>;
     default-state = "keep";
    };

    led@2 {
     reg = <2>;
     function = LED_FUNCTION_LAN;
     color = <LED_COLOR_ID_YELLOW>;
     default-state = "keep";
    };
   };
  };
 };
};

Common Commands​

View information for a specific network interface

ip addr show dev <INTERFACE>

Bring a network interface up

ip link set dev <INTERFACE> up

Bring a network interface down

ip link set dev <INTERFACE> down

View link status for a network interface

ip link show dev <INTERFACE>

Assign a static IP address to a network interface

ip addr add <IP>/<PREFIX> dev <INTERFACE>

Remove an IP address from a network interface

ip addr del <IP>/<PREFIX> dev <INTERFACE>

View basic NIC information

ethtool <INTERFACE>

View NIC driver information

ethtool -i <INTERFACE>

View NIC statistics

ethtool -S <INTERFACE>

View NIC offload features

ethtool -k <INTERFACE>

View NIC negotiation parameters

ethtool -a <INTERFACE>

Set NIC negotiation parameters

ethtool -A <INTERFACE> autoneg on rx on tx on

Disable NIC RX Pause

ethtool -A <INTERFACE> rx off

Disable NIC TX Pause

ethtool -A <INTERFACE> tx off

View NIC ring buffer parameters

ethtool -g <INTERFACE>

Set NIC ring buffer parameters

ethtool -G <INTERFACE> rx 1024 tx 1024

View NIC channel information

ethtool -l <INTERFACE>

Set NIC queue counts

ethtool -L <INTERFACE> tx 2 rx 2

View NIC interrupt coalescing parameters

ethtool -c <INTERFACE>

Set NIC interrupt coalescing parameters

ethtool -C <INTERFACE> rx-usecs 100 tx-usecs 100

View NIC timestamping capabilities

ethtool -T <INTERFACE>

View NIC EEE status

ethtool --show-eee <INTERFACE>

Disable NIC EEE

ethtool --set-eee <INTERFACE> eee off

Enable NIC EEE

ethtool --set-eee <INTERFACE> eee on

View NIC Wake-on-LAN status

ethtool <INTERFACE>

Disable NIC Wake-on-LAN

ethtool -s <INTERFACE> wol d

Enable NIC Wake-on-LAN

ethtool -s <INTERFACE> wol g

View current NIC speed and duplex settings

ethtool <INTERFACE>

Set NIC speed, duplex mode, and auto-negotiation parameters

ethtool -s <INTERFACE> speed 1000 duplex full autoneg on

View NIC self-test capability

ethtool -t <INTERFACE>

Run NIC self-test

ethtool -t <INTERFACE>

Debugging​

debugfs​

The driver provides a debugfs node that can be used to query and adjust the tx phase and rx phase parameters:

# View current phase settings
/sys/kernel/debug/cac80000.ethernet # cat clk_tuning
Emac MII Interface : RGMII
Current rx phase : 73
Current tx phase : 60

# Modify phase settings
echo tx 50 > /sys/kernel/debug/cac80000.ethernet/clk_tuning
echo rx 50 > /sys/kernel/debug/cac80000.ethernet/clk_tuning

Testing​

The following commands are commonly used during interface bring-up and connectivity testing.

View network interface information

ifconfig -a

Bring the network interface up

ip link set dev <INTERFACE> up

Bring the network interface down

ip link set dev <INTERFACE> down

Test connectivity to another host, assuming the peer IP address is 192.168.0.1

ping 192.168.0.1

Obtain an IP address through DHCP

udhcpc

Run traffic testing with iperf3

iperf3 -c <server_ip> -t 84200 --bidir

FAQ​

Common Issues​

DMA engine initialization failed​

If DMA engine initialization failed appears when the network interface is brought up, it usually indicates that the clock input from the PHY side to the GMAC side is not ready.
Check the following based on interface mode:

  • For RGMII or MII mode, verify that the hardware path from PHY RXC to GMAC RXC is connected correctly.
  • For RMII mode, verify that the 50 MHz reference clock is provided by the PHY and connected to GMAC REF_CLK.
~ # ifconfig eth0 up
[   43.944269] dwmac-spacemit-ethqos cac80000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[   43.950621] dwmac-spacemit-ethqos cac80000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-1
[   43.983474] dwmac-spacemit-ethqos cac80000.ethernet eth0: PHY [stmmac-0:01] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
[   44.993454] dwmac-spacemit-ethqos cac80000.ethernet eth0: Failed to reset the dma
[   44.998275] dwmac-spacemit-ethqos cac80000.ethernet eth0: stmmac_hw_setup: DMA engine initialization failed
[   45.008004] dwmac-spacemit-ethqos cac80000.ethernet eth0: __stmmac_open: Hw setup failed

If the network cable is connected, but the link never comes up after the interface is enabled, the following checks are recommended:

  1. The PHY device itself may not be operating correctly.

    • The RJ45 LEDs can be used as a quick indicator. If the LEDs remain off, the PHY is likely not working properly.

  2. The pin voltage configuration may not match the actual IO voltage.

  3. The GMAC MDC/MDIO signals may be abnormal.

  • Check the board-level connections carefully.
~ # ifconfig eth0 up
[   10.713066] dwmac-spacemit-ethqos cac80000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[   10.719441] dwmac-spacemit-ethqos cac80000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-1
[   10.753582] dwmac-spacemit-ethqos cac80000.ethernet eth0: PHY [stmmac-0:01] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
[   10.763126] dwmac4: Master AXI performs any burst length
[   10.767196] dwmac-spacemit-ethqos cac80000.ethernet eth0: No Safety Features support found
[   10.775655] dwmac-spacemit-ethqos cac80000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
[   10.784722] dwmac-spacemit-ethqos cac80000.ethernet eth0: registered PTP clock
[   10.791825] dwmac-spacemit-ethqos cac80000.ethernet eth0: configuring for phy/rgmii link mode
~ #
~ #
~ # ethtool eth0
Settings for eth0:
  Supported ports: [ TP MII ]
  Supported link modes:   10baseT/Full
        100baseT/Full
        1000baseT/Full
  Supported pause frame use: Symmetric Receive-only
  Supports auto-negotiation: Yes
  Advertised link modes:  10baseT/Full
        100baseT/Full
        1000baseT/Full
  Advertised pause frame use: Symmetric Receive-only
  Advertised auto-negotiation: Yes
  Speed: Unknown!
  Duplex: Unknown! (255)
  Port: Twisted Pair
  PHYAD: 1
  Transceiver: internal
  Auto-negotiation: on
  MDI-X: Unknown
  Supports Wake-on: ug
  Wake-on: d
  Current message level: 0x0000003f (63)
          drv probe link timer ifdown ifup
  Link detected: no

Packet Errors During Transmission or Reception​

Adjust phase settings through the debugfs node first. In most cases, a suitable tx phase and rx phase combination can be identified in one of the following ways:

  1. Capture the eye diagram with an oscilloscope and determine the optimal phase configuration.

  2. Start with a baseline tx phase and rx phase that allows successful ping to the peer, then sweep either tx phase or rx phase and select the midpoint of the valid range.

No Received Packets or Abnormal RX Counters​

  1. One possible cause is incorrect phase configuration, which introduces packet errors and causes the hardware to discard frames.

  2. Another possible cause is missing or abnormal GMAC RXD signaling, usually due to a disconnected or faulty link to the PHY side.

    • This can be confirmed further with MAC loopback and PHY loopback testing.
    • In such cases, MAC loopback often passes while PHY loopback fails.
