Clock
This document describes the K3 platform clock system, including its architecture, driver implementation, Device Tree configuration, usage model, and common debugging methods.
Overview
The clock system provides operating clocks for internal SoC modules and supports clock selection, division, and enable control.
Functionality
Clock Framework

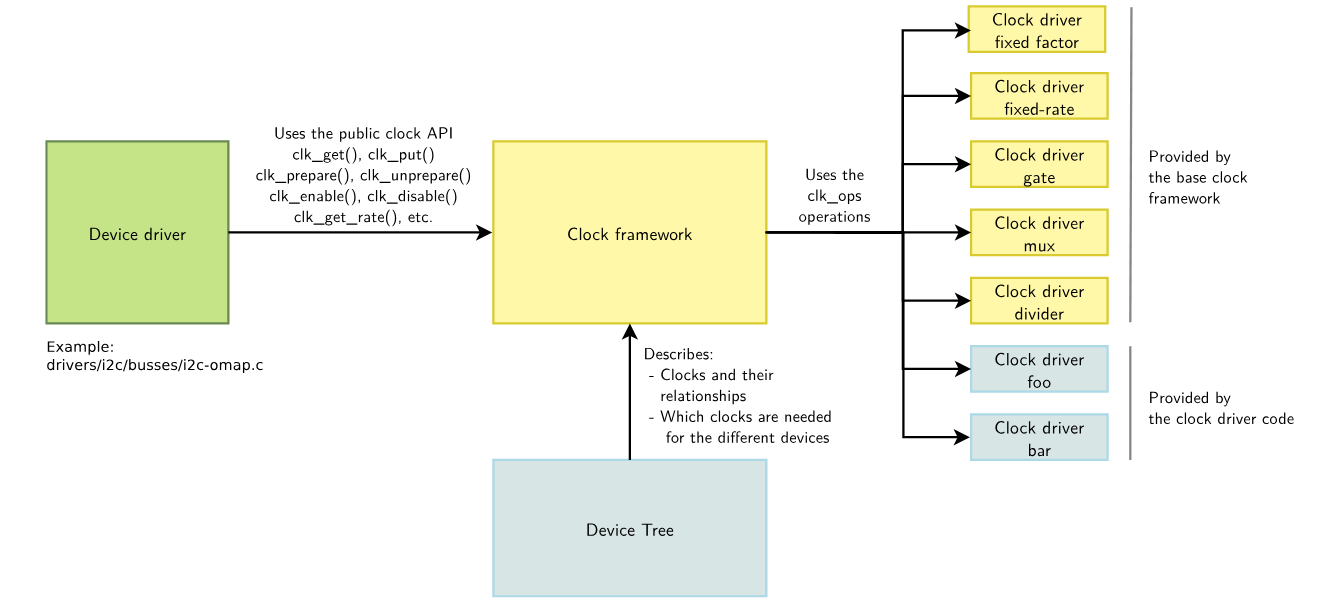

To simplify clock management, Linux provides the Common Clock Framework (CCF). It offers a unified interface to device drivers so that drivers do not need to depend on hardware-specific clock implementation details.
The CCF includes the following core components:
- clock provider: corresponds to the right side of the diagram, typically the clock controller, and provides the clocks required by the system.
- clock consumer: corresponds to the left side of the diagram and represents device drivers that use clocks. These drivers obtain, configure, and enable clocks through the generic APIs provided by CCF.
- clock framework: the core part of CCF. It provides generic clock control APIs to clock consumers, implements the core clock-management logic, and encapsulates hardware-specific clock control logic into operation callbacks implemented by the clock provider.
- Device Tree: CCF allows available clocks and their device associations to be declared in the Device Tree. The
clocksproperty identifies the clock resources used by a device through aprovider + IDformat, whileclock-namesprovides readable names for those resources. Device drivers use those names to obtain, configure, and manage the corresponding clock resources.
Clock Structure
A clock system typically contains the following components:
- Oscillator / Crystal: an active or passive crystal source that acts as the root clock source
- PLL (Phase Locked Loop): multiplies the base frequency for frequency synthesis
- Divider: generates lower frequencies through division
- MUX: selects between different clock sources
- GATE: controls whether a clock is enabled or disabled
Many such hardware modules may exist in the system and are usually arranged in a tree structure. Linux manages them as a clock tree. A typical clock tree starts from an oscillator or crystal source, then passes through PLL, MUX, DIV, and GATE stages before the final clocks are delivered to devices.
The K3 clock subsystem provides operating clocks for internal SoC modules and is responsible for the following tasks:
- derives different clock frequencies from fixed clock sources or PLLs for use by various modules
- provides clock-source selection through MUX blocks
- provides frequency division through Divider blocks
- provides clock enable and disable control through Gate blocks
CCF implements several basic clock types, including:
- fixed-rate clocks
- gate clocks
- divider clocks
- mux clocks
K3 Clock Architecture
The K3 platform does not use a single clock provider. Instead, the clock architecture is divided into multiple clock providers based on address domains.
| Clock provider node | Address | Typical usage |
|---|---|---|
pll | 0xd4090000 | PLL clocks |
syscon_mpmu | 0xd4050000 | MPMU-related base clocks and low-speed clocks |
syscon_apmu | 0xd4282800 | APMU-domain clocks such as QSPI, SDH, USB, and CPU |
syscon_apbc | 0xd4015000 | APB peripheral clocks such as UART, PWM, I2C, SPI, and RTC |
syscon_apbc2 | 0xf0610000 | APB peripheral clocks in the security domain |
syscon_dciu | 0xd8440000 | DCIU-related control |
syscon_rcpu_sysctrl | 0xc0880000 | R-domain system-control-related clocks and resets |
syscon_rcpu_uartctrl | 0xc0881f00 | R-domain UART |
syscon_rcpu_i2sctrl | 0xc0882000 | R-domain I2S |
syscon_rcpu_spictrl | 0xc0885f00 | R-domain SPI |
syscon_rcpu_i2cctrl | 0xc0886f00 | R-domain I2C |
syscon_rpmu | 0xc088c000 | R-domain PMU |
syscon_rcpu_pwmctrl | 0xc088d000 | R-domain PWM |
As a result, a common clock reference format in K3 DTS files is:
clocks = <&syscon_apbc CLK_APBC_SPI0>, <&syscon_apbc CLK_APBC_SPI0_BUS>;
This means:
- the clock provider is
syscon_apbc - the first clock ID is
CLK_APBC_SPI0 - the second clock ID is
CLK_APBC_SPI0_BUS
The correct clock provider and clock IDs must be determined according to the actual driver implementation.
Clocks and Resets
Clocks must be used together with reset signals to initialize hardware modules correctly. A typical K3 sequence is shown below.
Module initialization sequence
- Deassert reset (
reset_control_deassert) - Enable clocks (
clk_prepare_enable) - Configure the operating clock frequency (
clk_set_rate) - Configure module registers
- Start module operation
Module shutdown sequence
When a module enters sleep or is shut down, the reverse sequence is typically used:
- Stop module operation
- Disable clocks (
clk_disable_unprepare) - Assert reset (
reset_control_assert)
Source Tree Overview
Source Locations
K3 clock and reset related code is mainly located in:
linux-6.18/
|-- drivers/clk/spacemit/
| |-- ccu_common.h # Common clock structure definitions
| |-- ccu_pll.c # PLL clock driver source
| |-- ccu_pll.h # PLL clock header
| |-- ccu_mix.c # MIX clock driver source
| |-- ccu_mix.h # MIX clock header
| |-- ccu_ddn.c # DDN clock driver source
| |-- ccu_ddn.h # DDN clock header
| |-- ccu-k3.c # K3 clock controller driver
| |-- Kconfig # Configuration file
| `-- Makefile # Build Makefile
|-- include/dt-bindings/clock/
| `-- spacemit,k3-syscon.h # K3 clock and reset ID definitions
|-- include/soc/spacemit
| `-- k3-syscon.h # K3 clock and reset register definitions
`-- arch/riscv/boot/dts/spacemit/
|-- k3.dtsi
|-- k3-rdomain.dtsi
`-- k3*.dts
SpacemiT implements three clock types:
- PLL type: phase-locked loop clocks, including both PLL and PLLA types; K3 uses the PLLA type
- DDN type: fractional divider clocks, with one division stage for the denominator and one multiplication stage for the numerator
- MIX type: mixed clocks that support gate, mux, divider, or any combination of these functions
Custom Clock Types
The K3 clock driver implements three main clock types:
PLL Type
Function: phase-locked loop (PLL), used for frequency multiplication and frequency synthesis.
Characteristics:
- supports two PLL types: standard PLL and PLLA (fine-grained adjustable PLL)
- PLLA is a K3-specific extension that supports finer frequency adjustment
- provides multiple predefined operating frequency points
DDN Type
Function: fractional divider with fine-grained numerator and denominator adjustment.
Characteristics:
- one division stage for the denominator and one multiplication stage for the numerator
- supports fine-grained frequency adjustment
- commonly used for audio clocks and other scenarios that require precise frequencies
MIX Type
Function: mixed clock type supporting any combination of GATE, MUX, and DIVIDER.
Characteristics:
- supports any combination of GATE, MUX, and DIVIDER
- provides the highest flexibility and is suitable for most peripheral clocks
- has the most complex configuration model
Configuration
This mainly includes Kconfig configuration and DTS configuration.
Kconfig Configuration
CONFIG_COMMON_CLK: enables support for the Common Clock Framework. By default, this option is set toY.
-> Device Drivers│
│ -> Common Clock Framework (COMMON_CLK [=y])│
CONFIG_SPACEMIT_CCU: enables clock-type driver support for SpacemiT SoCs. WhenCONFIG_ARCH_SPACEMIT = Y, this option is set toY.
-> Device Drivers│
│ -> Common Clock Framework (COMMON_CLK [=y])│
│ -> Clock support for SpacemiT SoCs (SPACEMIT_CCU [=y])│
CONFIG_SPACEMIT_K3_CCU: enables support for the K3 clock controller driver. WhenCONFIG_SOC_SPACEMIT_K3 = Y, this option is set toY.
-> Device Drivers│
│ -> Common Clock Framework (COMMON_CLK [=y])│
│ -> Clock support for SpacemiT SoCs (SPACEMIT_CCU [=y])│
│ -> Support for SpacemiT K3 SoC (SPACEMIT_K3_CCU [=y])
DTS Configuration
The K3 clock controller is divided into multiple clock-controller instances by address domain.
Each clock controller manages the clocks within its own address domain.
These controller nodes are defined in k3.dtsi, and most of them also act as reset controllers, except pll.
The DTS configuration is shown below:
/ {
soc: soc {
...
syscon_mpmu: system-controller@d4050000 {
compatible = "spacemit,k3-syscon-mpmu";
reg = <0x0 0xd4050000 0x0 0x10000>;
clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>,
<&vctcxo_24m>, <&reserved_clk>, <&external_clk>;
clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
"reserved_clk", "external_clk";
#clock-cells = <1>;
#reset-cells = <1>;
};
pll: clock-controller@d4090000 {
compatible = "spacemit,k3-pll";
reg = <0x0 0xd4090000 0x0 0x10000>;
clocks = <&vctcxo_24m>;
spacemit,mpmu = <&syscon_mpmu>;
#clock-cells = <1>;
};
syscon_apmu: system-controller@d4282800 {
compatible = "spacemit,k3-syscon-apmu";
reg = <0x0 0xd4282800 0x0 0x400>;
clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>, <&vctcxo_24m>,
<&reserved_clk>, <&external_clk>;
clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
"reserved_clk", "external_clk";
#clock-cells = <1>;
#power-domain-cells = <1>;
#reset-cells = <1>;
};
syscon_apbc: system-controller@d4015000 {
compatible = "spacemit,k3-syscon-apbc";
reg = <0x0 0xd4015000 0x0 0x1000>;
clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>, <&vctcxo_24m>,
<&reserved_clk>, <&external_clk>;
clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
"reserved_clk", "external_clk";
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_apbc2: system-controller@f0610000 {
compatible = "spacemit,k3-syscon-apbc2";
reg = <0x0 0xf0610000 0x0 0x2000>;
clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>, <&vctcxo_24m>,
<&reserved_clk>, <&external_clk>;
clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
"reserved_clk", "external_clk";
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_dciu: system-controller@d8440000 {
compatible = "spacemit,k3-syscon-dciu";
reg = <0x0 0xd8440000 0x0 0xc000>;
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rcpu_sysctrl: system-controller@c0880000 {
compatible = "spacemit,k3-syscon-rcpu-sysctrl";
reg = <0x0 0xc0880000 0x0 0x1000>;
clocks = <&vctcxo_24m>, <&external_clk>;
clock-names = "vctcxo_24m", "external_clk";
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rcpu_uartctrl: system-controller@c0881f00 {
compatible = "spacemit,k3-syscon-rcpu-uartctrl";
reg = <0x0 0xc0881f00 0x0 0x100>;
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rcpu_i2sctrl: system-controller@c0882000 {
compatible = "spacemit,k3-syscon-rcpu-i2sctrl";
reg = <0x0 0xc0882000 0x0 0x1000>;
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rcpu_spictrl: system-controller@c0885f00 {
compatible = "spacemit,k3-syscon-rcpu-spictrl";
reg = <0x0 0xc0885f00 0x0 0x100>;
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rcpu_i2cctrl: system-controller@c0886f00 {
compatible = "spacemit,k3-syscon-rcpu-i2cctrl";
reg = <0x0 0xc0886f00 0x0 0x100>;
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rpmu: system-controller@c088c000 {
compatible = "spacemit,k3-syscon-rpmu";
reg = <0x0 0xc088c000 0x0 0x800>;
#clock-cells = <1>;
#reset-cells = <1>;
};
syscon_rcpu_pwmctrl: system-controller@c088d000 {
compatible = "spacemit,k3-syscon-rcpu-pwmctrl";
reg = <0x0 0xc088d000 0x0 0x100>;
#clock-cells = <1>;
#reset-cells = <1>;
};
...
};
};
These nodes declare themselves as clock providers through the #clock-cells = <1> property. Device nodes reference the required clock resources through the clocks and clock-names properties.
Interface
Clock API Overview
CCF provides generic clock-operation interfaces for device drivers. These APIs are defined in include/linux/clk.h. Commonly used interfaces are listed below.
get: obtain a clock handle
/*
* clk_get - get clk
* @dev: device
* @id: clock name of dts "clock-names"
*/
struct clk *clk_get(struct device *dev, const char *id);
/*
* devm_clk_get - get clk
* @dev：device
* @id：clock name of dts "clock-names"
*/
struct clk *devm_clk_get(struct device *dev, const char *id);
/*
* of_clk_get_by_name - get clk by name
* @np：device_node
* @id：clock name of dts "clock-names"
*/
struct clk *of_clk_get_by_name(struct device_node *np, const char *name);
If the second parameter is omitted in the interfaces above, the first clock in the DTS clocks list is returned by default.
put: release a clock handle
/*
* clk_put - put clk
* @clk: clock source
*/
void clk_put(struct clk *clk);
/*
* devm_clk_put - put clk
* @dev: device
* @clk: clock source
*/
void devm_clk_put(struct device *dev, struct clk *clk);
prepare: prepare a clock, typically as the setup step before it is enabled
/**
* clk_prepare - prepare a clock source
* @clk: clock source
* This prepares the clock source for use.
* Must not be called from within atomic context.
*/
int clk_prepare(struct clk *clk);
unprepare: undo clock preparation, typically as cleanup after it is disabled
/**
* clk_unprepare - undo preparation of a clock source
* @clk: clock source
* This undoes a previously prepared clock. The caller must balance
* the number of prepare and unprepare calls.
* Must not be called from within atomic context.
*/
void clk_unprepare(struct clk *clk);
enable: enable a clock
/**
* clk_enable - inform the system when the clock source should be running.
* @clk: clock source
* If the clock can not be enabled/disabled, this should return success.
* May be called from atomic contexts.
* Returns success (0) or negative errno.
*/
int clk_enable(struct clk *clk);
disable: disable a clock
/**
* clk_disable - inform the system when the clock source is no longer required.
* @clk: clock source
* Inform the system that a clock source is no longer required by
* a driver and may be shut down.
* May be called from atomic contexts.
* Implementation detail: if the clock source is shared between
* multiple drivers, clk_enable() calls must be balanced by the
* same number of clk_disable() calls for the clock source to be
* disabled.
*/
void clk_disable(struct clk *clk);
clk_prepare_enable combines clk_prepare and clk_enable, while clk_disable_unprepare combines clk_disable and clk_unprepare.
clk_prepare runs in a sleepable context, for example when regulators may be involved, while clk_enable executes quickly in atomic context, typically through direct register operations. In most driver code, the combined helper interfaces are recommended.
set rate: set the clock frequency
/**
* clk_set_rate - set the clock rate for a clock source
* @clk: clock source
* @rate: desired clock rate in Hz
* Updating the rate starts at the top-most affected clock and then
* walks the tree down to the bottom-most clock that needs updating.
* Returns success (0) or negative errno.
*/
int clk_set_rate(struct clk *clk, unsigned long rate);
get rate: obtain the current clock frequency
/**
* clk_get_rate - obtain the current clock rate (in Hz) for a clock source.
* This is only valid once the clock source has been enabled.
* @clk: clock source
*/
unsigned long clk_get_rate(struct clk *clk);
set parent: set the parent clock
/**
* clk_set_parent - set the parent clock source for this clock
* @clk: clock source
* @parent: parent clock source
* Returns success (0) or negative errno.
*/
int clk_set_parent(struct clk *clk, struct clk *parent);
get parent: obtain the current parent clock handle
/**
* clk_get_parent - get the parent clock source for this clock
* @clk: clock source
* Returns struct clk corresponding to parent clock source, or
* valid IS_ERR() condition containing errno.
*/
struct clk *clk_get_parent(struct clk *clk);
round rate: obtain the closest frequency that the clock controller can actually provide
/**
* clk_round_rate - adjust a rate to the exact rate a clock can provide
* @clk: clock source
* @rate: desired clock rate in Hz
* This answers the question "if I were to pass @rate to clk_set_rate(),
* what clock rate would I end up with?" without changing the hardware
* in any way. In other words:
* rate = clk_round_rate(clk, r);
* and:
* clk_set_rate(clk, r);
* rate = clk_get_rate(clk);
* are equivalent except the former does not modify the clock hardware
* in any way.
* Returns rounded clock rate in Hz, or negative errno.
*/
long clk_round_rate(struct clk *clk, unsigned long rate);
Usage Guide
This section describes usage from the perspectives of both the provider and the consumer.
Provider
K3 clock providers are already defined in k3.dtsi. In most cases, board-level DTS files do not need to create new provider nodes, so this part usually requires no additional work.
Consumer
Clock consumers generally need to complete the following tasks:
- Identify the correct clock provider and clock IDs, then configure
clocksin the DTS node. - Configure
clock-namesin the DTS node. - The values inclock-namesvary by device and depend on clock usage. - Custom naming is also possible when needed. - These names are mainly used by the driver when obtaining clock handles. - Common values includefunc,bus,clk, andgate. - If required, configure
assigned-clocks,assigned-clock-parents, andassigned-clock-ratesin the DTS node. - Obtain clock handles in the device driver through the clock APIs and perform the required clock operations.
Most K3 peripheral DTS nodes use a clock configuration similar to the following:
xxx: device@addr {
clocks = <&ClockProvider CLK_ID0>, <&ClockProvider CLK_ID1>;
clock-names = "func", "bus";
status = "disabled";
};
Clock providers and clock IDs can usually be matched by the clock ID prefix, as shown below:
| Clock ID prefix | Corresponding provider node |
|---|---|
| CLK_PLL_ | pll |
| CLK_MPMU_ | syscon_mpmu |
| CLK_APBC_ | syscon_apbc |
| CLK_APMU_ | syscon_apmu |
| CLK_DCIU_ | syscon_dciu |
| CLK_RCPU_SYSCTRL_ | syscon_rcpu_sysctrl |
| CLK_RCPU_UARTCTRL_ | syscon_rcpu_uartctrl |
| CLK_RCPU_I2SCTRL_ | syscon_rcpu_i2sctrl |
| CLK_RCPU_SPICTRL_ | syscon_rcpu_spictrl |
| CLK_RCPU_I2CCTRL_ | syscon_rcpu_i2cctrl |
| CLK_RPMU_ | syscon_rpmu |
| CLK_RCPU_PWMCTRL_ | syscon_rcpu_pwmctrl |
| CLK_APBC2_ | syscon_apbc2 |
Usage Example
To use clock functionality in a module, configure the clocks and clock-names properties in DTS, then perform clock-related operations through the CCF APIs in the driver.
-
Configure the DTS
Find the required clock IDs in
include/dt-bindings/clock/spacemit,k3-syscon.h, then add them to the module DTS.`can0` is used as an example below.`can0` uses two clock IDs: `CLK_APBC_CAN0` and `CLK_APBC_CAN0_BUS`. These correspond to the functional clock and bus clock respectively. Since the prefix `CLK_APBC_` maps to `syscon_apbc`, the DTS configuration is as follows:
flexcan0: fdcan@d4028000 {
compatible = "spacemit,k1-flexcan";
reg = <0x0 0xd4028000 0x0 0x4000>;
interrupts = <161 IRQ_TYPE_LEVEL_HIGH>;
interrupt-parent = <&saplic>;
fsl,clk-source = <0>;
clocks = <&syscon_apbc CLK_APBC_CAN0>,<&syscon_apbc CLK_APBC_CAN0_BUS>;
clock-names = "per","ipg";
resets = <&syscon_apbc RESET_APBC_CAN0>;
status = "disabled";
};
-
Add the header file and
clkmembersAdd the required header file and structure members in the driver code:
#include <linux/clk.h>
struct flexcan_priv {
struct clk *clk_ipg;
struct clk *clk_per;
};
-
Obtain clock handles
In most cases, clock handles are obtained with
devm_clk_getduring the driver probe stage. If probe fails or the driver is removed, the handles are released automatically.
clk_ipg = devm_clk_get(&pdev->dev, "ipg"); // Get the handle for bus clock CLK_APBC_CAN0_BUS
if (IS_ERR(clk_ipg)) {
dev_err(&pdev->dev, "no ipg clock defined\n");
return PTR_ERR(clk_ipg);
}
clk_per = devm_clk_get(&pdev->dev, "per"); // Get the handle for functional clock CLK_APBC_CAN0
if (IS_ERR(clk_per)) {
dev_err(&pdev->dev, "no per clock defined\n");
return PTR_ERR(clk_per);
}
-
Enable clocks
Use
clk_prepare_enableto enable clock nodes.
if (priv->clk_ipg) {
err = clk_prepare_enable(priv->clk_ipg); // Enable bus clock CLK_APBC_CAN0_BUS
if (err)
return err;
}
if (priv->clk_per) {
err = clk_prepare_enable(priv->clk_per); // Enable functional clock CLK_APBC_CAN0
if (err)
clk_disable_unprepare(priv->clk_ipg);
}
-
Get the clock frequency
Use
clk_get_rateto obtain the current clock frequency.
clock_freq = clk_get_rate(clk_per); // Get the current frequency of functional clock CLK_APBC_CAN0
-
Set the clock frequency
Use
clk_set_rateto change the clock frequency. The first parameter is the clock handle (struct clk *), and the second is the target frequency.
clk_set_rate(clk_per, clock_freq); // Set the frequency of functional clock CLK_APBC_CAN0
-
Disable clocks
Use
clk_disable_unprepareto disable clocks.
clk_disable_unprepare(priv->clk_per); // Disable functional clock CLK_APBC_CAN0
clk_disable_unprepare(priv->clk_ipg); // Disable bus clock CLK_APBC_CAN0_BUS
Debugging
Clock behavior can be inspected and debugged through debugfs.
clk_summary
/sys/kernel/debug/clk/clk_summary is commonly used to print the full clock tree and inspect clock-node status, frequency, parent clocks, and related information.
root# cat /sys/kernel/debug/clk/clk_summary
Clock Node Information
Individual clock nodes can also be inspected separately for status, frequency, parent clock, and related properties. can0_clk is used as an example below:
root:/sys/kernel/debug/clk/can0_clk # ls -l
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_accuracy
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_duty_cycle
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_enable_count
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_flags
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_max_rate
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_min_rate
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_notifier_count
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_parent
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_phase
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_possible_parents
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_prepare_count
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_prepare_enable
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_protect_count
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_rate
root:/sys/kernel/debug/clk/can0_clk# cat clk_prepare_count # Check enable state
0
root:/sys/kernel/debug/clk/can0_clk# cat clk_rate # Check current frequency
20000000
root:/sys/kernel/debug/clk/can0_clk# cat clk_parent # Check current parent clock
pll3_20
root:/sys/kernel/debug/clk/can0_clk#
Dynamic Clock-Node Operations
If the CLOCK_ALLOW_WRITE_DEBUGFS macro is added in drivers/clk/clk.c, write access becomes available for some clock nodes under debugfs. Otherwise, only read access is allowed.
/sys/kernel/debug/clk/can0_clk # ls -l
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_accuracy
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_duty_cycle
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_enable_count
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_flags
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_max_rate
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_min_rate
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_notifier_count
-rw-r--r-- 1 root root 0 Jan 1 08:03 clk_parent # Read/write
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_phase
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_possible_parents
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_prepare_count
-rw-r--r-- 1 root root 0 Jan 1 08:03 clk_prepare_enable # Read/write
-r--r--r-- 1 root root 0 Jan 1 08:03 clk_protect_count
-rw-r--r-- 1 root root 0 Jan 1 08:03 clk_rate # Read/write
/sys/kernel/debug/clk/can0_clk # cat clk_rate # Check frequency
20000000
/sys/kernel/debug/clk/can0_clk # echo 40000000 > clk_rate # Set frequency to 40 MHz
/sys/kernel/debug/clk/can0_clk # cat clk_rate # Confirm the result
40000000
/sys/kernel/debug/clk/can0_clk # cat clk_parent # Check parent clock
pll3_40
/sys/kernel/debug/clk/can0_clk # echo 0 > clk_parent # Set the parent clock to source index 0
/sys/kernel/debug/clk/can0_clk # cat clk_parent # Confirm the result
pll3_20
/sys/kernel/debug/clk/can0_clk # cat clk_prepare_enable # Check prepare-enable state
0
/sys/kernel/debug/clk/can0_clk # echo 1 > clk_prepare_enable # Prepare and enable the clock node
/sys/kernel/debug/clk/can0_clk # cat clk_prepare_enable # Confirm the result
1
/sys/kernel/debug/clk/can0_clk # echo 0 > clk_prepare_enable # Unprepare and disable the clock node
/sys/kernel/debug/clk/can0_clk # cat clk_prepare_enable # Confirm the result
0
/sys/kernel/debug/clk/can0_clk #
FAQ
1. What should be checked if a module does not work?
- Verify the DTS configuration:
- confirm that
clocksis configured - confirm that the provider and clock IDs are correct - confirm that theclock-namesorder is correct - Check which names are requested by
devm_clk_get()in the driver and whether errors such asfailed to get clkorfailed to enable clkare reported. - Inspect the clock tree through
debugfs: - verify that the clock is enabled - verify the active parent clock - verify that the frequency matches expectations - Confirm that reset is properly deasserted in the driver.
- Confirm that clock and reset sequencing is correct.
- Confirm that other dependencies are satisfied, such as
pinctrl,power-domain, andregulator.
2. Why do some modules use syscon_apbc while others use syscon_apmu?
Because they belong to different clock, power, or bus domains. In general:
- low-speed APB peripherals are more commonly connected to
syscon_apbc - high-speed or more complex modules are more commonly connected to
syscon_apmu - R-domain modules are more commonly connected to the
syscon_rcpu_*provider family
The methods described in the Usage Guide section can be used to identify the correct mapping.
