Reset

This document describes the K3 platform reset system, including its architecture, driver implementation, device tree configuration, usage, and common debugging methods.

Overview​

The reset system controls reset signals for internal SoC modules. It returns modules to a known state and ensures correct initialization.

Functionality​

Reset Framework​

Linux provides a reset management layer called the Reset Controller Framework. It gives device drivers a unified reset interface, so they do not need to handle hardware-specific reset logic directly.

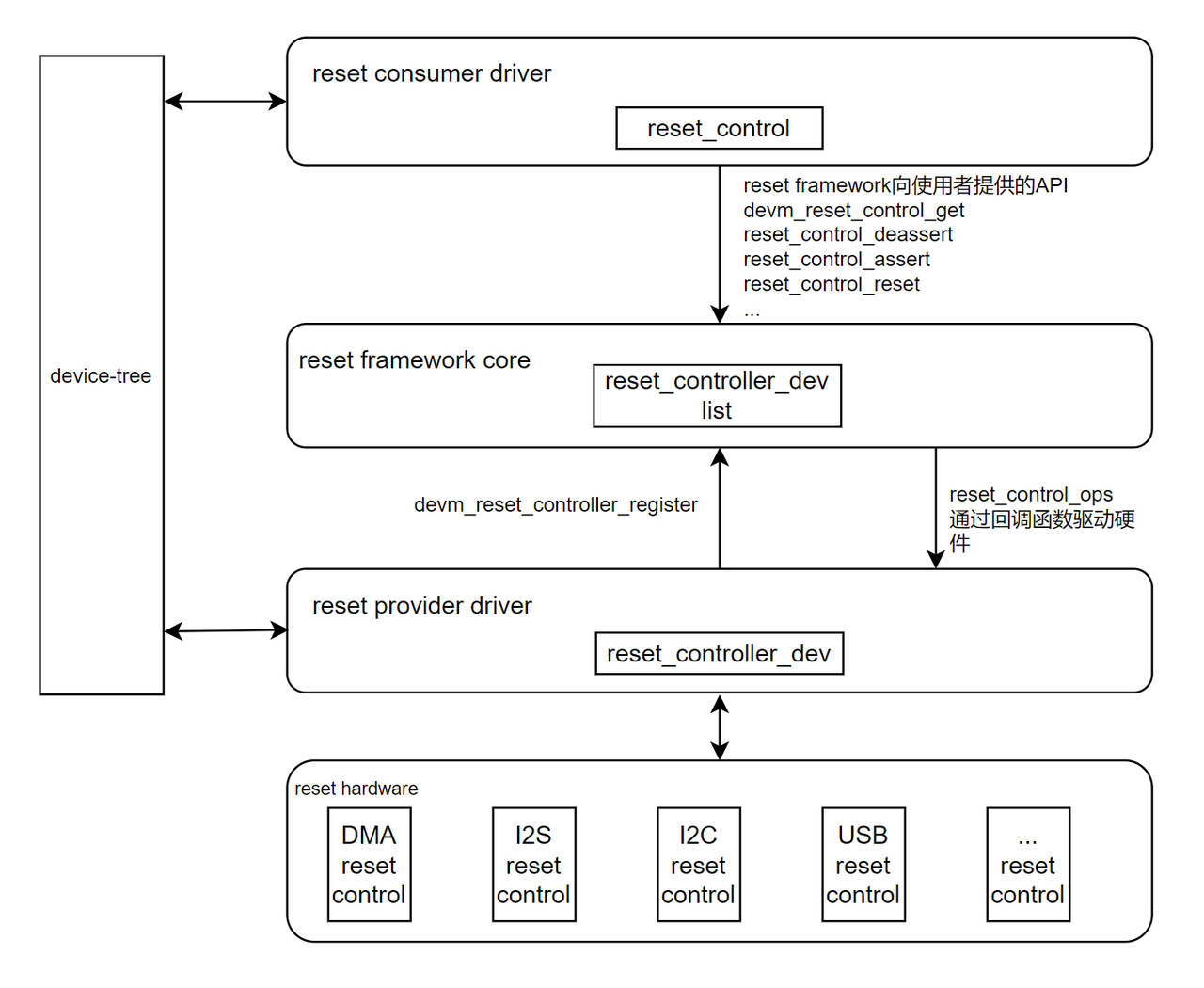

The Reset Controller Framework includes the following core components:

  • reset provider: A reset controller that provides the reset signals required by the system.
  • reset consumer: A device driver that uses reset signals. It acquires and controls resets through the common APIs provided by the Reset Controller Framework.
  • reset framework: The core of the Reset Controller Framework. It provides generic reset APIs to consumers, implements the central reset management logic, and delegates hardware-specific reset operations to the reset provider.
  • device tree: The Reset Controller Framework allows reset signals and their device associations to be declared in the device tree. - The resets property identifies the reset resource used by a device through a provider + ID pair. - The reset-names property provides readable names for those resources, allowing device drivers to acquire and manage them by name.

Reset Functions​

The reset system provides the following main functions:

  • Assert: Places a module in the reset state and stops it from running.
  • Deassert: Releases a module from the reset state and allows normal operation.
  • Reset: Performs a complete reset cycle by asserting and then deasserting the reset signal.
  • Status: Checks whether the module is currently in the reset state.

K3 Reset Architecture​

On the K3 platform, the reset architecture is tightly coupled with the clock architecture. It is divided into multiple reset providers by address domain, and each reset provider maps to a matching clock provider.

Reset provider nodeAddressTypical usage
syscon_mpmu0xd4050000Basic resets related to MPMU
syscon_apmu0xd4282800APMU domain resets, such as QSPI, SDH, USB, and CPU
syscon_apbc0xd4015000APB peripheral resets, such as UART, PWM, I2C, SPI, and RTC
syscon_apbc20xf0610000Security-domain APB peripheral resets
syscon_dciu0xd8440000DCIU-related control
syscon_rcpu_sysctrl0xc0880000R-domain system control related resets
syscon_rcpu_uartctrl0xc0881f00R-domain UART
syscon_rcpu_i2sctrl0xc0882000R-domain I2S
syscon_rcpu_spictrl0xc0885f00R-domain SPI
syscon_rcpu_i2cctrl0xc0886f00R-domain I2C
syscon_rpmu0xc088c000R-domain PMU
syscon_rcpu_pwmctrl0xc088d000R-domain PWM

The following is a common reset reference pattern in K3 DTS files:

resets = <&syscon_apbc RESET_APBC_CAN0>;

This means:

  • The reset provider is syscon_apbc
  • The reset ID is RESET_APBC_CAN0

Select the correct reset provider and reset ID based on the actual driver implementation.

Reset and Clock Coordination​

Reset control must be coordinated with clocks to initialize hardware modules correctly. A typical K3 workflow is shown below.

Module initialization flow

  1. Release reset (reset_control_deassert)
  2. Enable the clock (clk_prepare_enable)
  3. Configure the operating clock rate (clk_set_rate)
  4. Configure module registers
  5. Start the module

Module shutdown flow

When the module enters sleep mode or is shut down, perform the steps in reverse order:

  1. Stop the module
  2. Disable the clock (clk_disable_unprepare)
  3. Assert reset for the module (reset_control_assert)

Source Code Structure​

Source Locations​

K3 reset-related code is mainly located in the following paths:

linux-6.18/
|-- drivers/reset/
|   `-- reset-spacemit.c          # K3 reset controller driver
|-- include/dt-bindings/clock/
|   `-- spacemit,k3-syscon.h      # K3 reset and clock ID definitions
|-- include/soc/spacemit
|   `-- k3-syscon.h               # K3 reset and clock register definitions
`-- arch/riscv/boot/dts/spacemit/
    |-- k3.dtsi
    |-- k3-rdomain.dtsi
    `-- k3*.dts

The SpacemiT K3 reset driver implements the standard Reset Controller Framework interfaces:

  • reset_control_assert(): Sets the reset signal to the asserted state and resets the module.
  • reset_control_deassert(): Sets the reset signal to the deasserted state and releases the module from reset.

Configuration​

Kconfig Settings​

  • CONFIG_RESET_CONTROLLER: Enables Reset Controller Framework support and provides the base reset framework for the system.
-> Device Drivers│
  │       -> Reset Controller Support (RESET_CONTROLLER [=y])│
  • CONFIG_SPACEMIT_RESET: Enables the SpacemiT reset driver and provides the platform-specific reset controller implementation.
-> Device Drivers│
  │       -> Reset Controller Support (RESET_CONTROLLER [=y])│
  │              -> SpacemiT SoC reset controller (SPACEMIT_RESET [=y])│

DTS Configuration​

K3 reset controllers are divided into multiple reset controller instances by address domain. Each reset controller manages reset signals within one address domain. These reset controller nodes are defined in k3.dtsi, and they also act as clock controllers. The DTS configuration is shown below:

/ {
        soc: soc {
                ...
                syscon_mpmu: system-controller@d4050000 {
                        compatible = "spacemit,k3-syscon-mpmu";
                        reg = <0x0 0xd4050000 0x0 0x10000>;
                        clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>,
                                 <&vctcxo_24m>, <&reserved_clk>, <&external_clk>;
                        clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
                                      "reserved_clk", "external_clk";
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_apmu: system-controller@d4282800 {
                        compatible = "spacemit,k3-syscon-apmu";
                        reg = <0x0 0xd4282800 0x0 0x400>;
                        clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>, <&vctcxo_24m>,
                                 <&reserved_clk>, <&external_clk>;
                        clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
                                      "reserved_clk", "external_clk";
                        #clock-cells = <1>;
                        #power-domain-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_apbc: system-controller@d4015000 {
                        compatible = "spacemit,k3-syscon-apbc";
                        reg = <0x0 0xd4015000 0x0 0x1000>;
                        clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>, <&vctcxo_24m>,
                                 <&reserved_clk>, <&external_clk>;
                        clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
                                      "reserved_clk", "external_clk";
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_apbc2: system-controller@f0610000 {
                        compatible = "spacemit,k3-syscon-apbc2";
                        reg = <0x0 0xf0610000 0x0 0x2000>;
                        clocks = <&osc_32k>, <&vctcxo_1m>, <&vctcxo_3m>, <&vctcxo_24m>,
                                 <&reserved_clk>, <&external_clk>;
                        clock-names = "osc_32k", "vctcxo_1m", "vctcxo_3m", "vctcxo_24m",
                                      "reserved_clk", "external_clk";
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_dciu: system-controller@d8440000 {
                        compatible = "spacemit,k3-syscon-dciu";
                        reg = <0x0 0xd8440000 0x0 0xc000>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rcpu_sysctrl: system-controller@c0880000 {
                        compatible = "spacemit,k3-syscon-rcpu-sysctrl";
                        reg = <0x0 0xc0880000 0x0 0x1000>;
                        clocks = <&vctcxo_24m>, <&external_clk>;
                        clock-names = "vctcxo_24m", "external_clk";
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rcpu_uartctrl: system-controller@c0881f00 {
                        compatible = "spacemit,k3-syscon-rcpu-uartctrl";
                        reg = <0x0 0xc0881f00 0x0 0x100>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rcpu_i2sctrl: system-controller@c0882000 {
                        compatible = "spacemit,k3-syscon-rcpu-i2sctrl";
                        reg = <0x0 0xc0882000 0x0 0x1000>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rcpu_spictrl: system-controller@c0885f00 {
                        compatible = "spacemit,k3-syscon-rcpu-spictrl";
                        reg = <0x0 0xc0885f00 0x0 0x100>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rcpu_i2cctrl: system-controller@c0886f00 {
                        compatible = "spacemit,k3-syscon-rcpu-i2cctrl";
                        reg = <0x0 0xc0886f00 0x0 0x100>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rpmu: system-controller@c088c000 {
                        compatible = "spacemit,k3-syscon-rpmu";
                        reg = <0x0 0xc088c000 0x0 0x800>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };

                syscon_rcpu_pwmctrl: system-controller@c088d000 {
                        compatible = "spacemit,k3-syscon-rcpu-pwmctrl";
                        reg = <0x0 0xc088d000 0x0 0x100>;
                        #clock-cells = <1>;
                        #reset-cells = <1>;
                };
                ...
        };
};

These nodes declare themselves as reset providers through the #reset-cells = <1> property. Individual device nodes reference the required reset resources through the resets and reset-names properties.

API Description​

The Reset Controller Framework provides a unified reset API for device drivers. These interfaces are declared in include/linux/reset.h. Common APIs are listed below.

  • get: Acquire a reset handle
/**
 * devm_reset_control_get - get reset control
 * @dev: device
 * @id: reset name
 * Returns a reset control or IS_ERR() condition containing errno.
 */
struct reset_control *devm_reset_control_get(struct device *dev, const char *id);

/**
 * of_reset_control_get_by_name - get reset control by name
 * @node: device
 * @name: reset name
 * Returns a reset control or IS_ERR() condition containing errno.
 */
struct reset_control *of_reset_control_get_by_name(struct device_node *node,
                                                   const char *name);

If the second parameter is omitted, these interfaces return the first entry in the DTS resets list by default.

  • put: Release a reset handle
/**
 * reset_control_put - release a reset control
 * @rstc: reset control
 */
void reset_control_put(struct reset_control *rstc);
  • assert: Assert reset
/**
 * reset_control_assert - asserts the reset line
 * @rstc: reset control
 * Returns 0 on success or negative errno on failure.
 */
int reset_control_assert(struct reset_control *rstc);
  • deassert: Deassert reset
/**
 * reset_control_deassert - deasserts the reset line
 * @rstc: reset control
 * Returns 0 on success or negative errno on failure.
 */
int reset_control_deassert(struct reset_control *rstc);
  • reset: Perform a complete reset cycle
/**
 * reset_control_reset - perform a complete reset of the device
 * @rstc: reset control
 * Returns 0 on success or negative errno on failure.
 * This function will assert, then deassert the reset line.
 */
int reset_control_reset(struct reset_control *rstc);

Usage​

This section describes reset usage from both the provider and consumer perspectives.

Provider​

K3 reset providers are already defined in k3.dtsi. In most cases, no additional provider configuration is required in the board-level DTS.

Consumer​

A reset consumer typically needs to:

  • Find the correct reset provider and reset ID, and configure resets in the DTS node.
  • Configure reset-names in the DTS node. - The reset-names values vary by device and depend on the purpose of each reset. - They can be customized if needed. - Drivers use these names when acquiring reset handles. - Common values include reset, rst, and sys_rst.
  • Acquire reset handles in the device driver through the reset APIs and perform the required reset operations.

Most K3 peripheral DTS nodes use a reset configuration similar to the following:

xxx: device@addr {
	resets = <&ResetProvider RESET_ID>;
	status = "disabled";
};

The reset provider can usually be identified from the prefix of the reset ID. The mapping is shown below:

Reset ID prefixCorresponding provider node
RESET_MPMU_syscon_mpmu
RESET_APMU_syscon_apmu
RESET_APBC_syscon_apbc
RESET_APBC2_syscon_apbc2
RESET_DCIU_syscon_dciu
RESET_RCPU_SYSCTRL_syscon_rcpu_sysctrl
RESET_RCPU_UARTCTRL_syscon_rcpu_uartctrl
RESET_RCPU_I2SCTRL_syscon_rcpu_i2sctrl
RESET_RCPU_SPICTRL_syscon_rcpu_spictrl
RESET_RCPU_I2CCTRL_syscon_rcpu_i2cctrl
RESET_RPMU_syscon_rpmu
RESET_RCPU_PWMCTRL_syscon_rcpu_pwmctrl

Usage Example​

To use reset functionality, a module must define resets and reset-names in DTS, then perform reset-related operations in the driver through the Reset Controller Framework APIs.

  • Configure DTS

    Find the corresponding reset ID in include/dt-bindings/clock/spacemit,k3-syscon.h, and add it to the module DTS.

    Take can0 as an example. can0 has only one reset ID: RESET_APBC_CAN0. The prefix RESET_APBC_ maps to the provider syscon_apbc, so the DTS configuration is as follows:

    flexcan0: fdcan@d4028000 {
        compatible = "spacemit,k1-flexcan";
        reg = <0x0 0xd4028000 0x0 0x4000>;
        interrupts = <161 IRQ_TYPE_LEVEL_HIGH>;
        interrupt-parent = <&saplic>;
        fsl,clk-source = <0>;
        clocks = <&syscon_apbc CLK_APBC_CAN0>,<&syscon_apbc CLK_APBC_CAN0_BUS>;
        clock-names = "per","ipg";
        resets = <&syscon_apbc RESET_APBC_CAN0>;
        reset-names = "reset";
        status = "disabled";
    };

  • Add the header file and reset_control structure

    Add the following header file and structure definition to the driver code:

#include <linux/reset.h>
struct flexcan_priv {
        struct reset_control *reset;
};

  • Acquire the reset handle

    Use devm_reset_control_get_optional to acquire the reset handle:

reset = devm_reset_control_get_optional(&pdev->dev, "reset");
        if(IS_ERR(reset)) {
                dev_err(&pdev->dev, "flexcan get reset failed\n");
                return PTR_ERR(reset);
        }

  • Release reset

    Use reset_control_deassert to release reset:

        if (priv->reset) {
                err = reset_control_deassert(priv->reset);
                if (err && priv->clk_ipg && priv->clk_per) {
                        clk_disable_unprepare(priv->clk_per);
                        clk_disable_unprepare(priv->clk_ipg);
                }
        }

  • Assert reset

    Use reset_control_assert to reset the module:

        if (priv->reset)
                reset_control_assert(priv->reset);

FAQ​

  • Check whether the DTS configuration is correct:
    • Is resets configured?
    • Are the provider and ID correct?
    • Does reset-names match the driver?
  • Check whether the provider node includes the #reset-cells = <1> property.
  • Check which name the driver actually passes to devm_reset_control_get(), and whether any errors are reported, such as failed to get reset or failed to deassert reset.
  • Check whether the driver deasserts reset correctly.
  • Check whether the reset and clock sequence is correct.
  • Check whether any other dependencies are missing, such as clock, pinctrl, power-domain, or regulator.

2. Why do some modules use syscon_apbc while others use syscon_apmu?​

Because they belong to different clock, power, or bus domains. In general:

  • Low-speed APB peripherals are more commonly associated with syscon_apbc.
  • High-speed or more complex modules are more commonly associated with syscon_apmu.
  • R-domain modules are more commonly associated with the syscon_rcpu_* provider series.

See the method described in the Usage section.

3. What is the difference between reset_control_get and reset_control_get_optional?​

  • reset_control_get: Returns an error if the resets property is not configured in DTS.
  • reset_control_get_optional: Returns NULL instead of an error if the resets property is not configured in DTS, which means the reset signal is optional.

For modules where the reset signal is optional, use the _optional interface. This allows the driver to continue working even if no reset signal is configured.

4. When should reset_control_assert be called?​

reset_control_assert is typically used in the following scenarios:

  • When a module is unloaded or shut down, to reset it and reduce power consumption
  • When a module encounters an error and needs to be reinitialized
  • When the system enters a low-power mode

In most cases, it is sufficient to call reset_control_deassert during initialization to release reset.
