I2C

This document describes the I2C driver features and how to use them.

Module Overview

The K3 I2C module is compliant with the I2C bus specification. On the K3 platform, the module is accessed by the RCPU and implemented on top of the RT-Thread I2C driver framework, providing a complete I2C master interface for communication with a wide range of I2C slave devices such as EEPROMs and sensors. The driver also provides an RPMsg-based I2C interrupt forwarding service to support coordinated I2C access between the main cores and the small core.

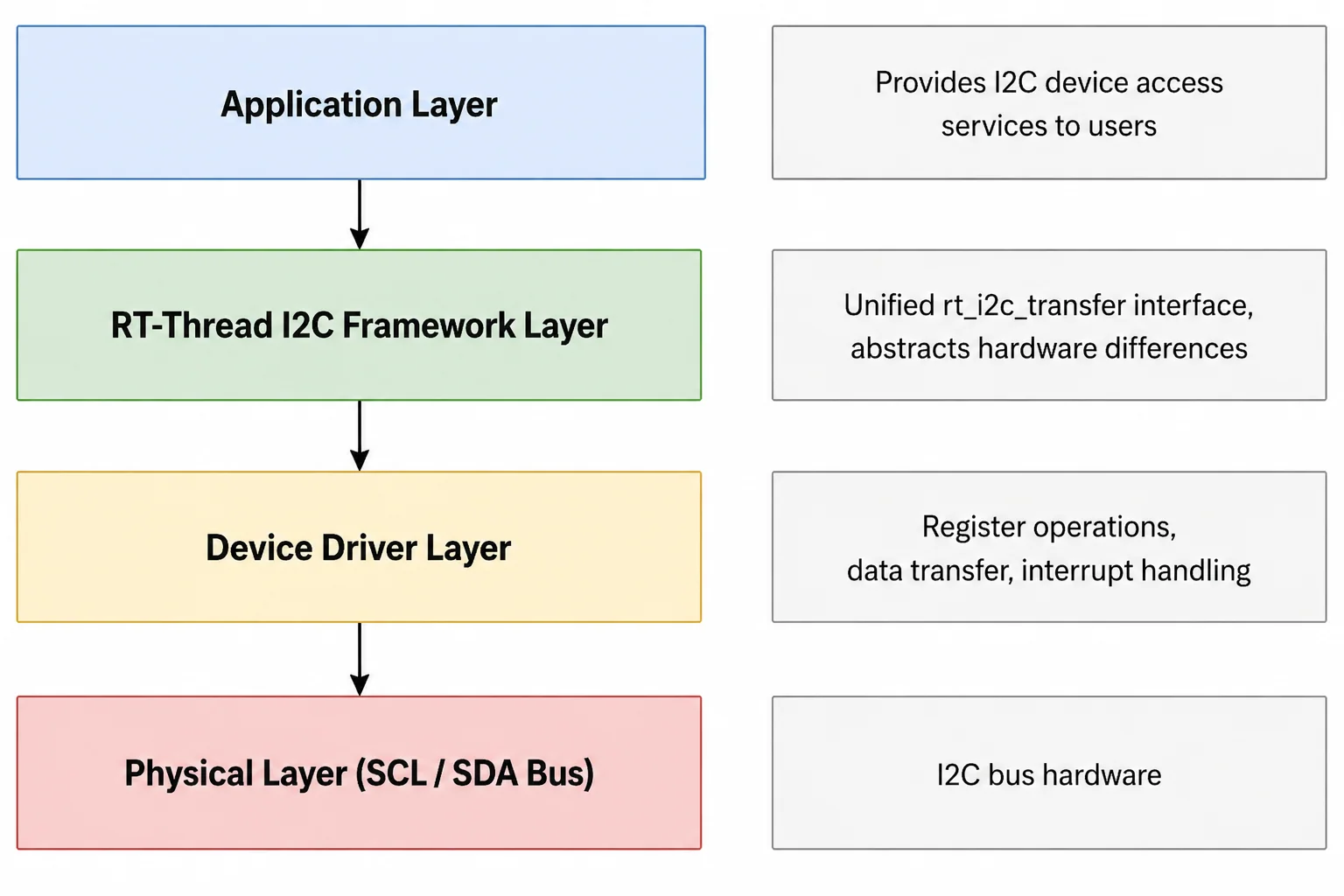

Architecture

• Application layer: Provides I2C device access services for applications.
• RT-Thread I2C framework layer: Provides the unified rt_i2c_transfer interface and abstracts underlying hardware differences.
• Device driver layer: Implements I2C controller register access, data transfer, and interrupt handling.
• Physical layer: I2C bus hardware (SCL/SDA).

Source Code Structure

The driver source code is located in esos/bsp/spacemit/drivers/i2c. The main files are listed below:

esos/bsp/spacemit/drivers/i2c
.
|-- i2c-k1.c            # Core I2C controller driver
|-- i2c-k1.h            # I2C controller register definitions and data structures
|-- i2c-test.c          # I2C test utility for debugging and basic functional tests
|-- i2c_service.c       # RPMsg-based I2C interrupt forwarding service for heterogeneous core scenarios
`-- SConscript

Key Features

Feature	Description
Standard mode support (100 KHz)	Default speed mode
Fast mode support (400 KHz)	Enabled through the DTS property spacemit,i2c-fast-mode
High-speed mode support (1.5 MHz)	Enabled through the DTS property spacemit,i2c-high-mode; requires a configured master code
Interrupt-based transfer mode	Byte-by-byte interrupt-driven transfer, suitable for messages of any length
FIFO transfer mode	When intr_enable = false and the total message length does not exceed the FIFO depth (8), the driver automatically selects FIFO mode to reduce interrupt overhead
SMBus block read support	Supports the RT_I2C_M_RECV_LEN flag, allowing the slave device to return the data length dynamically
Bus recovery support	When the bus is held by a slave device, the driver automatically sends up to 9 clock pulses for recovery
Multi-instance support	Supports three I2C controller instances: ri2c0, ri2c1, and ri2c2

Configuration

1. BSP_USING_I2C: Enables the I2C driver.

   config BSP_USING_I2C
     bool "Enable I2C"
     default n

2. BSP_I2C_TEST: Enables the I2C test utility.

   if BSP_USING_I2C
     config BSP_I2C_TEST
        bool "Enable I2C test driver"
        default n
   endif

DTS Properties

Property	Description
spacemit,i2c-fast-mode	Enables fast mode (400 KHz)
spacemit,i2c-high-mode	Enables high-speed mode (1.5 MHz)
spacemit,i2c-master-code	Master code used in high-speed mode (default: 0x0e)
spacemit,i2c-clk-rate	I2C operating clock frequency
spacemit,i2c-lcr	Load Count Register value used to control clock timing
spacemit,i2c-wcr	Wait Count Register value used to control wait timing
spacemit,sda-glitch-nofix	Bypasses the SDA glitch-fix logic. In some hardware scenarios, the SDA glitch-fix logic can cause transfer timeouts. When this property is set, the driver sets the RCR_SDA_GLITCH_NOFIX bit in the RST_CYC register

Usage Examples

The I2C driver integrates with the RT-Thread I2C framework. Applications can perform I2C communication through the standard interface.

• Find an I2C bus device

struct rt_i2c_bus_device *bus = rt_i2c_bus_device_find("ri2c0");

• Perform I2C data transfer with combined messages

struct rt_i2c_msg msgs[2];

/* Write: send register address */
msgs[0].addr  = slave_addr;
msgs[0].flags = RT_I2C_WR;
msgs[0].buf   = &reg_addr;
msgs[0].len   = 1;

/* Read: receive data */
msgs[1].addr  = slave_addr;
msgs[1].flags = RT_I2C_RD;
msgs[1].buf   = recv_buf;
msgs[1].len   = recv_len;

rt_i2c_transfer(bus, msgs, 2);

• Single-byte write

rt_uint8_t buf[2] = {reg_addr, value};
struct rt_i2c_msg msg = {
    .addr  = slave_addr,
    .flags = RT_I2C_WR,
    .buf   = buf,
    .len   = 2,
};

rt_i2c_transfer(bus, &msg, 1);

Debugging

Test Utilities

Basic functional testing can be performed on the small-core serial console by using the I2C test utility. The common commands are as follows:

1. List available I2C bus devices.

   i2c_list

2. Run a full read/write verification test (default slave address: 0x50).

   i2c_test <bus>

   Example:

   i2c_test ri2c1

   This command performs the following steps in sequence:

   • back up the original data
   • write a pattern (0x00 to 0xFF)
   • read the data back for verification
   • restore the original data

   Note: This test is intended for EEPROM-type devices with an 8-bit register address and a capacity of at least 256 bytes. After each write, the test waits 50 ms for the EEPROM write cycle to complete. It is not suitable for general I2C slave devices.

3. Read data of a specified length.

   i2c_read <bus> <addr> <len>

   Example:

   i2c_read ri2c0 0x50 64

   This command reads 64 bytes starting from register address 0x00, one byte at a time, and prints the result in hexadecimal format.

   Note: This command assumes that the slave device uses an 8-bit register address. It is not suitable for devices without register addresses or with a different register address width.

Transfer Mode Selection

The driver internally supports both FIFO mode and interrupt mode:

• FIFO mode is used when intr_enable = false and the total message length ≤ 8 bytes, reducing interrupt overhead.
• Interrupt mode is used when the total message length > 8 bytes, when an SMBus block read (RT_I2C_M_RECV_LEN) is included, or when intr_enable = true.

Note: In the current driver implementation, intr_enable = true is set by default during probe, so interrupt mode is always used by default. To enable automatic FIFO mode selection, the internal intr_enable flag in the driver must be modified.

FAQ

I2C Transfer Timeout

When an I2C transfer times out, the serial console prints the following log:

msg completion timeout

Possible causes include the following:

1. The slave device is not responding

   Check whether the slave address is correct and whether the slave device is powered on properly. The i2c_read command can be used to confirm whether the device is present on the bus.

2. The bus is stuck

   The driver automatically attempts bus recovery by sending up to 9 clock pulses. If recovery fails, the following log is printed:

   bus reset clk reaches the max 9-clocks

   In this case, the hardware connection should be checked.

3. Clock configuration is incorrect

   Check whether spacemit,i2c-clk-rate is configured correctly in the DTS, and whether the timing parameters spacemit,i2c-lcr (Load Count Register) and spacemit,i2c-wcr (Wait Count Register) match the target speed.

I2C Transfer Errors

When a transfer error occurs, the serial console prints the following log:

i2c error status: 0x00400000

The status bits can be interpreted as follows:

• SR_BED (Bus Error): A bus error occurred because the expected ACK/NAK was not received. Check whether the slave device is present and whether the address is correct.
• SR_ALD (Arbitration Loss): Arbitration was lost. This can occur in a multi-master environment. The current driver does not enable automatic retry, so the upper layer must initiate the transfer again.
• SR_RXOV (RX Overrun): The receive FIFO overflowed. This should not normally occur. If it does, check whether interrupt handling is responding in time.
