MPP
MPP (Multimedia Processing Platform) is a component of the self-developed Bianbu OS. It is designed to abstract the differences in hardware encoding and decoding across multiple platforms and provide developers with a unified set of APIs.
1. Module Overview
1.1 Terms
-
MPP (Multimedia Processing Platform) The architecture of the multimedia processing platform.
-
MPI (Multimedia Processing Interface) The unified API provided by MPP for upper-layer access.
-
MPP AL The abstraction layer, which unifies multimedia interfaces across different IPs, SoCs, and solutions.
-
Packet A compressed video data unit, such as an H.264 or H.265 video stream. It is used before decoding and after encoding.
-
Frame An uncompressed video data unit, such as a YUV420 image. It is used before encoding and after decoding.
1.2 Functionality
MPP mainly consists of the following parts:
-
VDEC A video decoding submodule and its public APIs, mainly used to decode a compressed data stream (
Packet) into a raw frame (Frame). -
VENC A video encoding submodule and its public APIs, mainly used to encode a raw frame (
RGB/YUV) into a compressed video stream (Packet). -
G2D A 2D graphics processing submodule and its public APIs, mainly used for image processing operations.
-
BIND System Supports dynamic binding across multiple modules.
-
AL (Abstract Layer) A multi-platform support layer that abstracts away hardware differences.
-
VI A video input submodule and its public APIs. Currently, it supports only file input and standard V4L2 input.
-
VO A video output submodule and its public APIs. Currently, it supports only file output and SDL2 video output.
Parts not yet included:
-
AI/AO Audio input and output. It uses the standard path:
pipewire -> alsa-lib -> alsa driver. -
AENC/ADEC Not supported yet. Software implementations in GStreamer or FFmpeg are recommended.
1.3 Configuration
1.3.1 Debugging Configuration
| Configuration item | Default Value | Functionality |
|---|---|---|
| MPP_PRINT_BUFFER | 0 | When set to 1, it will print the real-time buffer status. |
| MPP_SAVE_OUTPUT_BUFFER | 0 | When set to 1, it can save the decoded YUV buffer. (Note: YUV buffers are large, which may cause playback stuttering and occupy large storage.) |
| MPP_SAVE_OUTPUT_BUFFER_PATH | /home/bianbu/output.yuv | YUV output path only valid when MPP_SAVE_OUTPUT_BUFFER=1. |
| MPP_PRINT_UNFREE_PACKET | 0 | When set to 1, it will print the allocation and release status of packets in real time. |
| MPP_PRINT_UNFREE_FRAME | 0 | When set to 1, it will print the allocation and release status of frames in real time. |
| MPP_PRINT_UNFREE_DMABUF | 0 | When set to 1, it will print the allocation and release status of dmabuf in real time. |
Examples:
# Need to print buffer status in real time
export MPP_PRINT_BUFFER=1
# Need to print buffer status in real time
export MPP_SAVE_OUTPUT_BUFFER=1
export MPP_SAVE_OUTPUT_BUFFER_PATH=/mnt/a.yuv
1.3.2 Parameter Configuration
No configuration parameters are provided yet.
1.4 Source Code
1.4.1 Source Code Location
The source code of MPP is located at:
buildroot-sdk/package-src/mpp
1.4.2 Code Compilation
In the Buildroot solution, compilation is enabled by default. To rebuild after modifying the code, run:
make mpp-rebuild
1.4.3 Source Code Structure
The source code structure of MPP and its brief description are as follows (the source code structure has been simplified):
|-- al // AL(Abstract Layer): Code for interfacing with functional modules or drivers of various platforms.
| |-- CMakeLists.txt
| |-- include
| | |-- al_interface_base.h // AL Layer interface base class
| | |-- al_interface_dec.h // AL layer decoding interface base class, inherited from base
| | |-- al_interface_enc.h // AL layer encoding interface base class, inherited from base
| | |-- al_interface_g2d.h // AL layer image conversion interface base class, inherited from base
| | |-- al_interface_vi.h // AL layer video input interface base class, inherited from base
| | `-- al_interface_vo.h // AL layer video output interface base class, inherited from base
| |-- vcodec // Interface with multi-platform encoding and decoding modules or drivers
| | |-- chipmedia // Interface with chipmedia IP codec
| | | |-- CMakeLists.txt
| | | `-- starfive // Interface with starfive codec API (not implemented yet)
| | | |-- sfdec_plugin.c
| | | `-- sfenc_plugin.c
| | |-- CMakeLists.txt
| | |-- debug // Virtual decoding plugin, outputs simple solid-color images for debugging
| | | |-- CMakeLists.txt
| | | `-- fake_dec_plugin.c
| | |-- ffmpeg // Interface with FFmpeg software encoding and decoding for debugging
| | | |-- CMakeLists.txt
| | | |-- ffmpegdec.c
| | | |-- ffmpegenc.c
| | | `-- ffmpegswscale.c
| | |-- k1
| | | |-- CMakeLists.txt
| | | `-- jpu // Interface with encoding and decoding of K1 JPU (not implemented yet)
| | | |-- include
| | | |-- jpudec.c
| | | `-- jpuenc.c
| | |-- openh264 // Interface with openh264 software encoding and decoding library for debugging
| | | |-- CMakeLists.txt
| | | |-- include
| | | | `-- wels
| | | | |-- codec_api.h
| | | | |-- codec_app_def.h
| | | | |-- codec_def.h
| | | | `-- codec_ver.h
| | | |-- openh264dec.cpp
| | | |-- openh264enc.cpp
| | | `-- README.md
| | |-- openmax // Interface with openmax
| | | |-- CMakeLists.txt
| | | |-- include
| | | | |-- khronos
| | | | | |-- OMX_Audio.h
| | | | | |-- OMX_ComponentExt.h
| | | | | |-- OMX_Component.h
| | | | | |-- OMX_ContentPipe.h
| | | | | |-- OMX_CoreExt.h
| | | | | |-- OMX_Core.h
| | | | | |-- OMX_ImageExt.h
| | | | | |-- OMX_Image.h
| | | | | |-- OMX_IndexExt.h
| | | | | |-- OMX_Index.h
| | | | | |-- OMX_IVCommon.h
| | | | | |-- OMX_Other.h
| | | | | |-- OMX_Types.h
| | | | | |-- OMX_VideoExt.h
| | | | | `-- OMX_Video.h
| | | | |-- sfomxil_find_dec_library.h
| | | | `-- sfomxil_find_enc_library.h
| | | `-- starfive // Interface with the starfive openmaxIL layer for video encoding and decoding
| | | |-- sfomxil_dec_plugin.c
| | | `-- sfomxil_enc_plugin.c
| | |-- v4l2 // Interface with V4L2 encoding and decoding
| | | |-- CMakeLists.txt
| | | |-- linlonv5v7 // Interface with V4L2 encoding and decoding (K1 & K3)
| | | | |-- include
| | | | | |-- linlonv5v7_buffer.h
| | | | | |-- linlonv5v7_codec.h
| | | | | |-- linlonv5v7_constant.h
| | | | | |-- linlonv5v7_port.h
| | | | | `-- mvx-v4l2-controls.h
| | | | |-- linlonv5v7_buffer.c
| | | | |-- linlonv5v7_codec.c
| | | | |-- linlonv5v7_dec.c
| | | | |-- linlonv5v7_enc.c
| | | | `-- linlonv5v7_port.c
| | | `-- standard
| | | |-- v4l2dec.c
| | | `-- v4l2enc.c
| | `-- verisilicon // Interface with verisilicon encoding and decoding (not implemented yet)
| | |-- CMakeLists.txt
| | `-- vc8000.c
| |-- vi // Interface with multi-platform video input modules or drivers
| | |-- CMakeLists.txt
| | |-- file // Video input via File
| | | |-- include
| | | | |-- defaultparse.h
| | | | |-- h264parse.h
| | | | |-- h265parse.h
| | | | |-- mjpegparse.h
| | | | `-- parse.h
| | | |-- parse
| | | | |-- defaultparse.c
| | | | |-- h264parse.c
| | | | |-- h265parse.c
| | | | |-- mjpegparse.c
| | | | `-- parse.c
| | | `-- vi_file.c
| | |-- k1 // Video input via K1 ISP (not implemented yet)
| | | `-- cam
| | | |-- include
| | | `-- vi_k1_cam.c
| | `-- v4l2 // Video output via standard V4L2
| | |-- include
| | `-- vi_v4l2.c
| |-- vo // Interface with multi-platform video output modules or drivers
| | |-- CMakeLists.txt
| | |-- file // Video output to File
| | | `-- vo_file.c
| | `-- sdl2 // Video output via SDL2
| | |-- include
| | | |-- begin_code.h
| | | |-- close_code.h
| | | |-- SDL_assert.h
| | | |-- SDL_atomic.h
| | | `-- SDL_vulkan.h
| | `-- vo_sdl2.c
| `-- vps // Interface with multi-platform video processing modules or drivers
| |-- CMakeLists.txt
| `-- k1
| |-- CMakeLists.txt
| `-- v2d // Interface with K1 v2d module, implement basic framework
| |-- include
| | |-- asr_v2d_api.h
| | `-- asr_v2d_type.h
| `-- v2d.c
|-- cmake // Find system modules
| `-- modules
| |-- Findlibavcodec.cmake
| |-- Findlibopenh264.cmake
| |-- Findlibsfdec.cmake
| |-- Findlibsfenc.cmake
| `-- Findlibsf-omx-il.cmake
|-- CMakeLists.txt
|-- compile_install_completely.sh
|-- debian // Deb package build directory
| |-- bianbu.conf
| |-- changelog
| |-- compat
| |-- control
| |-- copyright
| |-- install
| |-- README.Debian
| |-- rules
| |-- source
| | `-- format
| |-- usr
| | `-- lib
| | `-- udev
| | `-- rules.d
| | `-- 99-video.rules
| `-- watch
|-- doc ; some documents
| |-- C_naming_conventions.md
| `-- MPP Module Design Document V0.1.pdf
|-- do_test.sh
|-- format.sh
|-- include // API header file
| |-- data.h // MppData data base class
| |-- dataqueue.h // Data queue management API
| |-- dmabufwrapper.h // dmabuf management API
| |-- frame.h // frame management API
| |-- g2d.h // Image processing API
| |-- packet.h // packet management API
| |-- para.h // Parameter struct
| |-- processflow.h
| |-- ringbuffer.h // Ring buffer management API
| |-- sys.h // SYS-related API
| |-- vdec.h // Video decoding API
| `-- venc.h // Video encoding API
| |-- vi.h // Video input API
| `-- vo.h // Video output API
|-- LICENSE
|-- mpi // API interface implementation
| |-- CMakeLists.txt
| |-- g2d.c
| |-- include
| | `-- module.h
| |-- module.c
| |-- sys.c
| |-- vdec.c
| |-- venc.c
| |-- vi.c
| `-- vo.c
|-- mpp.cppcheck
|-- pack_to_tar_gz.sh
|-- pkgconfig
| `-- spacemit_mpp.pc.cmake
|-- remove_space_end_of_line.sh
|-- test // test programs, test scripts, test files, etc.
| |-- CMakeLists.txt
| |-- g2d_test.c
| |-- include
| | |-- argument.h
| | |-- const.h
| | |-- defaultparse.h
| | |-- h264parse.h
| | |-- h265parse.h
| | |-- mjpegparse.h
| | `-- parse.h
| |-- parse
| | |-- defaultparse.c
| | |-- h264parse.c
| | |-- h265parse.c
| | |-- mjpegparse.c
| | `-- parse.c
| |-- test_script
| | |-- cases
| | | `-- vdec.csv
| | |-- streams
| | `-- vdec_test.sh
| |-- test_sys_vdec_venc_one_frame.c
| |-- test_sys_vdec_venc_vdec_one_frame.c
| |-- test_sys_venc_vdec_one_frame.c
| |-- vi_file_vdec_venc_sync_userptr_vo_file_test.c
| |-- vi_file_vdec_vo_test.c
| |-- vi_file_venc_sync_userptr_vo_file_test.c
| `-- vi_v4l2_vo_test.c
|-- thirdparty
| |-- ffmpeg_compile_install.md
| `-- openh264_compile_install.md
`-- utils // utils
|-- CMakeLists.txt
|-- dataqueue.c // Data queue implementation
|-- dmabufwrapper.c // dmabuf management implementation
|-- env.c
|-- frame.c // frame management implementation
|-- include
| |-- env.h
| |-- log.h
| |-- resolution_utils.h
| |-- type.h
| `-- v4l2_utils.h
|-- log.c
|-- os
| |-- include
| | |-- os_env.h
| | `-- os_log.h
| `-- linux
| |-- os_env.c
| `-- os_log.c
|-- packet.c // packet management implementation
|-- resolution_utils.c
|-- ringbuffer.c
|-- utils.c
`-- v4l2_utils.c

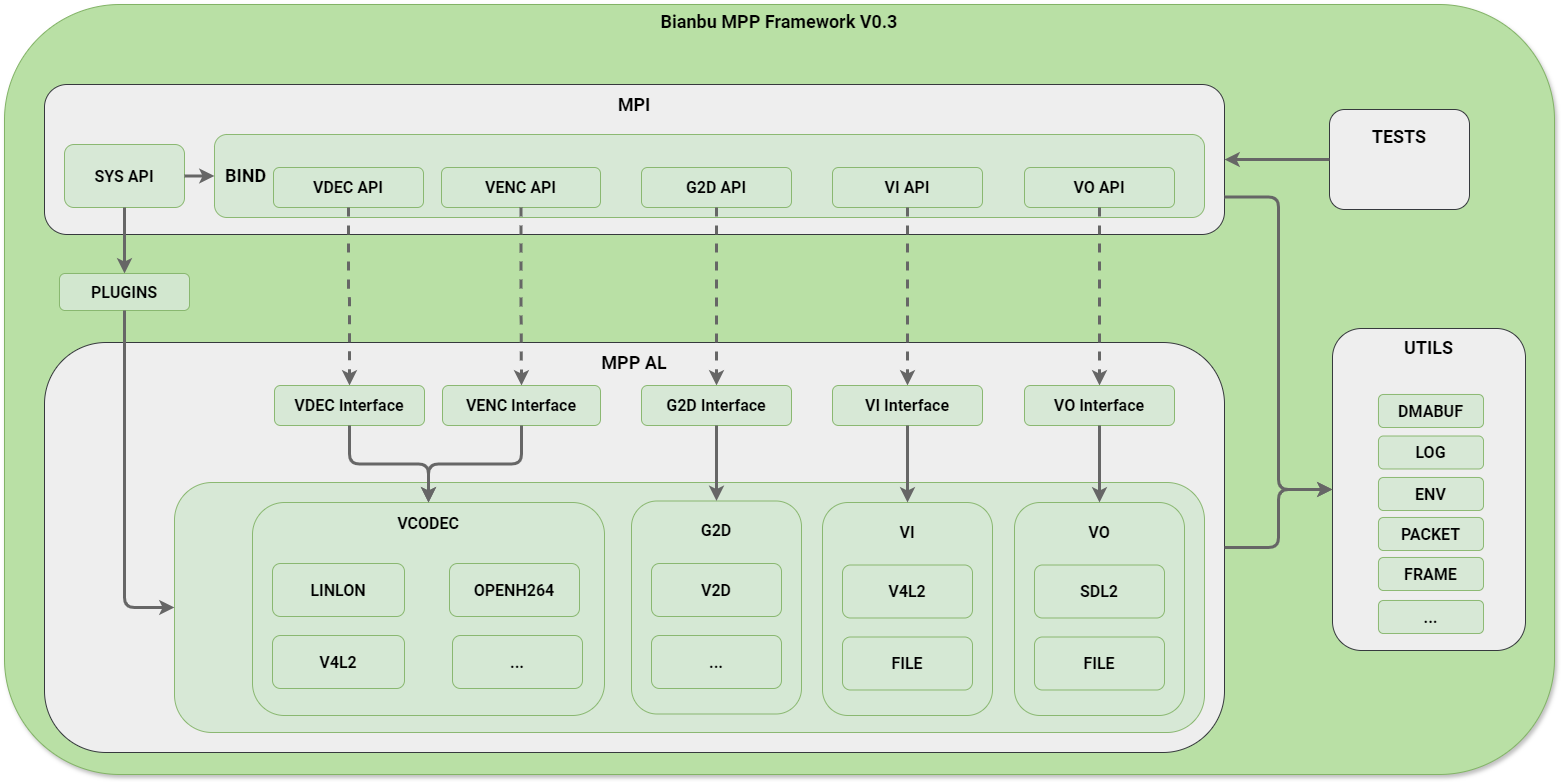

2. MPP Framework Structure
From the framework structure perspective, it is mainly divided into the following two layers.
- MPI (Interface layer)
Mainly includes the upper-layer APIs and their implementations. - MPP AL (Abstract layer)
Abstracts differences across platforms and hardware to provide a unified invocation model.
From the functionality perspective, it is divided into:
- MPI
External API interface layer. - MPP AL
Multi-platform hardware abstraction layer. - TESTS
Test programs and test streams for function verification. - UTILS
A utility package that implements basic functionality, including packet and frame management, log output, and environment variable access. - SYS
Implements dynamic plugin loading and the BIND system.
3. Key Processes

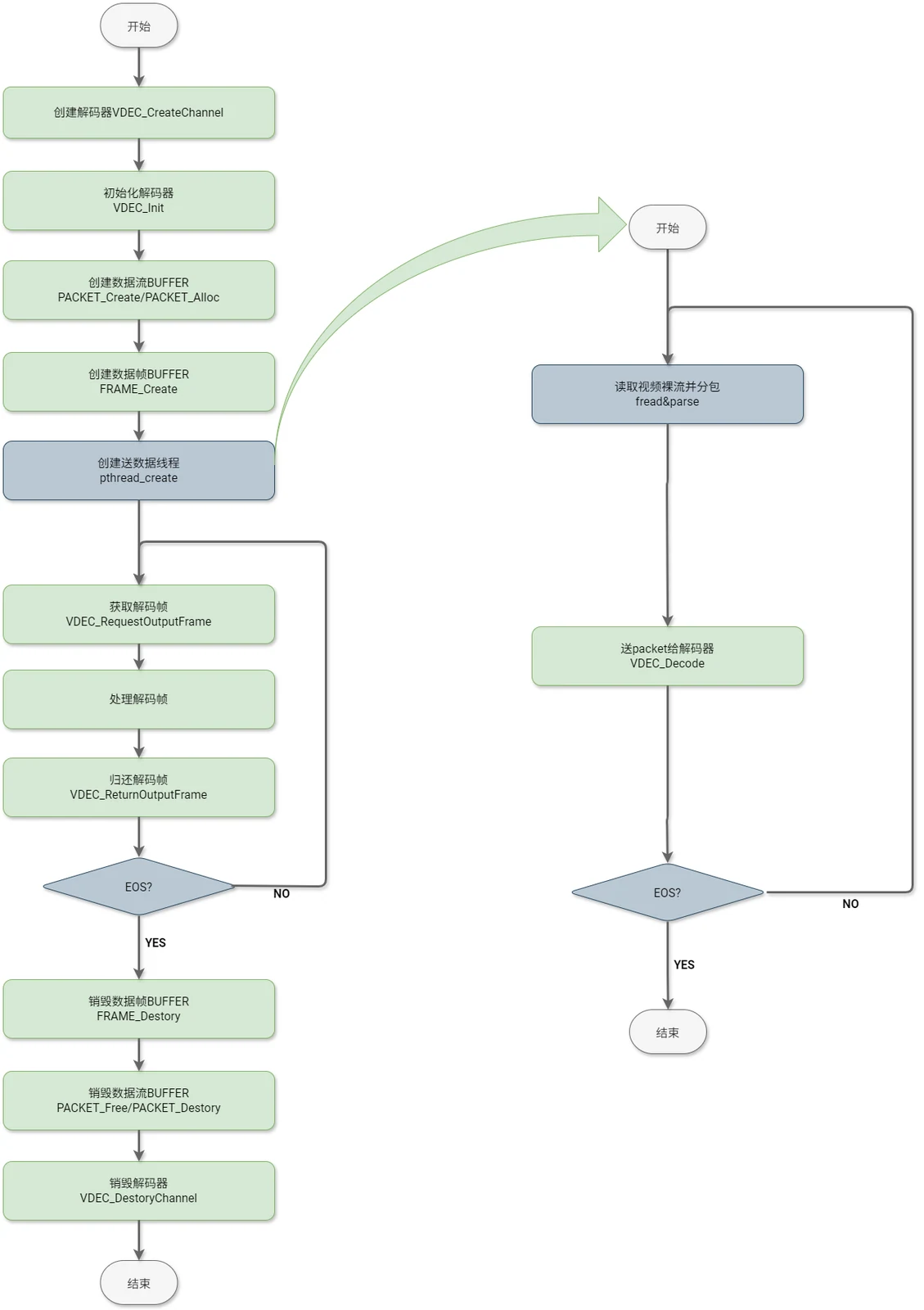

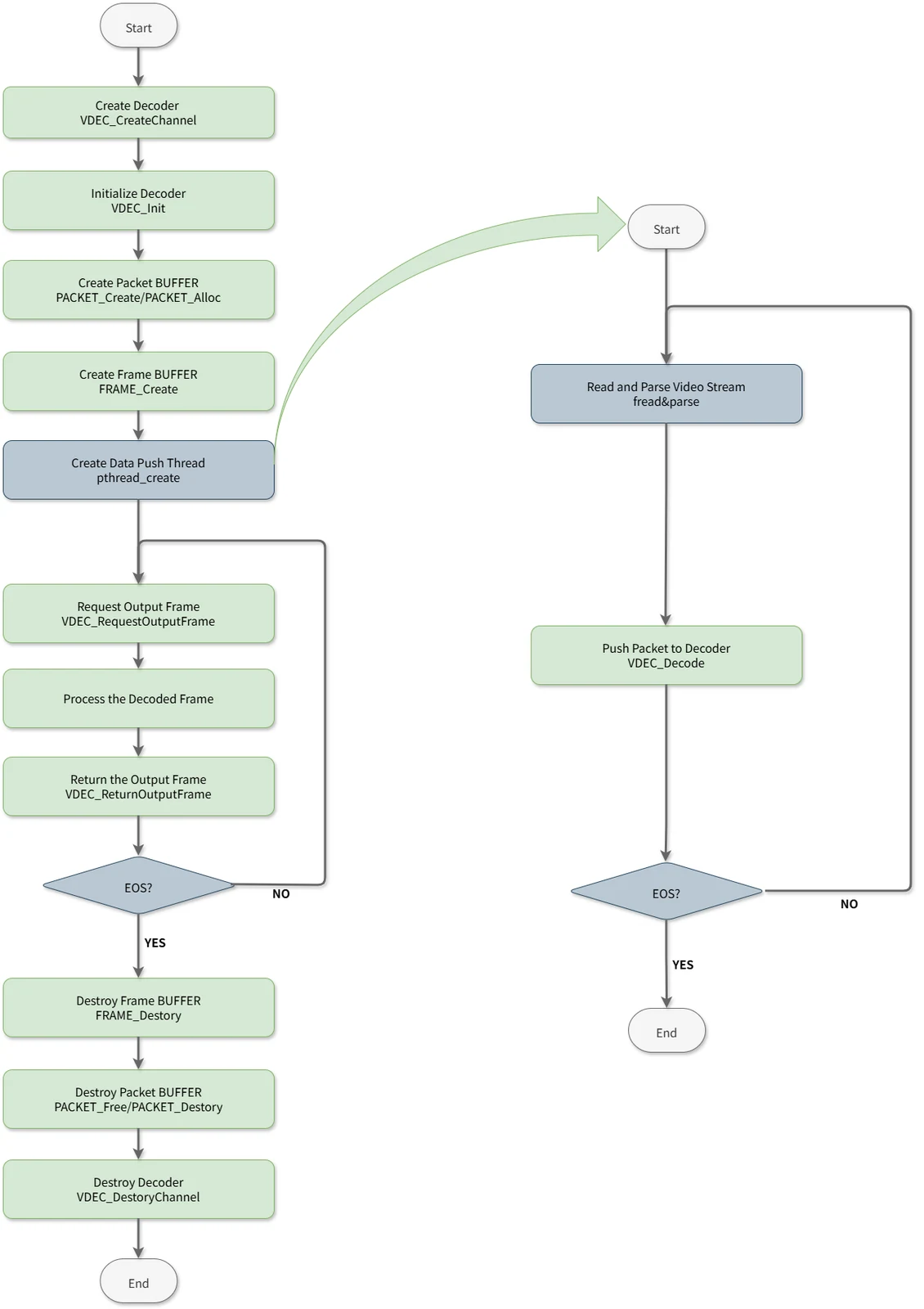

3.1 Decoding Process

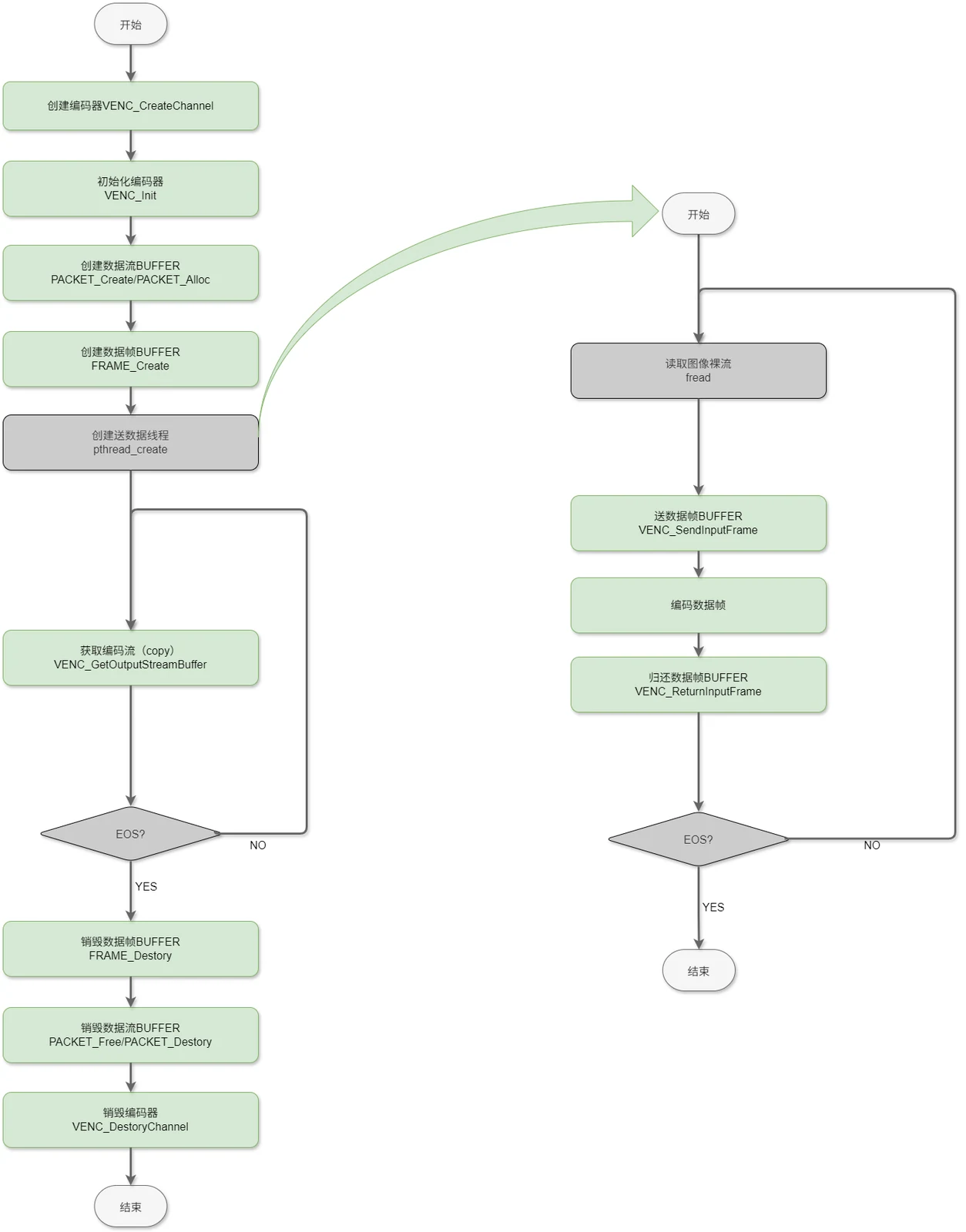

3.2 Encoding Process
4. Data Structures
4.1 General Data Structures
4.1.1 enum MppModuleType
This enumeration defines the supported plugin types, and plugins can be selected through it. AUTO indicates that plugins are selected according to the default priority, although that logic is not yet fully refined. CODEC_V4L2_LINLONV5V7 is generally selected for encoding and decoding on K1.
/***
* @description: all codec mpp support
*/
/*
+-----------------------+---------+---------+-----------+
| | DECODER | ENCODER | CONVERTER |
+=======================+=========+=========+===========+
| CODEC_OPENH264 | √ | √ | x |
+-----------------------+---------+---------+-----------+
| CODEC_FFMPEG | √ | √ | x |
+-----------------------+---------+---------+-----------+
| CODEC_SFDEC | √ | x | x |
+-----------------------+---------+---------+-----------+
| CODEC_SFENC | x | √ | x |
+-----------------------+---------+---------+-----------+
| CODEC_CODADEC | √(jpeg) | x | x |
+-----------------------+---------+---------+-----------+
| CODEC_SFOMX | √ | √ | x |
+-----------------------+---------+---------+-----------+
| CODEC_V4L2 | √ | √ | x |
+-----------------------+---------+---------+-----------+
| CODEC_FAKEDEC | √ | x | x |
+-----------------------+---------+---------+-----------+
| CODEC_V4L2_LINLONV5V7 | √ | √ | x |
+-----------------------+---------+---------+-----------+
| CODEC_K1_JPU | √ | √ | x |
+-----------------------+---------+---------+-----------+
| VO_SDL2 | x | x | x |
+-----------------------+---------+---------+-----------+
| VO_FILE | x | x | x |
+-----------------------+---------+---------+-----------+
| VI_V4L2 | x | x | x |
+-----------------------+---------+---------+-----------+
| VI_K1_CAM | x | x | x |
+-----------------------+---------+---------+-----------+
| VI_FILE | x | x | x |
+-----------------------+---------+---------+-----------+
| VPS_K1_V2D | x | x | √ |
+-----------------------+---------+---------+-----------+
*/
typedef enum _MppModuleType {
/***
* auto mode, mpp select suitable codec.
*/
CODEC_AUTO = 0,
/***
* use openh264 soft codec api, support decoder and encoder
*/
CODEC_OPENH264,
/***
* use ffmpeg avcodec api, support decoder and encoder.
*/
CODEC_FFMPEG,
/***
* use starfive wave511 vpu api for video decoder.
*/
CODEC_SFDEC,
/***
* use starfive wave420l vpu api for video encoder.
*/
CODEC_SFENC,
/***
* use starfive codaj12 vpu api for jpeg video decoder and encoder.
*/
CODEC_CODADEC,
/***
* use starfive omx-il api for video decoder and encoder.
*/
CODEC_SFOMX,
/***
* use V4L2 standard codec interface for video decoder and encoder.
*/
CODEC_V4L2,
/***
* a fake decoder for test, send green frame to application layer.
*/
CODEC_FAKEDEC,
/***
* use ARM LINLON VPU codec interface for video decoder and encoder.(K1)
*/
CODEC_V4L2_LINLONV5V7,
/***
* use jpu for jpeg decoder and encoder (K1).
*/
CODEC_K1_JPU,
CODEC_MAX,
/***
* auto mode, mpp select suitable vo.
*/
VO_AUTO = 100,
/***
* use sdl2 for output
*/
VO_SDL2,
VO_FILE,
VO_MAX,
/***
* auto mode, mpp select suitable vi.
*/
VI_AUTO = 200,
/***
* use standard v4l2 framework for input
*/
VI_V4L2,
/***
* use K1 ISP for input
*/
VI_K1_CAM,
VI_FILE,
VI_MAX,
/***
* auto mode, mpp select suitable vi.
*/
VPS_AUTO = 300,
/***
* use v2d for graphic 2D convert (K1).
*/
VPS_K1_V2D,
VPS_MAX,
} MppModuleType;
In the code, the plugin library for a specific codec is dynamically loaded through the following interface:
/**
* @description: dlopen the video codec library by codec_type
* @param {MppCodecType} codec_type : input, the codec need to be opened
* @return {MppModule*} : the module context
*/
MppModule* module_init(MppCodecType codec_type)
4.1.2 enum MppCodingType
This enumeration defines the supported encoding formats, including all formats supported by decoders and encoders. Each codec may support only a subset of these types. For example, OpenH264 supports only H.264 encoding and decoding.
typedef enum _MppCodingType {
CODING_UNKNOWN = 0,
CODING_H263,
CODING_H264,
/***
* Multiview Video Coding, 3D, etc.
*/
CODING_H264_MVC,
/***
* no start code
*/
CODING_H264_NO_SC,
CODING_H265,
CODING_MJPEG,
CODING_JPEG,
CODING_VP8,
CODING_VP9,
CODING_AV1,
CODING_AVS,
CODING_AVS2,
CODING_MPEG1,
CODING_MPEG2,
CODING_MPEG4,
CODING_RV,
/***
* ANNEX_G, Advanced Profile
*/
CODING_VC1,
/***
* ANNEX_L, Simple and Main Profiles
*/
CODING_VC1_ANNEX_L,
CODING_FWHT,
CODING_MAX,
} MppCodingType;
Note: Each codec defines its own format types, so format conversion is required. The following example shows format mapping for ffmpeg:
#define CODING_TYPE_MAPPING_DEFINE(Type, format) \
typedef struct _AL##Type##CodingTypeMapping { \
MppCodingType eMppCodingType; \
format e##Type##CodingType; \
} AL##Type##CodingTypeMapping;
#define CODING_TYPE_MAPPING_CONVERT(Type, type, format) \
static MppCodingType get_##type##_mpp_coding_type(format src_type) \
{ \
S32 i = 0; \
S32 mapping_length = NUM_OF(stAL##Type##CodingTypeMapping); \
for(i = 0; i < mapping_length; i ++) \
{ \
if(src_type == stAL##Type##CodingTypeMapping[i].e##Type##CodingType) \
return stAL##Type##CodingTypeMapping[i].eMppCodingType; \
} \
\
mpp_loge("Can not find the mapping format, please check it !"); \
return CODING_UNKNOWN; \
} \
\
static format get_##type##_codec_coding_type(MppCodingType src_type) \
{ \
S32 i = 0; \
S32 mapping_length = NUM_OF(stAL##Type##CodingTypeMapping); \
for(i = 0; i < mapping_length; i ++) \
{ \
if(src_type == stAL##Type##CodingTypeMapping[i].eMppCodingType) \
return stAL##Type##CodingTypeMapping[i].e##Type##CodingType; \
} \
\
mpp_loge("Can not find the mapping coding type, please check it !"); \
return CODING_UNKNOWN; \
}
...
CODING_TYPE_MAPPING_DEFINE(FFMpegDec, enum AVCodecID)
static const ALFFMpegDecCodingTypeMapping stALFFMpegDecCodingTypeMapping[] = {
{CODING_H264, AV_CODEC_ID_H264},
{CODING_H265, AV_CODEC_ID_H265},
{CODING_MJPEG, AV_CODEC_ID_MJPEG},
{CODING_VP8, AV_CODEC_ID_VP8},
{CODING_VP9, AV_CODEC_ID_VP9},
{CODING_AV1, AV_CODEC_ID_NONE},
{CODING_AVS, AV_CODEC_ID_AVS},
{CODING_AVS2, AV_CODEC_ID_AVS2},
{CODING_MPEG1, AV_CODEC_ID_MPEG1VIDEO},
{CODING_MPEG2, AV_CODEC_ID_MPEG2VIDEO},
{CODING_MPEG4, AV_CODEC_ID_MPEG4},
};
CODING_TYPE_MAPPING_CONVERT(FFMpegDec, ffmpegdec, enum AVCodecID)
4.1.3 enum MppPixelFormat
This enumeration defines the supported pixel formats, including all formats supported by decoders and encoders. Each codec may support only a subset of these types.
/***
* @description: pixelformat mpp or some other platform may use.
*/
typedef enum _MppPixelFormat {
PIXEL_FORMAT_UNKNOWN = 0,
/***
* YYYYYYYYVVUU
*/
PIXEL_FORMAT_YV12,
/***
* YYYYYYYYUUVV YU12/YUV420P is the same
*/
PIXEL_FORMAT_I420,
/***
* YYYYYYYYVUVU
*/
PIXEL_FORMAT_NV21,
/***
* YYYYYYYYUVUV
*/
PIXEL_FORMAT_NV12,
/***
* 11111111 11000000, 16bit only use 10bit
*/
PIXEL_FORMAT_YV12_P010,
/***
* 11111111 11000000, 16bit only use 10bit
*/
PIXEL_FORMAT_I420_P010,
/***
* 11111111 11000000, 16bit only use 10bit
*/
PIXEL_FORMAT_NV21_P010,
/***
* 11111111 11000000, 16bit only use 10bit
*/
PIXEL_FORMAT_NV12_P010,
PIXEL_FORMAT_YV12_P016,
PIXEL_FORMAT_I420_P016,
PIXEL_FORMAT_NV21_P016,
PIXEL_FORMAT_NV12_P016,
/***
* YYYYUUVV, YU16 is the same
*/
PIXEL_FORMAT_YUV422P,
/***
* YYYYVVUU
*/
PIXEL_FORMAT_YV16,
/***
* YYYYUVUV NV16 is the same
*/
PIXEL_FORMAT_YUV422SP,
/***
* YYYYVUVU
*/
PIXEL_FORMAT_NV61,
PIXEL_FORMAT_YUV422P_P010,
PIXEL_FORMAT_YV16_P010,
PIXEL_FORMAT_YUV422SP_P010,
PIXEL_FORMAT_NV61_P010,
/***
* YYUUVV
*/
PIXEL_FORMAT_YUV444P,
/***
* YYUVUV
*/
PIXEL_FORMAT_YUV444SP,
PIXEL_FORMAT_YUYV,
PIXEL_FORMAT_YVYU,
PIXEL_FORMAT_UYVY,
PIXEL_FORMAT_VYUY,
PIXEL_FORMAT_YUV_MB32_420,
PIXEL_FORMAT_YUV_MB32_422,
PIXEL_FORMAT_YUV_MB32_444,
PIXEL_FORMAT_YUV_MAX,
PIXEL_FORMAT_RGB_MIN,
PIXEL_FORMAT_RGBA,
PIXEL_FORMAT_ARGB,
PIXEL_FORMAT_ABGR,
PIXEL_FORMAT_BGRA,
PIXEL_FORMAT_RGBA_5658,
PIXEL_FORMAT_ARGB_8565,
PIXEL_FORMAT_ABGR_8565,
PIXEL_FORMAT_BGRA_5658,
PIXEL_FORMAT_RGBA_5551,
PIXEL_FORMAT_ARGB_1555,
PIXEL_FORMAT_ABGR_1555,
PIXEL_FORMAT_BGRA_5551,
PIXEL_FORMAT_RGBA_4444,
PIXEL_FORMAT_ARGB_4444,
PIXEL_FORMAT_ABGR_4444,
PIXEL_FORMAT_BGRA_4444,
PIXEL_FORMAT_RGB_888,
PIXEL_FORMAT_BGR_888,
PIXEL_FORMAT_RGB_565,
PIXEL_FORMAT_BGR_565,
PIXEL_FORMAT_RGB_555,
PIXEL_FORMAT_BGR_555,
PIXEL_FORMAT_RGB_444,
PIXEL_FORMAT_BGR_444,
PIXEL_FORMAT_RGB_MAX,
PIXEL_FORMAT_AFBC_YUV420_8,
PIXEL_FORMAT_AFBC_YUV420_10,
PIXEL_FORMAT_AFBC_YUV422_8,
PIXEL_FORMAT_AFBC_YUV422_10,
/***
* for usb camera
*/
PIXEL_FORMAT_H264,
PIXEL_FORMAT_MJPEG,
PIXEL_FORMAT_MAX,
} MppPixelFormat;
Note: Each codec defines its own format types, so format mapping is required. The following example shows format mapping for ffmpeg:
#define PIXEL_FORMAT_MAPPING_DEFINE(Type, format) \
typedef struct _AL##Type##PixelFormatMapping { \
MppPixelFormat eMppPixelFormat; \
format e##Type##PixelFormat; \
} AL##Type##PixelFormatMapping;
#define PIXEL_FORMAT_MAPPING_CONVERT(Type, type, format) \
static MppPixelFormat get_##type##_mpp_pixel_format(format src_format) \
{ \
S32 i = 0; \
S32 mapping_length = NUM_OF(stAL##Type##PixelFormatMapping); \
for(i = 0; i < mapping_length; i ++) \
{ \
if(src_format == stAL##Type##PixelFormatMapping[i].e##Type##PixelFormat) \
return stAL##Type##PixelFormatMapping[i].eMppPixelFormat; \
} \
\
mpp_loge("Can not find the mapping format, please check it !"); \
return PIXEL_FORMAT_UNKNOWN; \
} \
\
static format get_##type##_codec_pixel_format(MppPixelFormat src_format) \
{ \
S32 i = 0; \
S32 mapping_length = NUM_OF(stAL##Type##PixelFormatMapping); \
for(i = 0; i < mapping_length; i ++) \
{ \
if(src_format == stAL##Type##PixelFormatMapping[i].eMppPixelFormat) \
return stAL##Type##PixelFormatMapping[i].e##Type##PixelFormat; \
} \
\
mpp_loge("Can not find the mapping format, please check it !"); \
return (format)0; \
}
...
PIXEL_FORMAT_MAPPING_DEFINE(FFMpegDec, enum AVPixelFormat)
static const ALFFMpegDecPixelFormatMapping stALFFMpegDecPixelFormatMapping[] = {
{PIXEL_FORMAT_I420, AV_PIX_FMT_YUV420P},
{PIXEL_FORMAT_NV12, AV_PIX_FMT_NV12},
{PIXEL_FORMAT_YVYU, AV_PIX_FMT_YVYU422},
{PIXEL_FORMAT_UYVY, AV_PIX_FMT_UYVY422},
{PIXEL_FORMAT_YUYV, AV_PIX_FMT_YUYV422},
{PIXEL_FORMAT_RGBA, AV_PIX_FMT_RGBA},
{PIXEL_FORMAT_BGRA, AV_PIX_FMT_BGRA},
{PIXEL_FORMAT_ARGB, AV_PIX_FMT_ARGB},
{PIXEL_FORMAT_ABGR, AV_PIX_FMT_ABGR},
};
PIXEL_FORMAT_MAPPING_CONVERT(FFMpegDec, ffmpegdec, enum AVPixelFormat)
4.1.4 struct MppData
Base data structure. MppPacket and MppFrame inherit from MppData.
/*
* +------------------------+
* | MppData |
* +------------------------+
* | eType |
* +-----------^------------+
* |
* +-----------------+---------------+
* | |
* +----------+-------------+ +-----------+-----------+
* | MppPacket | | MppFrame |
* +------------------------+ +-----------------------+
* | eBaseData | | eBaseData |
* | pData | | nDataUsedNum |
* | nLength | | pData0 |
* | | | pData1 |
* | | | pData2 |
* +------------------------+ +-----------------------+
*
*/
/***
* @description: mpp data type struct.
*
*/
typedef enum _MppDataType {
/***
* stream type, bitstream, un-decoded data or encoded data maybe.
*/
MPP_DATA_STREAM = 1,
/***
* frame type, YUV/RGB format, decoded data or un-encoded data maybe.
*/
MPP_DATA_FRAME = 2,
MPP_DATA_UNKNOWN = 1023
} MppDataType;
/***
* @description: abstruct MppData struct.
*
* important struct.
*
* data abstruct from MppFrame and MppPacket.
*/
typedef struct _MppData {
MppDataType eType;
} MppData;
4.1.5 enum MppReturnValue
MPP return values:
typedef enum _MppReturnValue {
MPP_OK = 0,
/***
* error about memory
*/
MPP_OUT_OF_MEM = -1,
MPP_MALLOC_FAILED = -2,
MPP_MMAP_FAILED = -3,
MPP_MUNMAP_FAILED = -4,
MPP_NULL_POINTER = -5,
/***
* error about file
*/
MPP_FILE_NOT_EXIST = -100,
MPP_OPEN_FAILED = -101,
MPP_IOCTL_FAILED = -102,
MPP_CLOSE_FAILED = -103,
MPP_POLL_FAILED = -104,
/***
* error about codec
*/
MPP_NO_STREAM = -200,
MPP_NO_FRAME = -201,
MPP_DECODER_ERROR = -202,
MPP_ENCODER_ERROR = -203,
MPP_CONVERTER_ERROR = -204,
MPP_CODER_EOS = -205,
MPP_CODER_NO_DATA = -206,
MPP_RESOLUTION_CHANGED = -207,
MPP_ERROR_FRAME = -208,
MPP_CODER_NULL_DATA = -209,
/***
* error about dataqueue
*/
MPP_DATAQUEUE_FULL = -300,
MPP_DATAQUEUE_EMPTY = -301,
/***
* other
*/
MPP_INIT_FAILED = -400,
MPP_CHECK_FAILED = -401,
MPP_BIND_NOT_MATCH = -402,
MPP_NOT_SUPPORTED_FORMAT = -403,
/*unknown error*/
MPP_ERROR_UNKNOWN = -1023
} MppReturnValue;
4.2 Decoding Data Structure
4.2.1 struct MppVdecCtx
The video decoder context is created and initialized through VDEC_CreateChannel and VDEC_Init.
typedef struct _MppVdecCtx {
MppProcessNode pNode; ；Used for pipeline creation in the bind system
MppModuleType eCodecType; ；Selected decoding plugin
MppModule *pModule; ；Context of the dynamically loaded decoding plugin
MppVdecPara stVdecPara; ；Decoding prameter set
} MppVdecCtx;
4.2.2 struct MppVdecPara
Decoder parameter structure.
/***
* @description: para sent and get between application and decoder.
*/
typedef struct _MppVdecPara {
/***
* set to MPP
*/
MppCodingType eCodingType; // Video encoding format
S32 nProfile; // Video encoding profile
/***
* read from MPP
*/
MppFrameBufferType eFrameBufferType; // buffer class for frame
MppDataTransmissinMode eDataTransmissinMode; //Transmission type of input and output buffers
/***
* set to MPP
*/
S32 nWidth; // Video width
S32 nHeight; // Video height
S32 nAlign; // Video align
S32 nScale; // Video scale
/***
* Horizontal downscale ratio, [1, 256]
* set to MPP
*/
S32 nHorizonScaleDownRatio; // Video horizon scale down ratio
/***
* Vertical downscale ratio, [1, 128]
* set to MPP
*/
S32 nVerticalScaleDownRatio; // Video vertical scale down ratio
/***
* Downscaled frame width in pixels
* set to MPP
*/
S32 nHorizonScaleDownFrameWidth; // Video horizon scale down frame width
/***
* Downscaled frame height in pixels
* set to MPP
*/
S32 nVerticalScaleDownFrameHeight; // Video vertical scale down frame height
/***
* 0, 90, 180, 270
* set to MPP
*/
S32 nRotateDegree; // Video rotate degree
S32 bThumbnailMode; // Not used yet
BOOL bIsInterlaced; // Whether it is an i-source
BOOL bIsFrameReordering;
BOOL bIgnoreStreamHeaders;
MppPixelFormat eOutputPixelFormat; // Output pixel format
BOOL bNoBFrames;
BOOL bDisable3D;
BOOL bSupportMaf;
BOOL bDispErrorFrame;
BOOL bInputBlockModeEnable; // Whether block mode is enabled for bitstream input
BOOL bOutputBlockModeEnable; // Whether block mode is enabled for frame output
/***
* read from MPP
*/
/***
* input buffer num that APP can use
*/
S32 nInputQueueLeftNum;
S32 nOutputQueueLeftNum;
S32 nInputBufferNum;
S32 nOutputBufferNum;
void* pFrame[64];
S32 nOldWidth;
S32 nOldHeight;
BOOL bIsResolutionChanged;
/***
* used for chromium
*/
BOOL bIsBufferInDecoder[64];
S32 nOutputBufferFd[64];
} MppVdecPara;
4.3 Encoding Data Structure
4.3.1 struct MppVencCtx
The video encoder context is created and initialized via the VENC_CreateChannel and VENC_Init interfaces.
typedef struct _MppVencCtx {
MppProcessNode pNode; // Used for pipeline creation in the bind system
MppModuleType eCodecType; // Selected encoding plugin
MppVencPara stVencPara; // Encoding parameter set
MppModule *pModule; // Context of the dynamically loaded encoding plugin
} MppVencCtx;
4.3.2 struct MppVencPara
Encoder parameter structure.
/***
* @description: para sent and get between application and encoder.
*/
typedef struct _MppVencPara {
/***
* set to MPP
*/
MppCodingType eCodingType; // Video encoding format
MppPixelFormat PixelFormat; // Pixel format of the input frame
/***
* read from MPP
*/
MppFrameBufferType eFrameBufferType; // Buffer type of the frame
MppDataTransmissinMode eDataTransmissinMode; // Transmission type of input and output buffers
/***
* set to MPP
*/
S32 nWidth; // Video width
S32 nHeight; // Video height
S32 nAlign; // Video align
S32 nBitrate; // Video bitrate
S32 nFrameRate; // Video rotate tate
S32 nRotateDegree; // Video rotate degree
} MppVencPara;
4.4 G2D Data Structure
4.4.1 struct MppG2dCtx
Image processor context.
typedef struct _MppG2dCtx {
MppProcessNode pNode; // Used for pipeline creation in the bind system
MppModuleType eCodecType; // Selected image processing plugin
MppModule *pModule; // Context of the image processing plugin dynamic library
MppG2dPara stG2dPara; // Image processing parameter set
} MppG2dCtx;
4.4.2 struct MppG2dPara (Under Improvement)
typedef struct _MppG2dPara {
/***
* read from MPP
*/
MppFrameBufferType eInputFrameBufferType; // Input frame buffer type
MppFrameBufferType eOutputFrameBufferType; // Output frame buffer type
MppDataTransmissinMode eDataTransmissinMode; // Input and output buffer transmission type
/***
* set to MPP
*/
MppG2dCmd eG2dCmd; // Processing command
MppPixelFormat eInputPixelFormat; // Input frame pixel format
MppPixelFormat eOutputPixelFormat; // Output frame pixel format
S32 nInputBufFd; // Input frame fd
S32 nOutputBufFd; // Output frame fd
S32 nInputWidth; // Input frame width
S32 nInputHeight; // Input frame height
S32 nOutputWidth; // Output frame width
S32 nOutputHeight; // Output frame height
S32 nInputBufSize; // Input frame size
S32 nOutputBufSize; // Output frame size
union {
MppG2dFillColorPara sFillColorPara; // Fill color parameter
MppG2dCopyPara sCopyPara; // Copy parameter
MppG2dScalePara sScalePara; // Scale parameter
MppG2dRotatePara sRotatePara; // Rotate parameter
MppG2dMaskPara sMaskPara;
MppG2dDrawPara sDrawPara;
};
} MppG2dPara;
4.5 VI Data Structure
4.5.1 struct MppViCtx
Video input context.
typedef struct _MppViCtx {
MppProcessNode pNode; // Used for pipeline creation in the bind system
MppModuleType eViType; // Selected video input plugin
MppModule *pModule; // Context of the video input plugin dynamic library
MppViPara stViPara; // Video input parameter set
} MppViCtx;
4.5.2 struct MppViPara
typedef struct _MppViPara {
MppFrameBufferType eFrameBufferType; // Input frame buffer type
MppDataTransmissinMode eDataTransmissinMode; // Input and output transmission type
BOOL bIsFrame;
/***
* for frame
*/
MppPixelFormat ePixelFormat; // Input frame pixel format
S32 nWidth; // Input frame width
S32 nHeight; // Input frame height
S32 nStride; // Input frame stride
/***
* for packet
*/
MppCodingType eCodingType; // Input packet video encoding format
/***
* for vi v4l2
*/
S32 nBufferNum; // Requested buffer number
U8* pVideoDeviceName; // V4L2 device code
/***
* for vi file
*/
U8* pInputFileName; // Input file path
} MppViPara;
4.6 VO Data Structure
4.6.1 struct MppVoCtx
Video output context.
typedef struct _MppVoCtx {
MppProcessNode pNode; // Used for pipeline creation in the bind system
MppModuleType eVoType; // Selected video output plugin
MppModule *pModule; // Context of the video output plugin dynamic library
MppVoPara stVoPara; // Video output parameter set
} MppVoCtx;
4.6.2 struct MppVoPara
typedef struct _MppVoPara {
MppFrameBufferType eFrameBufferType; // Output frame buffer type
MppDataTransmissinMode eDataTransmissinMode; // Input and output buffer transmission type
BOOL bIsFrame;
/***
* for frame
*/
MppPixelFormat ePixelFormat; // Output frame pixel format
S32 nWidth; // Output frame width
S32 nHeight; // Output frame height
S32 nStride; // Output frame stride
/***
* for vo file
*/
U8* pOutputFileName; // Output file path
} MppVoPara;
4.7 SYS Data Structure (Under Improvement)
4.7.1 struct MppProcessFlowCtx
BIND system pipeline context.
/***
* @description: main process flow struct
*
* manage the whole process flow, maybe include some process nodes.
*/
typedef struct _MppProcessFlowCtx {
/***
* the total node num of the flow.
*/
S32 nNodeNum;
/***
* every node in this flow.
*/
MppProcessNode *pNode[MAX_NODE_NUM];
/***
* data transmission thread between nodes.
*/
pthread_t pthread[MAX_NODE_NUM];
} MppProcessFlowCtx;
4.7.2 struct MppProcessNode
Definition of each node in the BIND system pipeline.
/***
* @description: main process node struct
*
* manage every process node.
*/
typedef struct _MppProcessNode {
S32 nNodeId;
MppProcessNodeType eType;
ALBaseContext *pAlBaseContext;
MppOps *ops;
} MppProcessNode;
4.7.3 struct MppOps
Definition of the node operation set.
/***
* @description: common ops for bind node
*
*/
typedef struct _MppOps {
/***
* @description: send unhandled data to process node
* @param {ALBaseContext} *base_context
* @param {MppData} *sink_data
* @return {*}
*/
S32 (*handle_data)(ALBaseContext *base_context, MppData *sink_data);
/***
* @description: get handled result from process node
* @param {ALBaseContext} *base_context
* @param {MppData} *src_data
* @return {*}
*/
S32 (*get_result)(ALBaseContext *base_context, MppData *src_data);
/***
* @description: return the buffer to process node if needed
* @param {ALBaseContext} *base_context
* @param {MppData} *src_data
* @return {*}
*/
S32 (*return_result)(ALBaseContext *base_context, MppData *src_data);
} MppOps;
4.7.4 struct MppProcessNodeType
This enumeration defines node types.
/***
* @description: process node type enum
*
*/
typedef enum _MppProcessNodeType {
/***
* video decoder node, bitstream in and frame out
*/
VDEC = 1,
/***
* video encoder node, frame in and bitstream out
*/
VENC = 2,
/***
* graphic 2d node, frame in and frame out
*/
G2D = 3,
} MppProcessNodeType;
4.8 Internal Key Data Structures
4.8.1 struct MppFrame
struct _MppFrame {
/**
* parent class
*/
MppData eBaseData; // MppData base class
/**
* video parameter
*/
MppPixelFormat ePixelFormat; // Video pixel format
S32 nWidth; // Video width
S32 nHeight; // Video height
S32 nLineStride; // Video stride
S32 nFrameRate; // Video frame
/**
* frame parameter
*/
S64 nPts; // frame pts
BOOL bEos; // frame eos flag
MppFrameBufferType eBufferType; // frame buffer type
S32 nDataUsedNum; // planner number
S32 nID; // frame ID
U8 *pData0; // planner0 address
U8 *pData1; // planner1 address
U8 *pData2; // planner2 address
U8 *pData3; // planner3 address
void *pMetaData;
S32 nFd[MPP_MAX_PLANES];
U32 refCount;
DmaBufWrapper *pDmaBufWrapper;
// environment variable
BOOL bEnableUnfreeFrameDebug;
};
4.8.2 struct MppPacket
struct _MppPacket {
/**
* parent class
*/
MppData eBaseData; // MppData base
/**
* video parameter
*/
MppPixelFormat ePixelFormat; // Video pixel format
S32 nWidth; // Video width
S32 nHeight; // Video height
S32 nLineStride; // Video height
S32 nFrameRate; // Video frame rate
/**
* packet parameter
*/
U8 *pData; // packet address
S32 nTotalSize; // total size that PACKET_Alloc
S32 nLength; // data length, nLength <= nTotalSize
void *pMetaData;
S32 nID; // packet ID
S64 nPts; // packet pts
S64 nDts; // packet dts
BOOL bEos; // packet eos flag
// environment variable
BOOL bEnableUnfreePacketDebug;
};
4.8.3 struct ALBaseContex/ALXxxBaseContext
typedef struct _ALBaseContext ALBaseContext;
typedef struct _ALDecBaseContext ALDecBaseContext;
typedef struct _ALEncBaseContext ALEncBaseContext;
typedef struct _ALG2dBaseContext ALG2dBaseContext;
typedef struct _ALVoBaseContext ALVoBaseContext;
typedef struct _ALViBaseContext ALViBaseContext;
struct _ALBaseContext {};
struct _ALDecBaseContext {
ALBaseContext stAlBaseContext;
};
struct _ALEncBaseContext {
ALBaseContext stAlBaseContext;
};
struct _ALG2dBaseContext {
ALBaseContext stAlBaseContext;
};
struct _ALVoBaseContext {
ALBaseContext stAlBaseContext;
};
struct _ALViBaseContext {
ALBaseContext stAlBaseContext;
5. Interface Description
5.1 VDEC
| Interface | Description | Parameter | Return Value |
|---|---|---|---|
| VDEC_CreateChannel | Create a decoder channel | None | MppVdecCtx*: decoder context |
| VDEC_Init | Initialize the decoder | MppVdecCtx *ctx: decoder context | 0: success; non-zero: error code |
| VDEC_SetParam | Set decoder parameters | MppVdecCtx *ctx: decoder context | 0: success; non-zero: error code |
| VDEC_GetParam | Get decoder parameters | MppVdecCtx *ctx: decoder context; MppVdecPara **stVdecPara: parameter structure | 0: success; non-zero: error code |
| VDEC_GetDefaultParam | Get default parameters | MppVdecCtx *ctx: decoder context | 0: success; non-zero: error code |
| VDEC_Decode | Send a bitstream to the decoder | MppVdecCtx *ctx: decoder context; MppData *sink_data: buffer | 0: success; non-zero: error code |
| VDEC_RequestOutputFrame | Request a decoded output frame | MppVdecCtx *ctx: decoder context; MppData *src_data: decoded output frame | 0: success; non-zero: error code |
| VDEC_ReturnOutputFrame | Return a decoded output frame | MppVdecCtx *ctx: decoder context; MppData *src_data: decoded output frame | 0: success; non-zero: error code |
| VDEC_DestroyChannel | Destroy the decoder channel | MppVdecCtx *ctx: decoder context | 0: success; non-zero: error code |
| VDEC_ResetChannel | Reset the decoder | MppVdecCtx *ctx: decoder context | 0: success; non-zero: error code |
5.2 VENC
| Interface | Description | Parameter | Return Value |
|---|---|---|---|
| VENC_CreateChannel | Create an encoder channel | None | MppVencCtx*: encoder context |
| VENC_Init | Initialize the encoder | MppVencCtx *ctx: encoder context | 0: success; non-zero: error code |
| VENC_SetParam | Set encoder parameters | MppVencCtx *ctx: encoder context; MppVencPara *para: encoder parameters | 0: success; non-zero: error code |
| VENC_GetParam | Get encoder parameters | MppVencCtx *ctx: encoder context; MppVencPara *para: encoder parameters | 0: success; non-zero: error code |
| VENC_SendInputFrame | Send an input frame to the encoder | MppVencCtx *ctx: encoder context; MppData *sink_data: input frame | 0: success; non-zero: error code |
| VENC_ReturnInputFrame | Return an input frame to the encoder | MppVencCtx *ctx: encoder context; MppData *sink_data: input frame | 0: success; non-zero: error code |
| VENC_GetOutputStreamBuffer | Get the encoded output stream buffer | MppVencCtx *ctx: encoder context; MppData *src_data: encoded bitstream | 0: success; non-zero: error code |
| VENC_DestroyChannel | Destroy the encoder channel | MppVencCtx *ctx: encoder context | 0: success; non-zero: error code |
| VENC_ResetChannel | Reset the encoder | MppVencCtx *ctx: encoder context | 0: success; non-zero: error code |
| VENC_Flush | Flush the internal encoder buffer | MppVencCtx *ctx: encoder context | 0: success; non-zero: error code |
5.3 G2D (Under Improvement)
| Interface | Description | Parameter | Return Value |
|---|---|---|---|
| G2D_CreateChannel | Create a G2D channel | None | MppG2dCtx*: G2D context |
| G2D_Init | Initialize G2D | MppG2dCtx *ctx: G2D context | 0: success; non-zero: error code |
| G2D_SetParam | Set G2D parameters | MppG2dCtx *ctx: G2D context; MppG2dPara *para: G2D parameters | 0: success; non-zero: error code |
| G2D_GetParam | Get G2D parameters | MppG2dCtx *ctx: G2D context; MppG2dPara *para: G2D parameters | 0: success; non-zero: error code |
| G2D_SendInputFrame | Send an input frame | MppG2dCtx *ctx: G2D context; MppData *sink_data: frame to be processed | 0: success; non-zero: error code |
| G2D_ReturnInputFrame | Return an input frame | MppG2dCtx *ctx: G2D context; MppData *sink_data: frame to be processed | 0: success; non-zero: error code |
| G2D_RequestOutputFrame | Request an output frame | MppG2dCtx *ctx: G2D context; MppData *src_data: processed frame | 0: success; non-zero: error code |
| G2D_ReturnOutputFrame | Release a processed frame | MppG2dCtx *ctx: G2D context; MppData *src_data: processed frame | 0: success; non-zero: error code |
| G2D_DestoryChannel | Destroy the G2D channel | MppG2dCtx *ctx: G2D context | 0: success; non-zero: error code |
5.4 VI
| Interface | Description | Parameter | Return Value |
|---|---|---|---|
| VI_CreateChannel | Create a VI channel | None | MppViCtx*: VI context |
| VI_Init | Initialize VI | MppViCtx *ctx: VI context | 0: success; non-zero: error code |
| VI_SetParam | Set VI parameters | MppViCtx *ctx: VI context; MppViPara *para: VI parameters | 0: success; non-zero: error code |
| VI_GetParam | Get VI parameters | MppViCtx *ctx: VI context; MppViPara *para: VI parameters | 0: success; non-zero: error code |
| VI_RequestOutputData | Get input data | MppViCtx *ctx: VI context; MppData *src_data: input data | 0: success; non-zero: error code |
| VI_ReturnOutputData | Release input data | MppViCtx *ctx: VI context; MppData *src_data: input data | 0: success; non-zero: error code |
| VI_DestoryChannel | Destroy the VI channel | MppViCtx *ctx: VI context | 0: success; non-zero: error code |
5.5 VO
| Interface | Description | Parameter | Return Value |
|---|---|---|---|
| VO_CreateChannel | Create a VO channel | None | MppVoCtx *: VO context |
| VO_Init | Initialize VO | MppVoCtx *ctx: VO context | 0: success; non-zero: error code |
| VO_SetParam | Set VO parameters | MppVoCtx *ctx: VO context; MppVoPara *para: VO parameters | 0: success; non-zero: error code |
| VO_GetParam | Get VO parameters | MppVoCtx *ctx: VO context; MppVoPara **para: VO parameters | 0: success; non-zero: error code |
| VO_Process | Output data | MppVoCtx *ctx: VO context; MppData *sink_data: output data | 0: success; non-zero: error code |
| VO_DestoryChannel | Destroy the VO channel | MppVoCtx *ctx: VO context | 0: success; non-zero: error code |
5.6 SYS
| Interface | Description | Parameter | Return Value |
|---|---|---|---|
| SYS_GetVersion | Get the MPP version | MppVersion *version: MPP version | 0: success; non-zero: error code |
| SYS_CreateFlow | Create a BIND flow | None | MppProcessFlowCtx*: flow context |
| SYS_CreateNode | Create a BIND node | MppProcessNodeType type: node type | MppProcessNode*: node context |
| SYS_Init | Initialize a BIND flow | MppProcessFlowCtx *ctx: flow context | None |
| SYS_Destory | Destroy a BIND flow | MppProcessFlowCtx *ctx: flow context | None |
| SYS_Bind | Bind a data source to a data receiver | MppProcessFlowCtx *ctx: flow context; MppProcessNode *src_ctx: data source; MppProcessNode *sink_ctx: data receiver | 0: success; non-zero: error code |
| SYS_UnBind | Unbind all data sources and data receivers | MppProcessFlowCtx *ctx: flow context | None |
| SYS_Handledata | Process data | MppProcessFlowCtx *ctx: flow context; MppData *sink_data: data to be processed | None |
| SYS_Getresult | Get the result | MppProcessFlowCtx *ctx: flow context; MppData *src_data: processed data | None |
6. Test Program
6.1 Single-Channel Decoding Test (vi_file_vdec_vo_test)
VI(file) --> VDEC(linlonv5v7) --> VO(file or sdl2)
6.1.1 Test Program Usage
bianbu@k3:~$ vi_file_vdec_vo_test -H
Usage:
-H --help Print help
-i --input Input file path
-c --codingtype Coding type
-m --moduletype Module type
-o --save_frame_file Saving picture file path
-w --width Video width
-h --height Video height
-f --format Video PixelFormat
--codectype:
0 CODEC_AUTO
1 CODEC_OPENH264
2 CODEC_FFMPEG
3 CODEC_SFDEC
4 CODEC_SFENC
5 CODEC_CODADEC
6 CODEC_SFOMX
7 CODEC_V4L2
8 CODEC_FAKEDEC
9 CODEC_V4L2_LINLONV5V7
10 CODEC_K1_JPU
100 UNKNOWN
101 VO_SDL2
102 VO_FILE
200 UNKNOWN
201 VI_V4L2
202 VI_K1_CAM
203 VI_FILE
300 UNKNOWN
301 VPS_K1_V2D
--codingtype:
0 CODING_UNKNOWN
1 CODING_H263
2 CODING_H264
3 CODING_H264_MVC
4 CODING_H264_NO_SC
5 CODING_H265
6 CODING_MJPEG
7 CODING_JPEG
8 CODING_VP8
9 CODING_VP9
10 CODING_AV1
11 CODING_AVS
12 CODING_AVS2
13 CODING_MPEG1
14 CODING_MPEG2
15 CODING_MPEG4
16 CODING_RV
17 CODING_VC1
18 CODING_VC1_ANNEX_L
19 CODING_FWHT
--format:
0 PIXEL_FORMAT_UNKNOWN
1 PIXEL_FORMAT_YV12
2 PIXEL_FORMAT_I420
3 PIXEL_FORMAT_NV21
4 PIXEL_FORMAT_NV12
5 PIXEL_FORMAT_YV12_P010
6 PIXEL_FORMAT_I420_P010
7 PIXEL_FORMAT_NV21_P010
8 PIXEL_FORMAT_NV12_P010
9 PIXEL_FORMAT_YV12_P016
10 PIXEL_FORMAT_I420_P016
11 PIXEL_FORMAT_NV21_P016
12 PIXEL_FORMAT_NV12_P016
13 PIXEL_FORMAT_YUV422P
14 PIXEL_FORMAT_YV16
15 PIXEL_FORMAT_YUV422SP
16 PIXEL_FORMAT_NV61
17 PIXEL_FORMAT_YUV422P_P010
18 PIXEL_FORMAT_YV16_P010
19 PIXEL_FORMAT_YUV422SP_P010
20 PIXEL_FORMAT_NV61_P010
21 PIXEL_FORMAT_YUV444P
22 PIXEL_FORMAT_YUV444SP
23 PIXEL_FORMAT_YUYV
24 PIXEL_FORMAT_YVYU
25 PIXEL_FORMAT_UYVY
26 PIXEL_FORMAT_VYUY
27 PIXEL_FORMAT_YUV_MB32_420
28 PIXEL_FORMAT_YUV_MB32_422
29 PIXEL_FORMAT_YUV_MB32_444
31 UNKNOWN
32 PIXEL_FORMAT_RGBA
33 PIXEL_FORMAT_ARGB
34 PIXEL_FORMAT_ABGR
35 PIXEL_FORMAT_BGRA
36 PIXEL_FORMAT_RGBA_5658
37 PIXEL_FORMAT_ARGB_8565
38 PIXEL_FORMAT_ABGR_8565
39 PIXEL_FORMAT_BGRA_5658
40 PIXEL_FORMAT_RGBA_5551
41 PIXEL_FORMAT_ARGB_1555
42 PIXEL_FORMAT_ABGR_1555
43 PIXEL_FORMAT_BGRA_5551
44 PIXEL_FORMAT_RGBA_4444
45 PIXEL_FORMAT_ARGB_4444
46 PIXEL_FORMAT_ABGR_4444
47 PIXEL_FORMAT_BGRA_4444
48 PIXEL_FORMAT_RGB_888
49 PIXEL_FORMAT_BGR_888
50 PIXEL_FORMAT_RGB_565
51 PIXEL_FORMAT_BGR_565
52 PIXEL_FORMAT_RGB_555
53 PIXEL_FORMAT_BGR_555
54 PIXEL_FORMAT_RGB_444
55 PIXEL_FORMAT_BGR_444
Use the LINLONV5V7 decoder to decode the H.264 bitstream (input.264) from the file into NV12-formatted output.yuv, and save the result as follows:
vi_file_vdec_vo_test -i input.264 -m 203,9,102 -c 2 -f 4 -w 1280 -h 720 -o output.yuv
// -m 203,9,102
// 203 represents VI_FILE
// 9 represents CODEC_V4L2_LINLONV5V7
// 102 represents VO_FILE
6.1.2 Test Program Code Flow
The test program flow is straightforward and is not described in detail here. Refer to the source code at:
mpp/test/vi_file_vdec_vo_test.c
6.2 Encoding Test (vi_file_venc_sync_userptr_vo_file_test)
VI(file) --> VENC(linlonv5v7) --> VO(file)
6.2.1 Test Program Usage
bianbu@k3:~$ vi_file_venc_sync_userptr_vo_file_test -H
Usage:
-H --help Print help
-i --input Input file path
-c --codingtype Coding type
-m --moduletype Module type
-o --save_frame_file Saving picture file path
-w --width Video width
-h --height Video height
-f --format Video PixelFormat
--codectype:
0 CODEC_AUTO
1 CODEC_OPENH264
2 CODEC_FFMPEG
3 CODEC_SFDEC
4 CODEC_SFENC
5 CODEC_CODADEC
6 CODEC_SFOMX
7 CODEC_V4L2
8 CODEC_FAKEDEC
9 CODEC_V4L2_LINLONV5V7
10 CODEC_K1_JPU
100 UNKNOWN
101 VO_SDL2
102 VO_FILE
200 UNKNOWN
201 VI_V4L2
202 VI_K1_CAM
203 VI_FILE
300 UNKNOWN
301 VPS_K1_V2D
--codingtype:
0 CODING_UNKNOWN
1 CODING_H263
2 CODING_H264
3 CODING_H264_MVC
4 CODING_H264_NO_SC
5 CODING_H265
6 CODING_MJPEG
7 CODING_JPEG
8 CODING_VP8
9 CODING_VP9
10 CODING_AV1
11 CODING_AVS
12 CODING_AVS2
13 CODING_MPEG1
14 CODING_MPEG2
15 CODING_MPEG4
16 CODING_RV
17 CODING_VC1
18 CODING_VC1_ANNEX_L
19 CODING_FWHT
--format:
0 PIXEL_FORMAT_UNKNOWN
1 PIXEL_FORMAT_YV12
2 PIXEL_FORMAT_I420
3 PIXEL_FORMAT_NV21
4 PIXEL_FORMAT_NV12
5 PIXEL_FORMAT_YV12_P010
6 PIXEL_FORMAT_I420_P010
7 PIXEL_FORMAT_NV21_P010
8 PIXEL_FORMAT_NV12_P010
9 PIXEL_FORMAT_YV12_P016
10 PIXEL_FORMAT_I420_P016
11 PIXEL_FORMAT_NV21_P016
12 PIXEL_FORMAT_NV12_P016
13 PIXEL_FORMAT_YUV422P
14 PIXEL_FORMAT_YV16
15 PIXEL_FORMAT_YUV422SP
16 PIXEL_FORMAT_NV61
17 PIXEL_FORMAT_YUV422P_P010
18 PIXEL_FORMAT_YV16_P010
19 PIXEL_FORMAT_YUV422SP_P010
20 PIXEL_FORMAT_NV61_P010
21 PIXEL_FORMAT_YUV444P
22 PIXEL_FORMAT_YUV444SP
23 PIXEL_FORMAT_YUYV
24 PIXEL_FORMAT_YVYU
25 PIXEL_FORMAT_UYVY
26 PIXEL_FORMAT_VYUY
27 PIXEL_FORMAT_YUV_MB32_420
28 PIXEL_FORMAT_YUV_MB32_422
29 PIXEL_FORMAT_YUV_MB32_444
31 UNKNOWN
32 PIXEL_FORMAT_RGBA
33 PIXEL_FORMAT_ARGB
34 PIXEL_FORMAT_ABGR
35 PIXEL_FORMAT_BGRA
36 PIXEL_FORMAT_RGBA_5658
37 PIXEL_FORMAT_ARGB_8565
38 PIXEL_FORMAT_ABGR_8565
39 PIXEL_FORMAT_BGRA_5658
40 PIXEL_FORMAT_RGBA_5551
41 PIXEL_FORMAT_ARGB_1555
42 PIXEL_FORMAT_ABGR_1555
43 PIXEL_FORMAT_BGRA_5551
44 PIXEL_FORMAT_RGBA_4444
45 PIXEL_FORMAT_ARGB_4444
46 PIXEL_FORMAT_ABGR_4444
47 PIXEL_FORMAT_BGRA_4444
48 PIXEL_FORMAT_RGB_888
49 PIXEL_FORMAT_BGR_888
50 PIXEL_FORMAT_RGB_565
51 PIXEL_FORMAT_BGR_565
52 PIXEL_FORMAT_RGB_555
53 PIXEL_FORMAT_BGR_555
54 PIXEL_FORMAT_RGB_444
55 PIXEL_FORMAT_BGR_444
Use the LINLONV5V7 encoder to encode the 1280 × 720 NV12-formatted input.yuv file into an H.264 bitstream (output.264), and save the result as follows:
vi_file_venc_sync_userptr_vo_file_test -i input.yuv -m 203,9,102 -c 2 -f 4 -w 1280 -h 720 -o output.264
// -m 203,9,102
// 203 represents VI_FILE
// 9 represents CODEC_V4L2_LINLONV5V7
// 102 represents VO_FILE
6.2.2 Test Program Code Flow
The code flow of the test program is relatively simple and is not described in detail here. Refer to the source code at:
mpp/test/vi_file_venc_sync_userptr_vo_file_test.c
6.3 Decode-Encode Test (vi_file_vdec_venc_sync_userptr_vo_file_test)
VI(file) --> VDEC(linlonv5v7) --> VENC(linlonv5v7) --> VO(file)
6.3.1 Test Program Usage
bianbu@k3:~$ vi_file_vdec_venc_sync_userptr_vo_file_test -H
Usage:
-H --help Print help
-i --input Input file path
-c --codingtype Coding type
-m --moduletype Module type
-o --save_frame_file Saving picture file path
-w --width Video width
-h --height Video height
-f --format Video PixelFormat
--codectype:
0 CODEC_AUTO
1 CODEC_OPENH264
2 CODEC_FFMPEG
3 CODEC_SFDEC
4 CODEC_SFENC
5 CODEC_CODADEC
6 CODEC_SFOMX
7 CODEC_V4L2
8 CODEC_FAKEDEC
9 CODEC_V4L2_LINLONV5V7
10 CODEC_K1_JPU
100 UNKNOWN
101 VO_SDL2
102 VO_FILE
200 UNKNOWN
201 VI_V4L2
202 VI_K1_CAM
203 VI_FILE
300 UNKNOWN
301 VPS_K1_V2D
--codingtype:
0 CODING_UNKNOWN
1 CODING_H263
2 CODING_H264
3 CODING_H264_MVC
4 CODING_H264_NO_SC
5 CODING_H265
6 CODING_MJPEG
7 CODING_JPEG
8 CODING_VP8
9 CODING_VP9
10 CODING_AV1
11 CODING_AVS
12 CODING_AVS2
13 CODING_MPEG1
14 CODING_MPEG2
15 CODING_MPEG4
16 CODING_RV
17 CODING_VC1
18 CODING_VC1_ANNEX_L
19 CODING_FWHT
--format:
0 PIXEL_FORMAT_UNKNOWN
1 PIXEL_FORMAT_YV12
2 PIXEL_FORMAT_I420
3 PIXEL_FORMAT_NV21
4 PIXEL_FORMAT_NV12
5 PIXEL_FORMAT_YV12_P010
6 PIXEL_FORMAT_I420_P010
7 PIXEL_FORMAT_NV21_P010
8 PIXEL_FORMAT_NV12_P010
9 PIXEL_FORMAT_YV12_P016
10 PIXEL_FORMAT_I420_P016
11 PIXEL_FORMAT_NV21_P016
12 PIXEL_FORMAT_NV12_P016
13 PIXEL_FORMAT_YUV422P
14 PIXEL_FORMAT_YV16
15 PIXEL_FORMAT_YUV422SP
16 PIXEL_FORMAT_NV61
17 PIXEL_FORMAT_YUV422P_P010
18 PIXEL_FORMAT_YV16_P010
19 PIXEL_FORMAT_YUV422SP_P010
20 PIXEL_FORMAT_NV61_P010
21 PIXEL_FORMAT_YUV444P
22 PIXEL_FORMAT_YUV444SP
23 PIXEL_FORMAT_YUYV
24 PIXEL_FORMAT_YVYU
25 PIXEL_FORMAT_UYVY
26 PIXEL_FORMAT_VYUY
27 PIXEL_FORMAT_YUV_MB32_420
28 PIXEL_FORMAT_YUV_MB32_422
29 PIXEL_FORMAT_YUV_MB32_444
31 UNKNOWN
32 PIXEL_FORMAT_RGBA
33 PIXEL_FORMAT_ARGB
34 PIXEL_FORMAT_ABGR
35 PIXEL_FORMAT_BGRA
36 PIXEL_FORMAT_RGBA_5658
37 PIXEL_FORMAT_ARGB_8565
38 PIXEL_FORMAT_ABGR_8565
39 PIXEL_FORMAT_BGRA_5658
40 PIXEL_FORMAT_RGBA_5551
41 PIXEL_FORMAT_ARGB_1555
42 PIXEL_FORMAT_ABGR_1555
43 PIXEL_FORMAT_BGRA_5551
44 PIXEL_FORMAT_RGBA_4444
45 PIXEL_FORMAT_ARGB_4444
46 PIXEL_FORMAT_ABGR_4444
47 PIXEL_FORMAT_BGRA_4444
48 PIXEL_FORMAT_RGB_888
49 PIXEL_FORMAT_BGR_888
50 PIXEL_FORMAT_RGB_565
51 PIXEL_FORMAT_BGR_565
52 PIXEL_FORMAT_RGB_555
53 PIXEL_FORMAT_BGR_555
54 PIXEL_FORMAT_RGB_444
55 PIXEL_FORMAT_BGR_444
Use the LINLONV5V7 codec to decode the 1280 × 720 H.264 bitstream (input.264) from the file into NV12 format, and then re-encode it into an H.264 bitstream (output.264), as follows:
vi_file_vdec_venc_sync_userptr_vo_file_test -i input.264 -m 203,9,9,102 -c 2 -f 4 -w 1280 -h 720 -o output.264
// -m 203,9,9,102
// 203 represents VI_FILE
// 9 represents CODEC_V4L2_LINLONV5V7
// 102 represents VO_FILE
6.3.2 Test Program Code Flow
The code flow of the test program is relatively simple and is not described in detail here. Refer to the source code at:
mpp/test/vi_file_vdec_venc_sync_userptr_vo_file_test.c
7. Hardware Decoding and Verification Methods
7.1 Bianbu Desktop System
7.1.1 mpv Player
mpv supports hardware decoding for formats such as H.264, HEVC, VP8, VP9, MJPEG, and MPEG4, with support up to 4K@60 fps. The verification methods are as follows:
- In the desktop system, locate the video file, right-click it, and select Play with mpv.
- In the terminal, play the video from the command line.
mpv xxx.mp4
mpv -fs xxx.mp4 // play in fullscreen
mpv --loop xxx.mp4 // play in a loop
7.1.2 totem Player
totem supports hardware decoding for formats such as H.264, HEVC, VP8, VP9, and MJPEG, with support up to 4K@60 fps. The verification methods are as follows:
- In the desktop system, locate the video file, right-click it, and select Play with totem.
- In the terminal, play the video from the command line.
totem xxx.mp4
7.1.3 chromium Browser
chromium supports hardware decoding for formats such as H.264 and HEVC, with support up to 4K@60 fps. The verification methods are as follows:
- Open chromium and play a video from Bilibili.
- Open chromium and play a video from Youku.
- Open chromium and play a video from Sina Sports.
- Open chromium and play a video from another website.
7.1.4 ffplay Command Line
ffplay -codec:v h264_stcodec xxx.mp4 (H.264 video codec)
ffplay -codec:v hevc_stcodec xxx.mp4 (HEVC video codec)
...
7.1.6 GStreamer Command Line
gst-launch-1.0 playbin uri=file:///path/to/some/media/file.mp4 (H.264 video codec)
gst-launch-1.0 playbin uri=file:///path/to/some/media/file.mp4 (HEVC video codec)
7.2 Buildroot System
7.2.1 FFmpeg
ffplay -codec:v h264_stcodec xxx.mp4 (HEVC video codec)
ffplay -codec:v hevc_stcodec xxx.mp4 (HEVC video codec)
...
7.2.2 GStreamer
gst-launch-1.0 playbin uri=file:///path/to/some/media/file.mp4 (H.264 video codec)
gst-launch-1.0 playbin uri=file:///path/to/some/media/file.mp4 (HEVC video codec)
