2.5 C++ Usage Guide

Introduction

Purpose

This document provides a complete guide for C++ development on native SpacemiT RISC-V64 hardware. It covers environment setup, compilation, library usage, and platform-specific optimization and debugging for RISC-V64.

Goals:

• Quickly set up and validate a C++ development environment.
• Compile, run, and debug C++ applications on RISC-V64.
• Provide RISC-V64-specific compilation flags, ISA optimizations, and troubleshooting.
• Establish a foundation for HPC, systems programming, AI, and robotics development.

Supported Environments

This guide applies to Linux distributions running on SpacemiT RISC-V64 processors. Recommended systems include:

• ROS2_LXQT (recommended)
• Ubuntu RISC-V (24.04 or newer)
• Other RISC-V64 Linux distributions (Fedora, openEuler RISC-V, Arch RISC-V, etc.)

Requirements:

• Build tools available through the package manager (g++, make, cmake)
• Standard C library (glibc or musl) and C++ standard library (libstdc++)
• Internet access for package installation (apt, dnf, pacman, etc.)

Environment Setup

Compilers

GCC/G++ (ROS2_LXQT)

• Status: Stable support on ROS2_LXQT and other Bianbu systems

• Install:

  sudo apt update
  sudo apt install build-essential g++ gcc

• Key Flags:

  • -O2/-O3/-Ofast → optimization level
  • -march=rv64gc → base RISC-V ISA
  • -march=rv64gcv → enable vector extension (RVV)

Clang/LLVM Support

• Supported in mainline, but some optimizations are less mature than GCC

• Install:

  sudo apt install clang

• Use clang++ as a drop-in replacement for g++.

Verify Installation

g++ --version
clang++ --version

Ensure that the output includes riscv64 or the correct version.

Standard Libraries

libstdc++

• libstdc++ is the default C++ standard library implementation for GCC. It is typically installed alongside g++ on RISC-V distributions.

• Verification:

  dpkg -L libstdc++6

glibc

• glibc: ROS2_LXQT uses glibc as its standard C library implementation.

• Check Version:

  ldd --version

Standard Development Paths

• System standard paths:
  • /usr/include/
  • /usr/lib/riscv64-linux-gnu/ (libraries)
  • /usr/include/c++/<version>/ (C++ headers)

Build Tools

make

• The most common build automation tool

• Installation:

  sudo apt install make

cmake

• Cross-platform build system generator

• Installation:

  sudo apt install cmake

ninja

• High-performance build system, often used with CMake (cmake -G Ninja)

• Installation:

  sudo apt install ninja-build

Debugging & Performance Tools

gdb

• GNU Debugger — fully supported on ROS2_LXQT

• Install:

  sudo apt install gdb

• Common commands: break, run, next, print, info registers

perf

• Linux performance analysis tool — monitors CPU instructions, cache usage, branch prediction, etc.

• Install:

  sudo apt install linux-tools-common linux-tools-$(uname -r)

• Verify installation:

  perf stat ls

• Documentation: Perf Usage Guide

C++ Basic Usage

Hello World Program

This simple C++ example helps verify your compiler and environment are working correctly.

#include <iostream>

int main() {
    std::cout << "Hello, SpacemiT RISC-V64!" << std::endl;
    return 0;
}

Compile & Run

On ROS2_LXQT, compile with GCC:

g++ hello.cpp -o hello
./hello

Expected output:

Hello, SpacemiT RISC-V64!

Note: If you get g++: command not found, make sure GCC/G++ is installed and available in your $PATH.

Language Standard Selection

The C++ language standard determines which features and libraries you can use. Here's what works well on ROS2_LXQT:

• -std=c++11: Basic modern C++ (lambdas, smart pointers)
• -std=c++14: Enhanced lambdas and generic programming improvements
• -std=c++17: Structured bindings, if-init statements, and the filesystem library
• -std=c++20: Concepts, coroutines, and the ranges library
• -std=c++23: Latest standard (some features may still be under compiler implementation)

Example:

g++ -std=c++17 hello.cpp -o hello

Note: Support for newer standards (C++20/23) depends on your GCC/Clang version. Older distributions may have limited support.

Compilation Optimization

Compiler optimization affects both program performance and binary size. You can choose different options based on your specific needs.

Common Optimization Levels

Option	Description
-O0	No optimization. Easier for debugging.
-O2	Balanced optimization. Good trade-off between speed and size.
-O3	Aggressive optimization. May increase code size but can improve performance.
-Ofast	Very aggressive optimization. Ignores strict standard compliance.

RISC-V Specific Options

• -march=rv64gc Enables RISC-V 64-bit with base integer, compressed, floating-point, and atomic instructions.
• -march=rv64gcv Adds support for vector extension (RVV).

Link-Time Optimization (LTO)

-flto (Link-Time Optimization) Performs extra optimization during the linking stage across the entire program.

Example:

g++ -O3 -march=rv64gc -flto hello.cpp -o hello

Tip: Aggressive optimizations (-O3, -Ofast, -flto) can sometimes change program behavior or make debugging harder. For debugging, stick with -O0.

Common Compilation Errors & Solutions

When developing C++ programs on SpacemiT RISC-V64, you might encounter these common compilation errors:

g++: command not found

Cause: GCC/G++ is not installed on your system. Solution:

sudo apt update
sudo apt install build-essential g++

error: unrecognized command line option '-march=...'

Cause: Your current GCC version doesn't support the specified RISC-V instruction set extension.

Solution:

• Check supported -march options:

riscv64-linux-gnu-g++ -march=rv64g -E -v -

• Use the default instruction set provided by the distribution (e.g., -march=rv64gc).
• If needed, upgrade GCC or install the official RISC-V toolchain.

undefined reference to 'std::...'

Cause: C++ standard library is not linked correctly, or header/library paths are mismatched.

Solution:

• Verify libstdc++ is installed:

dpkg -L libstdc++6

• Check if the compiler is using the correct standard library path:

g++ -v hello.cpp

Standard Compatibility Errors

Example:

error: 'concept' requires C++20

Cause: Using language features that require a newer standard than your compiler's default.

Solution:

• Specify the correct language standard:

g++ -std=c++20 hello.cpp -o hello

• If your compiler is too old and does not support the required standard, upgrade GCC or Clang.

Unexpected Behavior After Optimization

Example: Program crashes or produces incorrect output after compiling with -Ofast. Cause: -Ofast relaxes strict standard compliance, which can affect floating-point math or undefined behavior. Solution:

• For debugging, use -O0 or -O2.
• Carefully check for issues such as invalid pointers, array overflows, or uninitialized variables.

Tips (Common Issues)

• Always check your compiler version and platform ISA support when errors occur.
• Remember that RISC-V64 behavior may differ slightly from x86 in some optimizations and library functions.
• For complex projects, use CMake or a Makefile to manage compile options and ensure consistent standards and optimization levels.

RISC-V64 Features & Optimization

Instruction Set Extensions

The performance and capabilities of RISC-V64 platforms depend heavily on which instruction set extensions are enabled.

Common Extensions

• RV64G (-march=rv64gc)

  • Base integer instructions (I)
  • Atomic instructions (A)
  • Floating-point instructions (F/D)
  • Compressed instructions (C)
  • This is the most common general-purpose combination and is suitable for most applications.

• Vector Extension (RVV)

  • Enabled with v flag: -march=rv64gcv
  • Supports SIMD-style vector operations, ideal for matrix operations, AI inference, and other high-performance computing tasks
  • Important: Both the hardware and toolchain must support RVV.

Compiler Flag Example

g++ -march=rv64gcv -O3 vec_test.cpp -o vec_test

• -O3: Aggressive optimization
• -march=rv64gcv: Enables general-purpose + compressed + vector extensions

RVV Test Example

Before using RVV, make sure your GCC version is 14 or newer. Run this script to check and upgrade automatically:

GCC_MAJOR=$(gcc -dumpfullversion | cut -d. -f1)

if [ "$GCC_MAJOR" -lt 14 ]; then
    echo "Current GCC version is $GCC_MAJOR, which is less than 14. Installing gcc-14 and g++-14..."

    sudo apt install -y gcc-14 g++-14

    # Set up update-alternatives
    sudo update-alternatives --install /usr/bin/gcc gcc /usr/bin/gcc-14 100
    sudo update-alternatives --install /usr/bin/g++ g++ /usr/bin/g++-14 100
    sudo update-alternatives --set gcc /usr/bin/gcc-14
    sudo update-alternatives --set g++ /usr/bin/g++-14

    sudo update-alternatives --install /usr/bin/riscv64-linux-gnu-gcc riscv64-linux-gnu-gcc /usr/bin/riscv64-linux-gnu-gcc-14 100
    sudo update-alternatives --install /usr/bin/riscv64-linux-gnu-g++ riscv64-linux-gnu-g++ /usr/bin/riscv64-linux-gnu-g++-14 100
    sudo update-alternatives --set riscv64-linux-gnu-gcc /usr/bin/riscv64-linux-gnu-gcc-14
    sudo update-alternatives --set riscv64-linux-gnu-g++ /usr/bin/riscv64-linux-gnu-g++-14

    echo "✅ switched to version 14"
else
    echo "✅ Current GCC version is $GCC_MAJOR, already ≥ 14. No change needed."
fi

Test program

#include <stdio.h>

#if !defined(__riscv) || !defined(__riscv_v)
#error "RISC-V or vector extension(RVV) is not supported by the compiler"
#endif

#if !defined(__THEAD_VERSION__) && defined(__riscv_v_intrinsic) && __riscv_v_intrinsic < 12000
#error "Wrong intrinsics version, v0.12 or higher is required for gcc or clang"
#endif

#include <riscv_vector.h>

#ifdef __THEAD_VERSION__
int test()
{
    const float src[] = { 0.0f, 0.0f, 0.0f, 0.0f };
    uint64_t ptr[2] = {0x0908060504020100, 0xFFFFFFFF0E0D0C0A};
    vuint8m1_t a = vreinterpret_v_u64m1_u8m1(vle64_v_u64m1(ptr, 2));
    vfloat32m1_t val = vle32_v_f32m1((const float*)(src), 4);
    return (int)vfmv_f_s_f32m1_f32(val);
}
#else
int test()
{
    const float src[] = { 0.0f, 0.0f, 0.0f, 0.0f };
    uint64_t ptr[2] = {0x0908060504020100, 0xFFFFFFFF0E0D0C0A};
    vuint8m1_t a = __riscv_vreinterpret_v_u64m1_u8m1(__riscv_vle64_v_u64m1(ptr, 2));
    vfloat32m1_t val = __riscv_vle32_v_f32m1((const float*)(src), 4);
    return (int)__riscv_vfmv_f_s_f32m1_f32(val);
}
#endif

int main()
{
  printf("%d\n", test());
  return 0;
}

Save the code above as cpu_rvv.cpp.

Compile with:

g++ -march=rv64gcv -mabi=lp64d cpu_rvv.cpp -o cpu_rvv

Disassemble to verify RVV instructions:

objdump -d cpu_rvv | grep '^ *[0-9a-f]*:.*v'

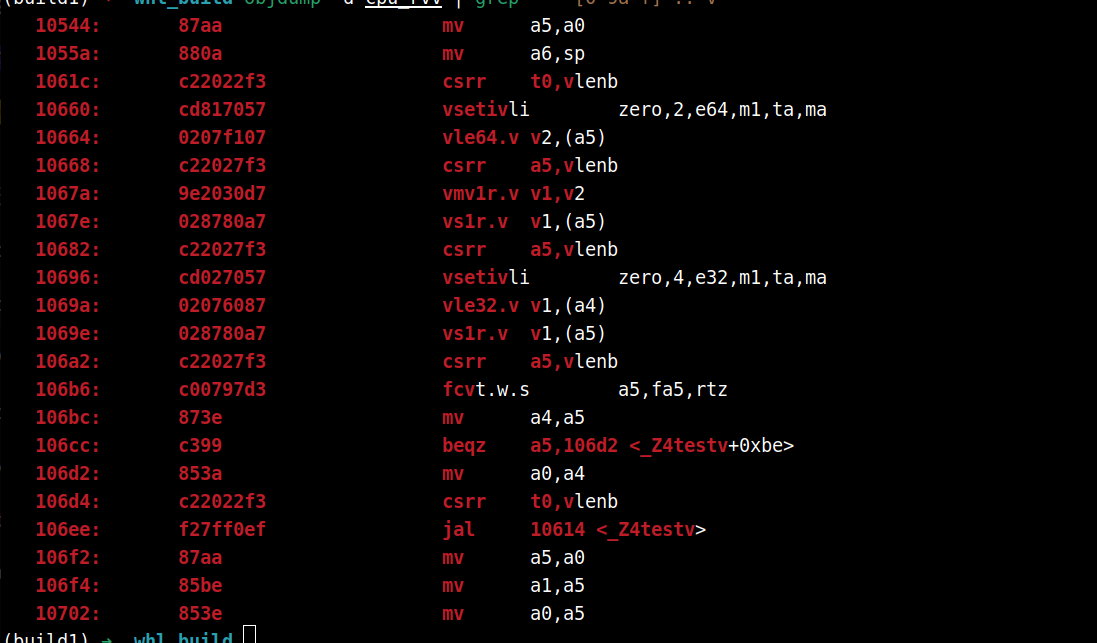

Example output:

If you see instructions containing .v, the program is using RVV successfully.

Project Management

When developing C++ on ROS2_LXQT, using the right build system helps you manage source files, dependencies, and compiler options efficiently. The most common build tools are Makefile and CMake.

Makefile Examples

Single-File Project

Makefile

# Variable definitions for compiler and flags
CXX = g++
CXXFLAGS = -O2 -march=rv64gc -std=c++17
TARGET = hello
SRCS = hello.cpp

# Default target
all: $(TARGET)

# Link target
$(TARGET): $(SRCS)
 $(CXX) $(CXXFLAGS) $^ -o $@

# Cleanup build outputs
clean:
 rm -f $(TARGET)

Explanation:

• $^: all dependency files
• $@: target file name
• CXXFLAGS: contains the optimization level, language standard, and RISC-V-specific flags

Usage:

make        # Build
make clean  # Remove generated files

Multi-File Project

CXX = g++
CXXFLAGS = -O2 -march=rv64gc -std=c++17
TARGET = my_app
SRCS = main.cpp utils.cpp
OBJS = $(SRCS:.cpp=.o)

all: $(TARGET)

$(TARGET): $(OBJS)
 $(CXX) $(CXXFLAGS) $^ -o $@

%.o: %.cpp
 $(CXX) $(CXXFLAGS) -c $< -o $@

clean:
 rm -f $(OBJS) $(TARGET)

Tip: Makefile automatically handles header file dependencies, making incremental builds efficient.

CMake Examples

CMake is a cross-platform build system that works better for larger or multi-directory projects.

Single-File Project

CMakeLists.txt

cmake_minimum_required(VERSION 3.16)
project(HelloRISCVDemo CXX)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_FLAGS "-O2 -march=rv64gc")

add_executable(hello hello.cpp)

Build commands:

mkdir build && cd build
cmake ..
make
./hello

Multi-Directory Project

Directory structure:

my_app/
├── CMakeLists.txt
├── src/
│   ├── main.cpp
│   └── utils.cpp
└── include/
    └── utils.h

Top-level CMakeLists.txt

cmake_minimum_required(VERSION 3.16)
project(MyApp CXX)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_FLAGS "-O2 -march=rv64gc")

add_subdirectory(src)
include_directories(include)

src/CMakeLists.txt

add_executable(my_app main.cpp utils.cpp)

Build (same as before):

cmake ..
make

Using pkg-config with CMake

When linking against external libraries (e.g., glib, SDL2):

find_package(PkgConfig REQUIRED)
pkg_check_modules(GLIB REQUIRED glib-2.0)
include_directories(${GLIB_INCLUDE_DIRS})
link_directories(${GLIB_LIBRARY_DIRS})
add_executable(my_app main.cpp)
target_link_libraries(my_app ${GLIB_LIBRARIES})

CMake Tips

• CMake works across platforms, making it easy to switch between RISC-V64 and x86 builds.
• Use pkg-config to manage third-party library dependencies.

Common Libraries

The examples in this section use g++ directly for compilation. In real projects, you can also use CMake or other build systems to manage the compilation process.

System Libraries

pthread

Example code (pthread_test.cpp):

#include <pthread.h>
#include <iostream>

void* thread_func(void* arg) {
    std::cout << "Hello from thread!" << std::endl;
    return nullptr;
}

int main() {
    pthread_t tid;
    pthread_create(&tid, nullptr, thread_func, nullptr);
    pthread_join(tid, nullptr);
}

Compile & Run:

g++ -std=c++17 -O2 -march=rv64gc pthread_test.cpp -o pthread_test -lpthread
./pthread_test

dlopen / dlsym

Example code (dl_test.cpp):

#include <dlfcn.h>
#include <iostream>

int main() {
    void* handle = dlopen("libm.so", RTLD_LAZY);
    if (!handle) { std::cerr << dlerror(); return 1; }
    double (*cos_func)(double) = (double(*)(double))dlsym(handle, "cos");
    std::cout << cos_func(0.0) << std::endl;
    dlclose(handle);
}

Compile & Run:

g++ -std=c++17 -O2 -march=rv64gc dl_test.cpp -o dl_test -ldl
./dl_test

Math / Scientific Computing Libraries

OpenBLAS

Install:

sudo apt install libopenblas-dev

Example code (blas_test.cpp):

#include <cblas.h>
#include <iostream>

int main() {
    double A[4] = {1,2,3,4};
    double B[4] = {5,6,7,8};
    double C[4];
    cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans, 2, 2, 2, 1.0, A, 2, B, 2, 0.0, C, 2);
    std::cout << "C[0] = " << C[0] << std::endl;
}

Compile & Run:

g++ -std=c++17 -O3 -march=rv64gcv blas_test.cpp -o blas_test -lopenblas
./blas_test

Eigen

Install:

sudo apt install libeigen3-dev

Example code (eigen_test.cpp):

#include <Eigen/Dense>
#include <iostream>

int main() {
    Eigen::Matrix2d A;
    A << 1,2,3,4;
    std::cout << A << std::endl;
}

Compile & Run:

g++ -std=c++17 -O2 -march=rv64gc -I/usr/include/eigen3 eigen_test.cpp -o eigen_test
./eigen_test

Note: Eigen is a header-only library, so no additional linking is required.

Networking & System Programming

POSIX Socket

Example code (socket_test.cpp):

#include <sys/socket.h>
#include <netinet/in.h>
#include <iostream>

int main() {
    int sock = socket(AF_INET, SOCK_STREAM, 0);
    if (sock < 0) std::cerr << "Socket creation failed" << std::endl;
    else std::cout << "Socket created successfully" << std::endl;
}

Compile & Run:

g++ -std=c++17 -O2 -march=rv64gc socket_test.cpp -o socket_test
./socket_test

Boost (Asio Example)

Install:

sudo apt install libboost-system-dev libboost-thread-dev

Example code (boost_test.cpp):

#include <boost/asio.hpp>
#include <iostream>

int main() {
    boost::asio::io_context io;
    std::cout << "Boost Asio io_context created" << std::endl;
}

Compile & Run:

g++ -std=c++17 -O2 -march=rv64gc boost_test.cpp -o boost_test -lboost_system -pthread
./boost_test

Graphics & GUI

Qt5

Install:

sudo apt install qtbase5-dev

Example code (qt_test.cpp):

#include <QApplication>
#include <QPushButton>

int main(int argc, char** argv) {
    QApplication app(argc, argv);
    QPushButton button("Hello RISC-V Qt");
    button.show();
    return app.exec();
}

Compile & Run:

Note: This requires a physical display connection and will not work over SSH.

g++ -std=c++17 -O2 -march=rv64gc qt_test.cpp -o qt_test $(pkg-config --cflags --libs Qt5Widgets)
./qt_test

SDL2

Example code (sdl_test.cpp):

#include <SDL2/SDL.h>
#include <iostream>

int main() {
    if (SDL_Init(SDL_INIT_VIDEO) != 0) {
        std::cerr << "SDL_Init Error: " << SDL_GetError() << std::endl;
        return 1;
    }
    std::cout << "SDL initialized successfully" << std::endl;
    SDL_Quit();
}

Compile & Run:

Note: Requires physical display connection. Won't work over SSH.

g++ -std=c++17 -O2 -march=rv64gc sdl_test.cpp -o sdl_test $(sdl2-config --cflags --libs)
./sdl_test

Additional Usage Examples

GPIO Control in C/C++

For pin definitions, refer to: Pinout Reference

This example uses the lgpio C library for GPIO operations. For more details, refer to the official documentation.

Install Dependencies

sudo apt install liblgpio-dev python3-gpiozero

Controlling an LED

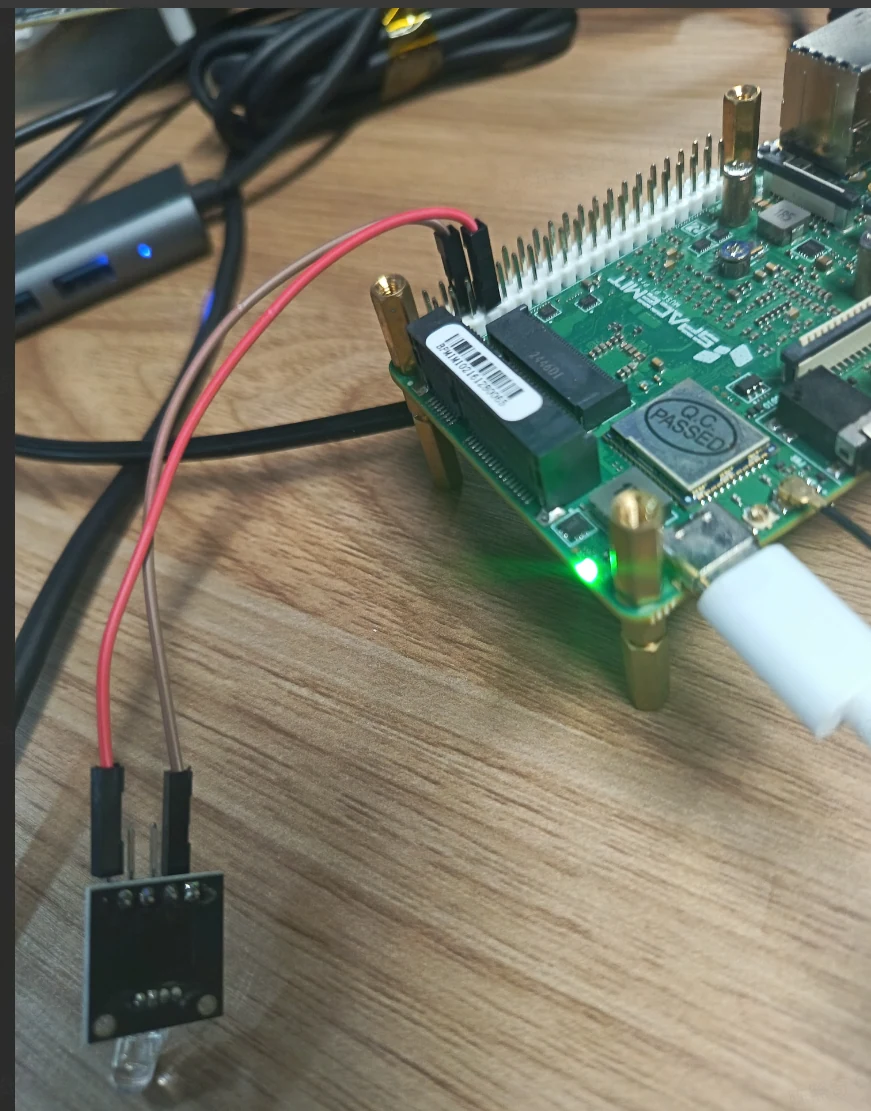

Hardware Connection (Using pin 70 on the SpacemiT MUSE Pi development board):

Example Code

#include <stdio.h>
#include <unistd.h>
#include <lgpio.h>

int main(void)
{
    int h;           // Chip handle
    int line = 70;   // GPIO pin number to control
    int lh;          // Line handle
    int i;

    // Open /dev/gpiochip0
    h = lgGpiochipOpen(0);
    if (h < 0)
    {
        printf("Failed to open gpiochip0: %d\n", h);
        return 1;
    }

    // Claim GPIO70 as output
    lh = lgGpioClaimOutput(h, 0, line, 0); // Initial state: low
    if (lh < 0)
    {
        printf("Failed to claim GPIO%d as output: %d\n", line, lh);
        lgGpiochipClose(h);
        return 1;
    }

    // Blink LED 10 times
    for (i = 0; i < 10; i++)
    {
        lgGpioWrite(h, line, 1); // Set high
        usleep(500000);          // Delay 0.5 seconds
        lgGpioWrite(h, line, 0); // Set low
        usleep(500000);
    }

    // Release GPIO resources
    lgGpioFree(h, line);
    lgGpiochipClose(h);

    return 0;
}

Save the file as blink.c.

Compile

gcc -o blink blink.c -llgpio

Run the Program

./blink
