4.4 YOLOv8 Training and Deployment Pipeline

This guide uses YOLOv8 as an example to explain the complete workflow: model training, quantization, and final inference deployment.

Model Training​

Training Environment Setup​

  1. Clone the source code:

    git clone https://github.com/ultralytics/ultralytics

  2. Install dependencies:

    cd ultralytics
    pip install -e .

    If you encounter network issues downloading dependencies, you can use the Tsinghua mirror site for installation: https://pypi.tuna.tsinghua.edu.cn/simple/

Model Training and Export​

The following code example demonstrates how to train a YOLOv8 model and export it to ONNX format:

from ultralytics import YOLO
# Load a COCO-pretrained YOLOv8n model
model = YOLO("yolov8n.yaml")
# Load a pretrained YOLO model (recommended for training)
model = YOLO("yolov8n.pt")
# Train the model using the 'coco8.yaml' dataset for 100 epochs
results = model.train(data="coco8.yaml", epochs=100)
# Export the model to ONNX format
success = model.export(format="onnx", imgsz=(320, 320), simplify=True, opset=13)

Key Parameter Explanation:

  • yolov8n.yaml: Model configuration file.
  • coco8.yaml: Training dataset configuration file. It must include two parts:
    • images: Directory containing training and validation set images.
    • labels: Directory containing the corresponding annotation files for the images.

Annotation File (labels) Format (each line represents one target object):

<class_id> <x_center> <y_center> <width> <height>

Example:

0 0.445688 0.480615 0.075125 0.117295
0 0.640086 0.471742 0.0508281 0.0814344
20 0.643211 0.558852 0.129828 0.097623
  • class_id: The target's class ID (integer).
  • The subsequent four floating-point numbers represent the target's normalized bounding box coordinates in the order:
    • x_center: Normalized x-coordinate of the bounding box center.
    • y_center: Normalized y-coordinate of the bounding box center.
    • width: Normalized width of the bounding box.
    • height: Normalized height of the bounding box.

Note: For fine-tuning on your private dataset, start from a pretrained model and prepare your data following the coco8.yaml format.

Model Quantization (on x86 Platforms)​

Important: Perform quantization on an x86 machine.

Quantization Tool Installation​

  1. Download the quantization tool: xquant-1.2.1 Download Link

  2. Install the tool:

    pip install xquant-1.2.1-py3-none-any.whl

  3. Verify the installation:

    pip show xquant

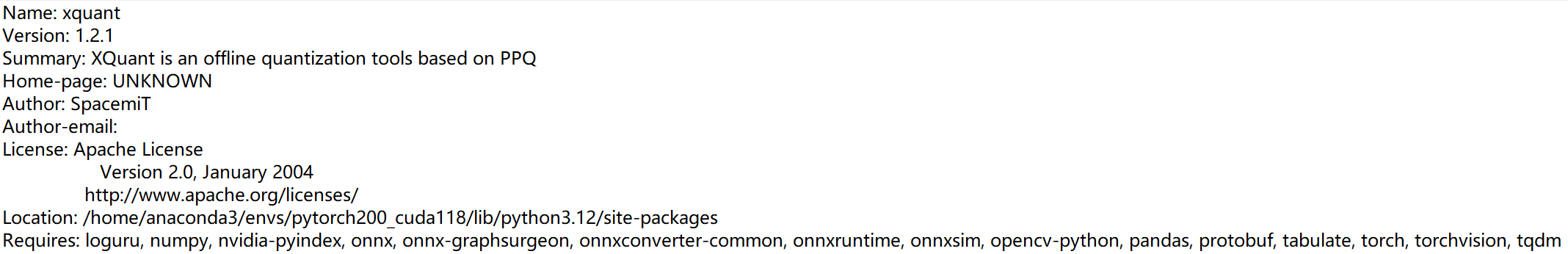

Example output for a successful installation: Installation Successful

Quantization Configuration​

Calibration Dataset Download: Calibration Dataset

Example quantization configuration file:

{
  "model_parameters": {
    "onnx_model": "path/yolov8n.onnx",
    "working_dir": "yolov8",
    "skip_onnxsim": false
  },
  "calibration_parameters": {
    "input_parameters": [
      {
        "mean_value": [0, 0, 0],
        "std_value": [255, 255, 255],
        "color_format": "rgb",
        "data_list_path": "path/calib_list.txt"
      }
    ]
  },
  "quantization_parameters": {
    "truncate_var_names": [
      "/model.22/Reshape_output_0",
      "/model.22/Reshape_1_output_0",
      "/model.22/Reshape_2_output_0"
    ]
  }
}

Parameter Explanation:

  • onnx_model: Path to the ONNX model to be quantized.
  • mean_value and std_value: Image normalization parameters. Must match the configuration used during training.
  • color_format: Color channel order (e.g., rgb or bgr).
  • data_list_path: Path to the file listing calibration images.
  • truncate_var_names: Names of nodes where quantization should be truncated (to prevent quantization error from affecting post-processing).

Calibration List File Example (calib_list.txt):

path/000000428562.jpg
path/000000000632.jpg
path/000000157756.jpg
path/000000044279.jpg
  • path can be either a relative path (relative to the configuration file location) or an absolute path.

Note: It is recommended to use a subset of your training images for calibration to maintain consistent data distribution.

Truncation Node Identification​

  • The truncate_var_names parameter specifies nodes for truncation.
  • YOLOv8 models include post-processing (coordinate decoding) logic.
  • Truncating the model before these nodes helps prevent quantization errors from degrading post-processing accuracy.

Example:

"truncate_var_names": [
  "/model.22/Reshape_output_0",
  "/model.22/Reshape_1_output_0",
  "/model.22/Reshape_2_output_0"
]

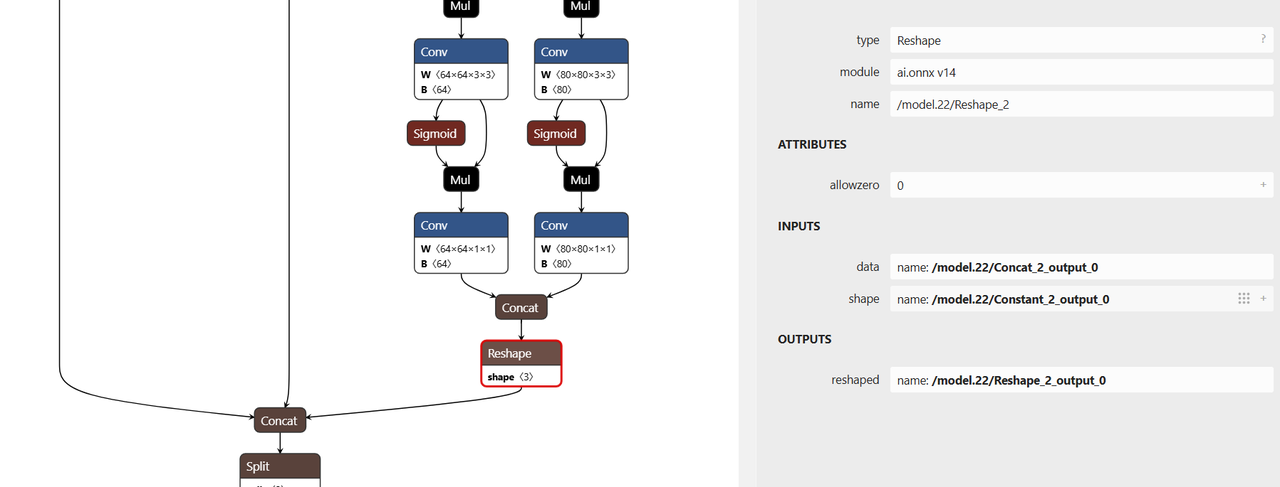

Use the Netron visualizer to open your yolov8n.onnx model, inspect the graph, and confirm the names of the nodes that should be truncated or excluded from quantization.

Netron Model Nodes

Run Quantization​

Run the following command to perform quantization:

python3 -m xquant --config path/yolov8_xquant_config.json

Upon successful quantization, the output model (e.g., yolov8n.q.onnx) will be generated.

Model Inference​

  1. Download Example Inference Code

    git clone https://gitee.com/bianbu/spacemit-demo.git

  2. Navigate to the YOLOv8 Example Directory

    cd spacemit-demo/examples/CV/yolov8

  3. Environment Setup (Example)

Navigate to the Python subdirectory

cd python sudo apt install python3-pip python3-venv

Create and activate a virtual environment

python3 -m venv <venv_name> source name/bin/activate

Install Python dependencies

pip install -r requirements.txt --index-url https://git.spacemit.com/api/v4/projects/33/packages/pypi/simple


4. **Run Inference**

```shell
python test_yolov8.py --model <quantized_model_path> --image <test_image_path>

Example command:

python test_yolov8.py --model ./yolov8n.q.onnx --image ./test_image.jpg

Upon successful execution, the script will typically output a result image (e.g., result.jpg) and print the detected object information to the terminal.
