OpenHarmony
1. Environment
1.1 Computer Hardware Configuration
Recommended hardware configuration for compiling Ubuntu development environment:
- 64-bit CPU
- Ubuntu 18.04, do not use Windows Subsystem (WSL)
- 16GB of RAM
- 80GB free space for compiling
- Normal user to compile, do not use root user to compile
1.2 Computer Software Configuration
Installation packages
sudo apt-get update && \
apt-get install -y apt-utils autoconf bash-completion bc bison build-essential ccache cmake curl cpio debootstrap \
device-tree-compiler dosfstools flex git gperf gnupg libncurses5-dev libgl1-mesa-dev libxml2-utils libssl-dev locales lunzip mtools net-tools parted pkg-config pxz rsync sudo unzip vim wget zip zlib1g-dev \
crossbuild-essential-armhf crossbuild-essential-arm64 python qemu-user-static live-build gcc-arm-none-eabi python-pyelftools liblz4-tool liblz4-dev python3 gawk time texinfo expect \
uuid-dev u-boot-tools && \
apt-get autoclean
sudo apt-get install python3 python3-pip python3-setuptools python3-wheel ninja-build
sudo pip3 install meson
sudo apt install -y ruby ruby-dev autopoint libtool gettext pkg-config automake po4a
sudo apt install -y libelf-dev default-jdk genext2fs mtd-utils scons
2. SDK
购买了Neardi的产品后， 发送邮件到support@neardi.com申请SDK.
2.1 Prepare SDK
-
- 解压HiYearningOH V100R001C01SPCxxx版本HiYearningOH_V100R001C01SPCxxx.tar.gz，得到middleware.tar.gz、patch_build.sh、patch.tar.gz三个文件，将提前下载好的OpenHarmony 4.0代码压缩包文件code-v4.0-Release.tar.gz文件放到同级目录下，执行./patch_build.sh命令，得到ohos目录以及middleware目录。
-
- 将Hi3519D V500R001C01SPC020版本包的SMP_Linux_GCC_musl/01.software/board/Hi3519DV500_SDK_V1.0.2.0.tgz包拷贝到和ohos平级的目录，解压Hi3519DV500_SDK_V1.0.2.0.tgz，并进入Hi3519DV500_SDK_V1.0.2.0目录执行./sdk.unpack
-
- 将Hi3519DV500_SDK_V1.0.2.0目录改名为sdk.
SDK目录结构如下：
linx@ubuntu2204-docker:~/HiYearningOH_V100R001C01SPC011_OH4.0$ tree -L 2
.
├── middleware
│ ├── base.mak
│ ├── cfg.mak
│ ├── chip_base_in.mak
│ ├── common
│ ├── component
│ ├── hi3516dv500_linux_readme_cn.txt
│ ├── hi3516dv500_linux_readme_en.txt
│ ├── Makefile
│ ├── os_base_in.mak
│ ├── platform.mak
│ ├── release_middleware.sh
│ ├── ss928v100_linux_readme_cn.txt
│ └── ss928v100_linux_readme_en.txt
├── ohos
│ ├── applications
│ ├── arkcompiler
│ ├── base
│ ├── build
│ ├── build.py -> build/build_scripts/build.py
│ ├── build.sh -> build/build_scripts/build.sh
│ ├── commonlibrary
│ ├── developtools
│ ├── device
│ ├── docs
│ ├── domains
│ ├── drivers
│ ├── foundation
│ ├── ide
│ ├── interface
│ ├── kernel
│ ├── napi_generator
│ ├── ohos_config.json
│ ├── out
│ ├── prebuilts
│ ├── productdefine
│ ├── test
│ ├── third_party
│ └── vendor
├── sdk
│ ├── open_source
│ ├── package
│ ├── patches
│ ├── platform
│ ├── scripts
│ ├── sdk.cleanup
│ ├── sdk.unpack
│ └── smp
└── toolchain
└── gcc-20240819-aarch64-v01c01-linux-musl
2.2 Build OpenHarmony
2.2.1 Build the kernel
在编译之前， 确保交叉编译工具在系统目录中， 也可以执行下面命令以便确保编译时能找到编译器:
linx@ubuntu1804-docker:~/HiYearningOH_V100R001C01SPC011_OH4.0/toolchain/gcc-20240819-aarch64-v01c01-linux-musl$ sudo ./install_gcc_toolchain.sh
export path /opt/linux/x86-arm/aarch64-v01c01-linux-musl-gcc/bin
安装编译器后， 会在/etc/profile最后导出编译器的路径， 如下：
linx@ubuntu1804-docker:~/HiYearningOH_V100R001C01SPC011_OH4.0$ cat /etc/profile
# /etc/profile: system-wide .profile file for the Bourne shell (sh(1))
# and Bourne compatible shells (bash(1), ksh(1), ash(1), ...).
if [ "${PS1-}" ]; then
if [ "${BASH-}" ] && [ "$BASH" != "/bin/sh" ]; then
# The file bash.bashrc already sets the default PS1.
# PS1='\h:\w\$ '
if [ -f /etc/bash.bashrc ]; then
. /etc/bash.bashrc
fi
else
if [ "`id -u`" -eq 0 ]; then
PS1='# '
else
PS1='$ '
fi
fi
fi
if [ -d /etc/profile.d ]; then
for i in /etc/profile.d/*.sh; do
if [ -r $i ]; then
. $i
fi
done
unset i
fi
# Wed Dec 25 16:53:17 CST 2024
# LiteOS Linux, Cross-Toolchain PATH
export PATH="/opt/linux/x86-arm/aarch64-mix210-linux/bin:$PATH"
#
# Thu Apr 16 15:36:38 CST 2026
# aarch64-v01c01-linux-musl-gcc, Cross-Toolchain PATH
export PATH="/opt/linux/x86-arm/aarch64-v01c01-linux-musl-gcc/bin:$PATH"
#
接下来需要下载linux kernel源代码, 把下载的linux-5.10.221.tar.gz放在sdk/open_source/linux
linx@ubuntu1804-docker:~/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/open_source/linux$ ls
linux-5.10.221.patch linux-5.10.221.tar.gz linux-5.10.y Makefile
最后切换到SDK如下路径HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp, 执行:
linx@ubuntu1804-docker:~/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp$ make BOOT_MEDIA=emmc LIB_TYPE=musl CHIP=hi3519dv500 all
---------task [0.0] toolchain_version_check
---------task [0.1] prepare
mkdir /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/pub/hi3519dv500_emmc_image_musl -p
mkdir /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/pub/bin/board_musl_arm64 -p
mkdir /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/pub/bin/pc -p
---------task [0.2] regbin_prepare
---------TARGET_XLSM: Hi3519DV500-DMEBPLUS_6L_T_LPDDR4X_2933M-2GB_32bit-A55_1G.xlsm
rm /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin -rf
tar xzf /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin-v5.2.18_linux-x86_64.tgz -C /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools
chmod 777 /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin/regbin
cp /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/Hi3519DV500-DMEBPLUS_6L_T_LPDDR4X_2933M-2GB_32bit-A55_1G.xlsm /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin
cd /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin && ./regbin Hi3519DV500-DMEBPLUS_6L_T_LPDDR4X_2933M-2GB_32bit-A55_1G.xlsm hi3519dv500_reg_info.bin -magic 2b8c6e1a1a6e8c2b;cd -
2b8c6e1a1a6e8c2b
V2.1
2026/04/16 15:29:49
Hi3519DV500-DMEBPLUS_6L_T_LPDDR4X_2933M-2GB_32bit-A55_1G.xlsm
Generate regbin file successfully.
/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp
mv /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin/hi3519dv500_reg_info.bin /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools
rm /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/boot_tools/RegBin -rf
---------task [1] build boot64 /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/../../../../open_source/u-boot
make -C /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/../../../../open_source/u-boot CHIP=hi3519dv500 CHIP_FAMILY=hi3519dv500 BOOT_MEDIA=emmc LLVM= LIB_TYPE=musl \
ARCH_TYPE=arm64 all
make[1]: Entering directory '/mnt/data/linx/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/open_source/u-boot'
-------- uboot : u-boot-2022.07
...
DEBUG: ============================================================
DEBUG: Build Boot Image
DEBUG: ------------------------------------------------------------
DEBUG: Input | File
DEBUG: -----------------------------+------------------------------
DEBUG: ree_root_pub_key Area | oem/tmp/ree_root_pub_key_area.bin
DEBUG: tee_root_pub_key Area | oem/tmp/tee_root_pub_key_area.bin
DEBUG: cfct Area | oem/tmp/cfct_area.bin
DEBUG: gsl_key Area | oem/tmp/gsl_key_area.bin
DEBUG: gsl_code_info Area | oem/tmp/gsl_code_and_info_area.bin
DEBUG: ree_boot_key Area | oem/tmp/ree_boot_key_area.bin
DEBUG: boot_params_info Area | oem/tmp/boot_params_and_info_area.bin
DEBUG: ree_boot_code_info Area | oem/tmp/ree_boot_code_and_info_area.bin
DEBUG: ----------------------------------------------------------
INFO : Writing Boot Image to image/oem/boot_image.bin
DEBUG: Done
Done.
~/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp
cp HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/image_tool/image/oem/boot_image.bin /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/pub/hi3519dv500_emmc_image_musl/boot_image.bin;
---------finish osdrv work
---------task [12] build u-boot env
make -C /HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/uboot_env ENVTXT=/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/uboot_env/env_text/hi3519dv500/emmc_env.txt
make[1]: Entering directory '/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/uboot_env'
Generate env.bin
Generate burn_table.xml
make[1]: Leaving directory '/HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/tools/pc/uboot_env'
2.2.2 Build the OpenHarmony
进入SDK/ohos目录，执行./build.sh --product-name=ipcamera_hispark_hi3519dv500_linux --ccache:
wumingfeng@ubuntu1804-docker:~/hisi/openharmony011/HiYearningOH_V100R001C01SPC011_OH4.0/ohos$ ./build.sh --product-name=ipcamera_hispark_hi3519dv500_linux --ccache
++++++++++++++++++++++++++++++++++++++++
The system shell is bash 4.4.20(1)-release
++++++++++++++++++++++++++++++++++++++++
2026-04-16 16:15:47
--product-name=ipcamera_hispark_hi3519dv500_linux --ccache
Current Node.js version is v14.21.1
Node.js version check passed
lockfile=false
gcc-arm-linux-gnueabi is not installed. please install it.
Missing dependencies, please check!
[OHOS INFO] Set cache size limit to 100.0 GB
...
[OHOS INFO] ---------------------------------------------
[OHOS INFO] c targets overlap rate statistics
[OHOS INFO] subsystem files NO. percentage builds NO. percentage overlap rate
[OHOS INFO] ability 81 1.6% 81 1.6% 1.00
[OHOS INFO] applications 3 0.1% 3 0.1% 1.00
[OHOS INFO] arkui 227 4.4% 227 4.4% 1.00
[OHOS INFO] bundlemanager 38 0.7% 38 0.7% 1.00
[OHOS INFO] commonlibrary 11 0.2% 11 0.2% 1.00
[OHOS INFO] communication 333 6.4% 333 6.4% 1.00
[OHOS INFO] developtools 7 0.1% 7 0.1% 1.00
[OHOS INFO] distributeddatamgr 2 0.0% 2 0.0% 1.00
[OHOS INFO] distributedhardware 53 1.0% 53 1.0% 1.00
[OHOS INFO] global 17 0.3% 17 0.3% 1.00
[OHOS INFO] graphic 36 0.7% 36 0.7% 1.00
[OHOS INFO] hdf 70 1.4% 70 1.4% 1.00
[OHOS INFO] hiviewdfx 65 1.3% 65 1.3% 1.00
[OHOS INFO] multimedia 19 0.4% 19 0.4% 1.00
[OHOS INFO] powermgr 20 0.4% 20 0.4% 1.00
[OHOS INFO] security 318 6.2% 318 6.2% 1.00
[OHOS INFO] startup 78 1.5% 78 1.5% 1.00
[OHOS INFO] systemabilitymgr 25 0.5% 25 0.5% 1.00
[OHOS INFO] test 35 0.7% 35 0.7% 1.00
[OHOS INFO] thirdparty 3427 66.4% 3427 66.4% 1.00
[OHOS INFO] window 19 0.4% 19 0.4% 1.00
[OHOS INFO] xts 35 0.7% 35 0.7% 1.00
[OHOS INFO]
[OHOS INFO] c overall build overlap rate: 1.00
[OHOS INFO]
[OHOS INFO]
[OHOS INFO] ipcamera_hispark_hi3519dv500_linux build success
[OHOS INFO] Cost time: 0:01:19
=====build successful=====
生成的镜像在out/hispark_hi3519dv500/ipcamera_hispark_hi3519dv500_linux目录, 同时会生成下载emmc_burn_table.xml配置文件， 如下：
<Partition_Info>
<Part Sel="1" PartitionName="boot" FlashType="emmc" FileSystem="none" Start="0x0" Length="0x80000" SelectFile="boot_image.bin" />
<Part Sel="1" PartitionName="env" FlashType="emmc" FileSystem="none" Start="0x80000" Length="0x80000" SelectFile="emmc_env.bin" />
<Part Sel="1" PartitionName="bl31" FlashType="emmc" FileSystem="none" Start="0x100000" Length="0x80000" SelectFile="bl31.bin" />
<Part Sel="1" PartitionName="kernel" FlashType="emmc" FileSystem="none" Start="0x180000" Length="0xd00000" SelectFile="uImage-fdt" />
<Part Sel="1" PartitionName="rootfs" FlashType="emmc" FileSystem="ext4" Start="0xe80000" Length="0x6000000" SelectFile="rootfs_ext4.img" />
<Part Sel="1" PartitionName="userdata" FlashType="emmc" FileSystem="ext4" Start="0x6e80000" Length="0xa00000" SelectFile="userdata_ext4.img" />
</Partition_Info>
3. Build for different DDR size
由于海思SDK对DDR的配置是通过excel表格， 不同DDR大小是由不同的excel表格来设定， 此excel配置在HiYearningOH_V100R001C01SPC011_OH4.0/sdk/smp/a55_linux/source/bsp/Makefile, 如下：
ifeq ($(CHIP),hi3519dv500)
#REGBIN_XLSM ?=Hi3519DV500-DMEBPLUS_6L_T_LPDDR4_2933M-2GB_32bit-A55_1G.xlsm
#REGBIN_XLSM ?=Hi3519DV500-DMEB_6L_T_DDR4_2666M-2GB_16bitx2-A55_1G.xlsm
REGBIN_XLSM ?=Hi3519DV500-DMEBPLUS_6L_T_LPDDR4X_2933M-2GB_32bit-A55_1G.xlsm
else ifeq ($(CHIP),hi3516dv500)
REGBIN_XLSM ?=Hi3516DV500-DMEBPLUS_6L_T_LPDDR4X_2400M-1GB_32bit-A55_850M.xlsm
else
$(error you must set valid CHIP: hi3519dv500 | hi3516dv500)
endif
不同大小的DDR, 在此选择对应的excel表格即可。
4. Download OpenHarmony

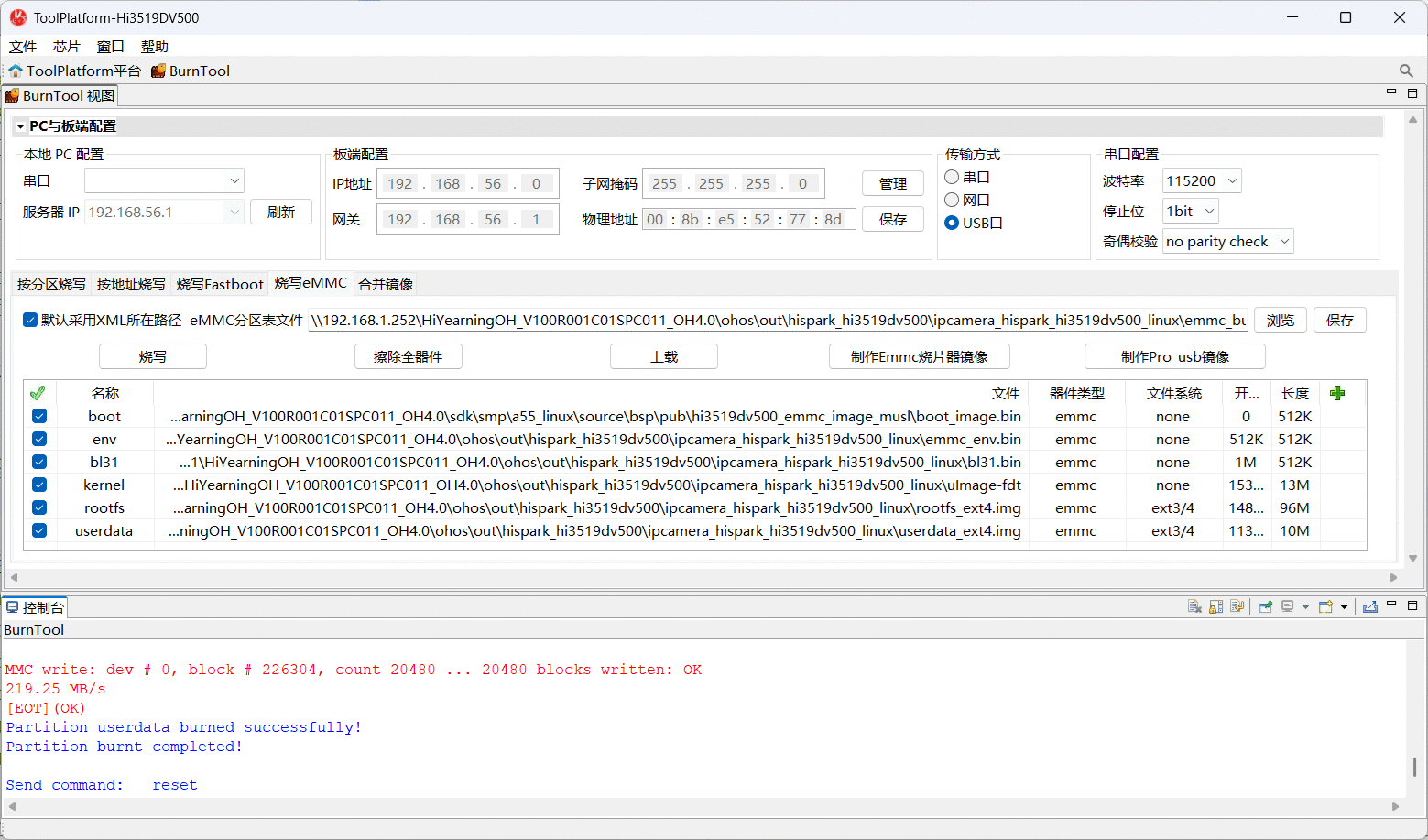

下载镜像之前， 需要先获取下载工具及安装USB驱动， 请参考upgraded。加载emmc_burn_table.xml， 如下：
系统起来后， 可以查看版本信息， 如下：
# cat /system/etc/param/ohos.para
# Copyright (c) 2021 Huawei Device Co., Ltd.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
const.actionable_compatible_property.enabled=false
const.postinstall.fstab.prefix=/system
const.secure=0
security.perf_harden=1
const.allow.mock.location=0
const.debuggable=1
const.sandbox=enable
const.product.devicetype=default
const.product.incremental.version=default
const.product.build.type=release:nolog
const.product.build.user=default
const.product.build.host=default
const.product.build.date=default
const.ohos.buildroothash=default
const.product.cmcversion=YearningOH_SPC011
